Description:

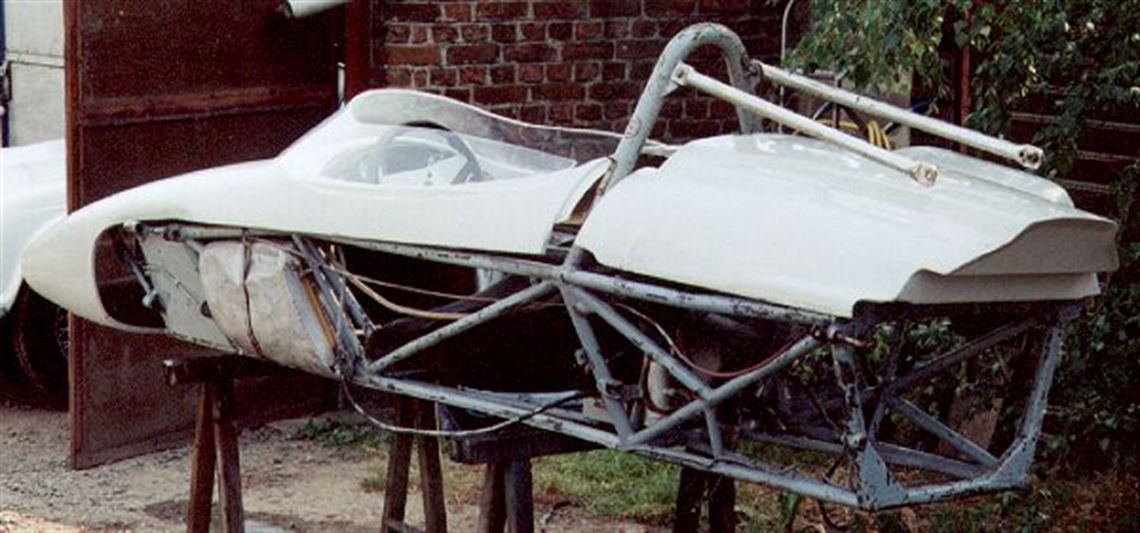

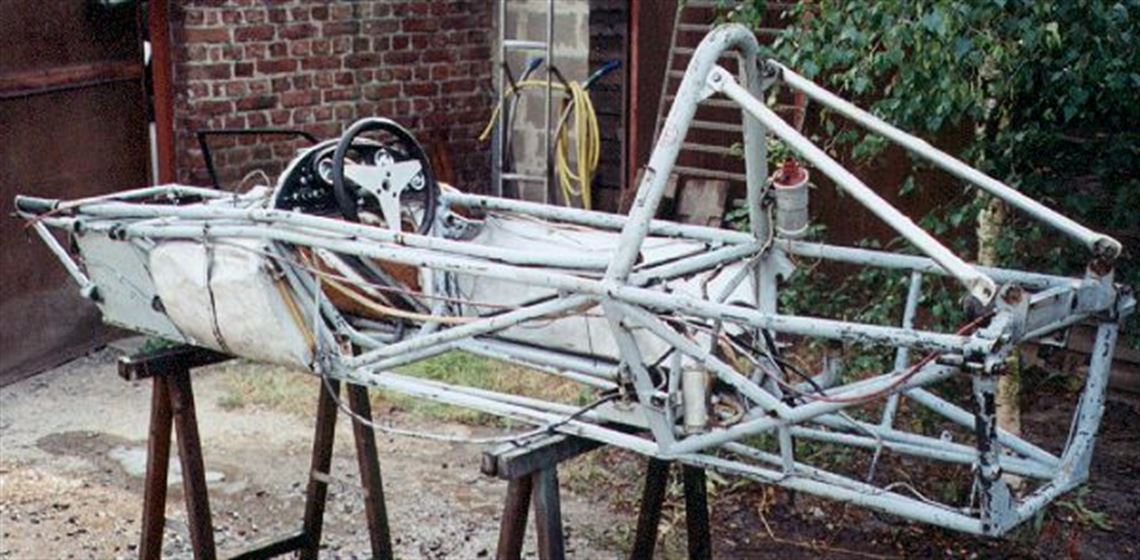

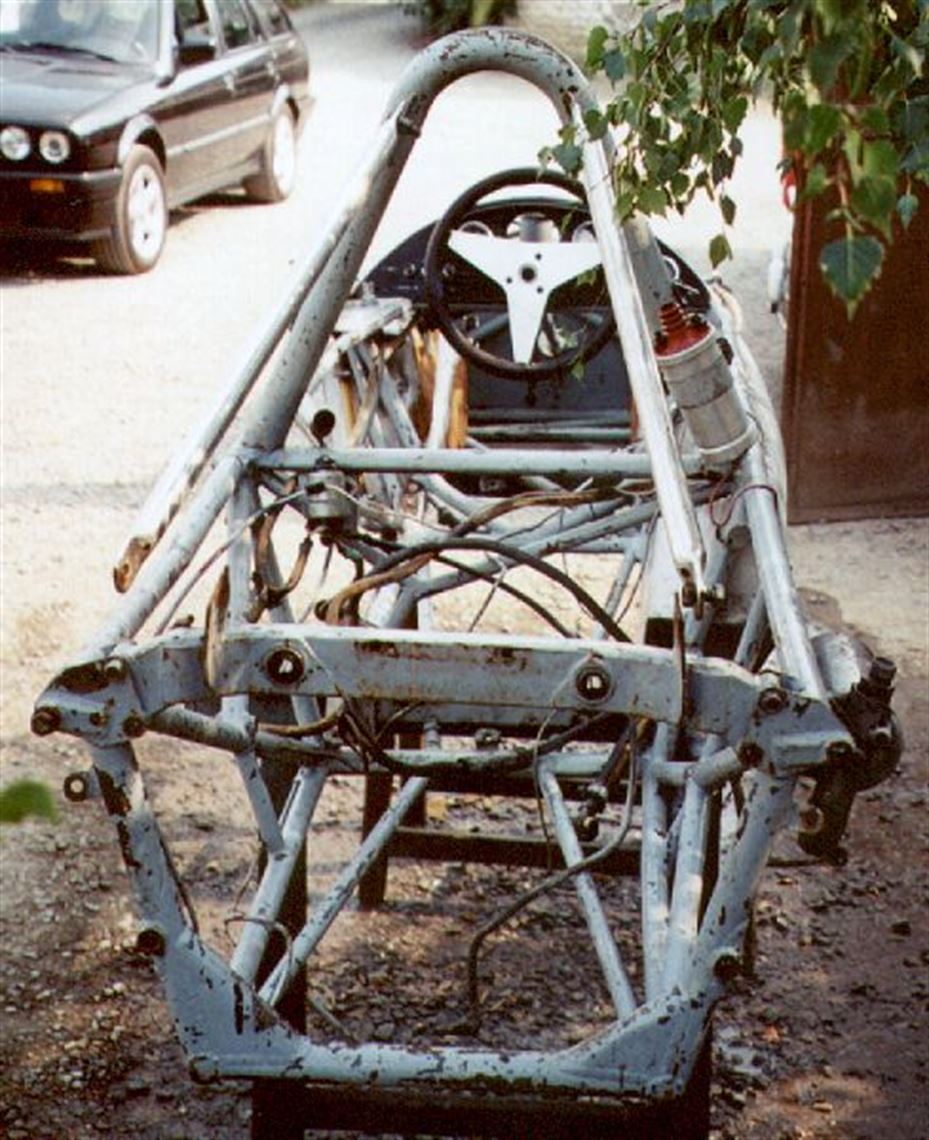

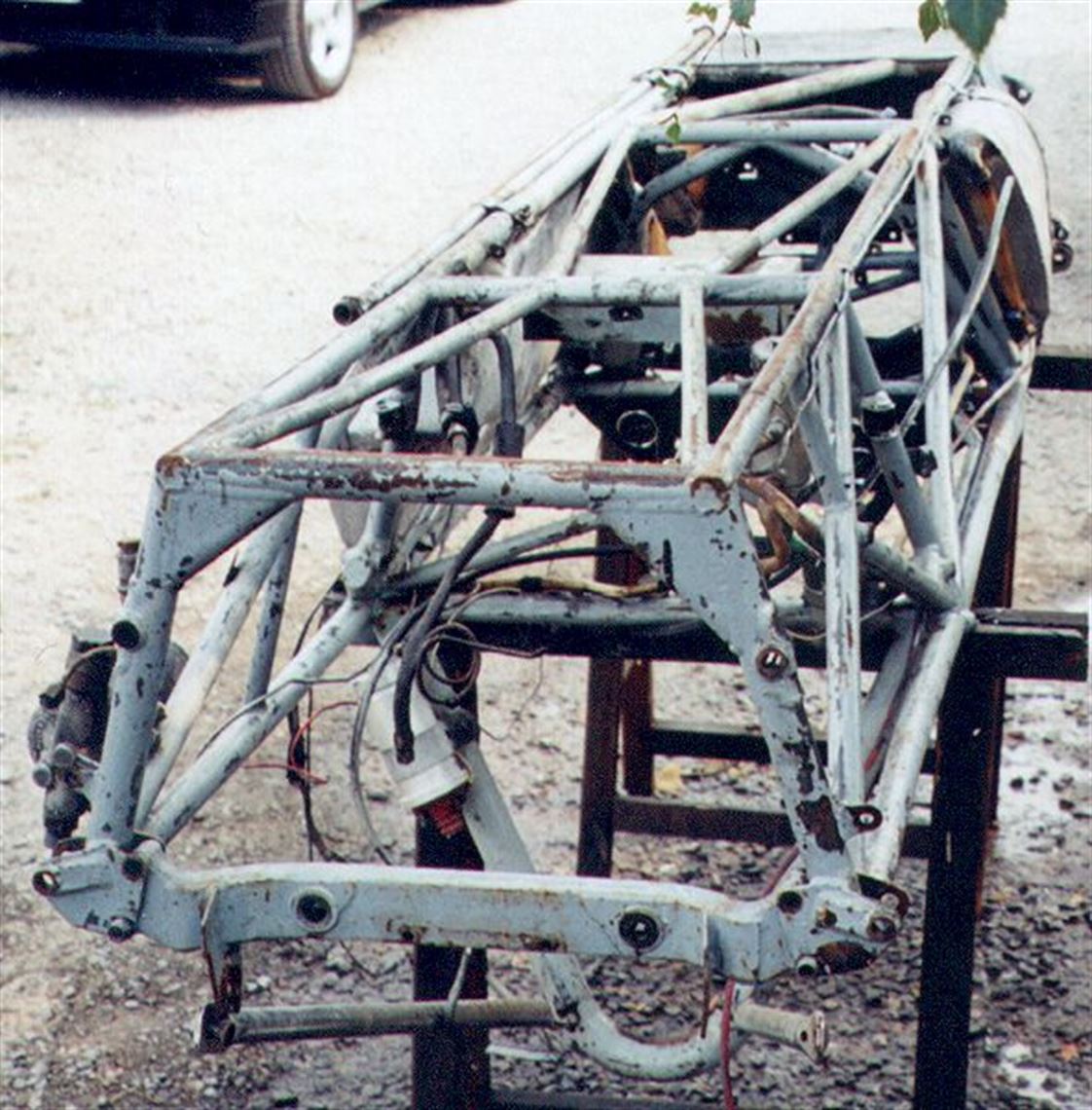

The space frame is in quite original and straight condition, still
with some of the original paint. It might need the odd tube replaced.

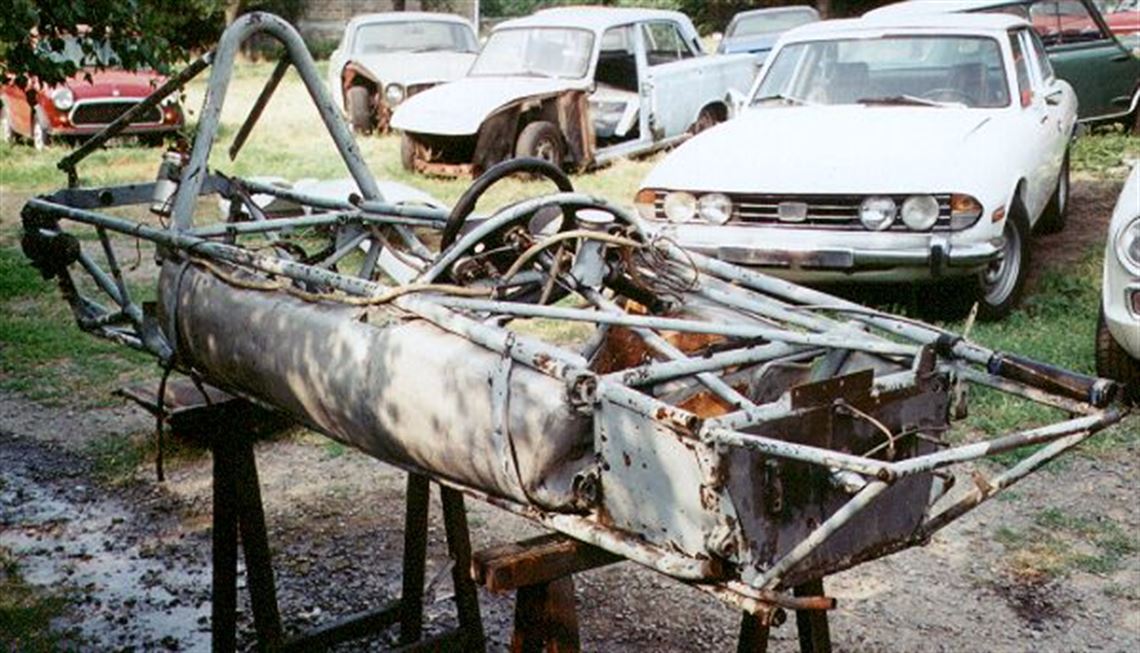

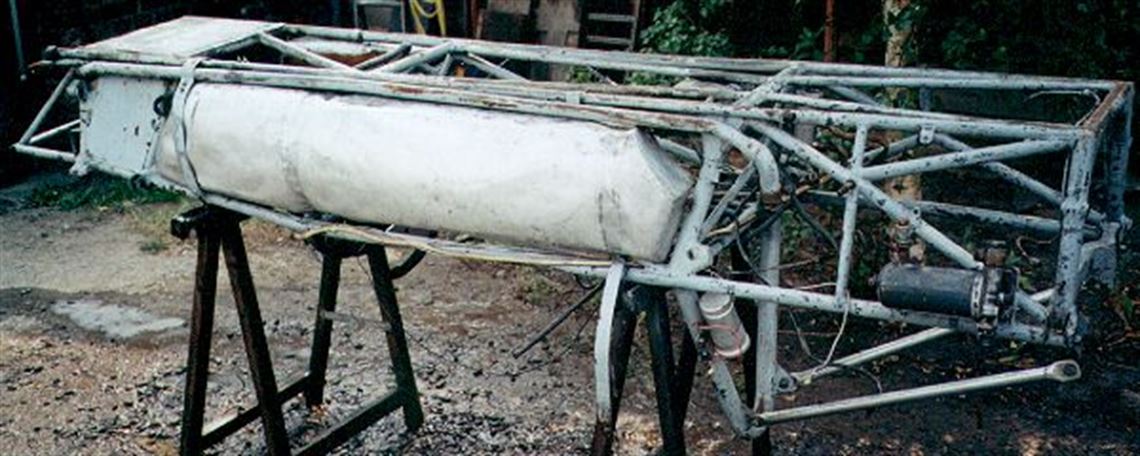

The 2 fuel tanks are still there, installed on either side of the cockpit

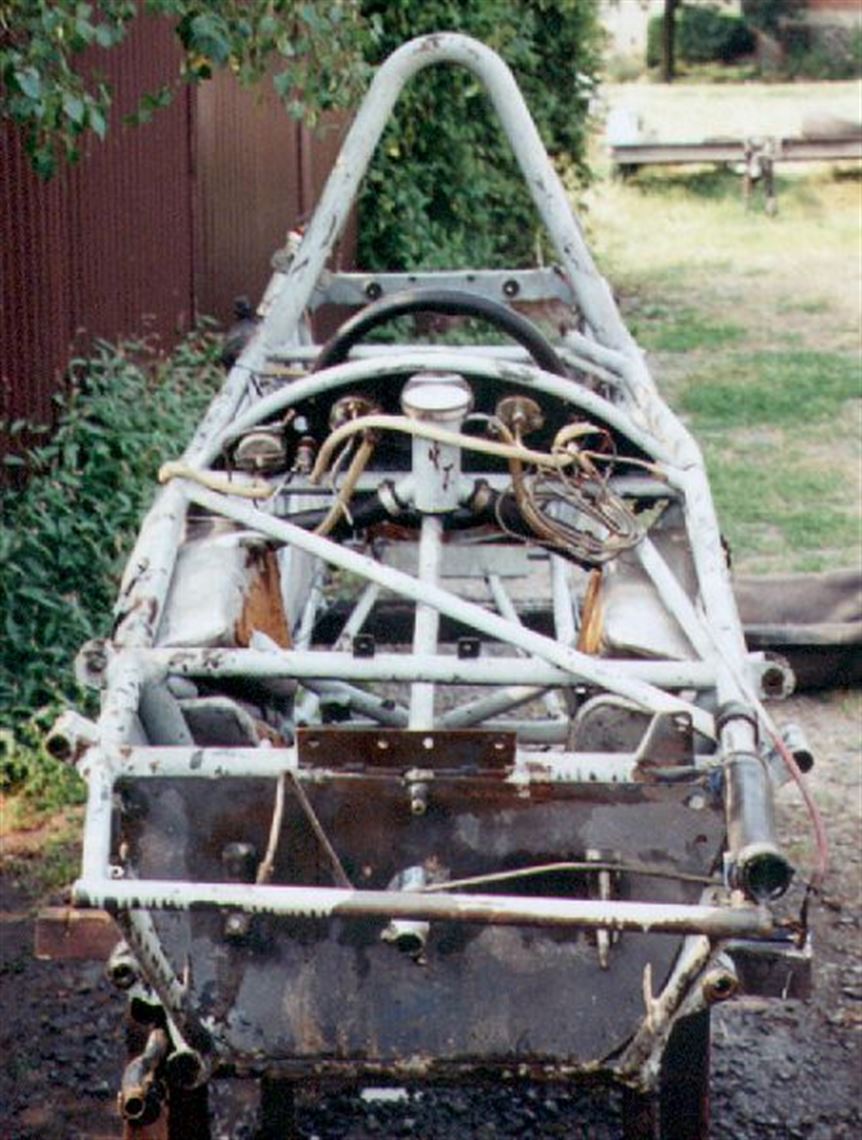

with the filler in front of the cockpit. The dashboard is there with guages
save rev counter.

History

This car ran a 1 litre SCA in 1965. It also ran in F3 with an MAE.
As you may know, two BT16s ran as F1s in '65 with 1500 twin cams.

Engine

• none

• would have run SCA in F2, MAE in F3, or 1500 Twinc in F1


Fuel System

• original alloy tanks and filler bridge


Oil/Water System

• original rad


Electrical System

• electrical harness and many ancillaries still in place


Body

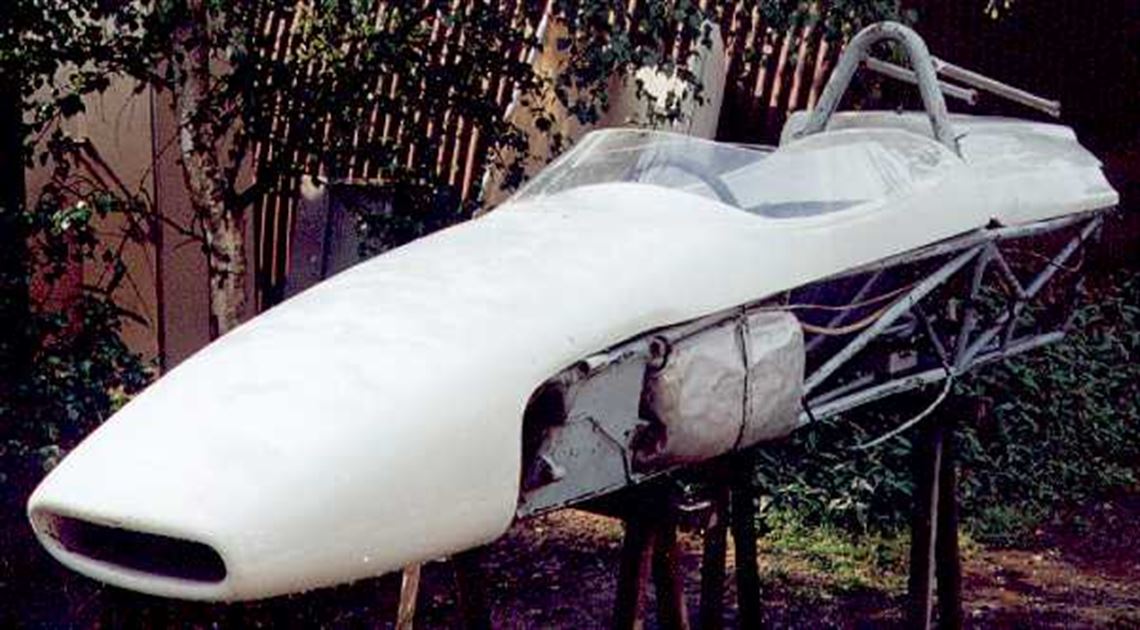

• new fibreglass nose and BT14 twincam tail cover

• new screen


Chassis

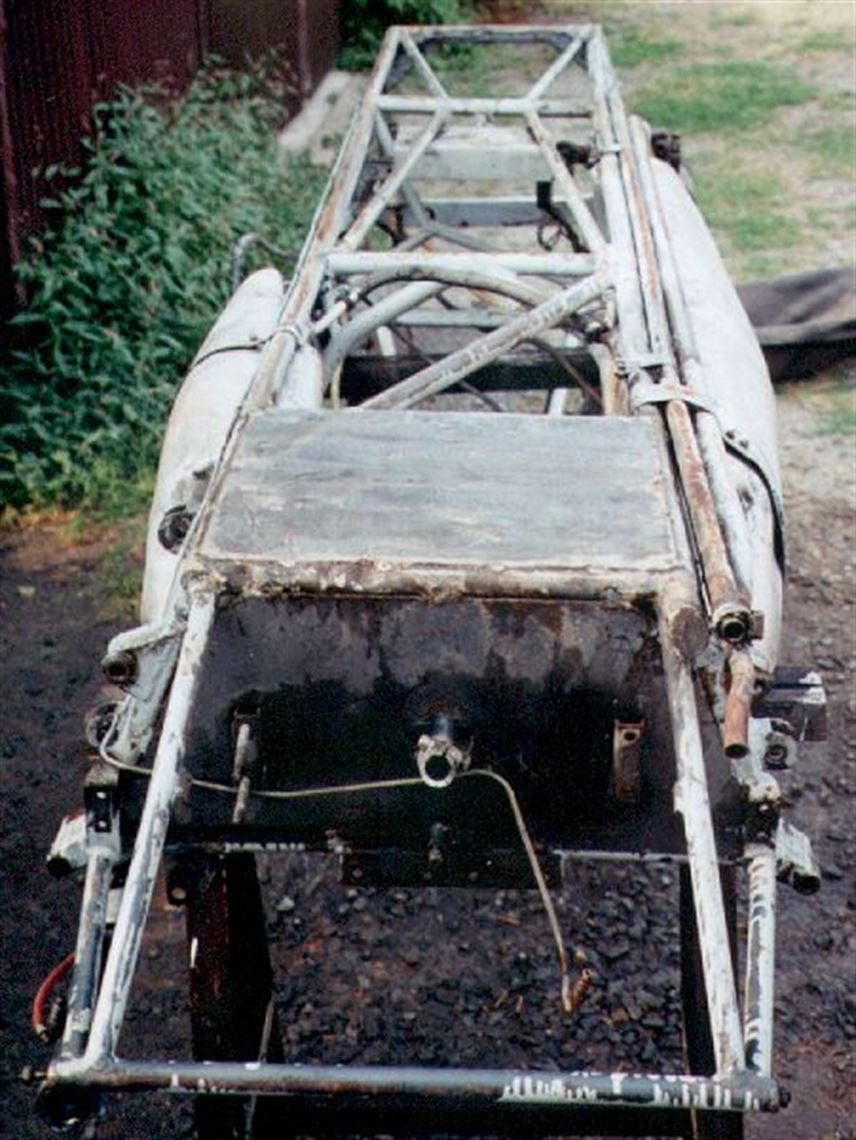

• multitubular space frame, original, light damage

• one indeterminate make

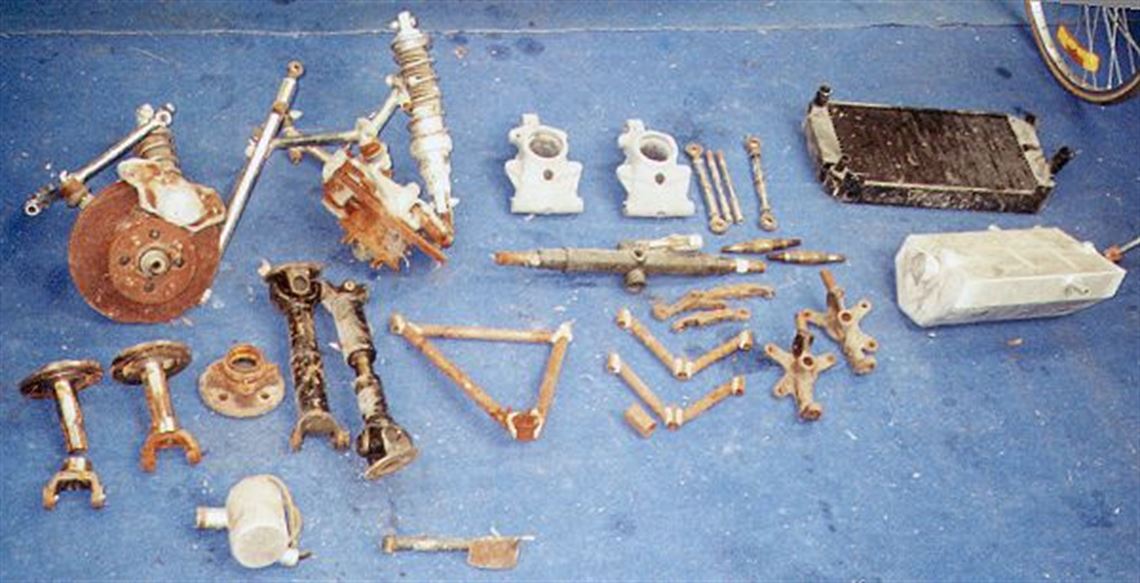

• dual wishbone, coil over

• top link, lower reversed a-arm, dual trailing rods, coil over

• proprietary rack, with car

• four wheel disc, missing rears

• none


Interior

• original dash and instruments save tacho


Spares

• none
