Description:

Car is in excellent race ready condition. It is very similar to the popular R and S or Rocketsports chassis. Car was fabricated in Canada. All steel tubing has been TIG welded. Cage is chrome moly. The engine is 358 cu. in using the 14 degree Pro Action cylinder head. Compression was kept to 12.0 to 1.0 to be legal for SCCA GT1. Exhaust is stainless steel using merge technology in the collectors. The 4 spd Jerico tranny is light weight and very reliable. We have been a jerico distributer for many years and can attest to their relibility. The rear end is a ford 9" with a steel fabricated housing. Rear camber is set at 1 deg using a double splined adaptor. 3 link suspension controls the rear, and is fully adjustable. The interior has full guage set. The anti-roll bars are cockpit adjustable f. and r. Lexan in front and back. Includes spare front windshield c/w mounted wiper and clip-in power connection. Brakes are Brembo 4 pot, rotors are coleman directional veined and ducted for cooling. Water mister set is included for high braking races like street courses. Bias adjuster in cockpit. Body work is by Derhaag and rear wing is TA spec aluminum. All bodywork, weights and dimensions are complient with SCCA GT1 etc. Car raced in Trans Am in 03,04 and 05. Raced also in AGT. Series champion in 04. All components, both large and small are in excellent condition. Only the best pcs. have been applied. We will offer the purchaser all of our set up notes and techniques.


History

Built in Canada by famed chassis builder "LJ chassis" in 2001. Modified in 2002 by LJ and Webster racing. Raced GT1, Trans Am, laterly AGT.

Competition History

Winner in CCGTC, AGT, SCCA National GT1. Many poles. Always considered car to be a podium contender.
Performance Data

• TA/GT1/AGT

• 2625 lbs

• qualify Mosport 06, 2 tenths off track reco

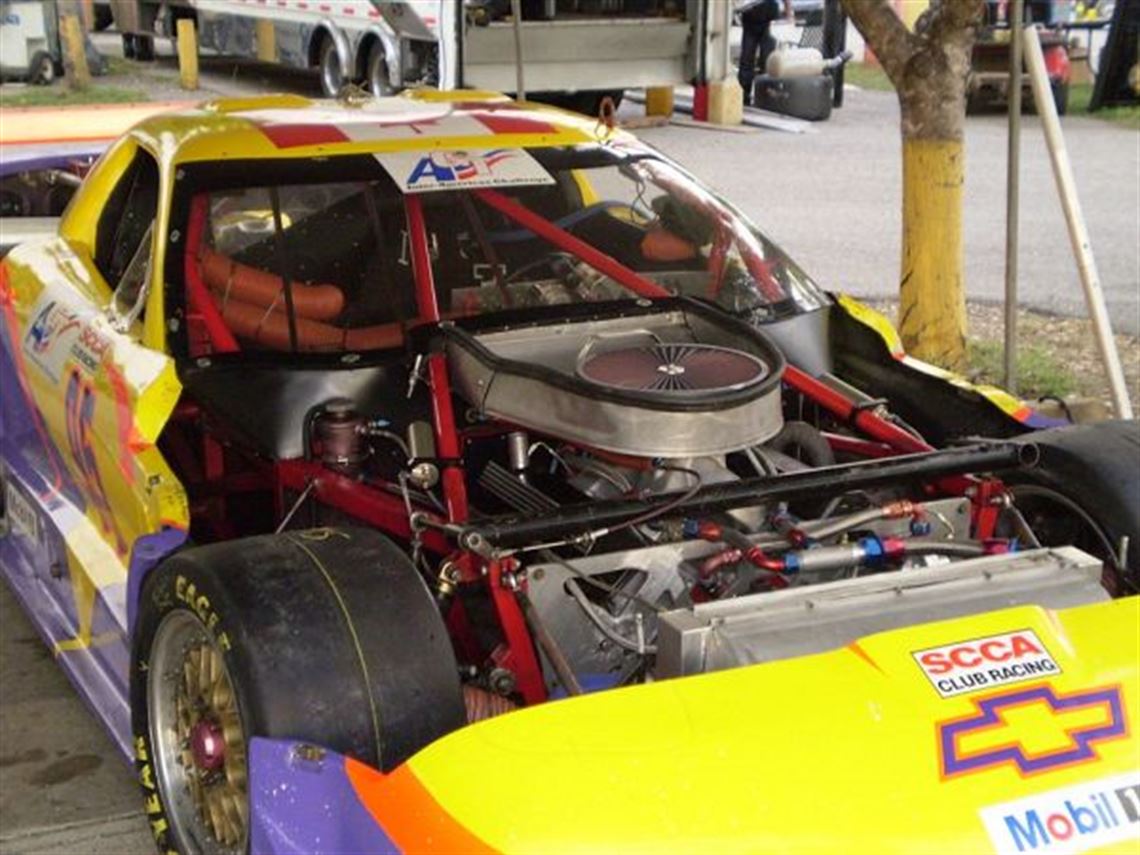

Engine

• CJ Webster

• Chev.

• push rod V8

• 358

• 670-720

• 530

• 2 pc mag, intake, Quick fuels, Braswell 830 cfm mod Holly

• 14 deg. Pro Action

• GM Bow tie, 4.125 bore

• steel

• 4340 Lunati, sm. journal, 3.335 str.

• Steel 6.125

• JE 12 to 1 alum. floating pin

• Comp Cams/Wegner

• Titanium, int 2.125, ex 1.60

• Jessel roller rockers, Isky lifters.

• Tilton ULGC 5.5, 3 disc

• Tilton

• Tilton steel lightweight

• 3

• 1.5 hrs.

• 1

• Full race motor with the best parts. Inquire for more details.


Fuel System

•

• Fuel safe

• 7 years

• 32 USG

• Holly blue

• 110-112 OCTANE


Oil/Water System

• Aluminum, Ron Davis

• front of engine

• Aluminum, Coleman adjustable

• Aluminum, water to oil, Ron Davis

• External on floor near rad


Electrical System

• MSD 6T, soft touch rev. control

• Chrysler, mounted to diff.

• Optima

• Corsa


Transmission

• Jerico

• 4 spd race, aluminum, magnesium

• 4 forward, 1 rev.

• Hurst super shifter

• Aluminum

• 5 races

• Straight cut gears, clutchless shifting


Rear End

• LJ Chassis

• Ford 9

• Aluminum

• many sets

• Aluminum

• Torsen Gleeson

• Winters

• 1 race

• Have Detroit Lockers as spares


Body

• Derhaag C5, carbon kevlar, fiberglass

• Blue, Yellow and red

• 2 part , base coat - clear coat

• Very good

• Roof vents and hood louvers added

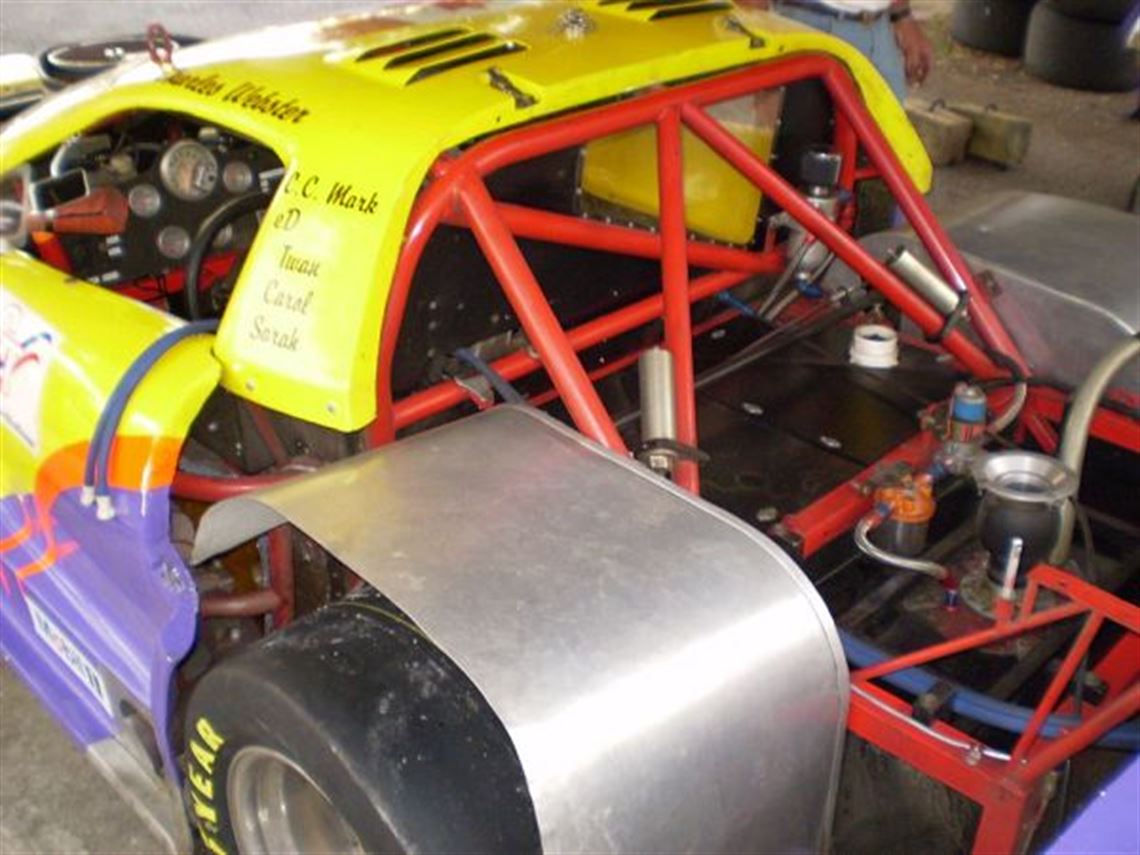

Chassis

• LJ Chassis, Webster racing

• Mild steel and chrome moly

• red paint, black powder coat. susp

• excellent

• double A arm, adjust. powder coated, excellent

• 3 link, black paint, excellent

• Penske 3 way adjust. coilovers, new 2000, rebuilt 07

• Brembo 4 pot front and rear

• sweet rack and pin, pump and servo

• BBS 12

• Goodyear radials or bias ply, rains


Interior

• black anodized aluminum

• aluminum

• 10 lb. bottle, halon, 2 nozzles

• full 5 point harness with Hans dev.

• Autometer, tach, oil press, oil temp, water temp, fuel press

• Coleman removable

• excellent


Spares

• 1 - 4 spd. Jerico

• 2 sets spare wheels, all mounted, rain tires

• many spring sets. spare anti roll bar

• Tilton 5.5

• brake pads, rotors, seals etc.

• complete nose, floor and frame

• radiator, rear gear sets, suspension pts .

• many engine parts, heads, block etc.
