Description:

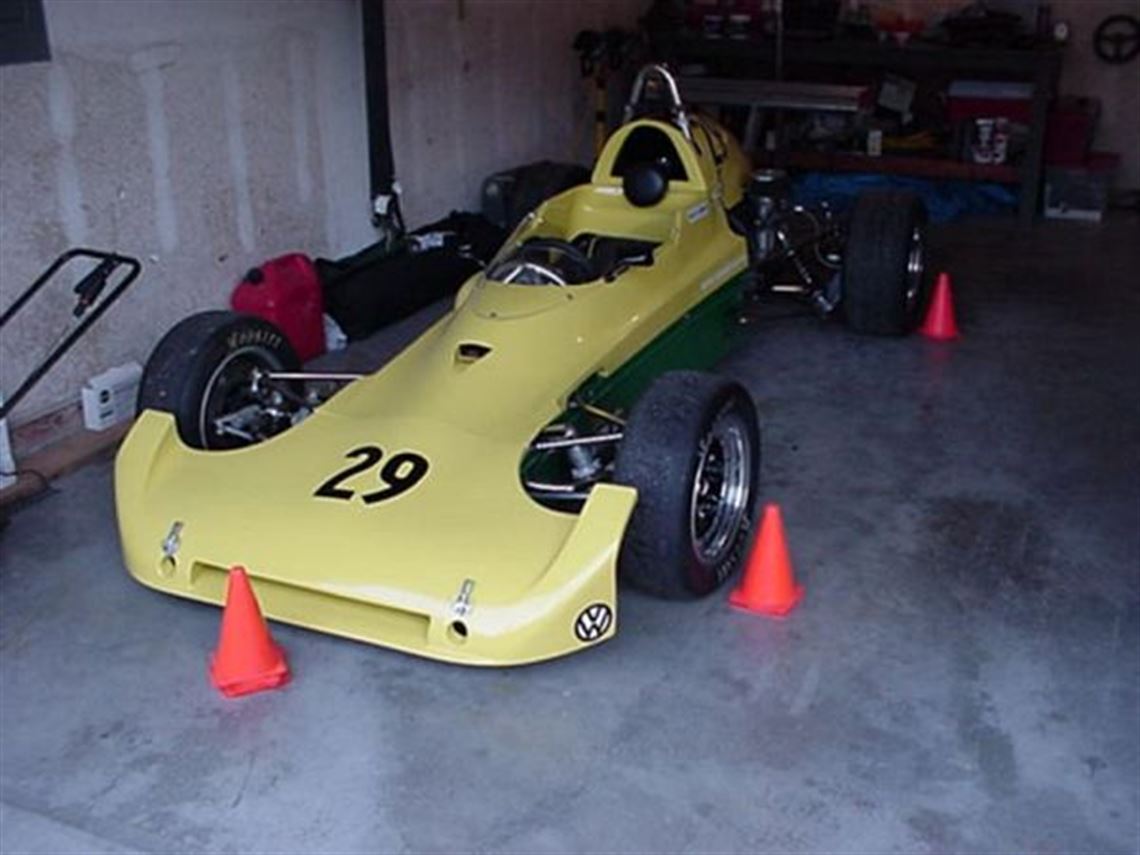

This historic Super Vee was just restored, and has been spared no expense! Air-cooled T324, monocoque chassis, one recent race, (VARA Buttonwillow - May 04'). Tech entry in the latest SCCA logbook. All suspension parts replated by Queen City Plating in Mukilteo, Washington. Suspension set up by Speedware in Seattle. Quick, and the best bang for the buck! Race with the big boys for a reasonable price!


History

(3) SCCA logbooks. Carl Haas as original importer of course. First logbook entry as 05/22/76 by David Hansen, then Blackhawk,R.A. Gold Cup,Irp National,VW Gold Cup Watkins Glen and on and on; all East coast racing throughout logbooks. Owners as; Tom Grunnah,Phil Rosette,Harley Cliff,Barry Hauf,Don Giovanoni,Bob Maytell,Alan Smith,David Kustenbaker,Robert McElheny. Have some factory drawings, and historical data.

Competition History

Still holds the 1995 Chimney Rock Hillclimb record for the SCCA "FC" class. Records at Gratten and Watkins Glen. Held first and second in SCCA Gold Cup when newer!
Performance Data

• FSV

• 800 lbs


Engine

• Volkswagen

• VW - reconditioned case.

• Air-Cooled Type IV as original.

• 1700cc +

• 200

• Dual Webers.

• 1800cc New heads.

• VW

• German main bearings.

• Balanced, German rod bearings.

• JE Billet Pistons

• solid rocker/chromoly pushrods

• Type 411 Race clutch

• 2hrs.

• Tech data slim from builder. Flow Bench tested,balanced & blueprinted.


Fuel System

•

• Fuelsafe /warr. card here too!

• New

• 8gals

• Unocal/VP 110 octane leaded.


Oil/Water System

• n.a.

• n.a

• Oil cooler relocated up front.

• Front mount as original factory delivery.


Electrical System

• Compu-Fire DIX6 - 65,000 volts.

• n/a.

• New 33amp SBS RG type.

• n/a

• n.a


Transmission

• Volkswagen as original.

• VW case as original.

• Hewland MK 8/9.

• 4-speed w/reverse as original.

• No trans. cooler.

• Hewland sent out for service at time of resto. Seals replaced as is expected.


Rear End

• VW/Hewland

• VW case w/correct Hewland MK 8/9.

• No trans. cooler.

• VW

• Hewland MK 8/9.


Body

• Fiberglass panels (3) new nose piece from England - original part.

• Yellow

• Newly painted w/clearcoat.

• Excellent!

• Top three panels painted two months ago.

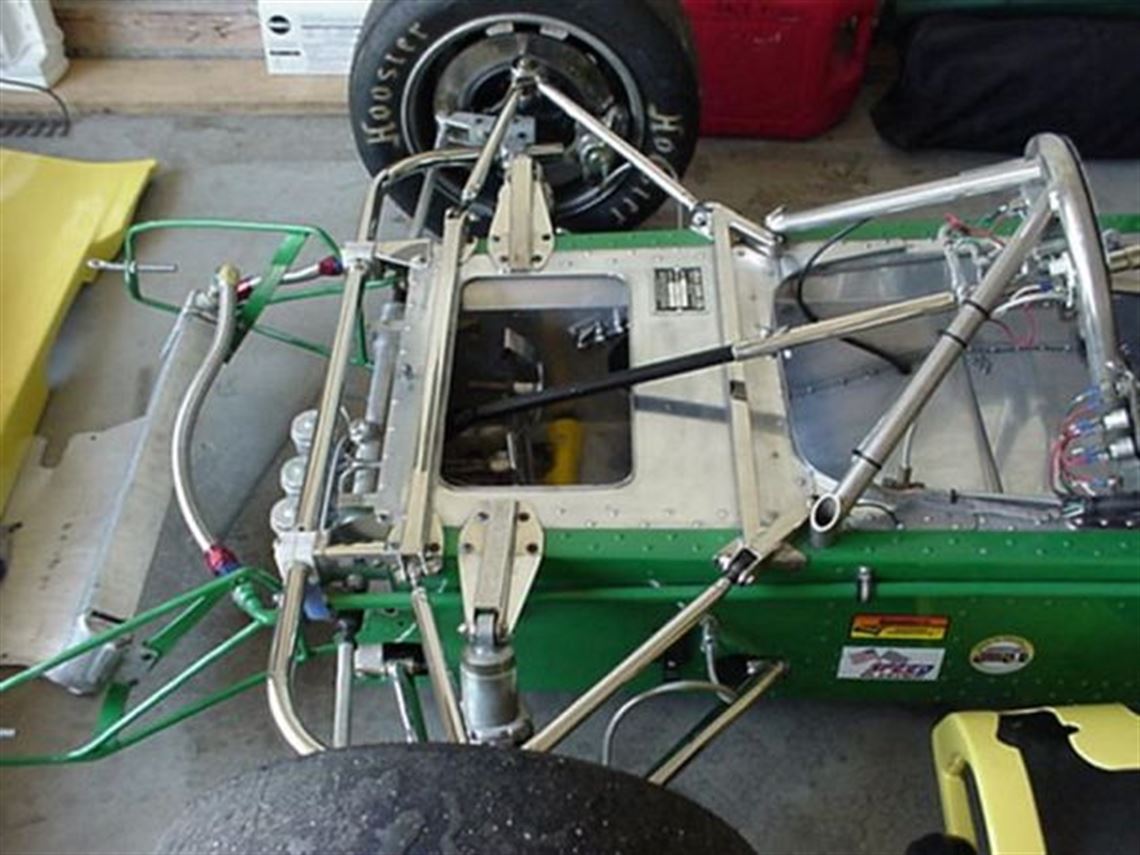

Chassis

• monocoque

• Lola

• Aluminum

• Aluminum

• Excellent!

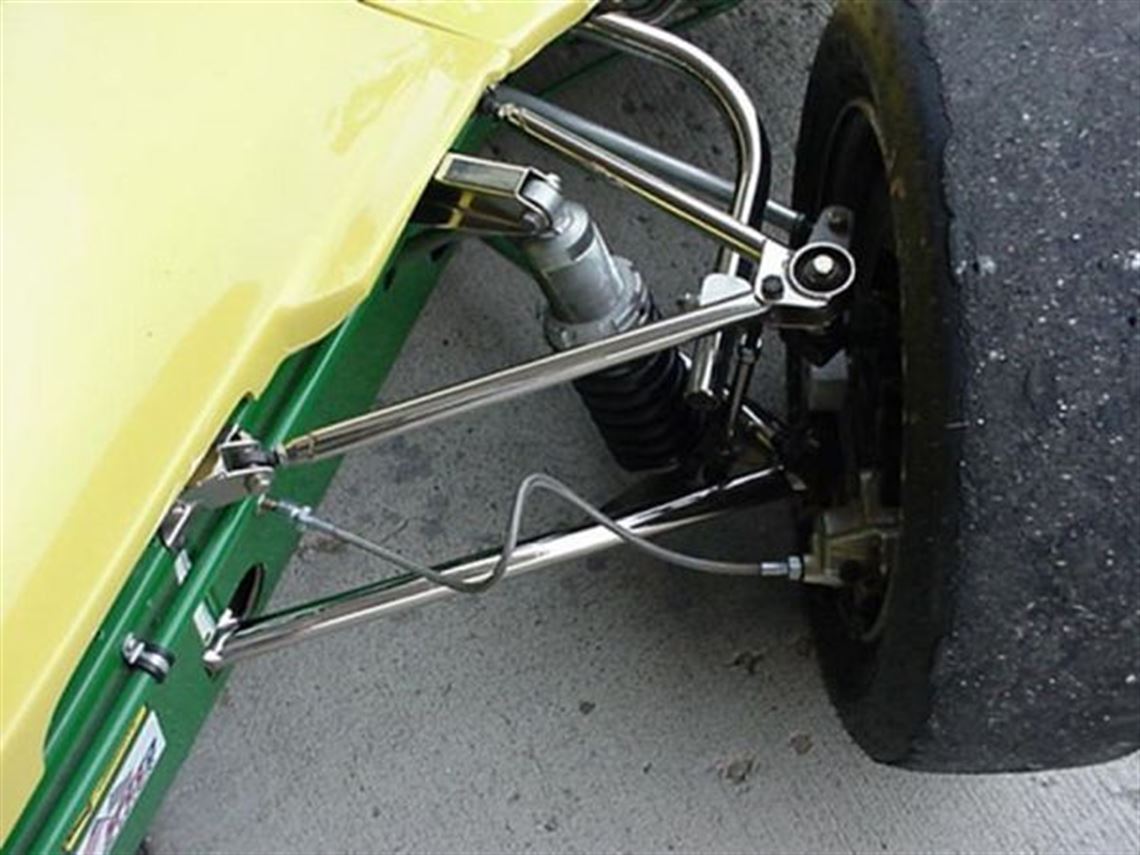

• Unequal Wishbones

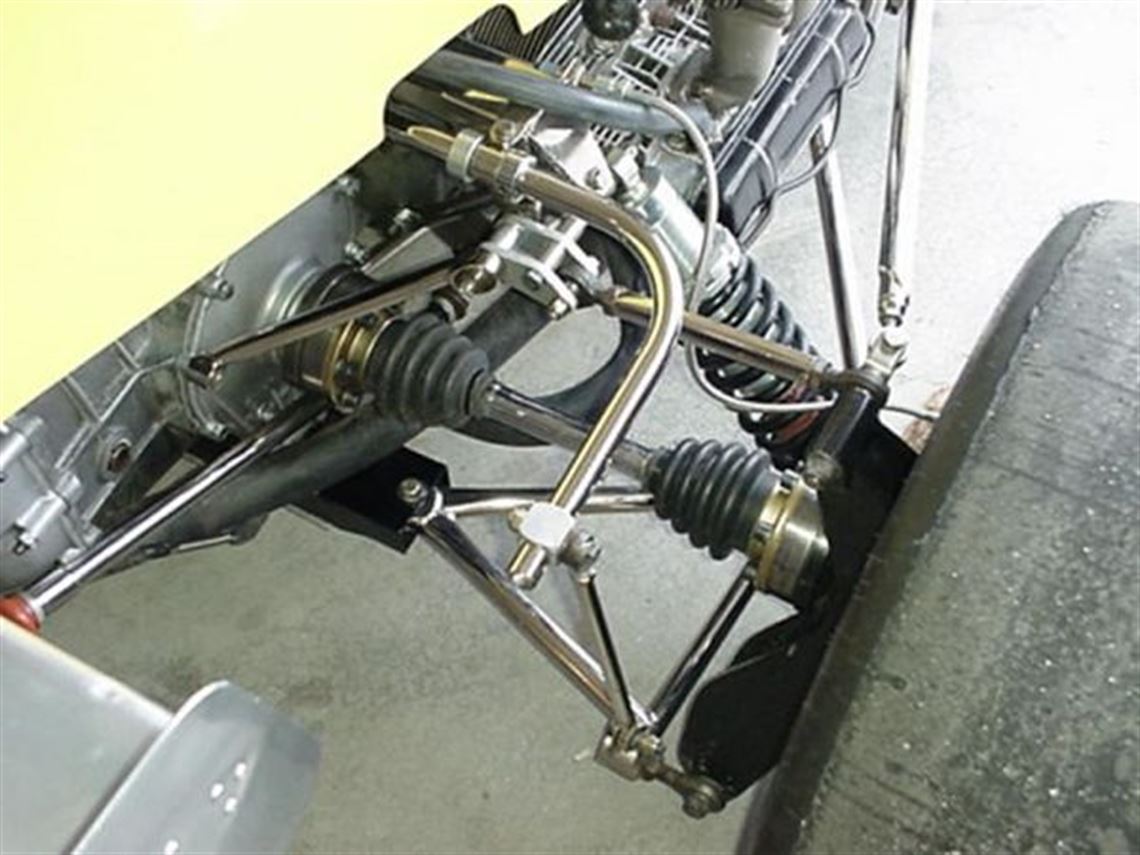

• Top Link - Twin Rad Rods, Lower Wishbone.

• New Bilstein all around; Contacted the Lola factory for the correct original part numbers.

• New VW with all new lines and pads.

• Original Lola rack; adj.

• Panasports; centers just powdercoated black.

• Hoosiers; one race old.


Interior

• Aluminum tub w/fabric seat back.

• Just recovered; black/with yellow piping.

• fully charged; dash activated.

• 2-month old "Crow"tm.

• Oil Pressure, Tachometer, Temp. guage.

• Mountney Leather

• Excellent!


Spares

• several gear sets available.
