Description:

This very original car including original engine, gearbox, and body was restored in 1989.
It has only participated in 8 events since that time. The owner states that the only need of the car
would be a fire system and fresh tires.


History

There is non documented history of this car which is as follows; After being raced in England in the first
Formula Ford series, this car was raced in California by a doctor in the new SCCA (1969) Formula Ford class
and later, it was raced in the mid-west. In 1984 it was brought back to California.

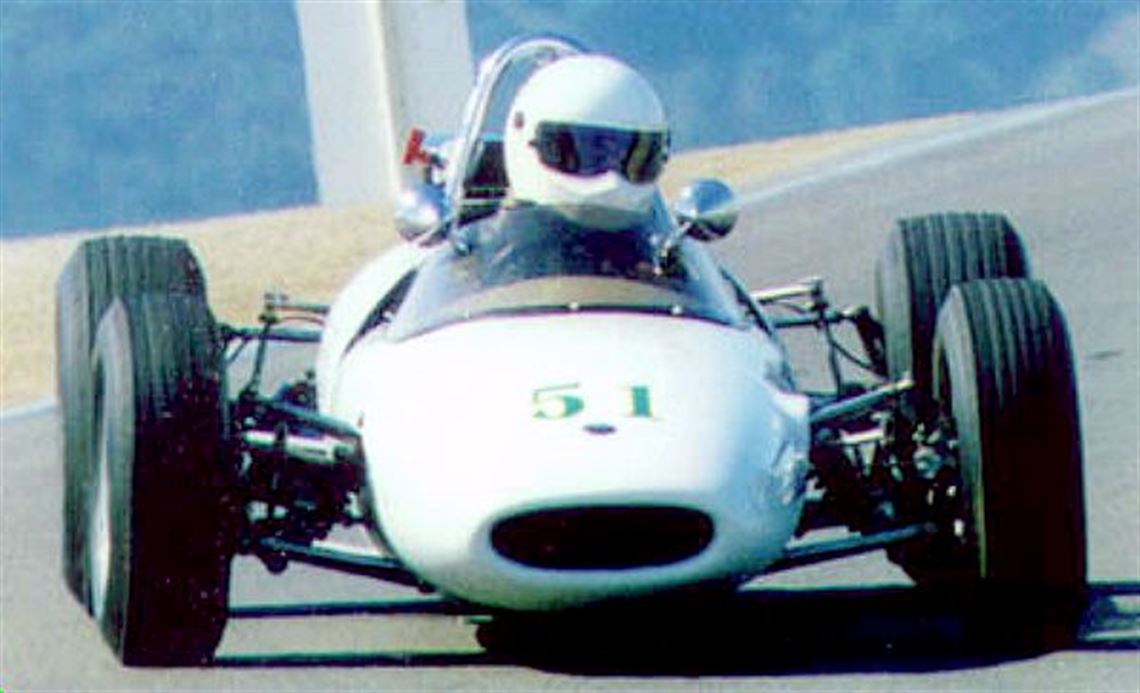

Competition History

There are only eight events on this restoration. The two most notable events it has participated in are:
the 20th Anniversary of Formula Ford organized by the SCCA at Willow Springs in March of 1989 and; the
1995 Monterey Historic Automobile Races.

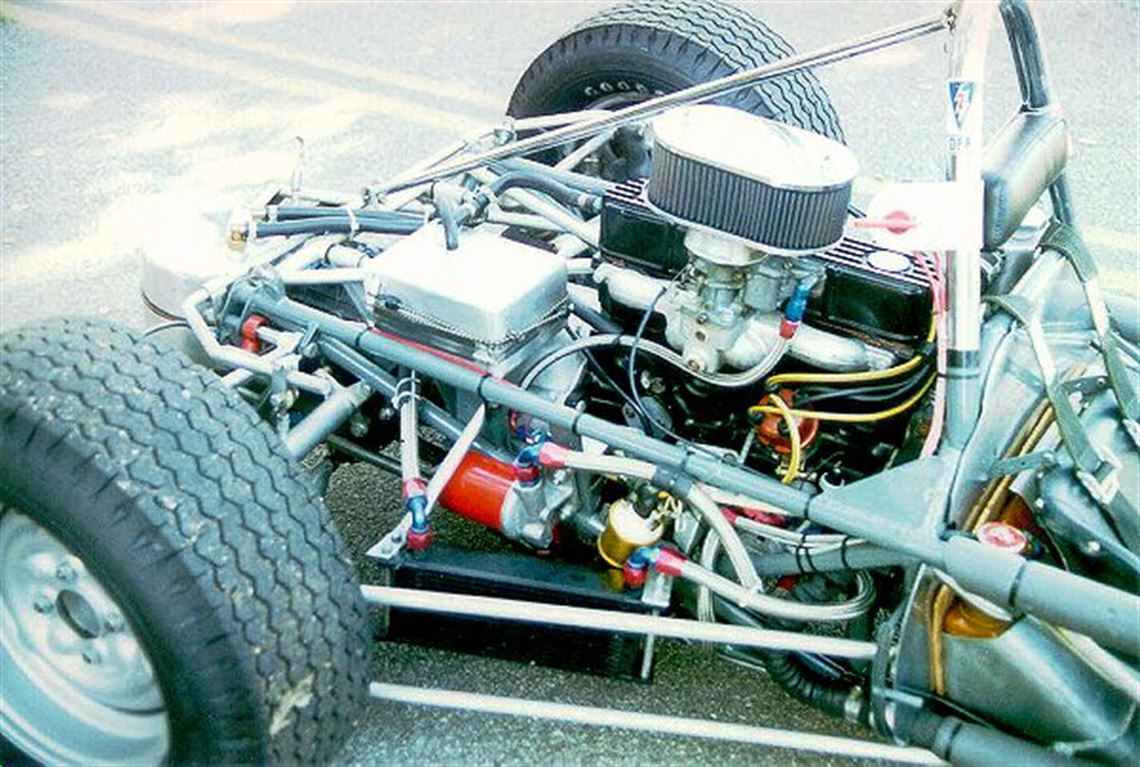

Engine

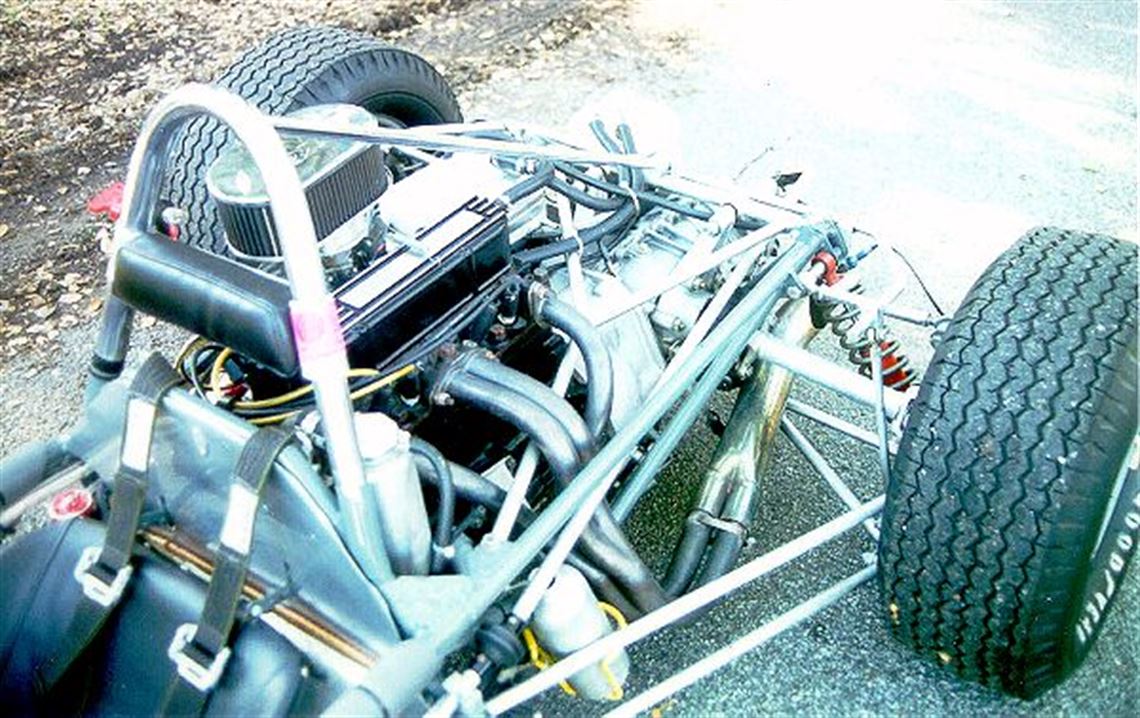

• original 1598cc non-uprated Ford Kent 1600E cross-flow.

• original Weber 32 DFM carb with K&N air cleaner.

• ribbed and powder coated Aluminium valve cover.

• original "down-under" header and muffler (90dB).


Fuel System

• Fuel Safe fuel cell custom made to original configuration.

• covered by original container and aero-quipped.


Oil/Water System

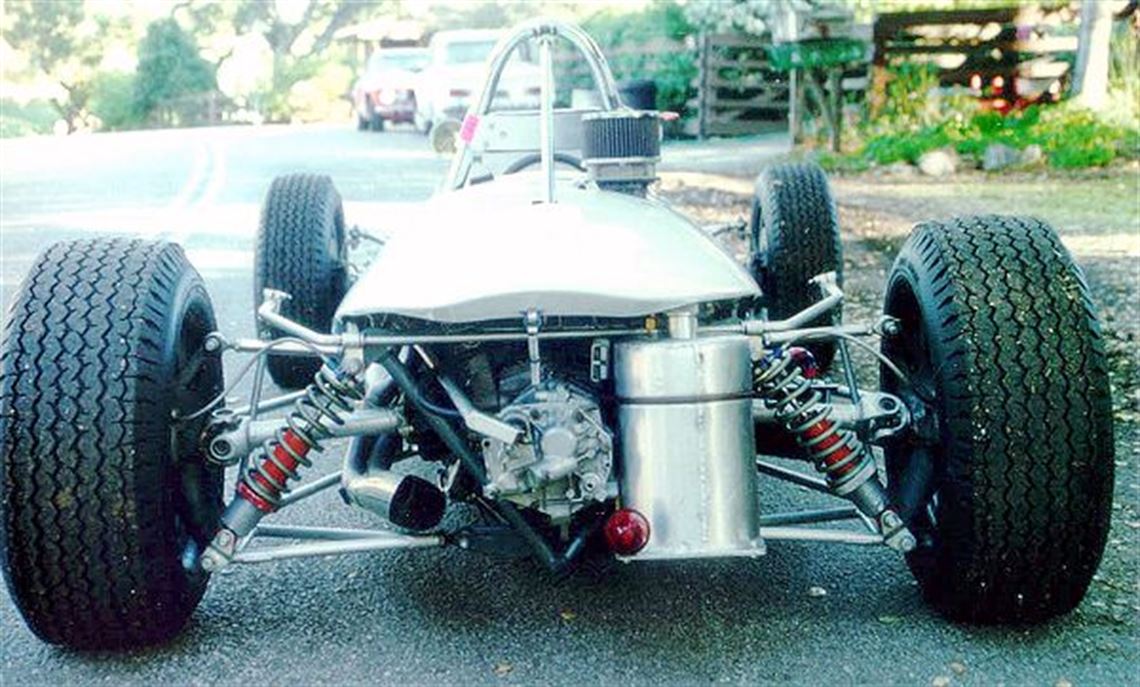

• original oil/water flow tubes have been capped off and replaced with aero-equip oil lines and Aluminium water flow tubes.

• abondonment of chassis flow tubes precludes oil contamination and pinhloe leaking of water.

• fve port dry-sump system, fully aero-quipped, with rear mounted tank and oil cooler.

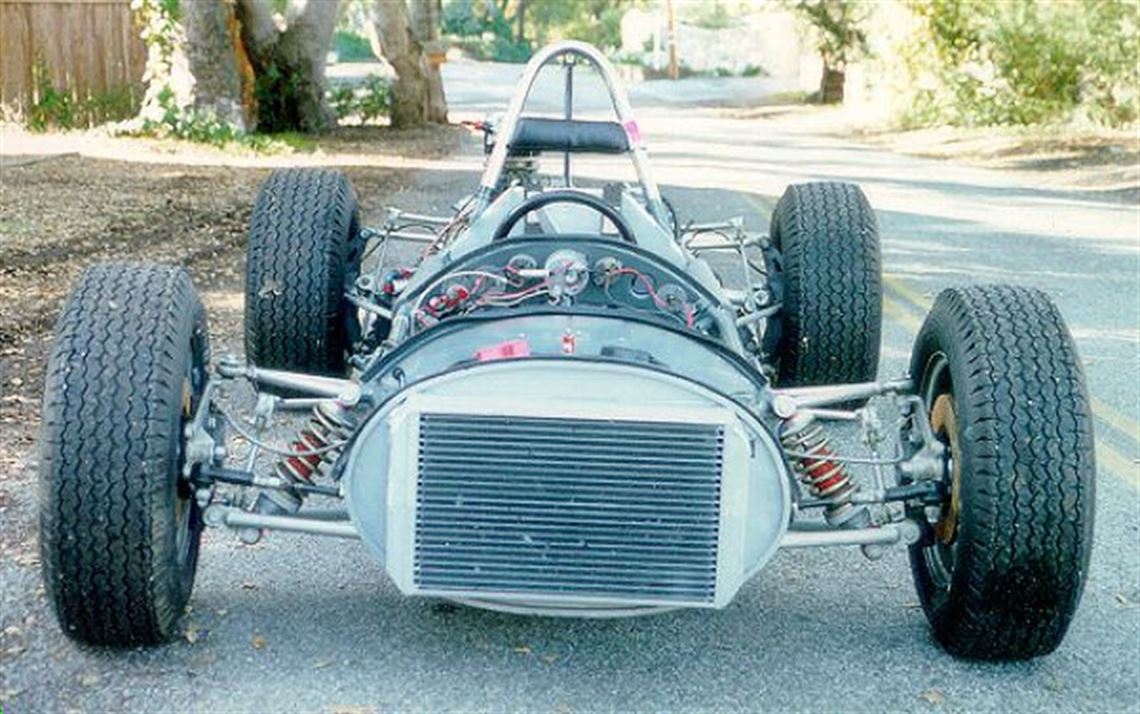

• custom made high efficiency radiator(ice cube) without integral oil cooler.


Electrical System

• new Bosch distributor & Lucas sport coil.

• front mounted gel-cell battery.

• roll bar mounted on-off switch, Tilton super starter.

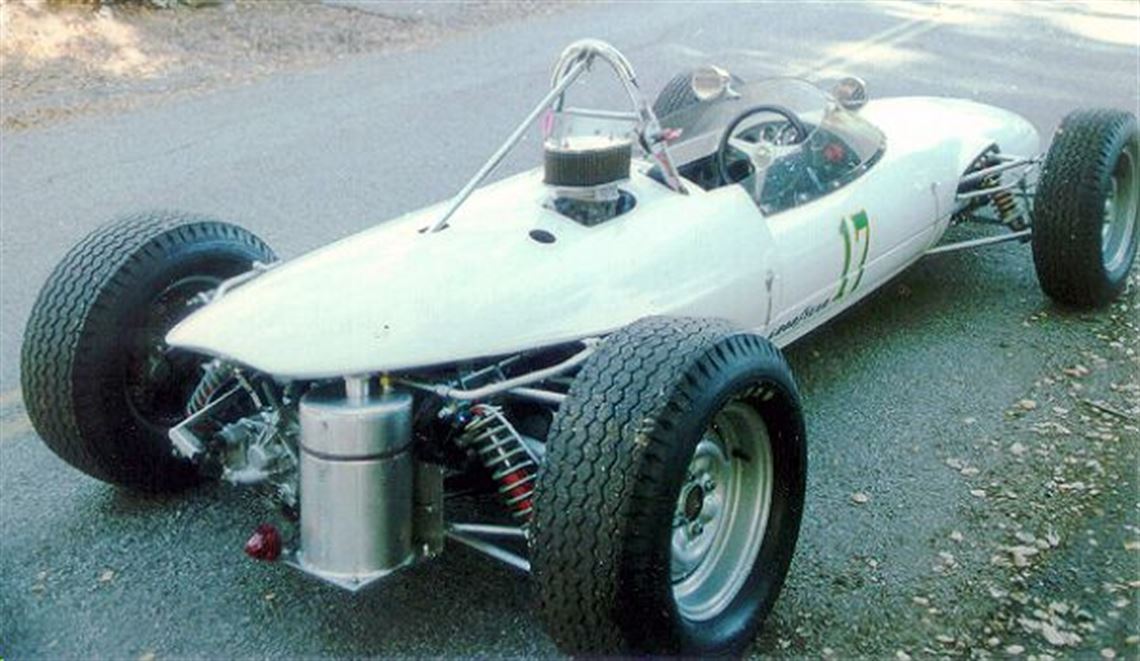

Body

• original 3 piece fibreglass nose, engine cover and under tray complete with early style 51A-engine cover(rare).

• painted in White Dupont Imron..


Chassis

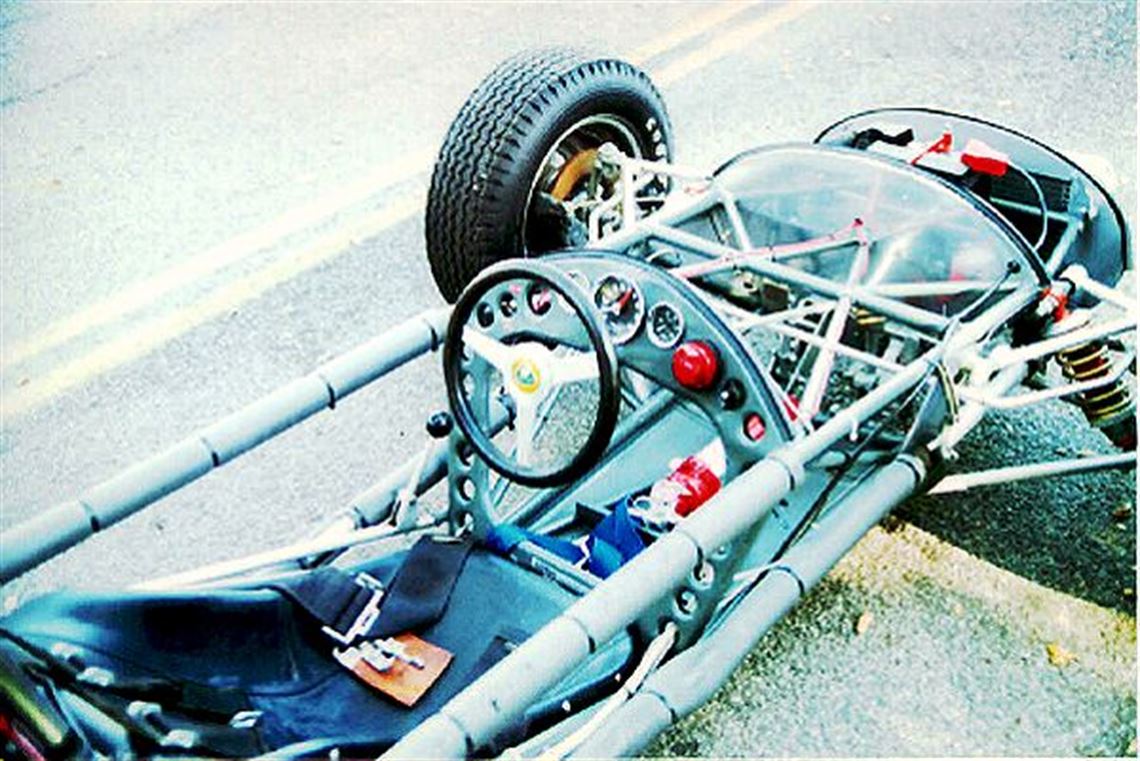

• original chassis built for Lotus by Arch Motors, stripped, primed and painted in medium Gray Imron.

• updated chrome roll bar.

• Koni

• double wishbone coil over, with all new aluminium hubs, rose joints, custom delrin susp bushings and anti rollbar.

• double wishbone, coil over, new rose joints, custom delrin susp bushings, anti rollbar, all bright work replated with Silver Cadmium front and rear.

• Triumph rack and pinion.

• Girling discs 9 1/4" front 9 3/4" rear.

• Steel 4 1/4" four bolt Lotus Cortina, 5 1/2' x 13", painted Silver Imron.

•


Interior

• original Black vinyl seat and Black leather steering wheel with Lotus badge.

• original oil/water gauges.

• five point harness.

• fire extinguisher and head restraint.


Spares

• miscellaneous
