Description:

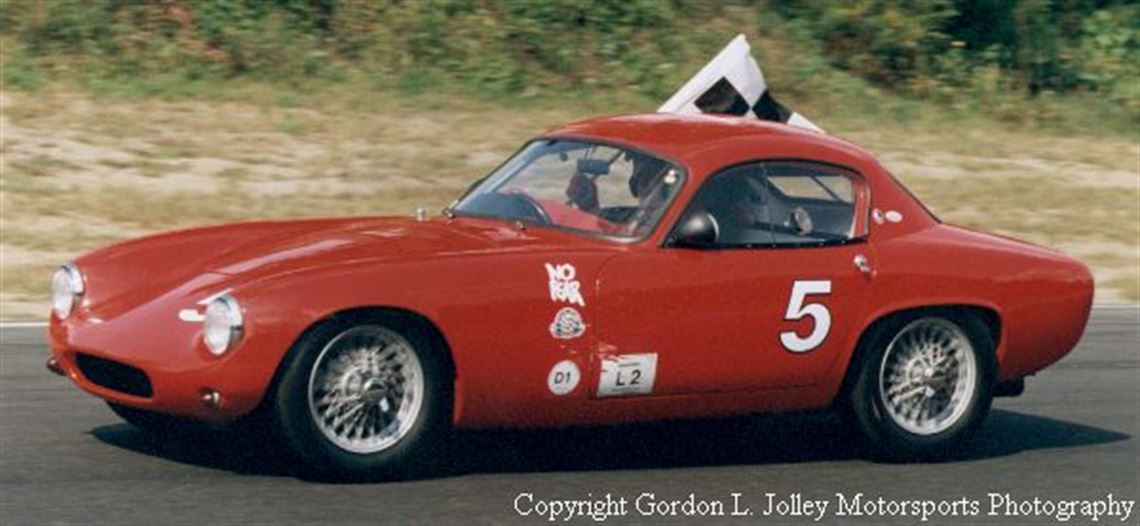

This is a no expense spared ultimate incarnation of a racing Lotus Elite. Every imaginable tweak has been
performed as a personal project by IMSA driver and ESPN commentator Bob Akin. Th car is dominant whenever it
appears but remains street legal, with full lighting and even a horn. The incredibly advanced chassisless
fibreglass bodyshell has had every internal box section completely foamed to provide exceptional torsional
rigidity. A full roll cage has been fabricated which picks up the top of the rear shock towers, acting
as a cross brace and providing rollover protection. The car also features a fully adjustable suspension
and double adjustable Koni dampers. The body shell has undergone extensive aerodynamic development to the
point of have the bumpers removed and join lines smoothed, rain gutters faired in, and even has the filler
cap moved inside. This car is completely sorted by a career professional driver and certainly is the
ultimate racing Elite.


History

The car left the production line on the 9th of May, 1960 as a Series One car. The car was sold from the
works to Dickson Motors, (Perth) Ltd. The car is know to the Lotus Elite Register. It was imported into the US about ten years ago and Bob acquired
it about eight years ago, at which point he began it's intense development.


Competition History

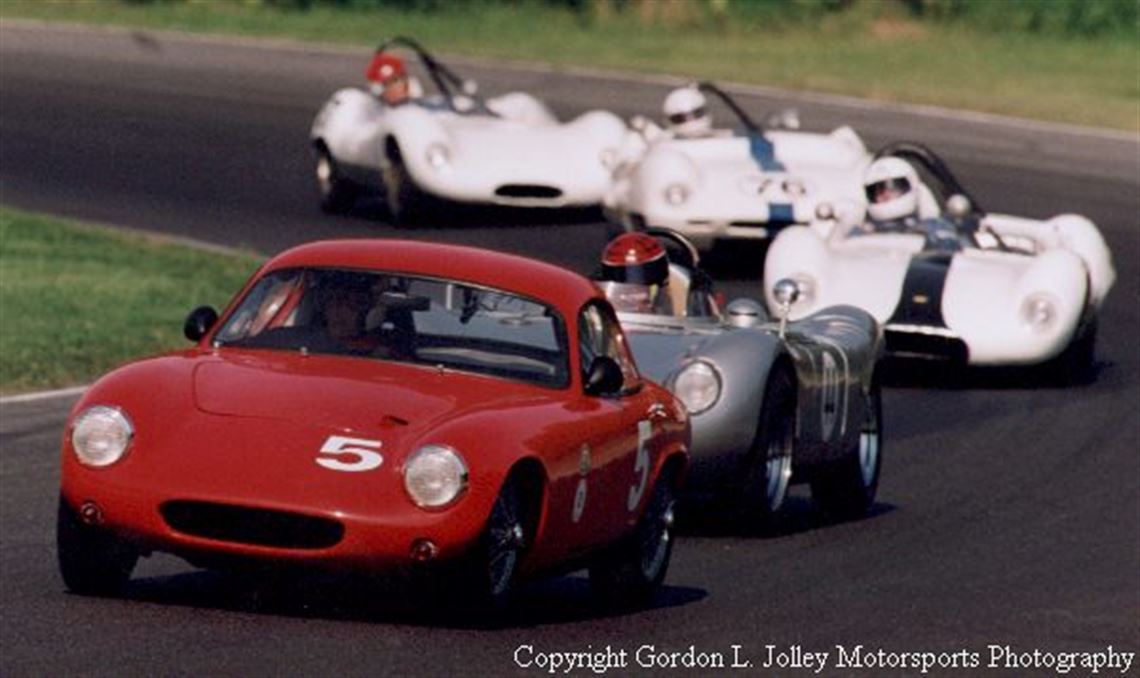

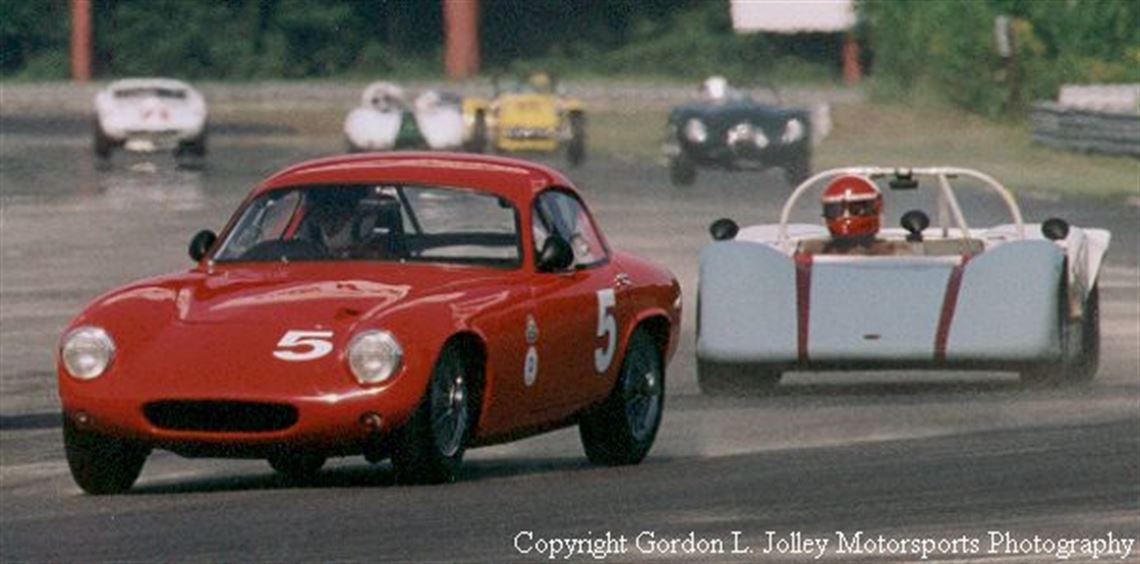

Numerous outright wins in VSCCA and SVRA competition. Featured in ESPN coverage of the Lime Rock Fall
Festival 1995.

Engine

• Coventry Climax 1216cc.

• Marcovicci-Wenz prepared

• 120 Hp.

• Carillo rods, Moldex crank

• twin Weber DCOEs

• 10 gal. fuel cell


Body

• fibreglass, Guards Red


Chassis

• no separate chassis, fibreglass monocoque foamed for rigidity

• high rate springs, double adjustable Konis

• double adjustable Konis

• rack and pinion, Momo wheel

• effective

• 72 spoke 500x15 all around


Interior

• light grey

• racing bucket seat with six point harness

• the car can be configured with two seats and belt sets
