Description:

Major restoration performed by Huffaker, completed in 1991. Extensive rehab of the entire chassis and engine by owner in '01/'02. Two race weekends since rehab.

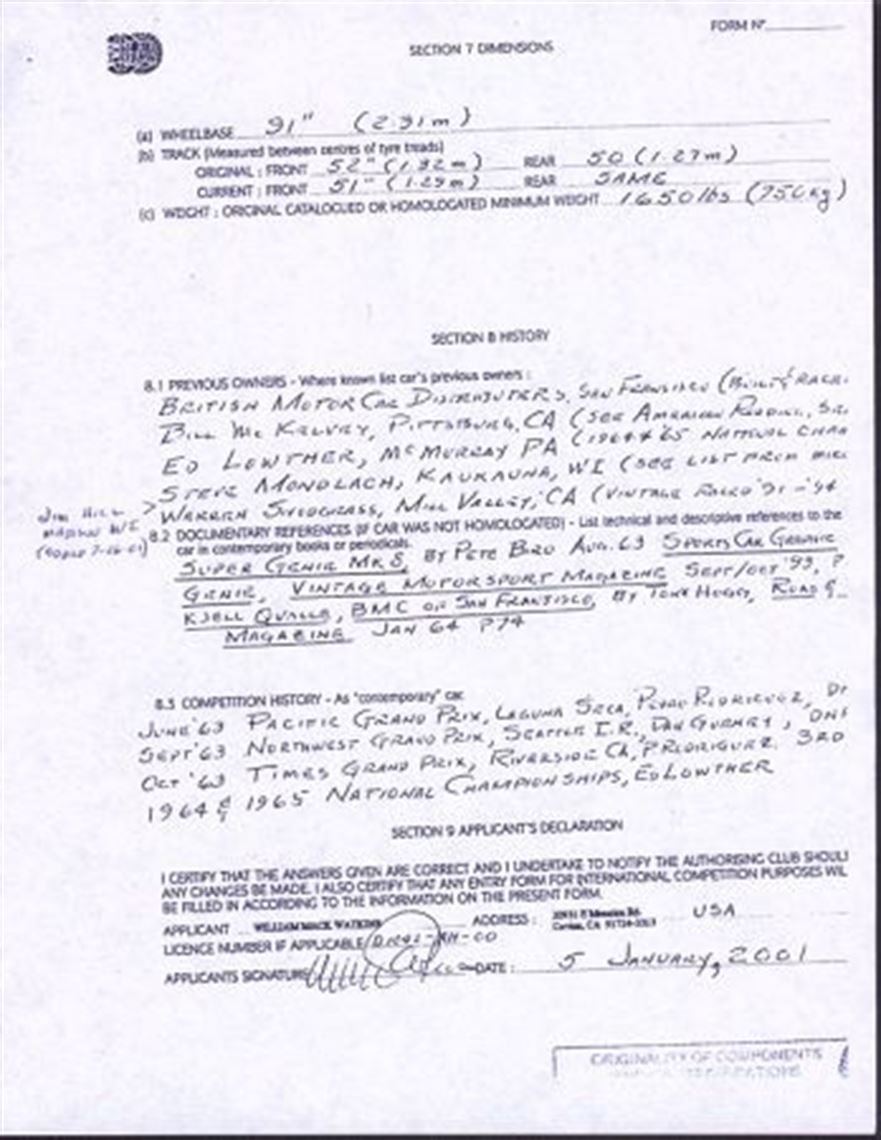

History

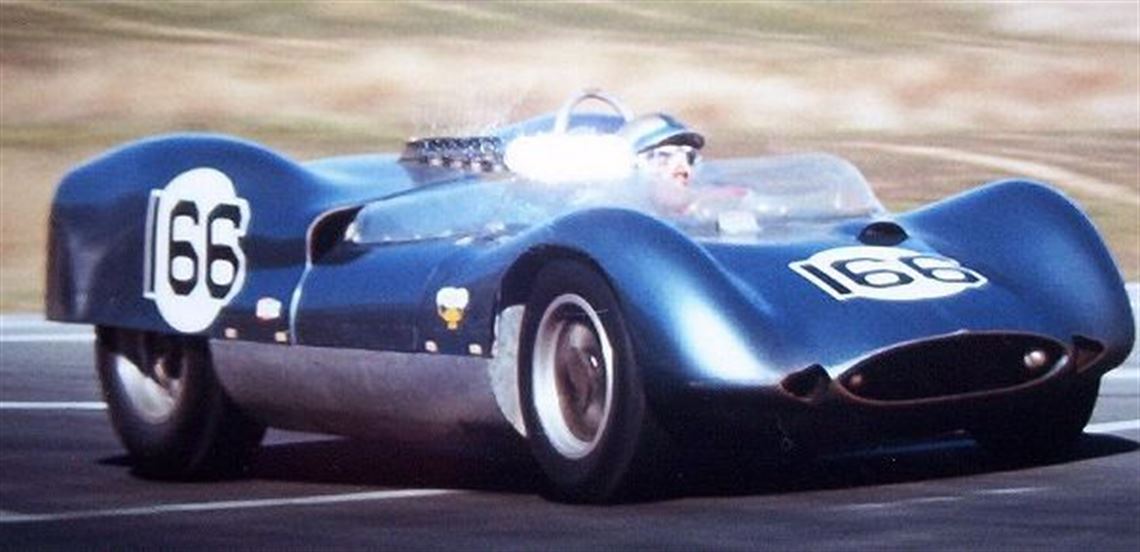

Huffaker Team car for 1963 Times Grand Prix; Pedro Rodriguez,(SEE OCT.'03issue of VINTAGE RACECAR) Pacific Grand Prix; Dan Gurney. 1964 & '65 SCCA National Championship by Ed Lowther. Vintage raced by Warren Snodgrass in 1991 & '92 and by the current owner 1995 - 2003. Winner at '99 and '03 Monterey Historics

Competition History

2 Monterey Historic wins
Performance Data

• 1650 lbs

• Laguna Seca


Engine

• Huffaker

• Ford

• V-8

• 4975cc

• 452

• 400

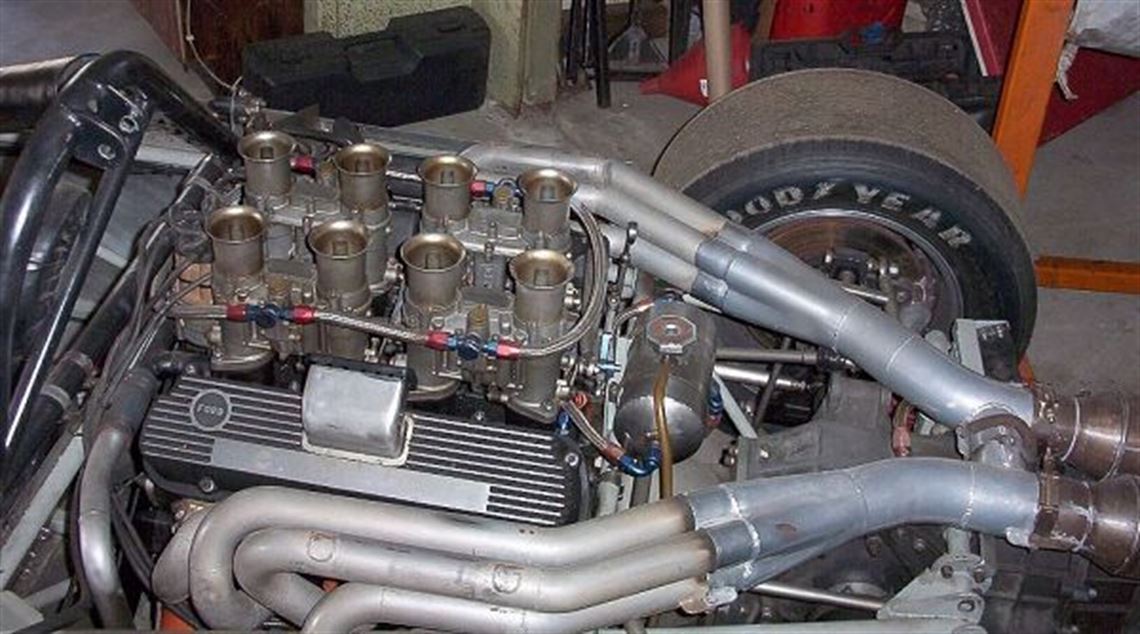

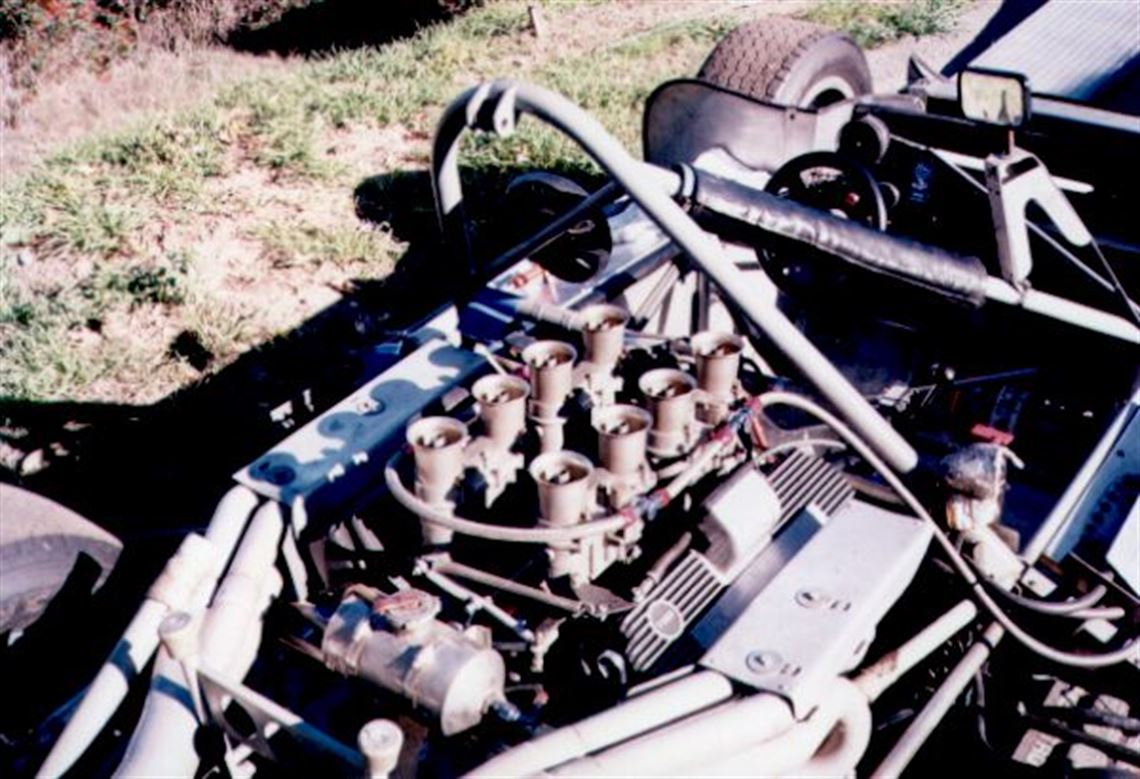

• (4) dual throat 48 IDA Webers

• 289 Iron

• 4-Bolt main bearing cap block

• Ford SVO

• Velasco Billet crank

• Carrillo

• JE pistons

• Isky camshaft

• Ferrea valves

• Roller followers and rockers

• Tilton triple disc clutch & release

• AP

• Special, light

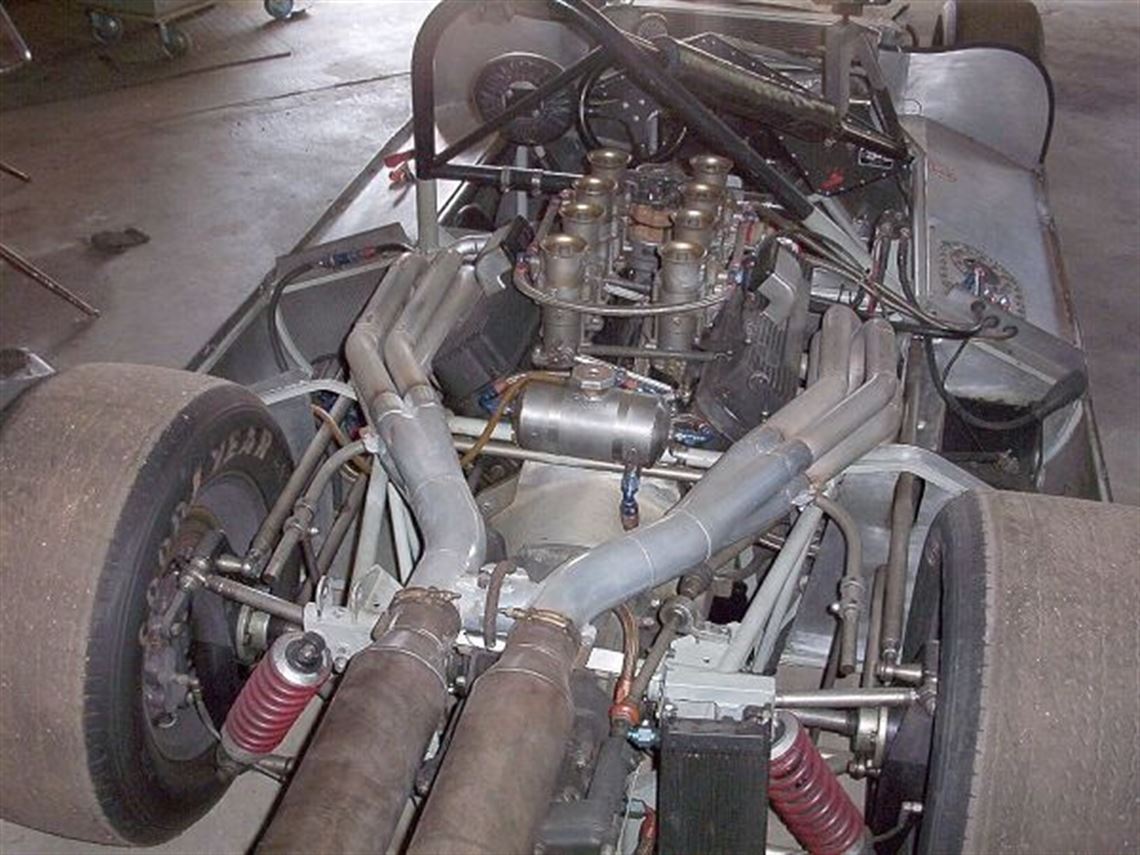

• branched exhaust w/Jet-Hot coating & (2) Supertrapp muffler

• 2.5 hours

• 3

• 289 cid stroked to 302 cid, (4940cc) engine originally built by Huffaker 452 hp

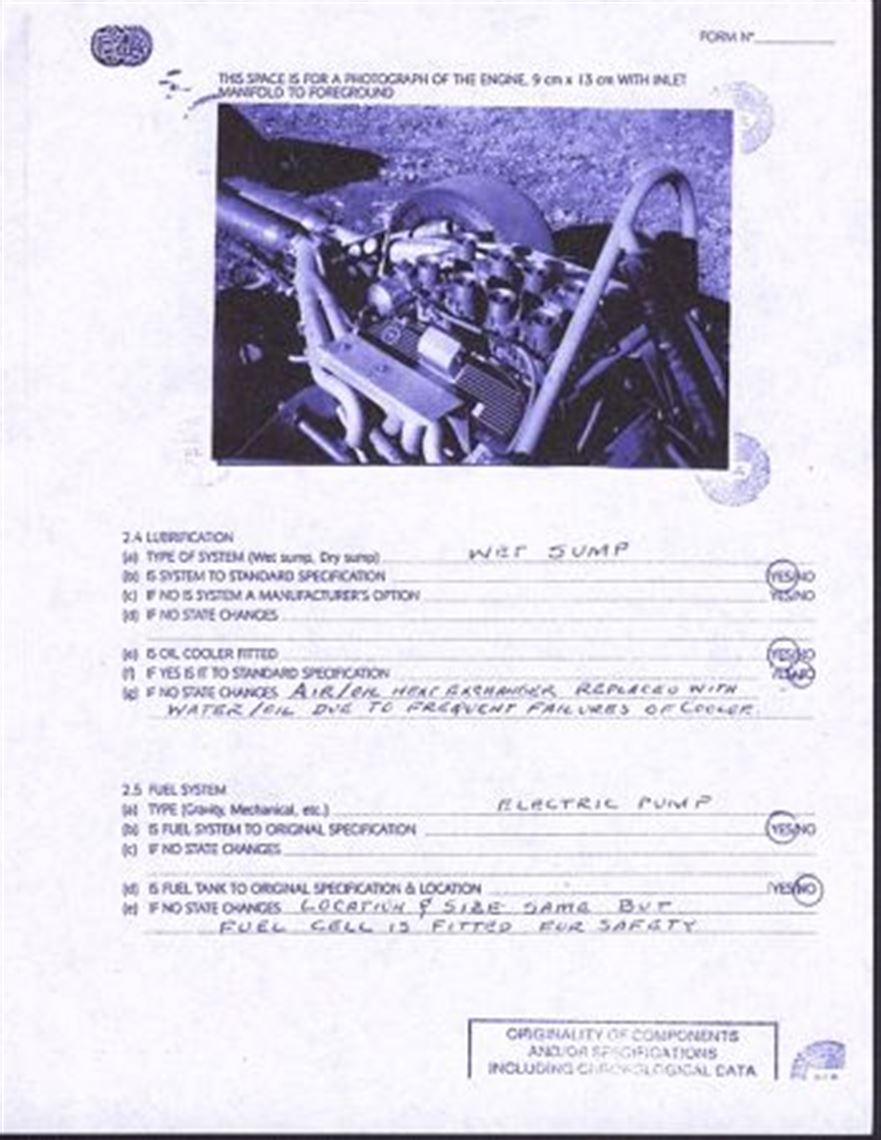

Fuel System

•

• 17 gallon

• submerged electric fuel pump


Oil/Water System

• Griffith aluminum radiator fitted new in '95

• Moroso accummulator, fiited in '96

• Aeroquip oil/water heat exchanger


Electrical System

• MSD 6A multi-spark w/rev-limiter point type ACCEL dist

• 1-wire alternato

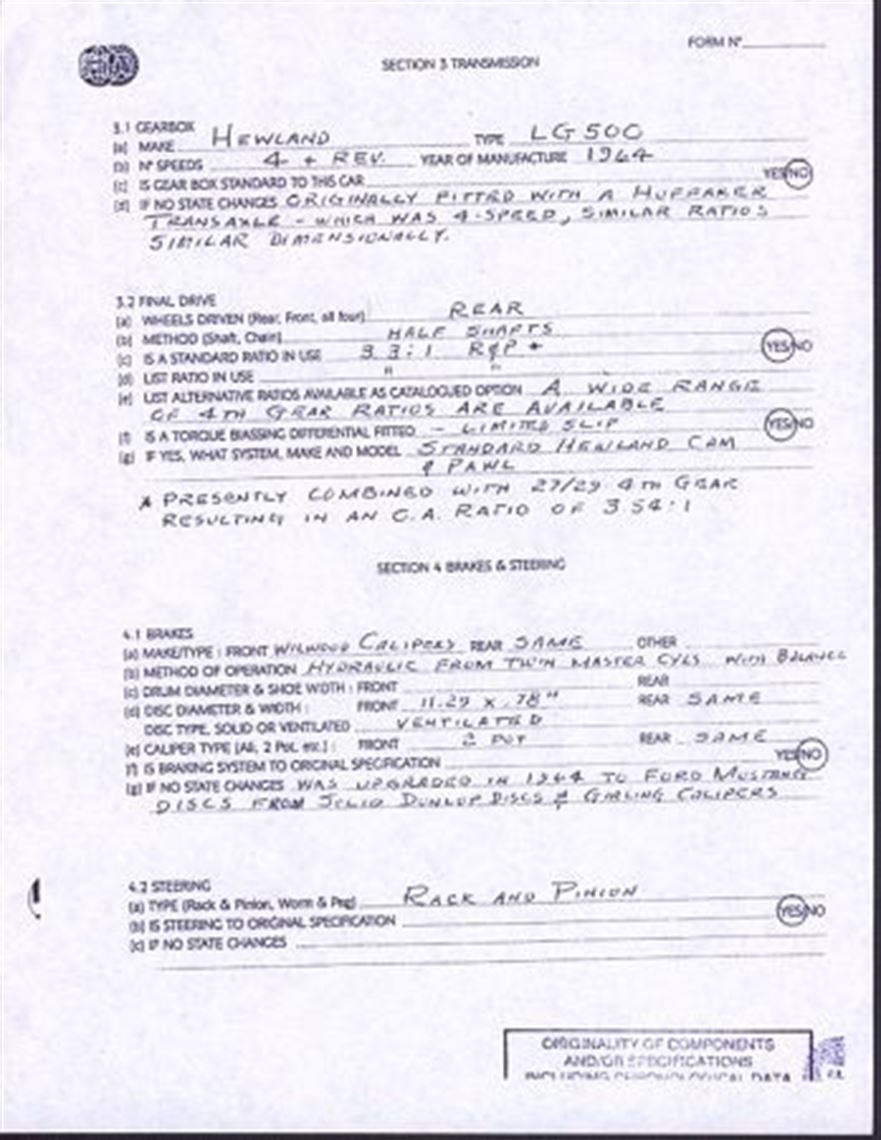

Transmission

• Hewland LG 500 (4-speed)

• ex-CART road racing box purchased completely rebuilt form Can-AM Cars Ltd. '99


Rear End

• Hewland in unit w/gearbox

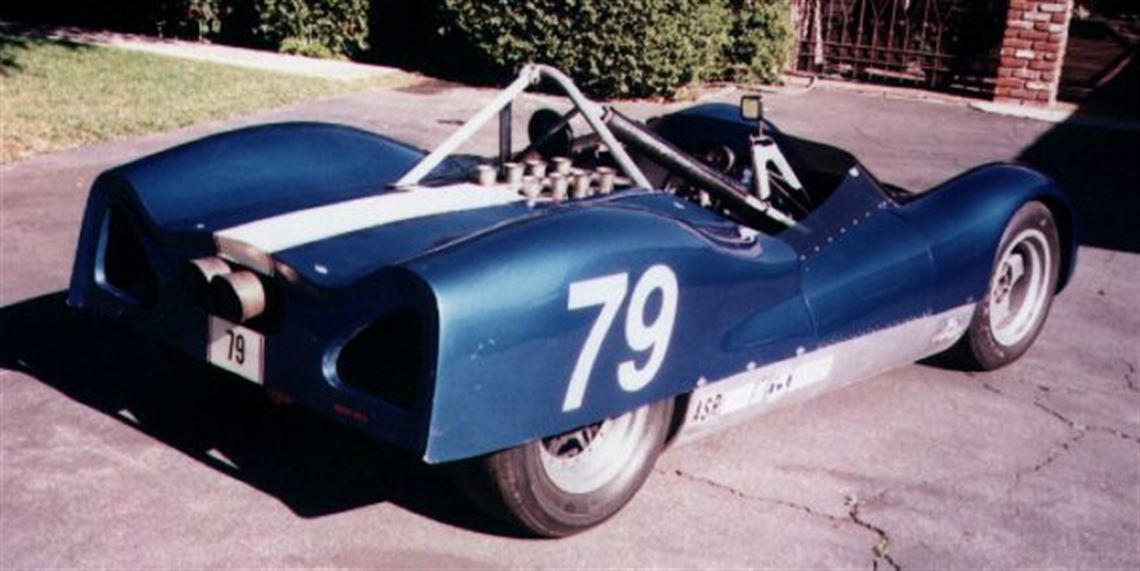

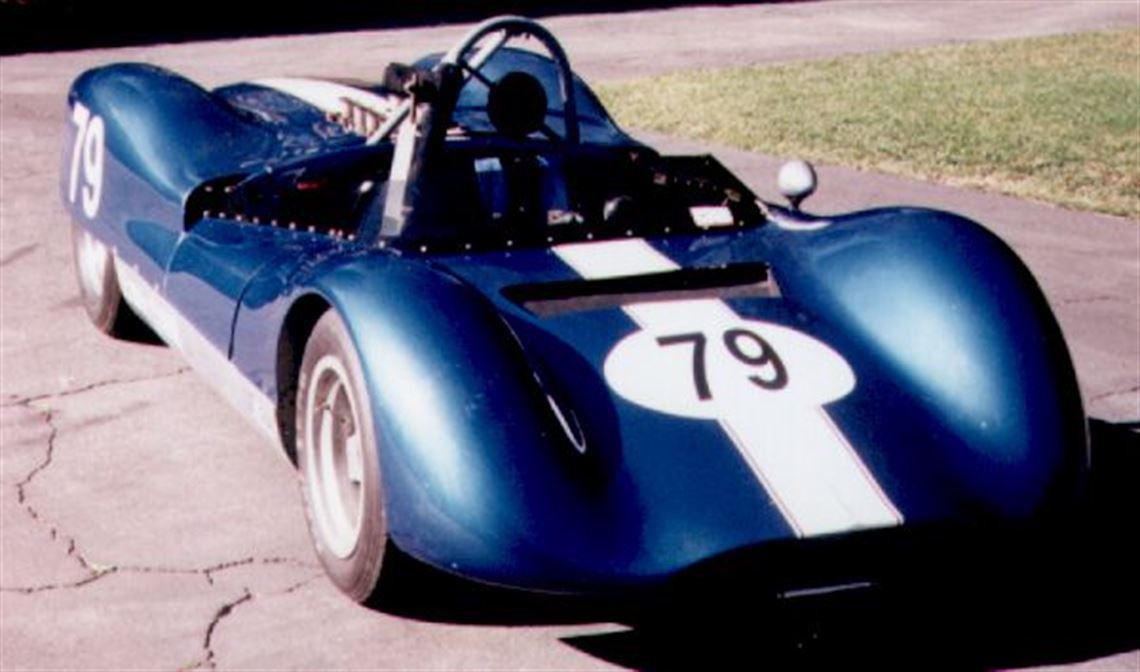

Body

• fiberglass

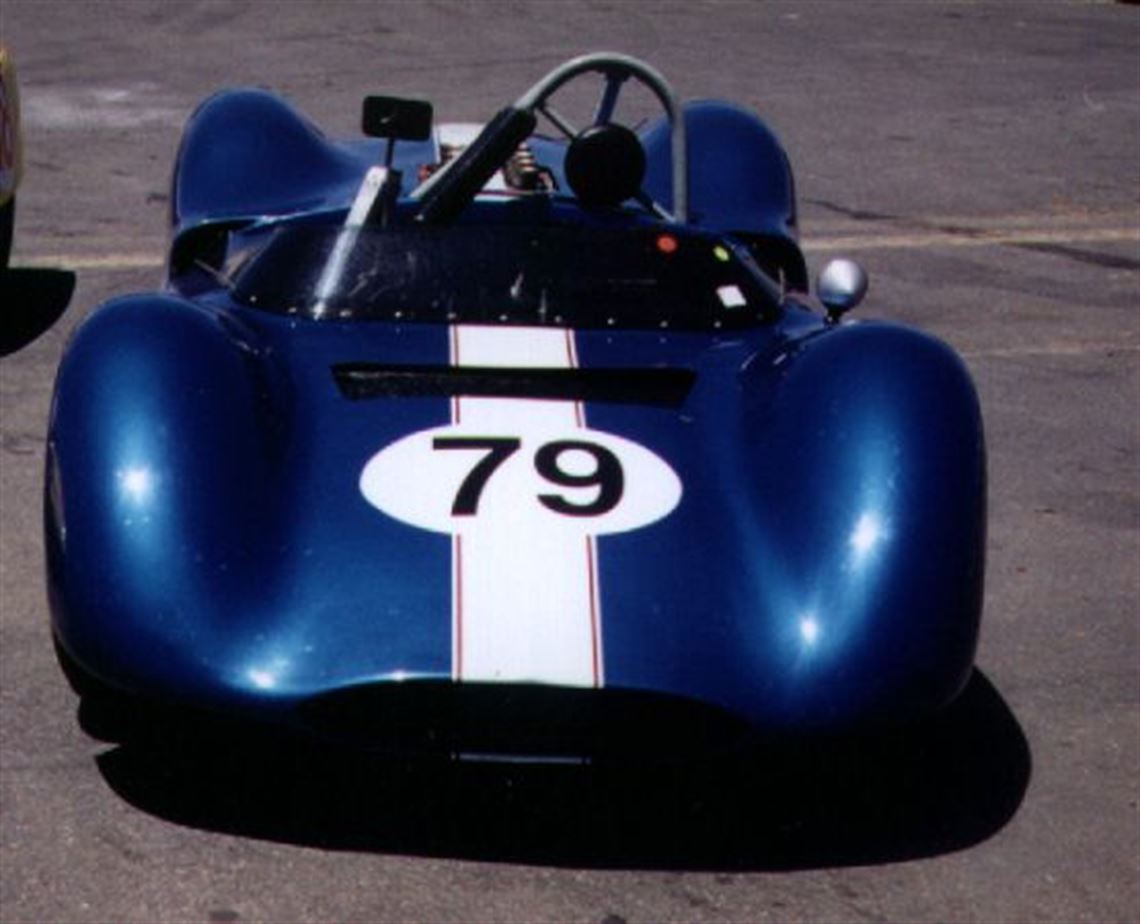

• blue w/white stripe & red accent striping


Chassis

• tubular steel spaceframe

• Huffaker

• recently stripped to bare metal & painted light gray

• perfect

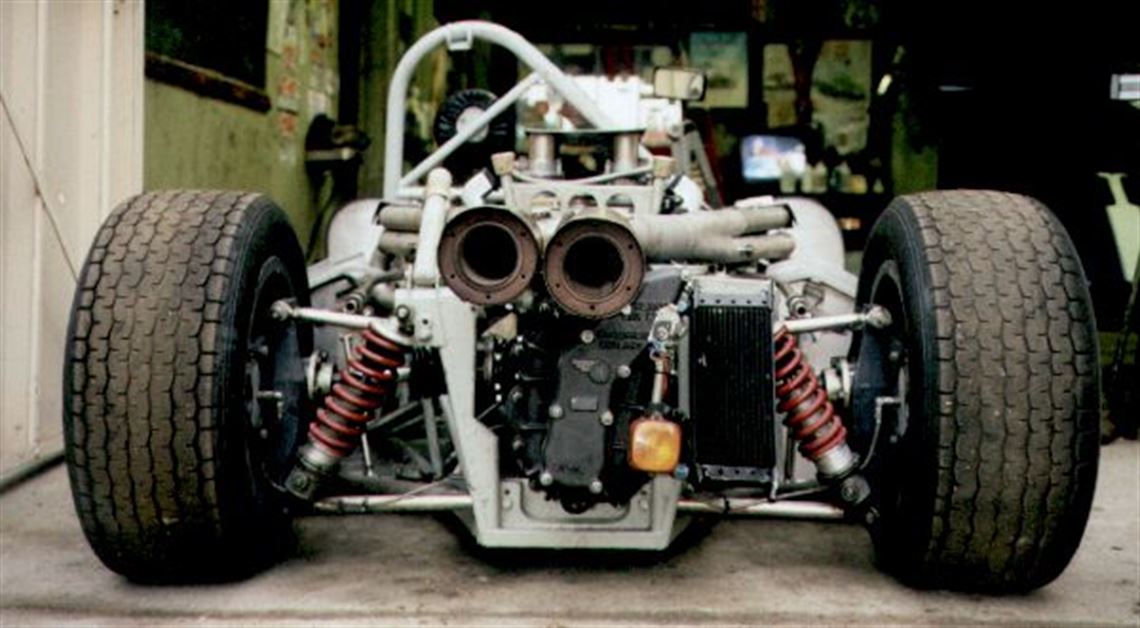

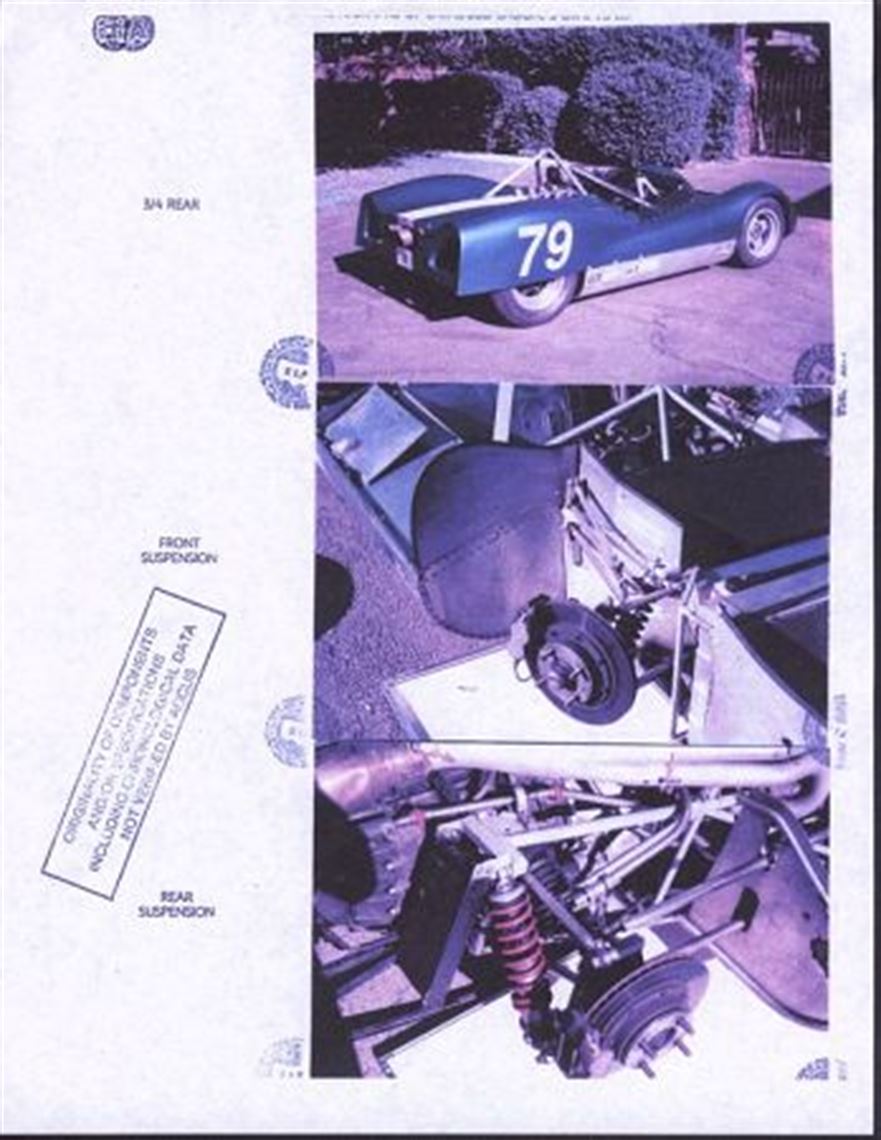

• double wishbone, coilover, Nickel plated

• double wishbone w/radius rods, coilover, Nickel plated, Alumium uprights, high strength steel halfsh

• Koni adj, in excellent shape

• vented Mustang discs w/Wilwood calipers, dual master cylinde

• rack & pinion, rebuilt in recent rehab, new stronger rod end

• Jongbloed Modular wheels;

• Goodyear Racing


Interior

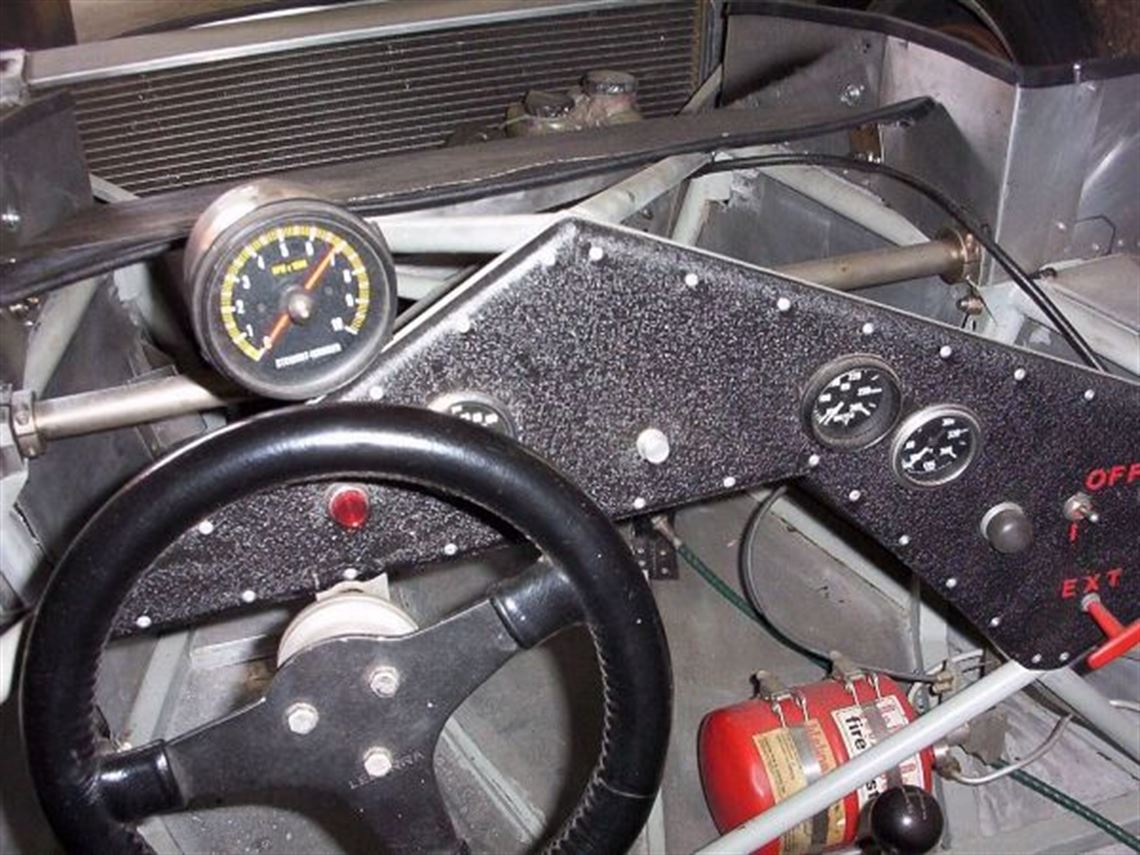

• dash panel newly painted w/black wrinkle finish

• bare aluminum panels

• Halon fire extinguisher

• single padded seat & padding 5-point harness

• mechanical tach, oil pressure gauge & warning light


Spares

• full set of body molds

• jig for front sub-frame

• special chassis mounted fixtures for susp alignment

• new SVO forged crank

• 2 sets alternative 4th gear ratios

• 7 original Genie cast Magnesium wheels (all inspected, treated w/Dow 7 and paint

• spare pistons, oil pump, extra MSD 6A unit w/ignition parts
