Alfa Romeo C43 F1 Show Car

$ POR

1970 American Motors Javelin - SOLD

F1 Authentics 11

This is now SOLD. Search for similar items.

Description:

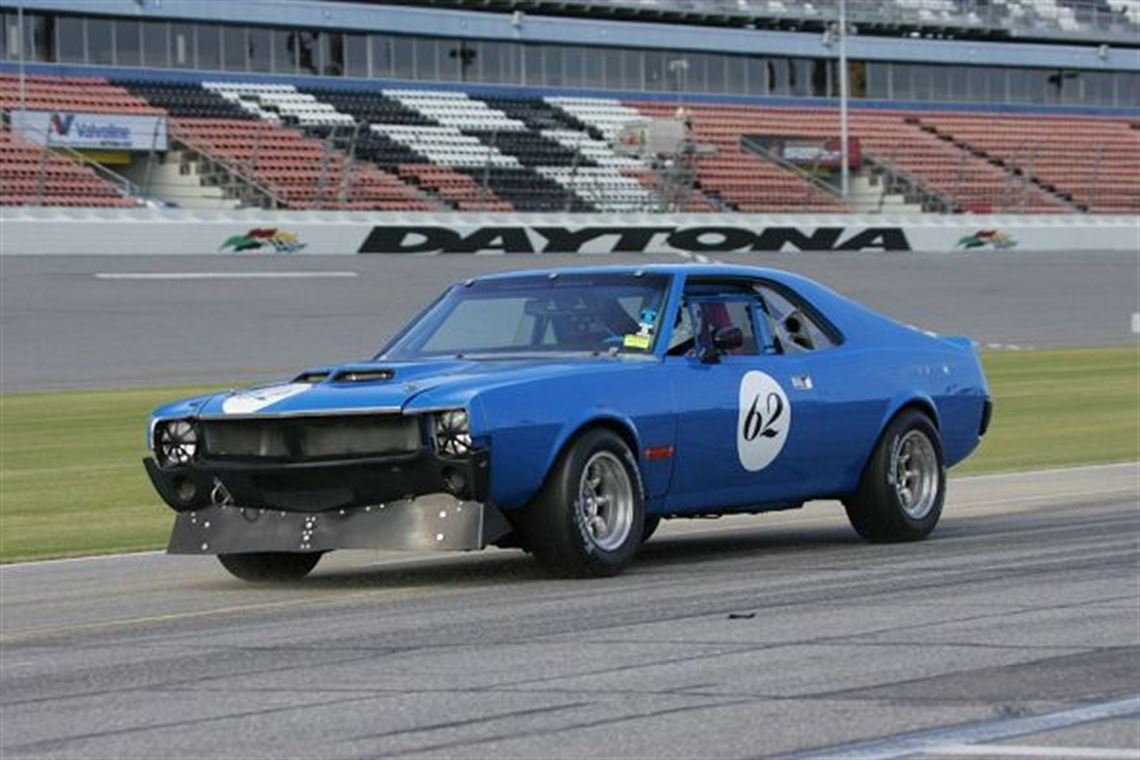

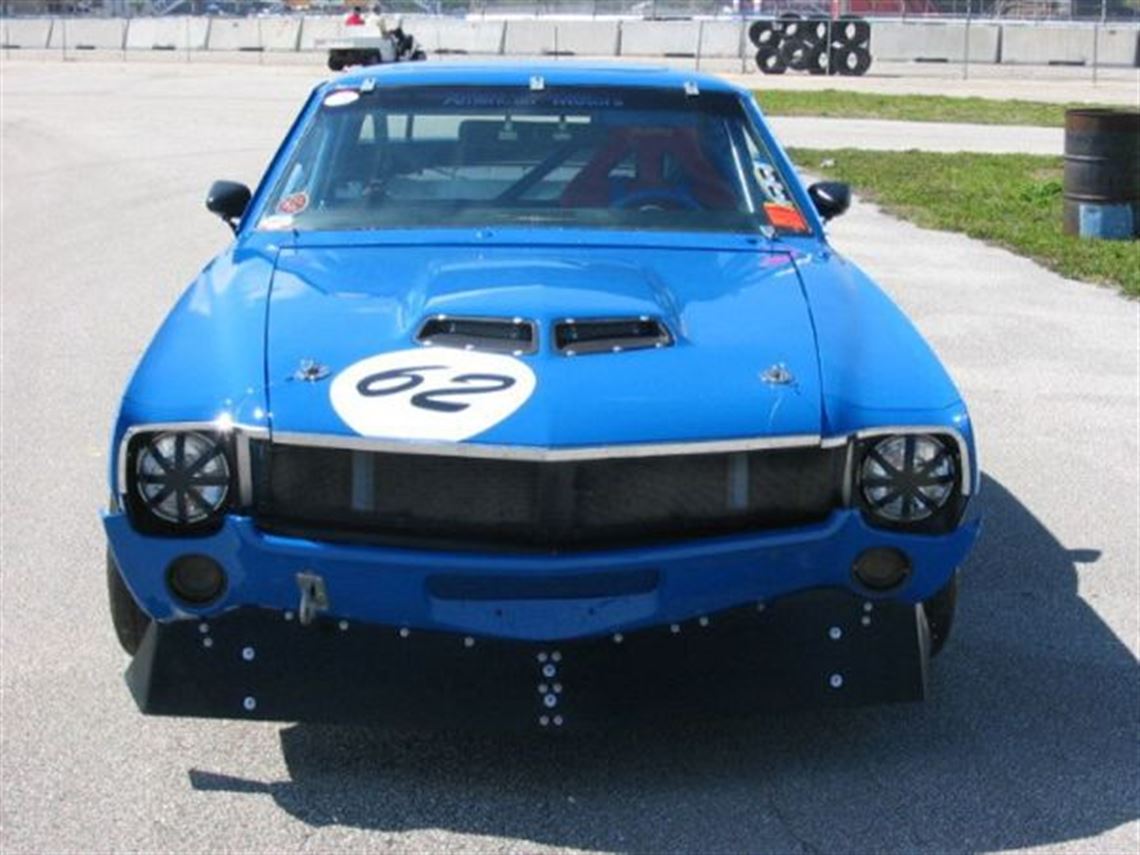

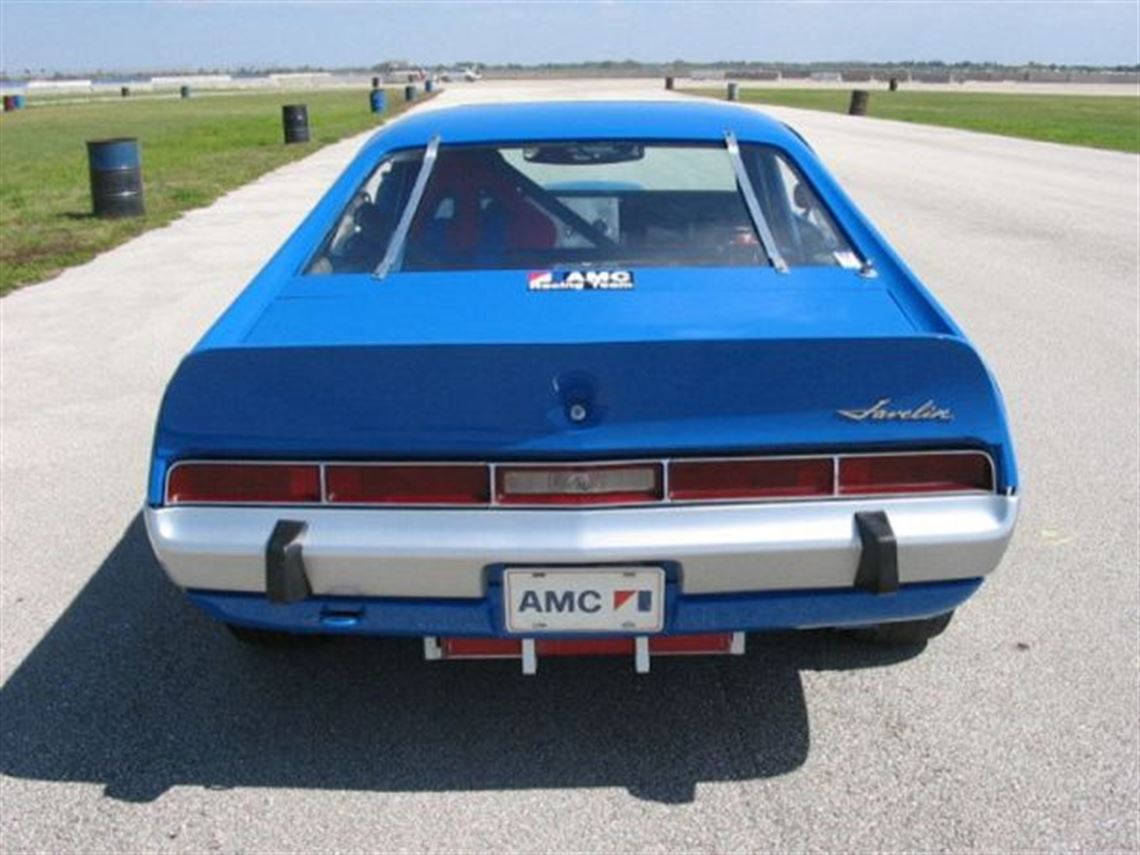

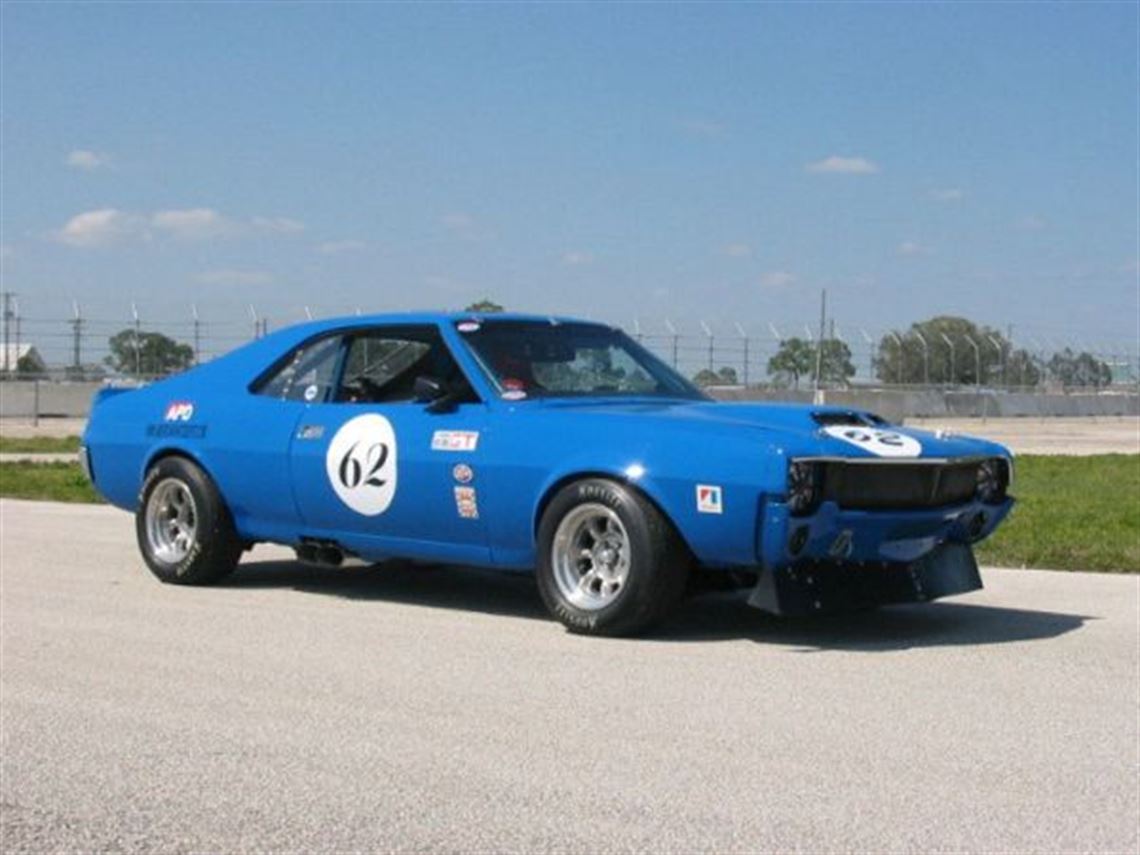

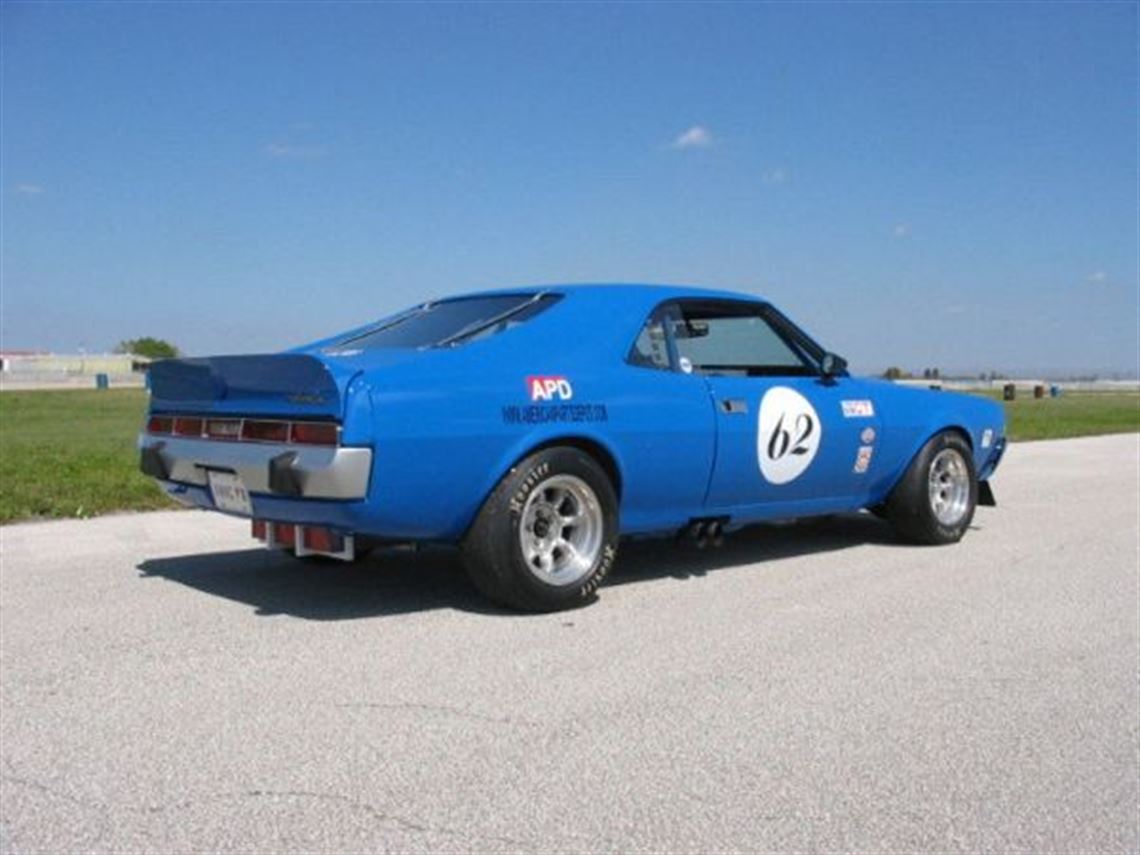

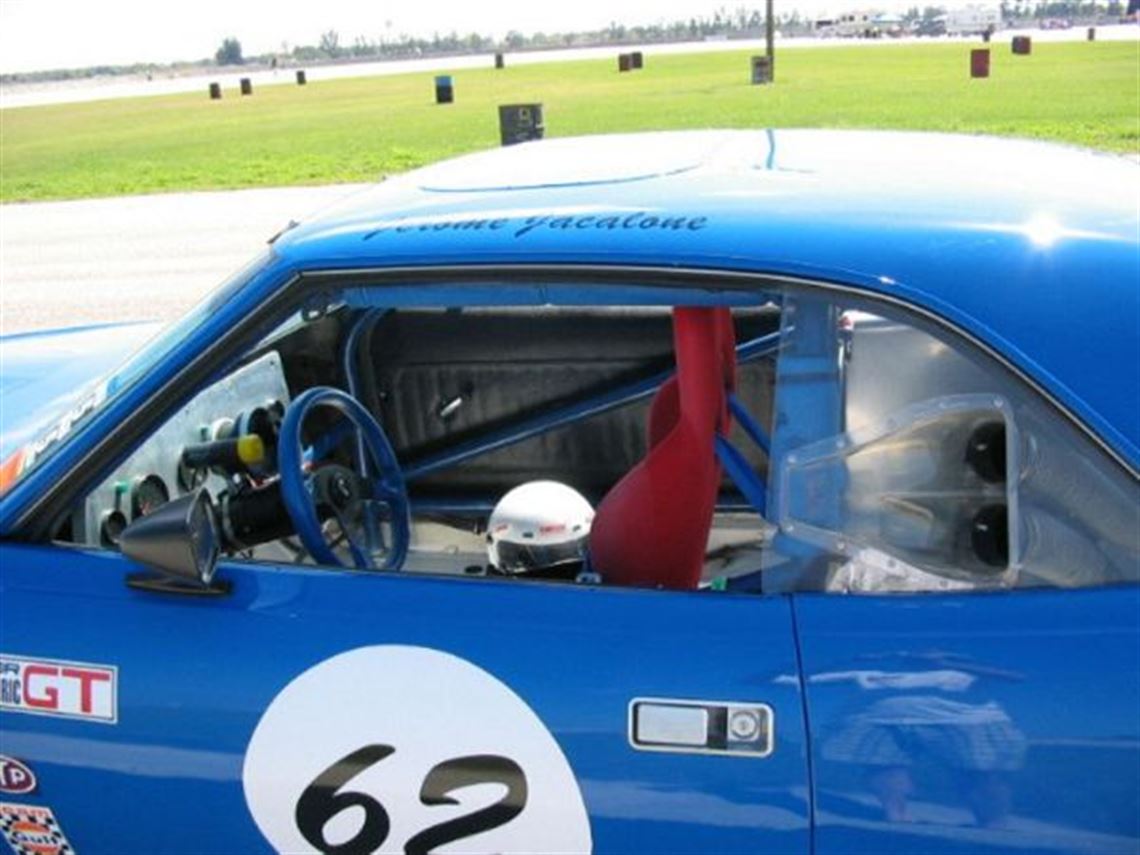

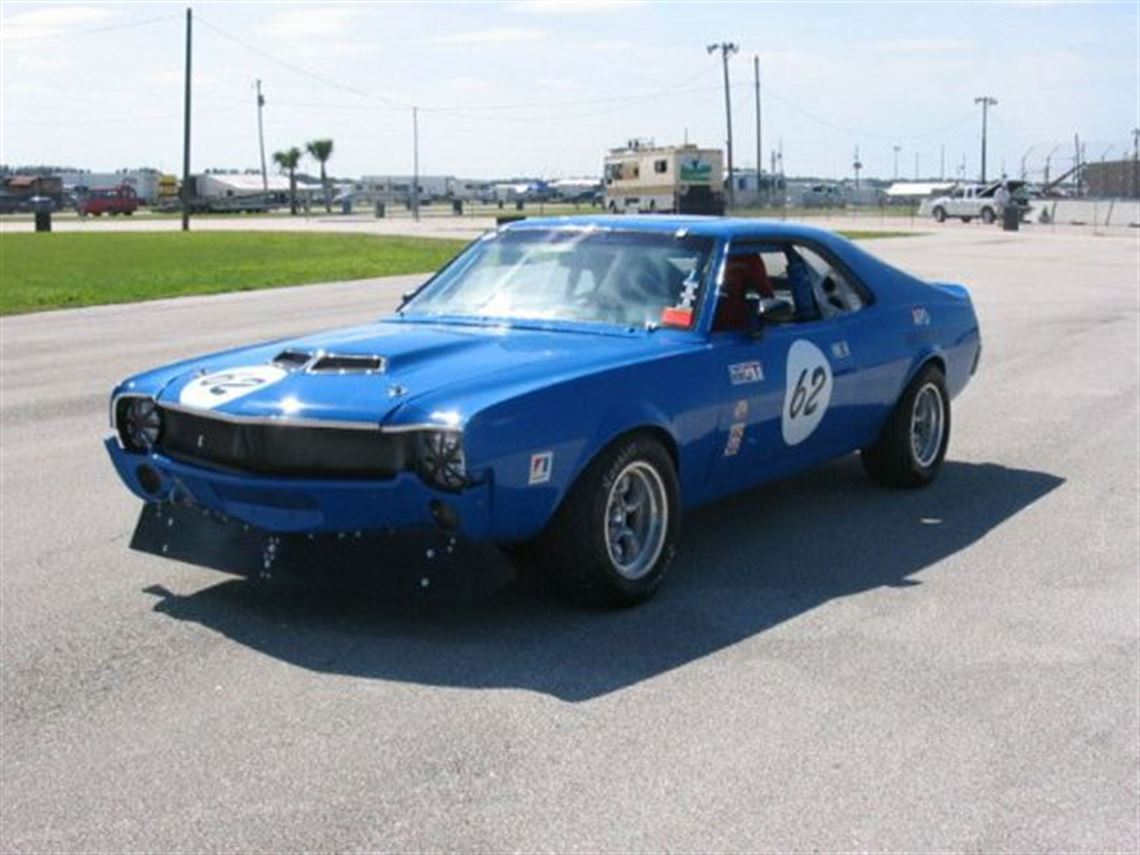

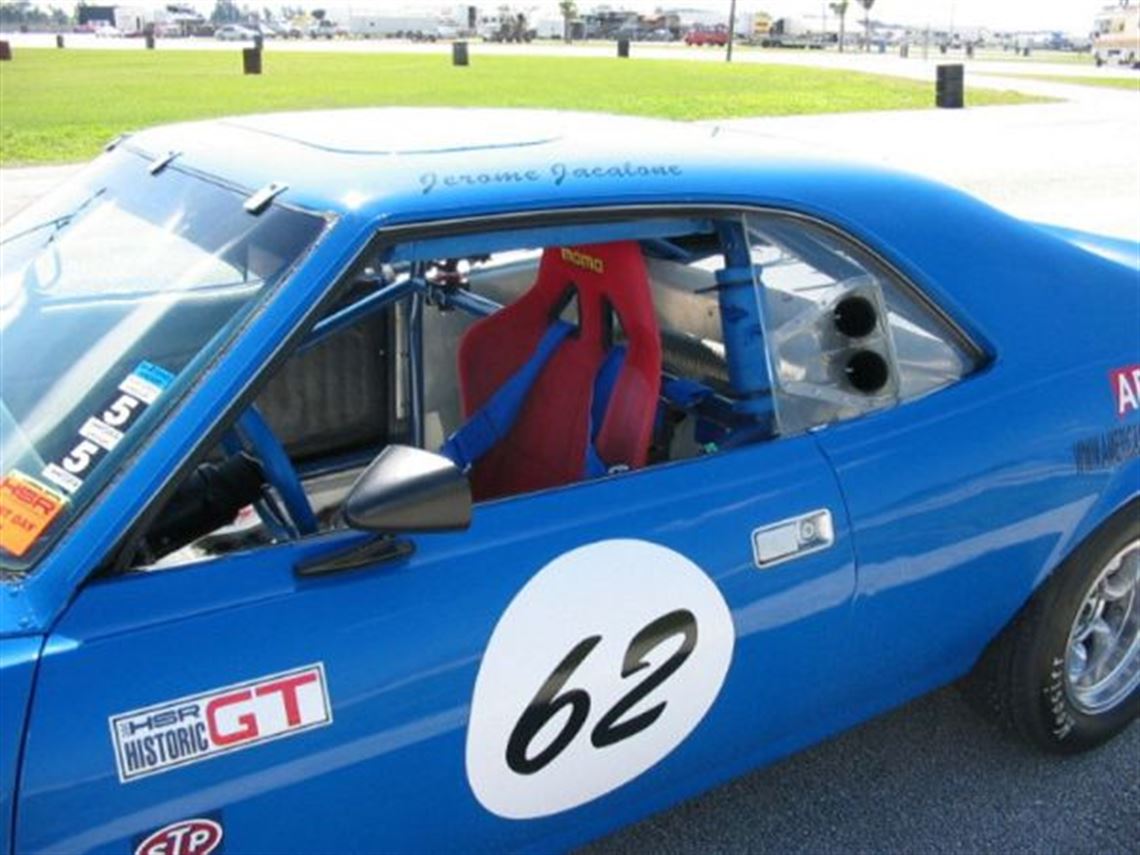

This car was an old SCCA racecar that was campaigned in the Pacific Northwest in the 70's and 80's and later ran in the SPO class in the late 90's until 2002. It is a 1970 AMC Javelin all steel body with a fiberglass front bumper and composite front spoiler with an original Donohue fiberglass rear spoiler. This car has an original mildly prepared 6 litre (360 c.i.d.) iron V-8 with the Edelbrock R4B aluminum high-rise manifold with the AMC factory part number. Unusually this car also has power steering and vacuum assisted brakes which were sometimes desired for the shorter tracks of the area in which it raced. It has an original Borg-Warner V-series close ratio four speed transmission and 20 series rear with limited slip differential. The car has many of the FIA approved modifications for the Trans Am series cars such as the rear bulkhead strengthening crossmember as well as the exhaust tunnel cutouts. The car has the correct Kelsey-Hayes front disc brakes with the FIA approved rear discs from Girling. The interior has a full original roll cage with period Stewart-Warner gauges on an aluminum fabricated dash panel with upholstered door panels. The Momo seat and Simpson 5 point harness are new. The wheels are old Carroll Shelby alloys that measure 15x8.5. The paint and body are not concours but appropriate for the car and since this car was a race car most of its life the body is nearly rust free. the Javelin was campaigned twice last year with HSR organization and acheived one second in class at Sebring and two seconds and a third at Daytona also in class. The car has an HSR logbook.


History

previous SCCA car campaigned in the Pacific Northwest with two events last year in HSR and one this year in HSR.

Competition History

two seconds and one third in class at Daytona in 2005 with HSR and one second in class at Sebring in 2005 also with HSR.
Performance Data

  • Historic GT
  • 3000 lbs
  • 2:44 sec
  • Sebring
Engine
  • AMC
  • 6000
  • approx. 350
  • approx. 400
  • Holley 4 bbl. 650 cfm
  • Iron original dog-leg
  • Iron
  • Iron 2 bolt
  • cast
  • cast
  • cast aluninum
  • Crane 280 degree dur .486" lift
  • steel
  • hydraulic cam, roller rockers
  • centerforce
  • centerforce
  • Mondello billet steel
  • 3" stainless Borla with side exit
  • 4 hours
  • 3
Fuel System


  • shell 15, liner 3
  • 15 gallons
  • Holley Red
  • race 100 octane
Oil/Water System

  • Howe
  • front
  • Milodon
  • aftermarket
  • under front chassis
Electrical System

  • MSD
  • Bosch
  • 12 volt Optima
  • N/A
Transmission

  • Borg-Warner
  • V-series close ratio
  • 4
  • Hurst
  • no
  • 3
Rear End

  • Salisbury
  • Model 20
  • none
  • 3:54
  • Iron
  • limited slip
  • Steel
  • 3
Body

  • steel body with glass front bumper and rear spoiler
  • blue
  • enamel
  • good
Chassis

  • original
  • upper/ lower control arm, sway bar
  • leaf spring, sway bar
  • front Bilstein, rear KYB
  • vacuum assisted, front disc Kelsey-Hayes, rear disc Girling
  • Saginaw assisted steering
  • Carrol Shelby alloy, 15x8.5"
  • Hoosier TD
Interior

  • white
  • steel, aluminum, upholstery
  • Firebottle 2005
  • simpson five-point
  • Stewart-Warner
  • Momo
  • good
Spares

  • none
