Description:

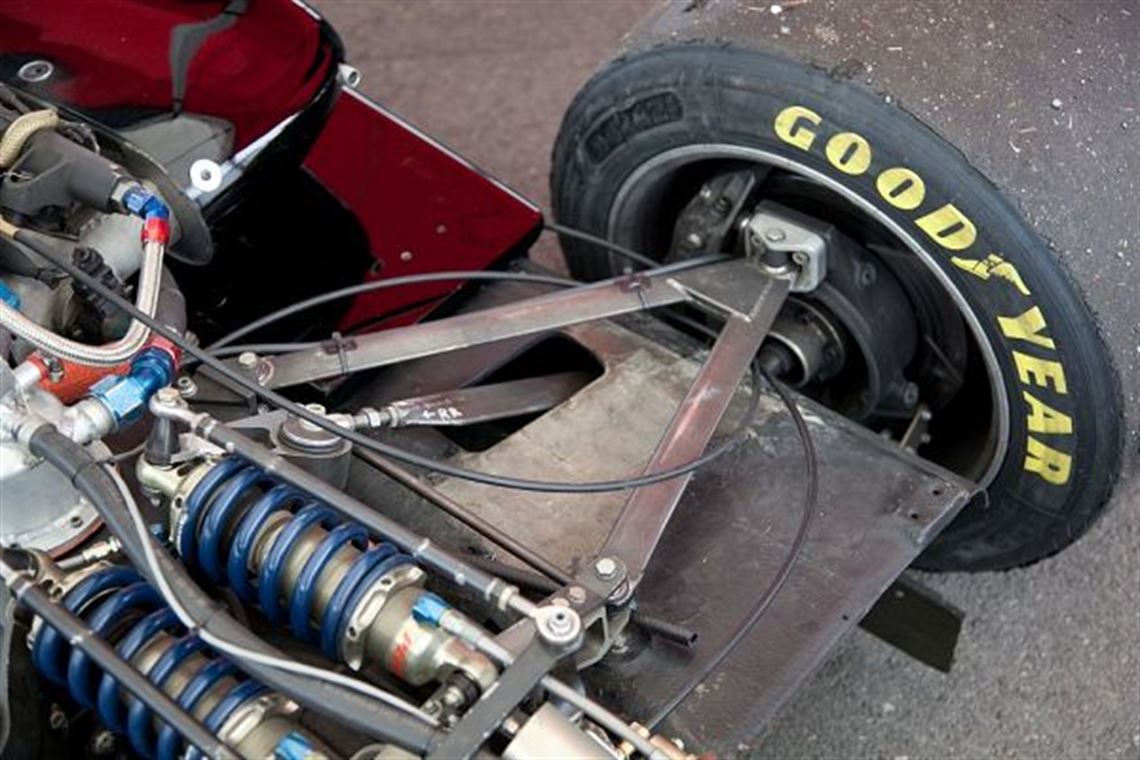

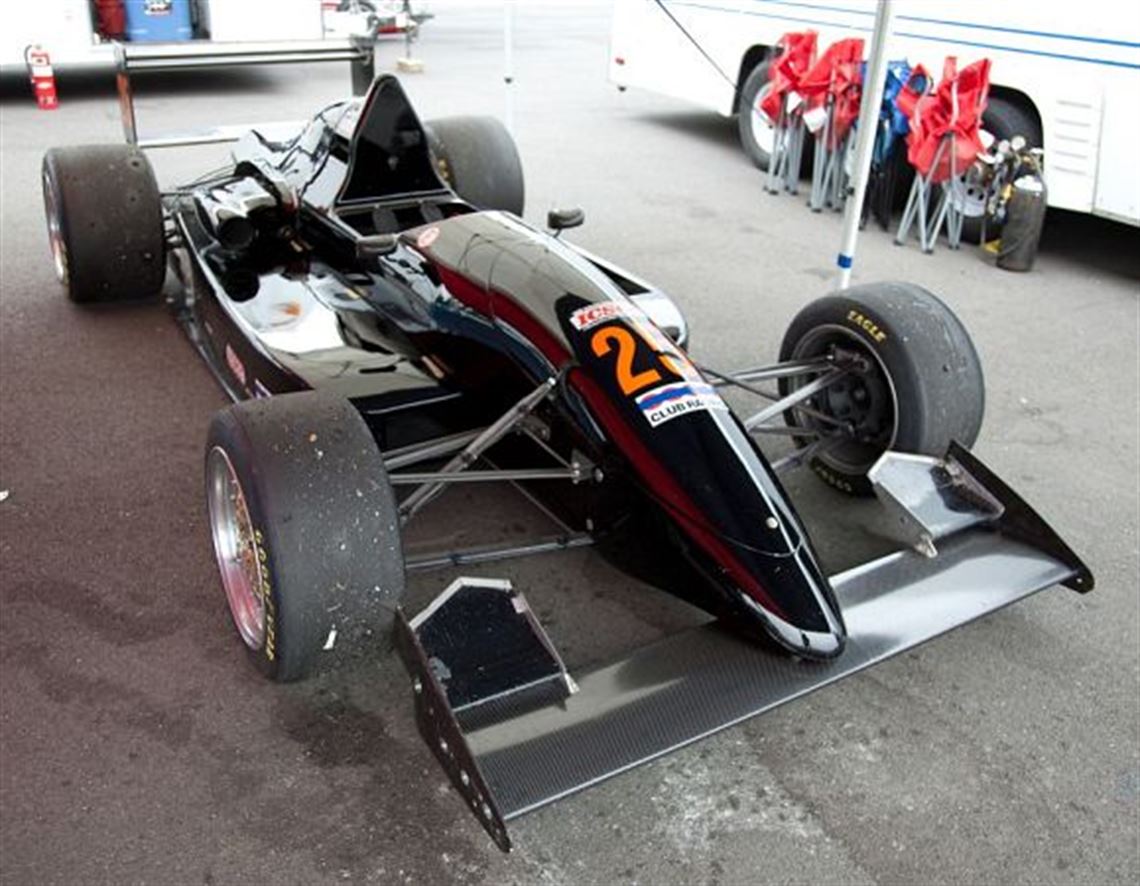

Jim Griffith designed this car for Raven Cars and the Pro Atlantic series in 1993. It is a carbon fibre tub with big tunnels and fully modern features. The tub was recently thoroughly gone through by Ludwig Heimrath Jr.'s composites shop, and is very solid. The fuel cell was serviced and a new fuel pump installed. A tube frame engine cradle was designed and built to replace the carbon fibre cradle (included). New wiring harnesses in most areas. The car is fuel injected with a low mileage Loyning engine, Pectel T6 ECU. Paired with the ECU and sensors is an AiM MXL Pista data system. The H-pattern gearbox was serviced and jig-set and shifts easily. Many spares included, including undertray, side pods, front nose/wing, suspension, and smaller aero and mechanical parts.


History

1993, 1994 Pro Series and club raced on the US east and west coasts.Performance Data

• FA


Engine

• Loyning

• Toyota

• DOHC

• 1600cc

• on request

• on request

• fuel injection

• on request


Fuel System

•

• 110LL


Electrical System

• Pectel T6

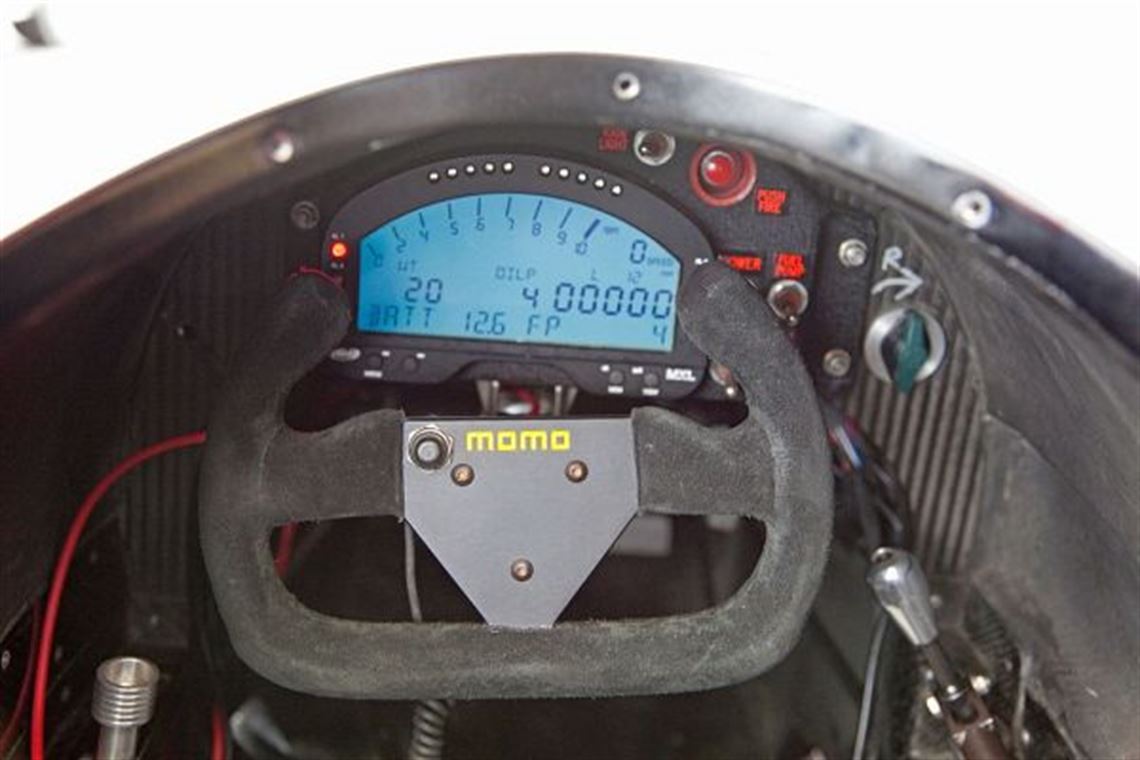

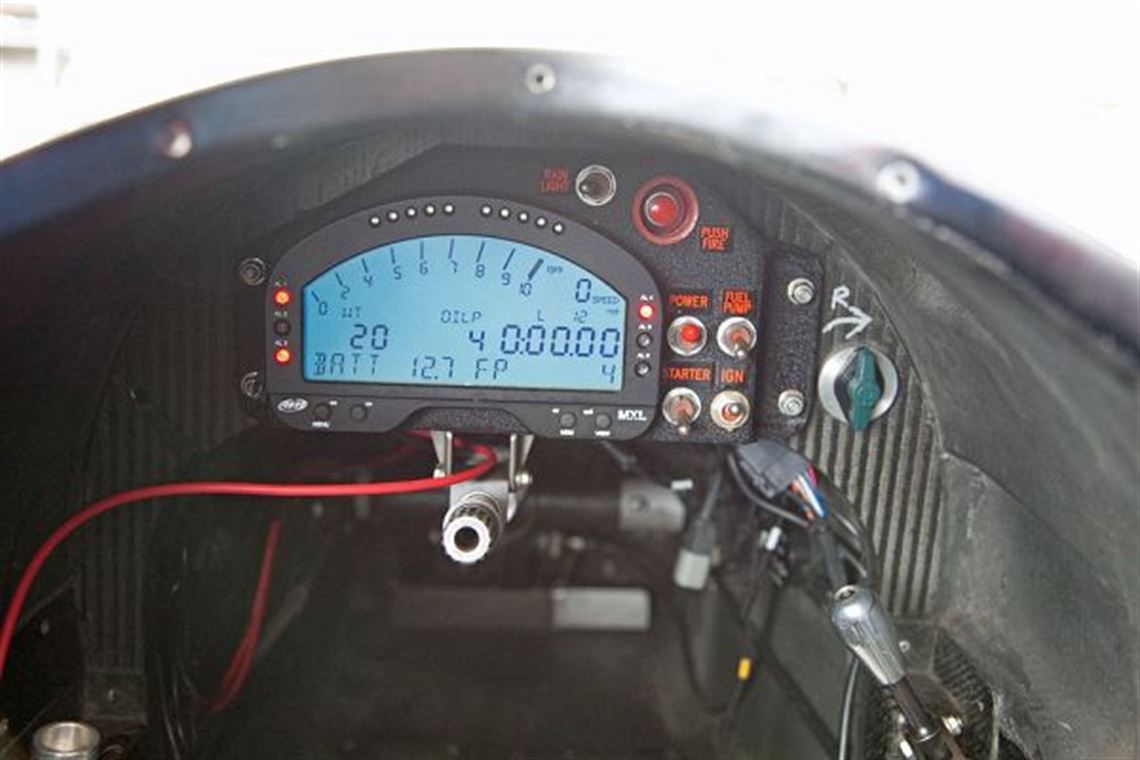

• AiM MXL Pista


Transmission

• KB racing w/FT200 internals

• 5 speed w/reverse

• H pattern

• includes spare bearing carrier and setup jig


Body

• Fibreglas tray and bodywork

• black

• very good


Chassis

• Monocoque

• Raven / Composite Wings, Ltd.

• Carbon fibre

• black paint

• excellent

• 2 full sets, 15 inch BBS


Spares

• See www.zentekno.com/Raven

• Parts lists, drawings, vendor lists, etc..
