Description:

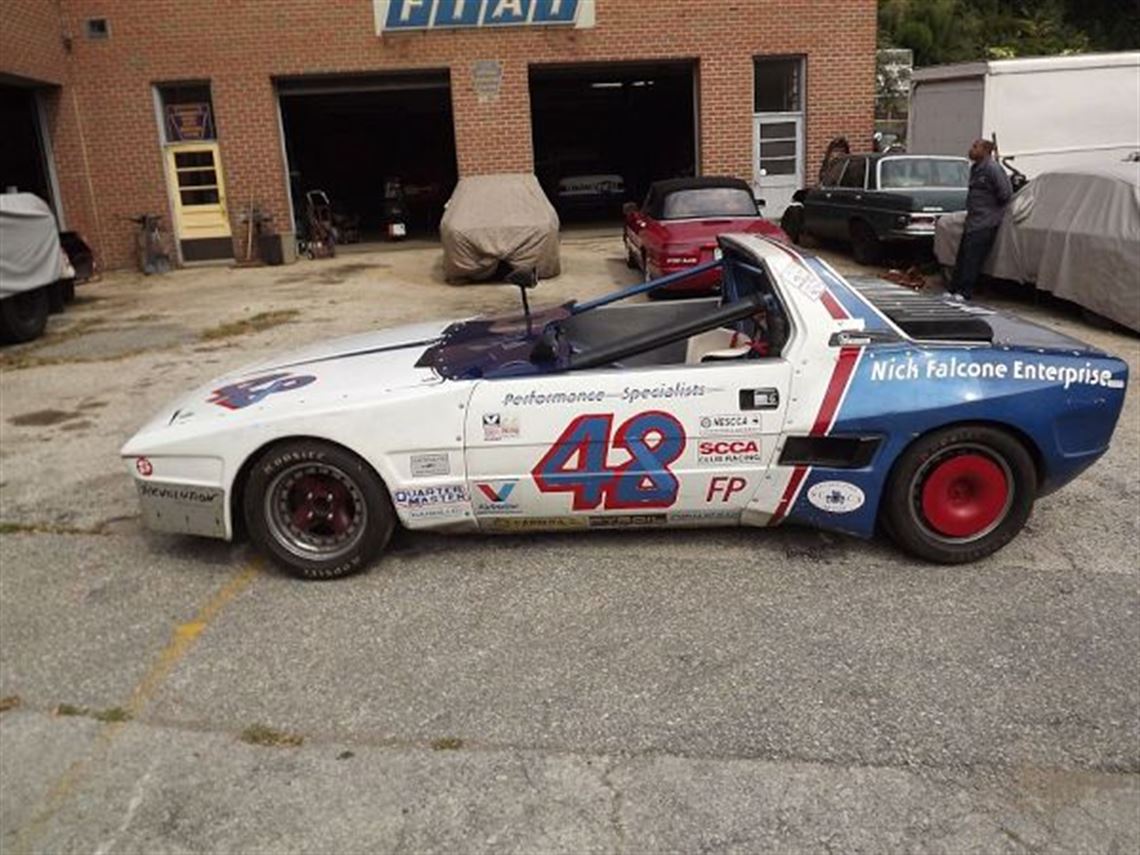

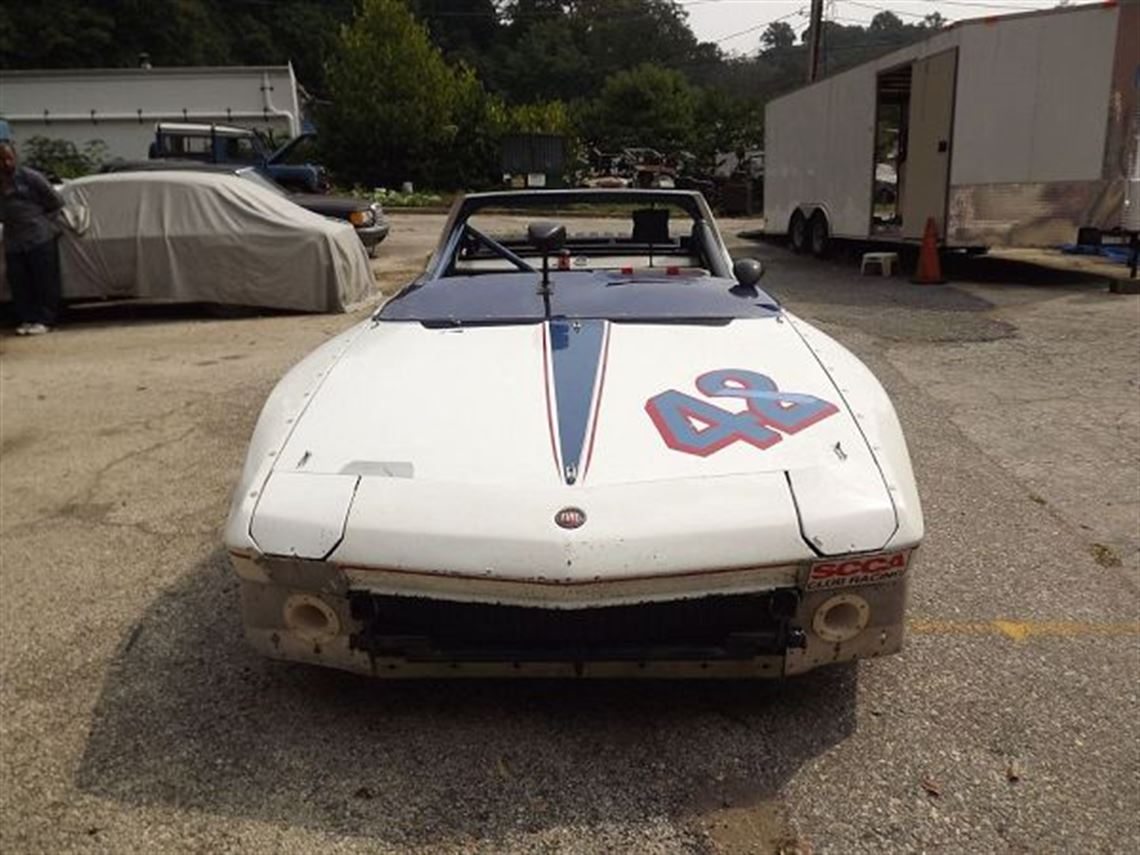

This 1976 Fiat X 1/9 was never a street car. It was purposely built as an SCCA production racecar to "PBS Production Guide" specifications. The car raced SCCA Nationals through 1994 and was then retired and stored in the parts department of the old FIAT dealership where it had been developed and maintained by a factory trained and vastly experienced FIAT and Alfa mechanic. This summer, 2015, the car was fully sorted out, track tested at NJMP in August and is ready to run -- a true turn-key racecar. SCCA log book annual tech dated 08-05-15 (good till 08-2016). The 1500cc engine was freshened with new bearings, new timing belt, new water pump, new clutch assembly; in addition brakes and clutch hydraulics rebuilt, new fuel cell bladder installed, updated seat belts (good till 12-2017), fire system cleaned. As per PBS design, the roll cage rear hoop is integrated into the Targa band, the front hoop is under the dash, bars tie into the suspension mounts front and rear. All 4 shocks are adjustable Carrara coil-over with adjustable camber plates, PBS sway bars and mount for bump steer, driver adjustable brake bias. Blueprinted engine built with Carrillo rods and Wisco pistons 14:1, dry sump and oil thermostat, all lines air-quipped (cooling, oil and fuel), competition PBS radiator and 19 row oil cooler. Fully ported head, flow tested, with matching intake manifold, carb plate, and Bob Thomas carb (36DCNF), Bob Boig adjustable pully, pyrometers. Electromotive HPV3 programmable ignition (I have the original soft ware, transferred to a disc and will run on Windows). Car has stock gear box installed now, there is a fresh close ratio gear box (PBS gear ratios, plus 2 additional 5th ratios), 5” twin plate Quartermaster clutch, custom flywheel. The rear is welded locked. Wheels are 3-part Revolution Racing wheels with a fresh set of Hoosier slicks (minus a day and a half of testing) and fresh rains on MiniLites. This car was originally built for a “big guy” then fitted for a smaller driver. (Seat bracket is removable). This car was always a National front runner, driven enthusiastically, fun to drive and toss and never crashed. It was just retired when I moved into another car. Car will be sold with a full fiberglass body kit - 10 pieces of new, never installed fiberglass plus wind screen (Chuck Challis design), close ratio gearbox with 2 additional 5th gears, additional custom flywheel, rains on MiniLights. If you are looking for something different, this is the car - quick and with the mid engine design, fabulous handling. There are many, many, many spares (upon request) including , engine parts from FIAT (new block, head, carb) performance parts from Bob Thomas, cam blank, billot crank, more and more.


History

Originally built to “PBS Project X 1/9” guide published by FIAT in in 1979. 2 owner (2 drivers) car, never crashed, SCCA National front runner, runoffs in 1987, 88, 94.

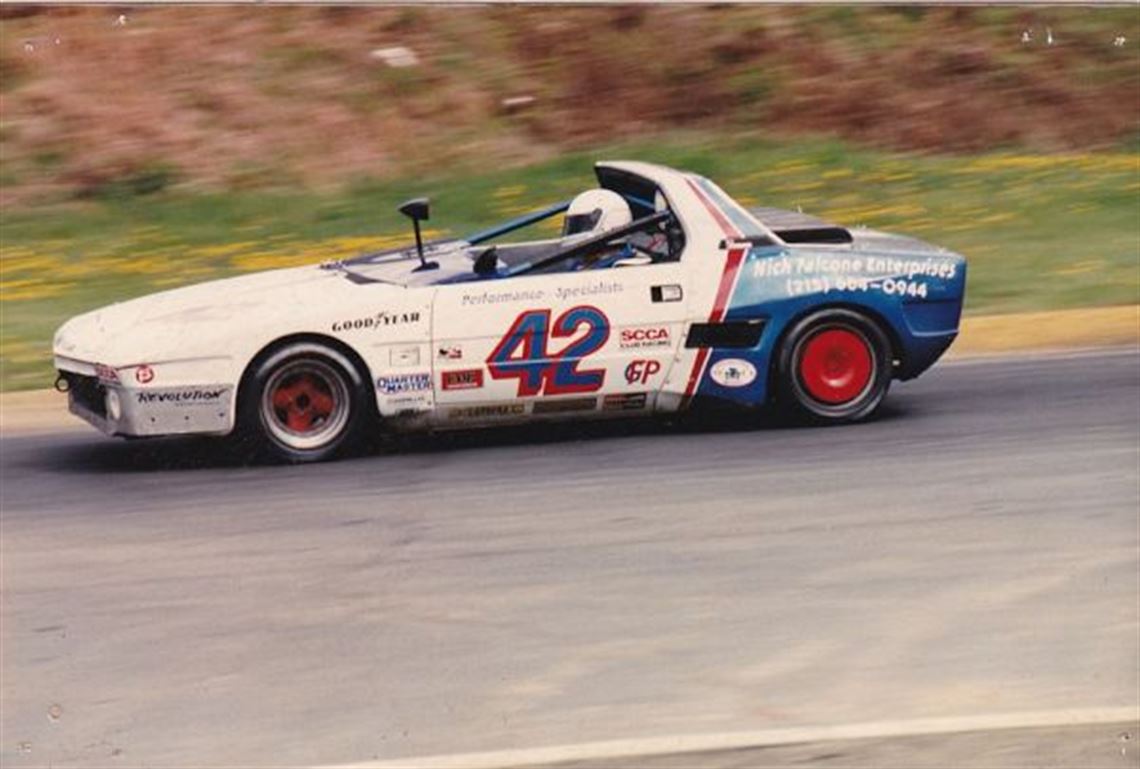

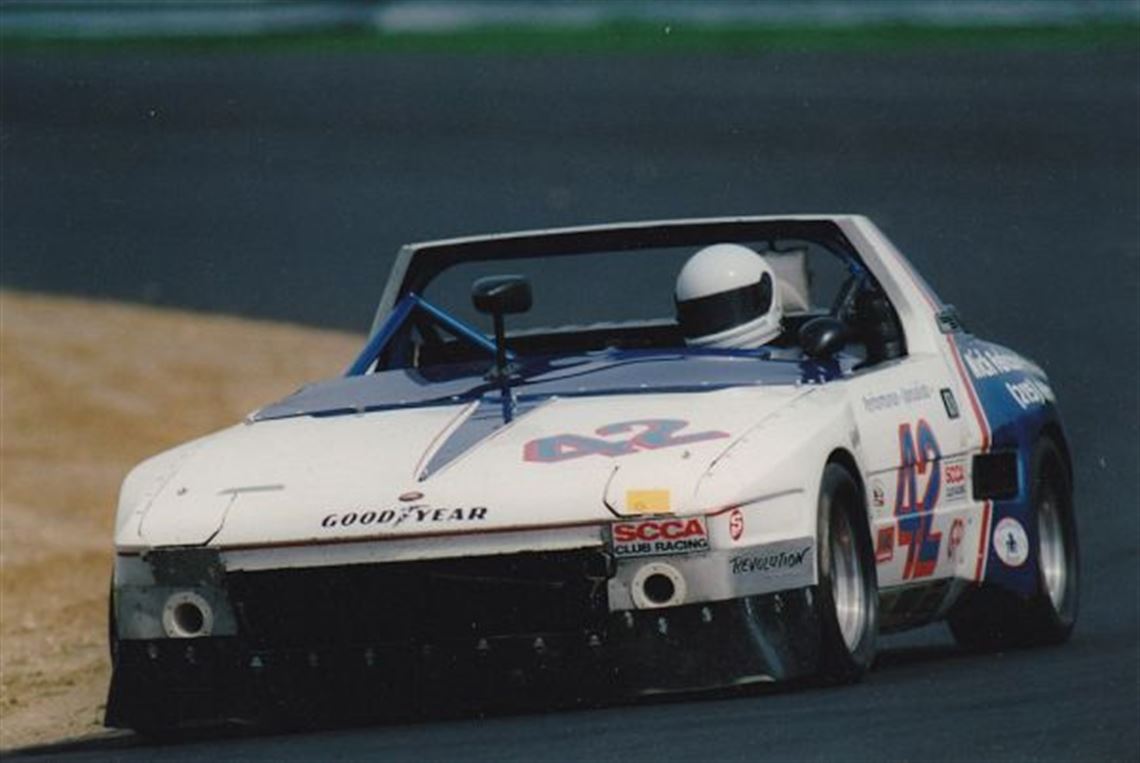

Competition History

1994 NESCCA Divisional Championship 2nd place in F Prod
Performance Data

• production

• 1700 lbs

• Lime Rock

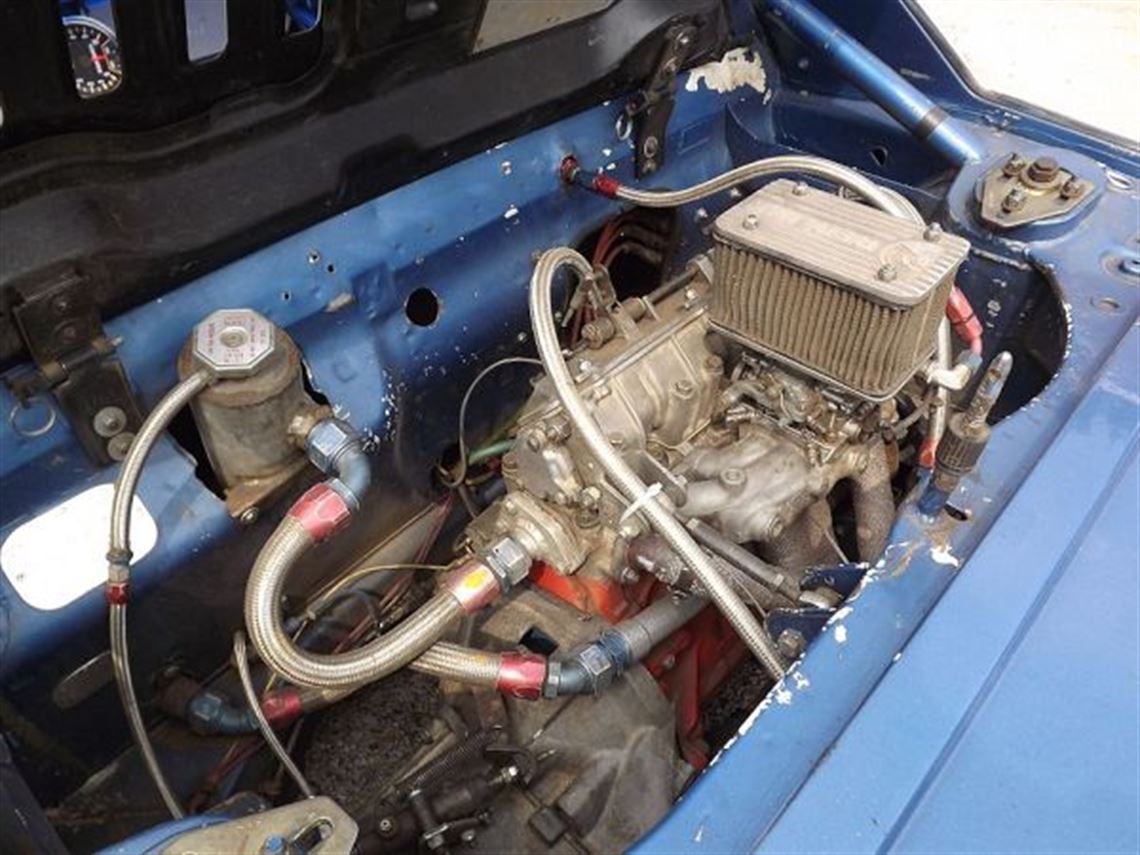

Engine

• Vincenzo Votto

• FIAT

• OHC

• 1500 cc

• Weber 36DCNF w/matching intake manifold

• ported

• steel

• 5 main

• balanced

• Carrillo

• Wisco, tapered pin, 14:1

• F286

• swirled

• 5

• Quartermaster

• custom

• custom, matched heahers

• dry sump, oil thermostat, pyrometers

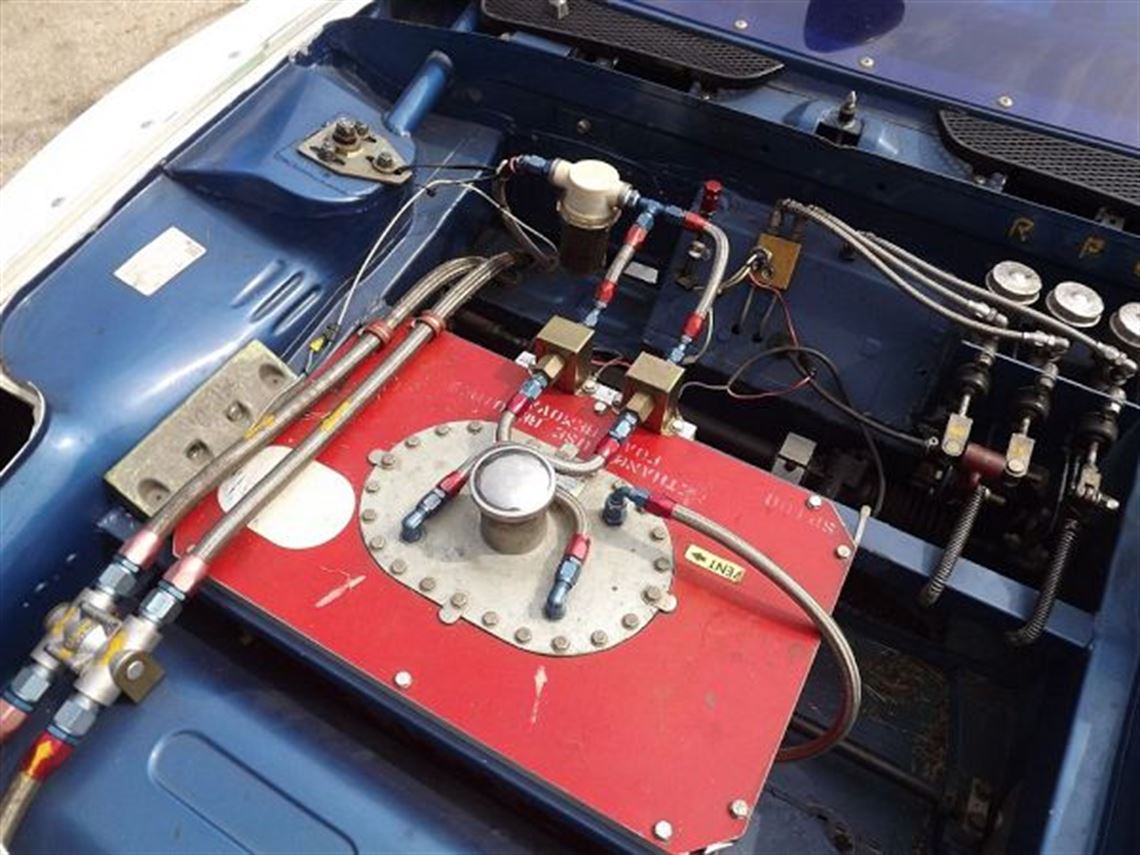

Fuel System

•

• ATL

• 2015 bladdee

• 8 gal

• duel Facet

• race gas


Oil/Water System

• PBS

• front

• FIAT

• 19 row

• front


Electrical System

• Electromotive HPV3

• no

• Interstate`

• no

• Electromotive


Transmission

• FIAT

• 5 speed

• stock

• FIAT

• no

• PBS close ratio gear box + 2 additional 5th gear ratios


Rear End

• FIAT

• trans ax

• no

• 4.82

• welded

• 2


Body

• steel/fiberglass fenders and lids

• white and blue

• very, fiberglass needs small repairs

• complete NEW set of fiberglass included


Chassis

• unibody

• FIAT

• steel

• very good (never crashed)

• PBS, heim joint, very good

• PBS, heim joint, very good

• Carrara coil overs with adj camber plate

• FIAT with driver adj bias

• rack and pinion

• Revolution 3-piece

• Hoosier slicks


Interior

• blue / steel

• aluminum door panels

• yes

• RaceQuip 6 point, HANS (2017)

• 10,000rpm SW tac, pyros, oil pres, oil temp, water temp

• 12

• excellent, race ready


Spares

• new complete fiberglass body kit

• close ratio gear box (2.23,1.8,1.4,1.16,.96)

• 2 alternate 5th gears (1.04,1:1)

• extra custom flywheel

• Hoosier rains on Minilights
