Description:

A very late Davrian road car, extensively modified for the hills in the mid 90s, it is about the
ultimate specification of this very rare Welsh-built car. For more information on the marque see
the

History

This car is one of the last, if not the last, built by the factory. It was purchased by the first owner
from the Davrian
factory (in Wales) and used as a road car for about ten years or so. At the beginning of 1995 the work
undertaken to use the car in the modified class for hillclimbs was completed. During 1995 it was
entered in about 8 hillclimbs or so, including winning the Davrian class at Longleat (see New Davrian
Register newsletter issue 3) but then the owner decided to sell it. The current owner purchased the car
on 9-12-95 and has continued to used the car on hillclimbs.


Competition History

The car has lowered the Davrian class record at Longleat 1996
(see New Davrian Register newsletter issue 4, two articles). It has just won the 1997 Davrian class
at Longleat hillclimb for the third time (1996 (see New Davrian Register newsletter issue 5, two
articles). Additionally I have come third in the CSMA championship in 1997. All parts are still
available from Team Duffee Engineering in the UK.

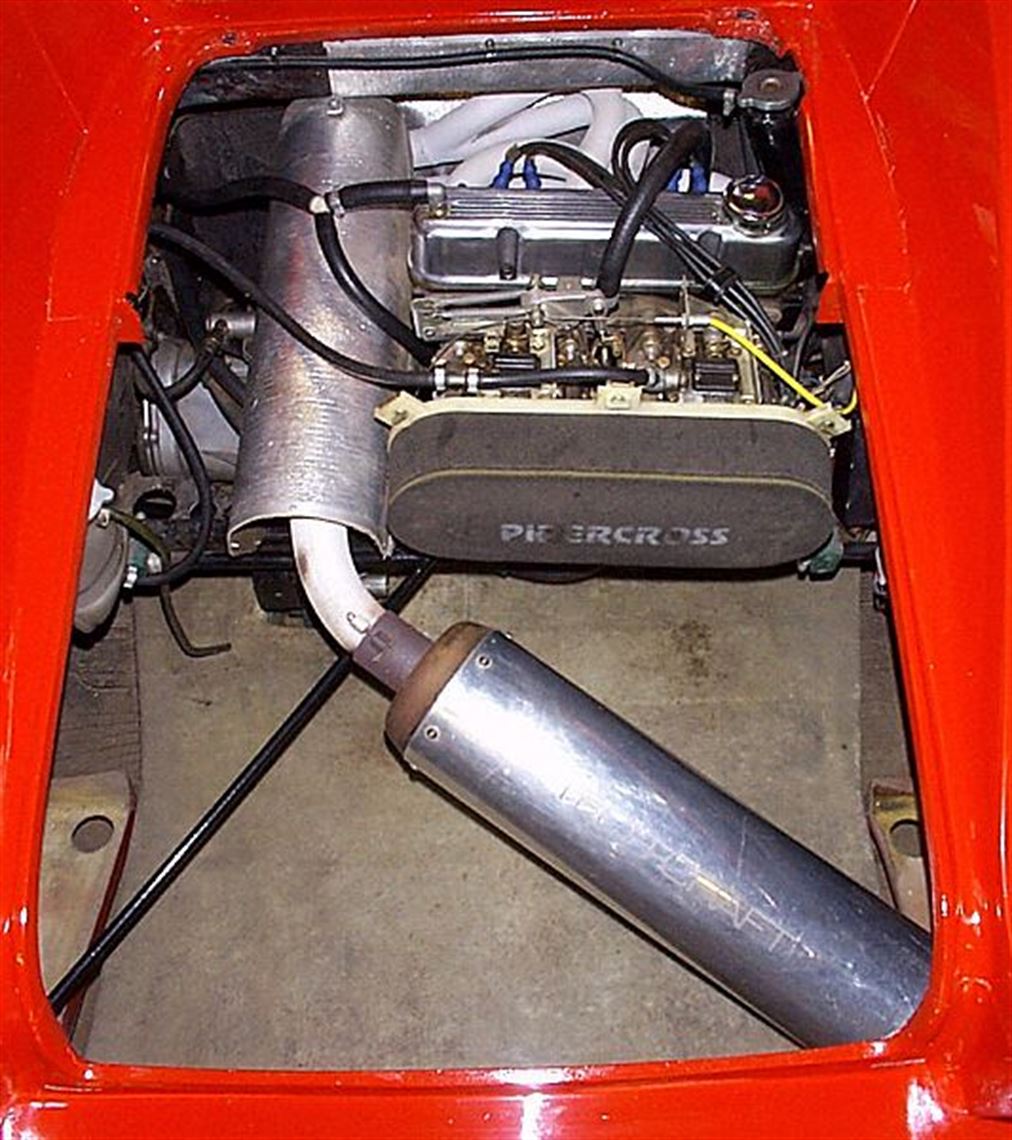

Engine

• Transverse mid engined

• Built by Arrow Performance Engines

• Ford "Kent" Crossflow (other engines that would fit to the gearbox and car include Zetec 1.6, 1.8 or 2.0cc)

• 1760cc

• Ford thick walled AX block

• Crankshaft Tuftrided, Polished, and Balanced

• Con Rods Lightened and Balanced with Cosworth Bolts

• Flywheel Lightened and balanced

• Clutch Spline 1600 Fiesta

• Clutch Type Competition Borg & Beck Heavy Duty

• Pistons 85mm Flat Top Forged

• Camshaft Drive Duplex Vernier

• Burton Chambered Head

• Steel Posts

• Rocker Spacers

• Inlet Valve 1.625"

• Exhaust Valve 1.373"

• Spring Type: Double - Isky Racing

• Fitted Length 1.340"

• Chamber Capacity (Head) 26cc

• Total deck Capacity 20cc

• Compression ratio 10.5 : 1

• Camshaft Profile Kent A8

• Cam Timed in at 100

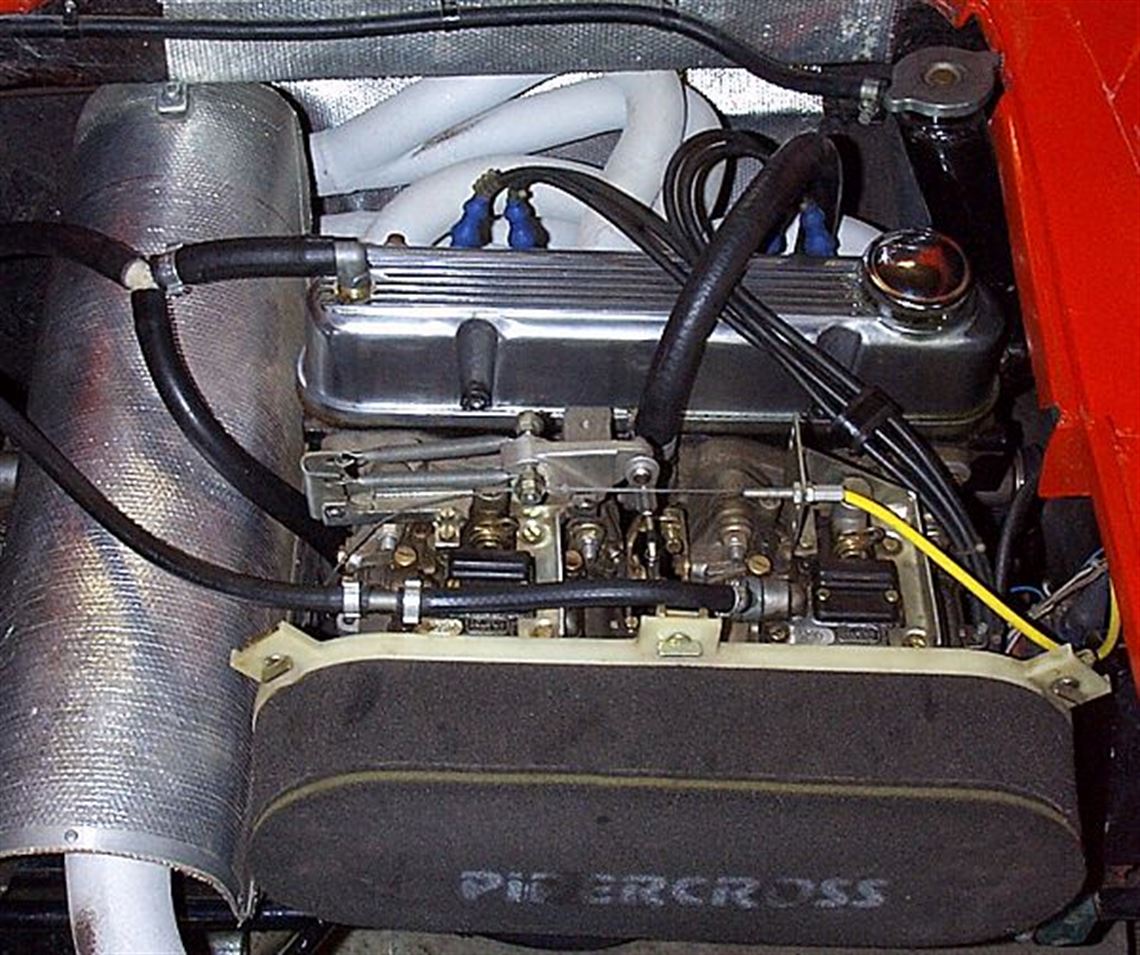

• Air Filter Pipercross

• Carburettors Twin 45 DHLA Dellorto

• Exhaust Maniflow four branch exhaust

• Silencer Tech-Craft re-packable


Fuel System

• Fuel Pump FACET electrical

• Fuel Filter

• Fuel Tanks Twin (only one currently connected to fuel pump)


Oil/Water System

• Type of Sump Dry

• Oil Pump High Pressure Pace 5 Port

• Oil Tank 1.4 Gallon approx

• Oil Mobil 1

• Radiator Front mounted, air flow In through front of car and ducted out over front bonnet in front of windscreen


Electrical System

• Electronic Ignition Microdynamics management System Type EXD2

• Rev Limiter OMEX Clubman, It is electronically set without running the engine

• Cycle computer, For recording maximum speed, driven from front offside wheel.

• Shift light OMEX Pro, It is electronically set without running the engine.

• Battery 12 Volt Type RE1 420 Amps (SAE)


Body

• Monocoque of Glass Reinforced Fibre

• Colour Red

• Centre section Main shell with integrated roll cage

• Lightweight Front Bodywork

• Lightweight Rear Bodywork

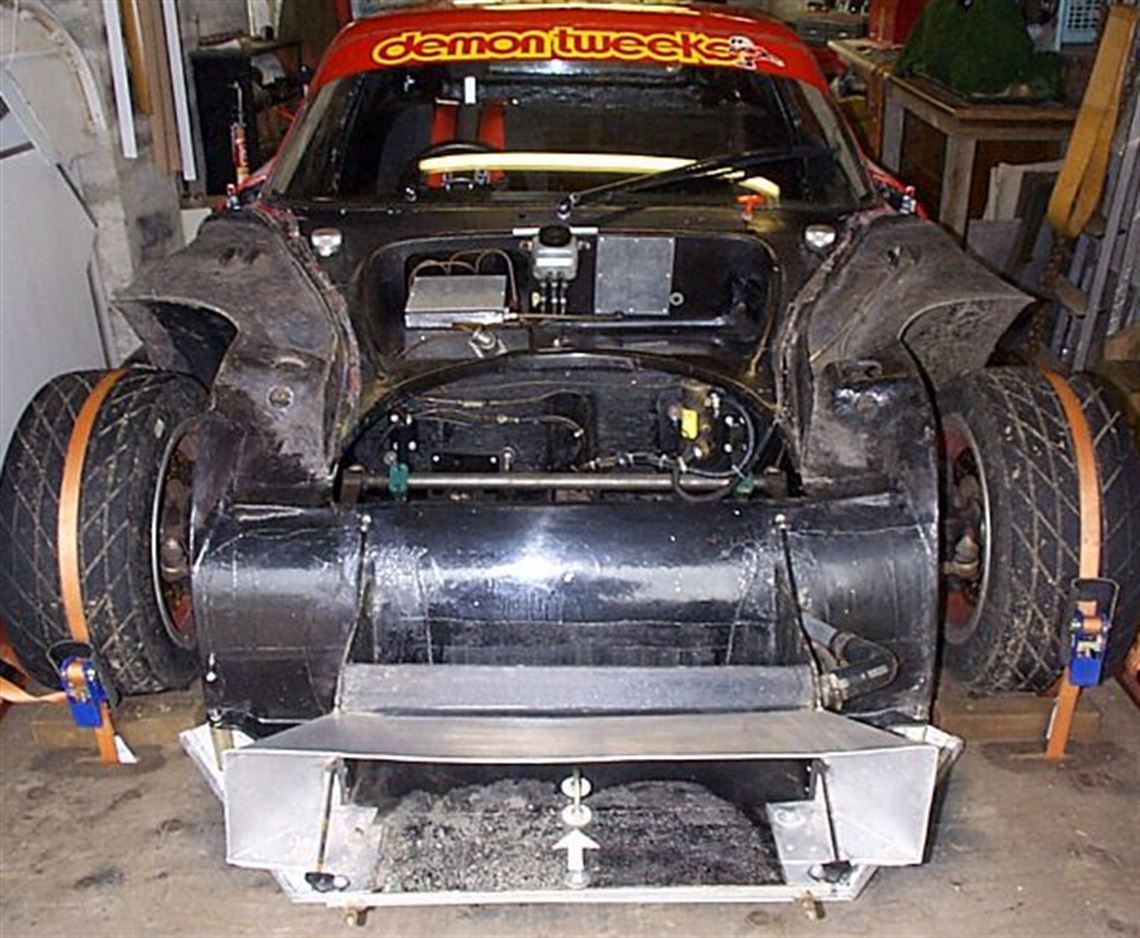

• Undertrays: Nose Section, Front Section, Main Body section, Rear under engine diffuser

  All undertrays can be removed in a matter of minutes as they are held on by screws.

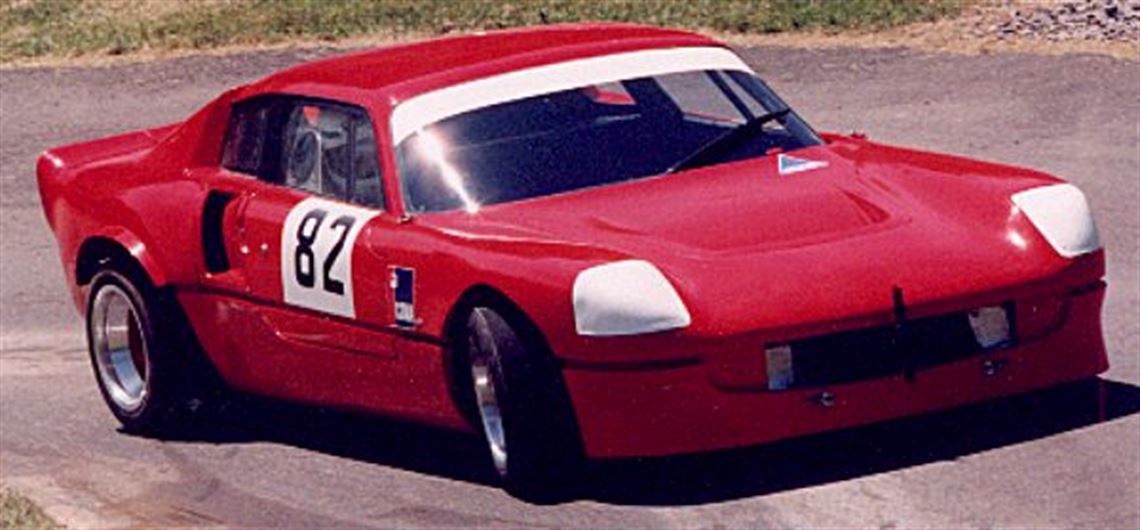

  The picture with number 82 on the car (taken at the Gurston hillclimb in June 1996)

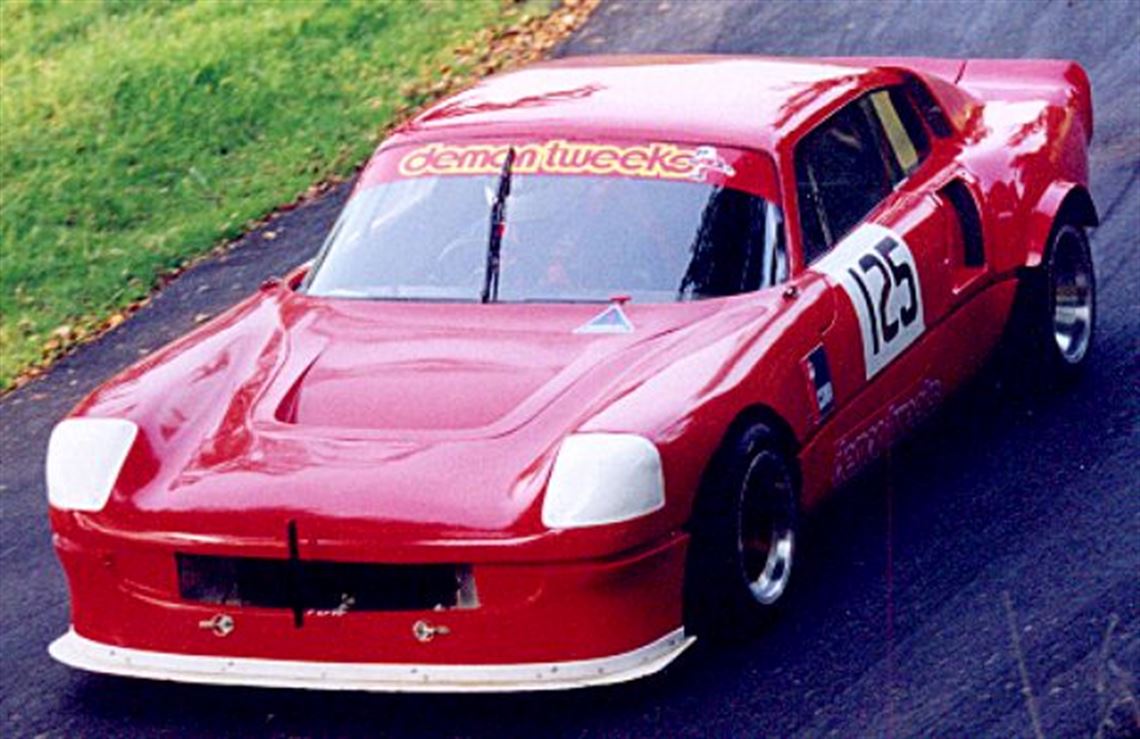

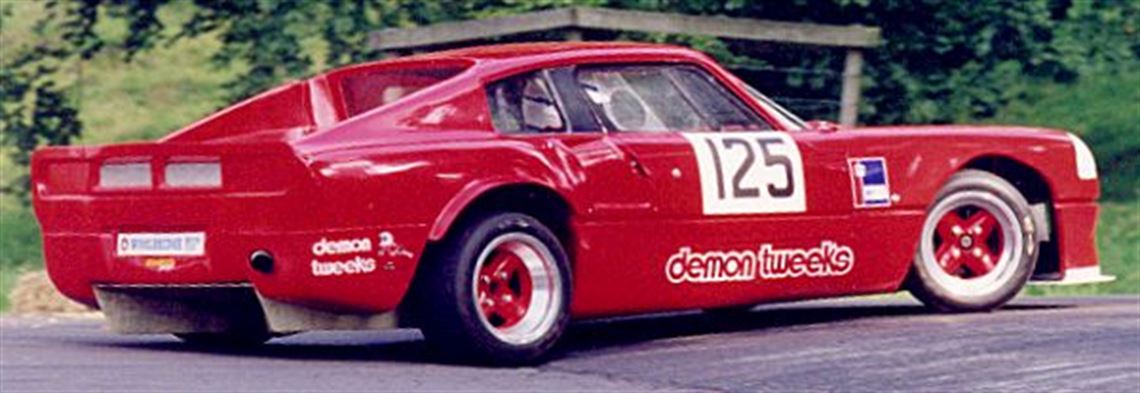

  shows the car with the undertrays removed and the pictures with 125 on the car
  (taken at the Longleat hillclimb in September 1997) show the undertrays fitted.

• Lightweight Headlamp Covers

• Windscreen Wiper Single as per Davrian Mk 8 Standard

• Timing Strut To UK RACMSA Regulations


Chassis

• Spax modular coil over competition units with adjustable platforms and rates.

• Front anti-roll bar, Adjustable rates, fitted with rose joints

• Front Wishbones Davrian/Darrian Fabricated, Front Hubs Lightweight

• Rear anti-roll bar Adjustable rates, fitted with rose joints

• Rear Wishbones Davrian/Darrian Fabricated Rose jointed

• Imp Steering Rack, Steering Arms Heavy Duty

• Front/Rear Discs

• Brake Bias Adjuster

• Brake Flexible Lines Aeroquipped

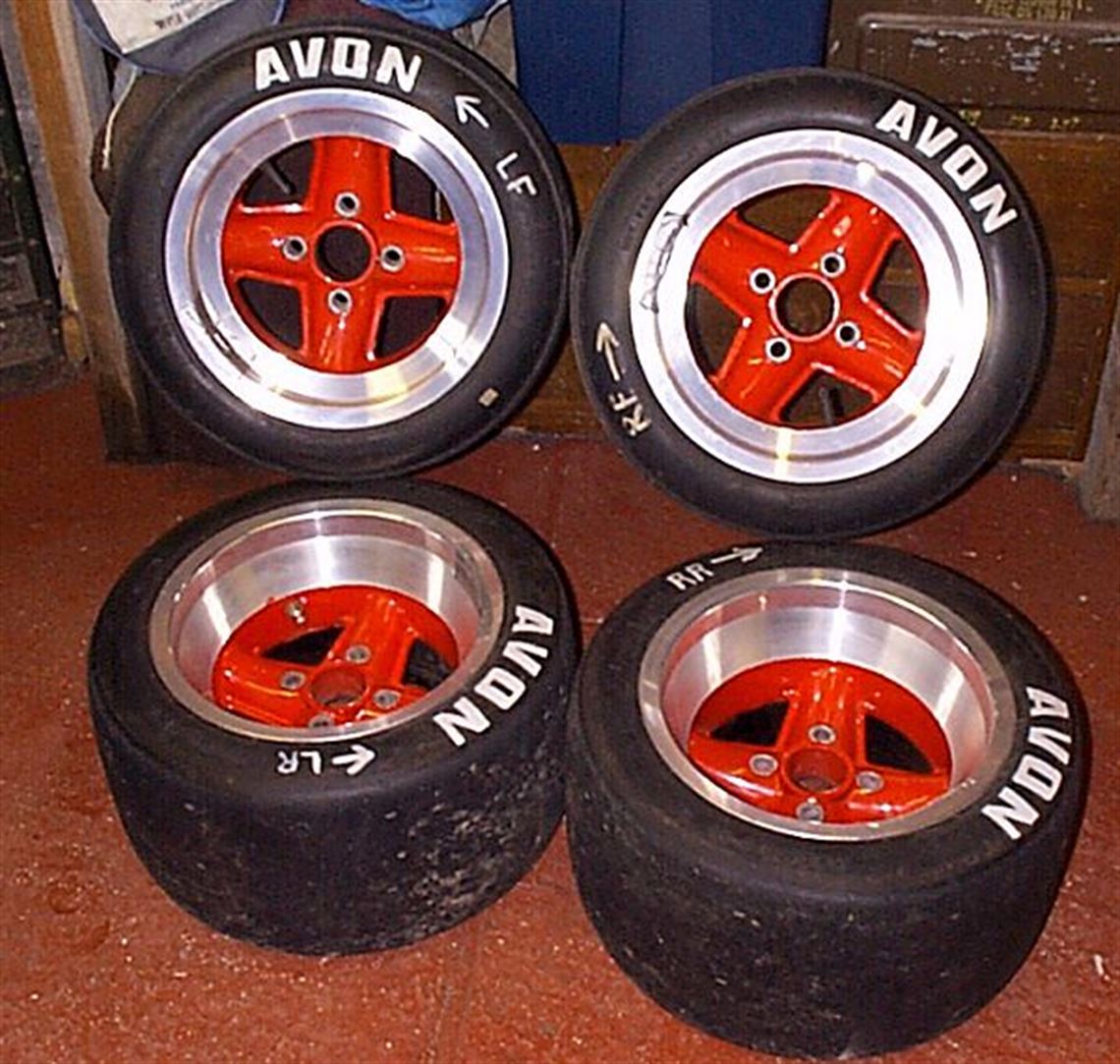

• 4 8 x 13 Revolutions 4.25 PCD, 4 10 x 13 diameter Revolution wheels 4.25 PCD

• 2 Avon slicks 7.2 x 20 x 13, 2 Avon slicks 9.0 x 20 x 13, 2 Avon wets 7.5 x 21 x 13, 2 Avon wets 9.0 x 20 x 13

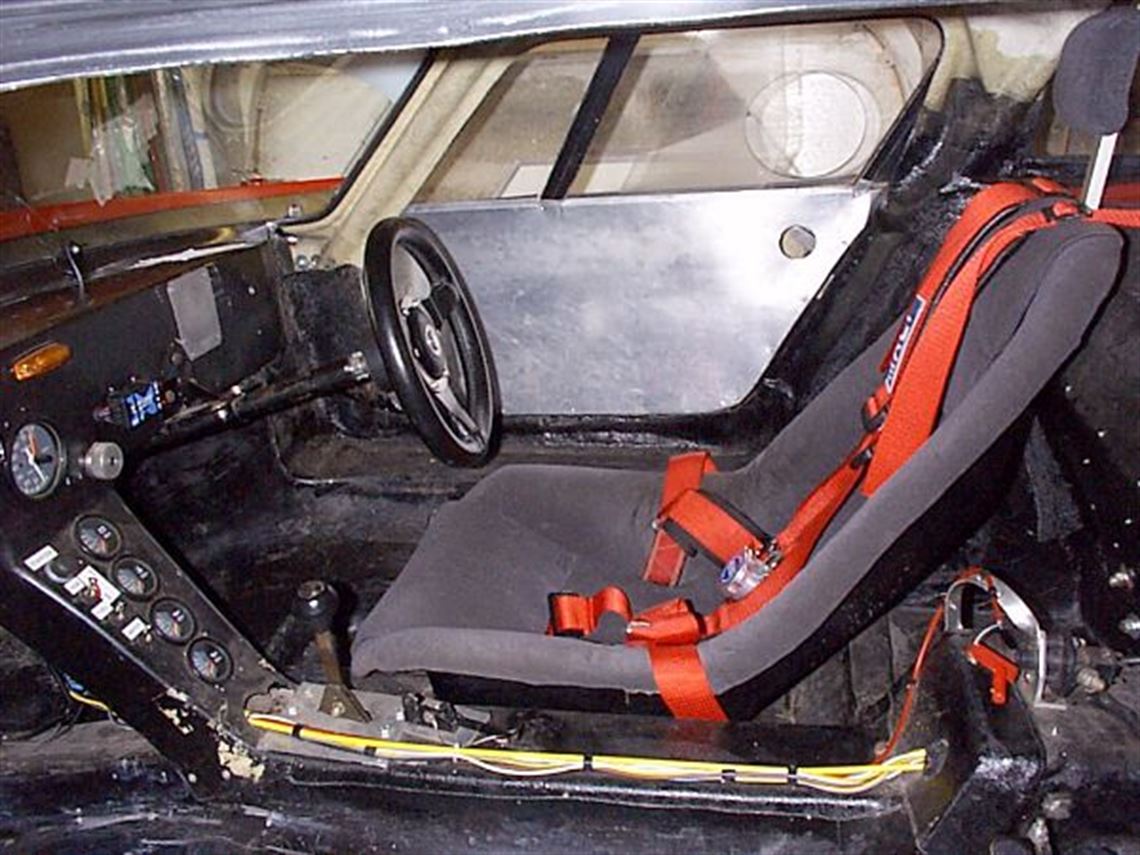

Interior

• Drivers Seat Davrian Mk 8 Standard trimmed

• Luke 5 point harness with aircraft type release

• Revcounter 0 to 8000 rpm

• Water temperature 40 to 120 C

• Oil Pressure 0 to 110 PSI

• Oil Temperature 50 to 150 C

• Voltmeter 10 to 16 Volts

• Low Oil Pressure warning lamp

• Battery Isolation Switch with external external activation cable


Spares

• Front Lower Body Section

• Front Splitter

• 2 undertray Nose Sections

• undertray Front Section

• Other Parts Not Currently Fitted (including parts to put back to road going)

• Spare Differential ratio 4.58

• Distributor New, type Aldon FXYS103

• Hydraulic Handbrake kit

• Speedo and cable

• New headlamp surrounds (one pair)

• Old headlamp surround (one pair)

• Front headlamp fixings (one pair)

• Front headlamps (two pairs)

• Rear lights (one pair)

• Handbrake

• Handbrake Cables 2 off

• Handbrake shoes, two pairs, with activation pins as Davrian Mk 8 original set up new.

• Passenger seat trimmed

• Alternator

• Radiator

• Wiper motor

• Rear view mirror

• Door mirrors (one pair)

• Clutch plate

• Coil Springs,8.0x250lbs 2 off, 10.5x300lbs 2 off, 10.5x275 lbs 2 off, 10.5x225lbs 2 off

• Front Wheel Bearings 2 off

• Front King Pins 2 off

• Documentation: Receipts for the parts defined above, Full history from since leaving factory, Copies of Davrian Newsletters
