Description:

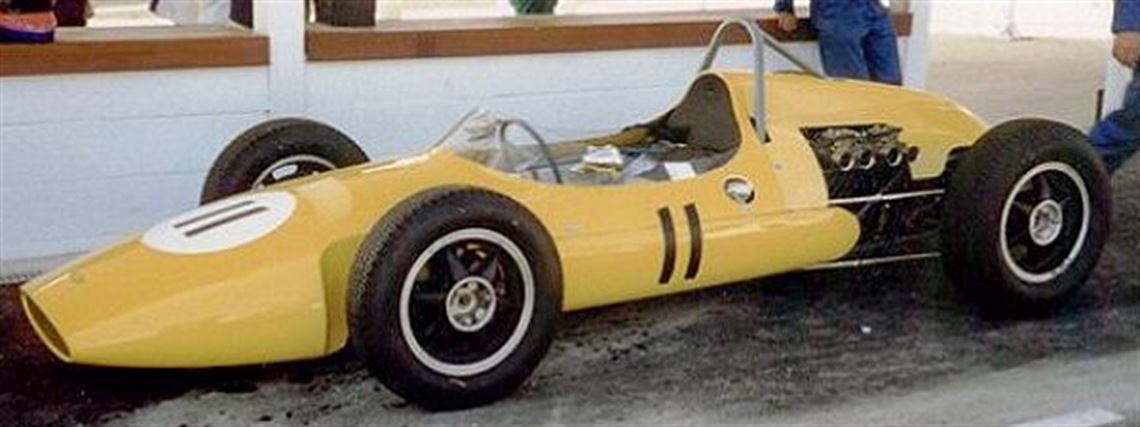

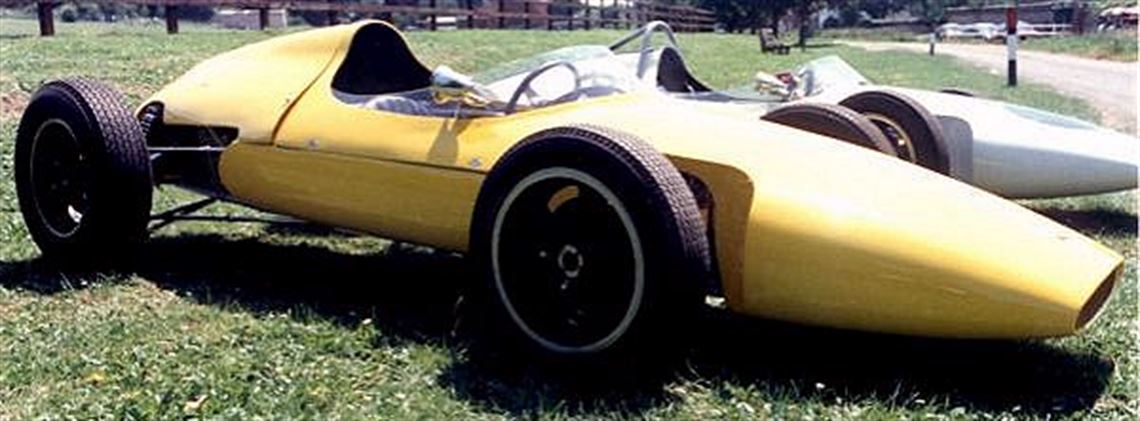

This was one of the Emeryson works cars. It was based on their Formula Junior design but with uprated
chassis, brakes and wheels to match the larger Formula 1 engine and gearbox.
This car was always fitted with a Coventry Climax engine. The works Emerysons were run by
Equipe Nationale Belge (E.N.B.) who also ran with 1500 cc Maserati engines. The cars were constructed by Paul Emery
who built Formula 1 cars to every post war GP formula from the 1940's 4-1/2 litre up to the late 1960's 3
litre. Despite being acknowledged as a great engineer, as with most privateer F1 teams, a lack of
adequate finances usually prevented the cars from showing their true form.

History



Competition History

Raced at Goodwood Circuit Revival meeting in 1998, driven by Paul Osborn.

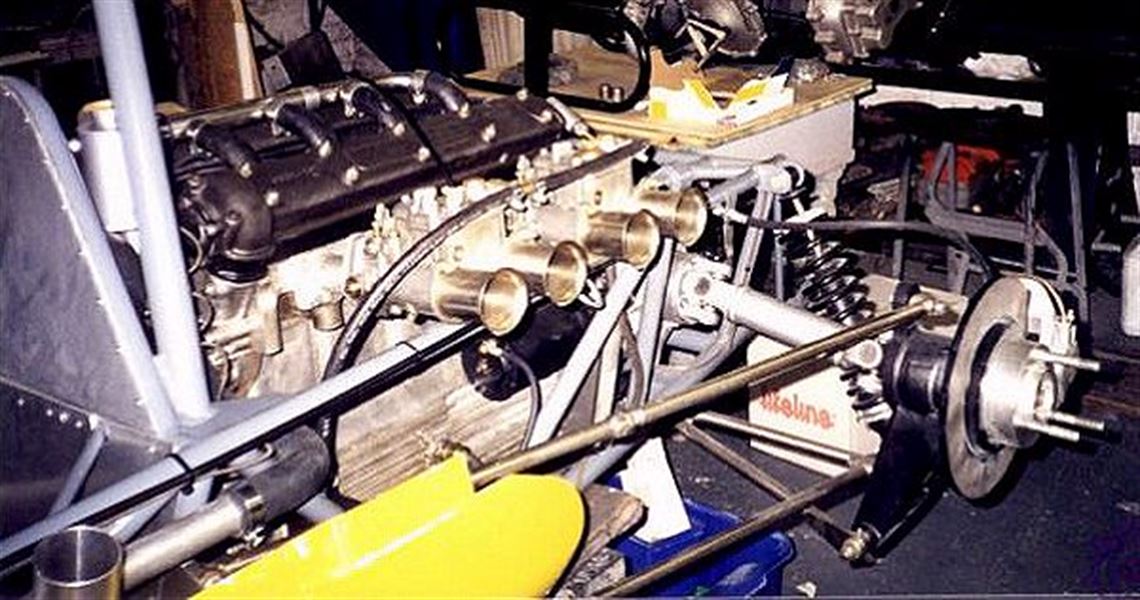

Engine

• Coventry Climax FPF

• 1500 cc

• twin Weber 45 DCOEs

• Dry sumped

• rebuilt by Stuart Rolt


Fuel System

• Foam filled aluminium seat tank

• Facet electric pump.


Oil/Water System

• seperate oil and water radiators (rebuilt by Serck)

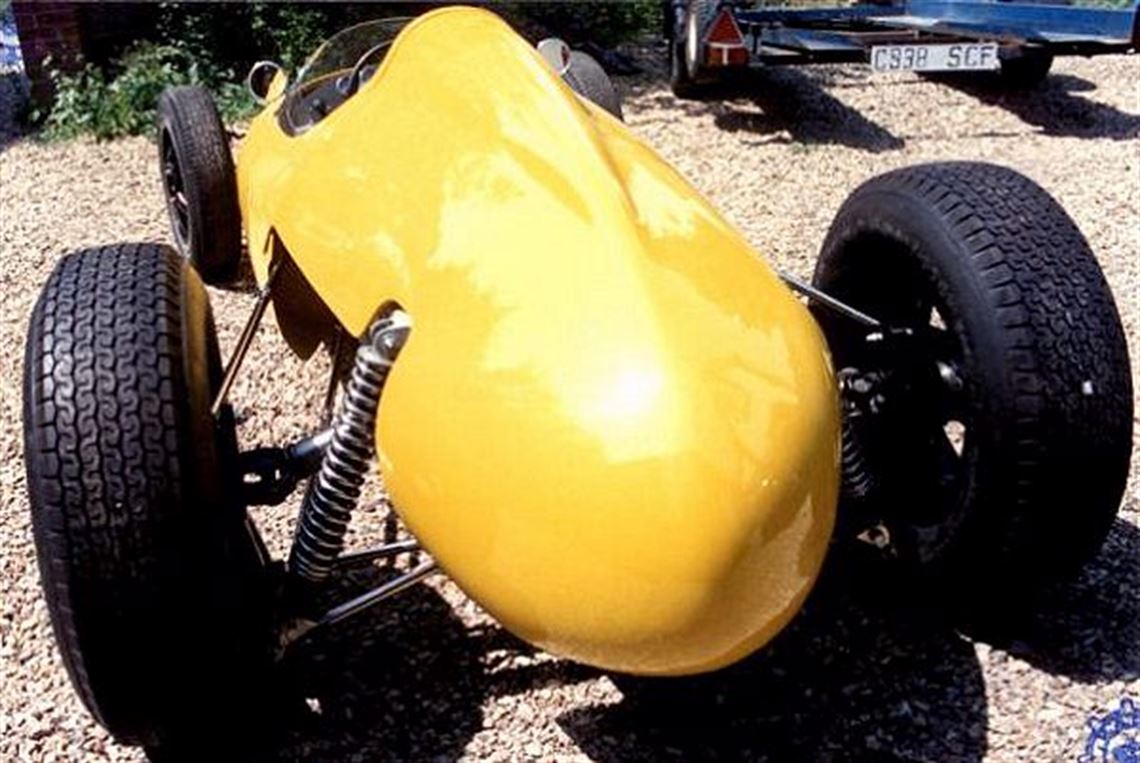

Body

• Fibreglass

• Painted yellow (E.N.B. colours)

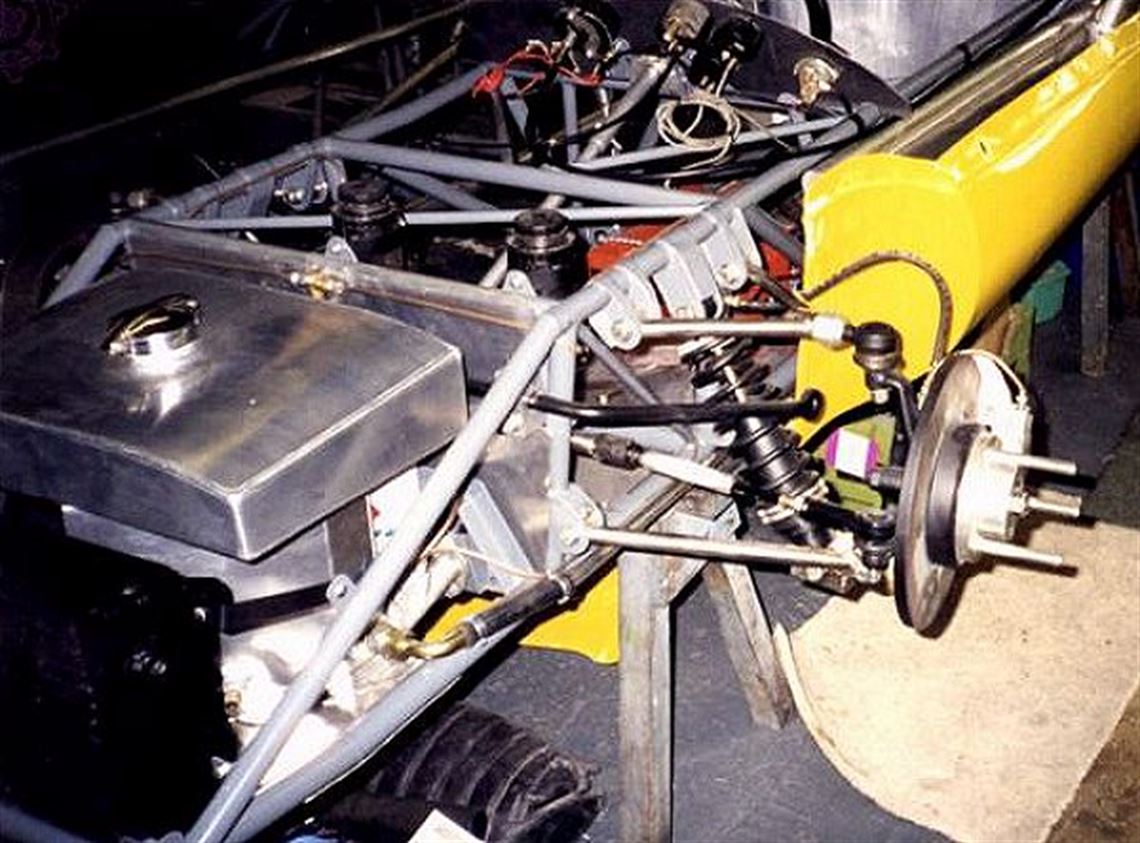

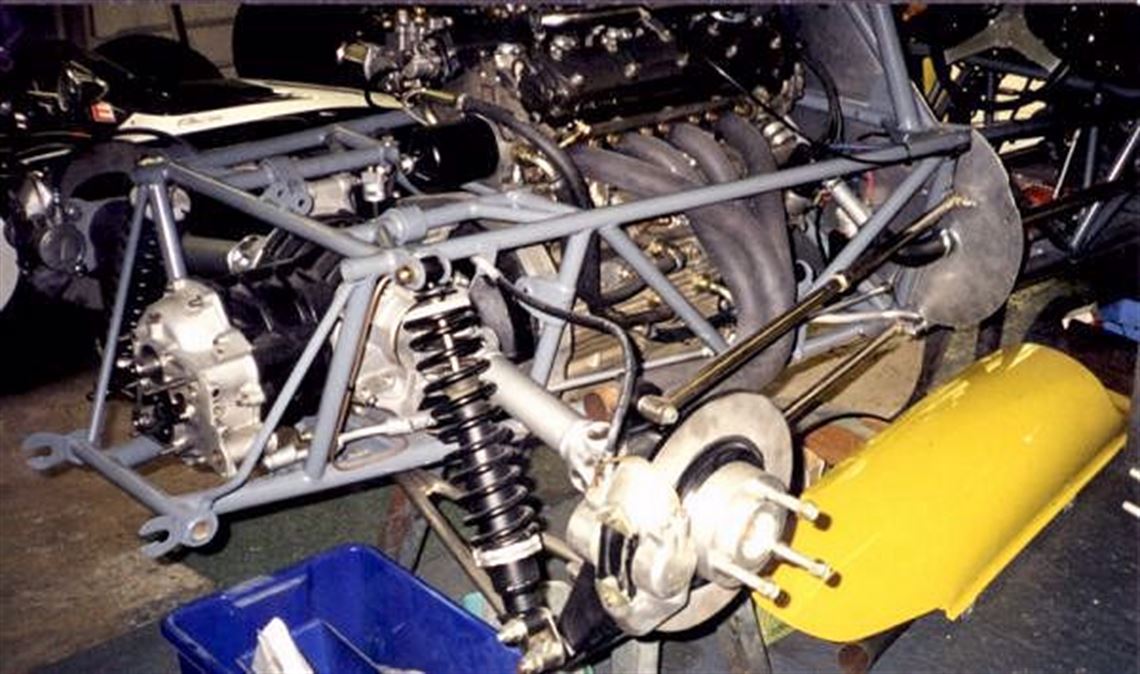

Chassis

• Tubular space frame

• Rebuilt by Cyril Linstone of Emeryson cars in 1993

• new adjustable Spax

• Double wishbone, coil over

• Lower wishbone with driveshaft forming the top link, coil over

• Rack & Pinion - rebuilt by Merlin motorsport

• Disk, Girling AR calipers - rebuilt by Peter Denty

• New Magnesium Emeryson wheels, made using the original patterns - fitted with new Dunlop L section tyres.



Interior

• safety harness
