Description:

This car was the subject of a thorough restoration over the last few years and is in pristine condition and race ready.
It was raced only once since restoration and would be a very serious contender in Sports 2000 races.


History

Royale was a late comer to the Sports 2000 scene.

Competition History

One race only

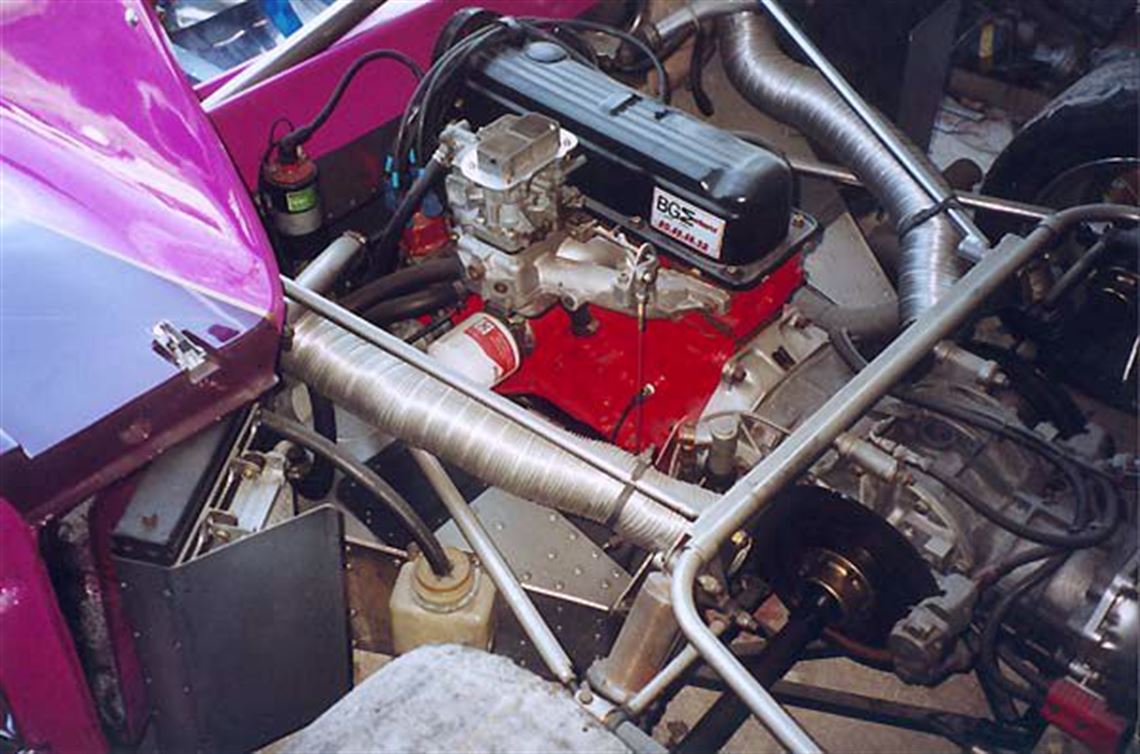

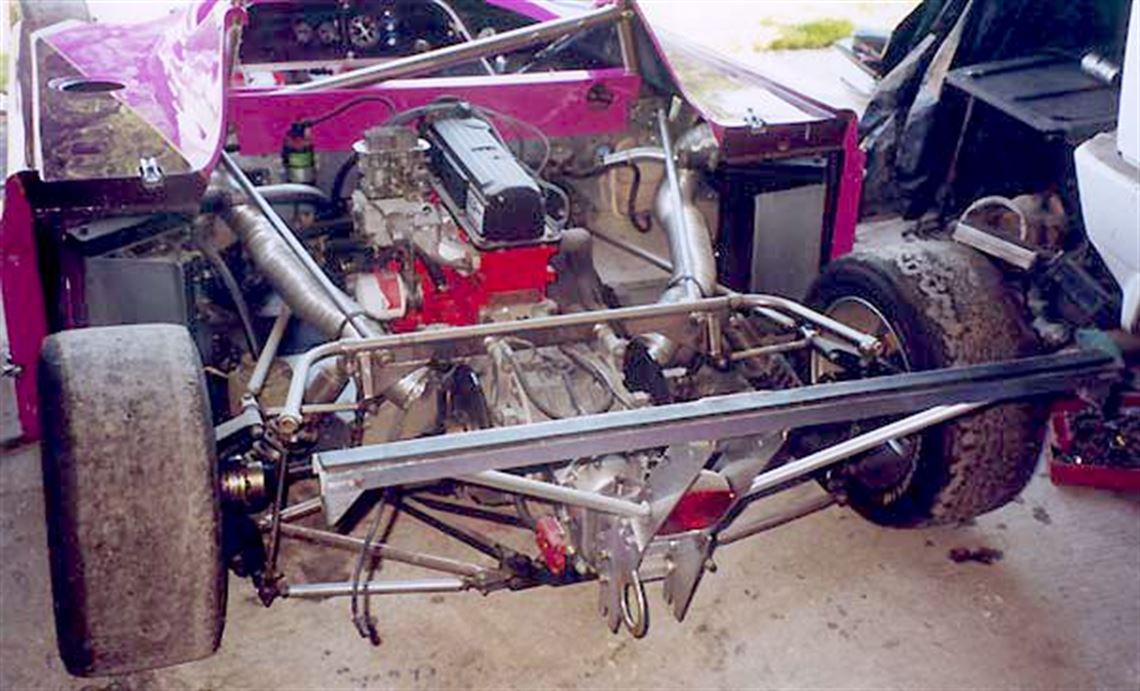

Engine

• 2 litre Ford Pinto NE to Sports 2000 specification

• Single downdraught Weber 32/36 DGV carburettor

• Dry sumped

• Electronic ignition

• Rebuilt by Bernard Goubet Moteurs (BGM) - France

• One race since rebuild


Fuel System

• Mechanical fuel pump

• Foam filled rubber fuel cell (8.5 US gallons capacity)


Oil/Water System

• Rebuilt water side radiators

• Original oil tank

• New oil cooler


Electrical System

• Total loss 12V system

• Master switch

• Rain / tail light

• Stop lights

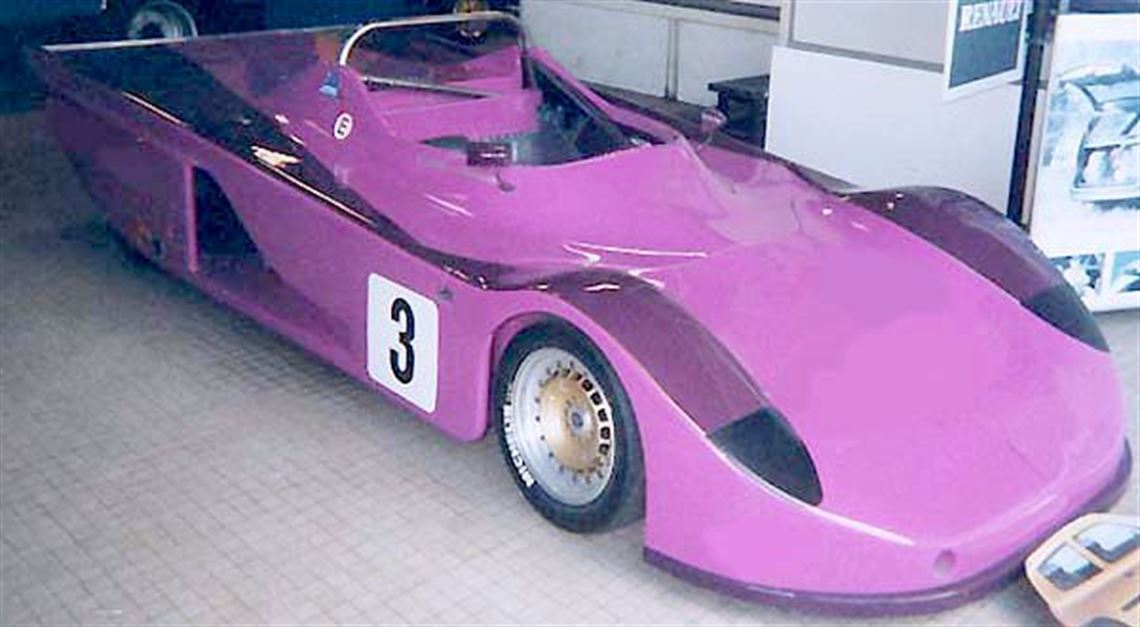

Body

• Fibreglass bodywork with covered rear wheels


Chassis

• Alluminum monocoque in excellent condition, reinforced by Mike Pilbeam around the engine bay

• gas-filled Bilsteins front and rear

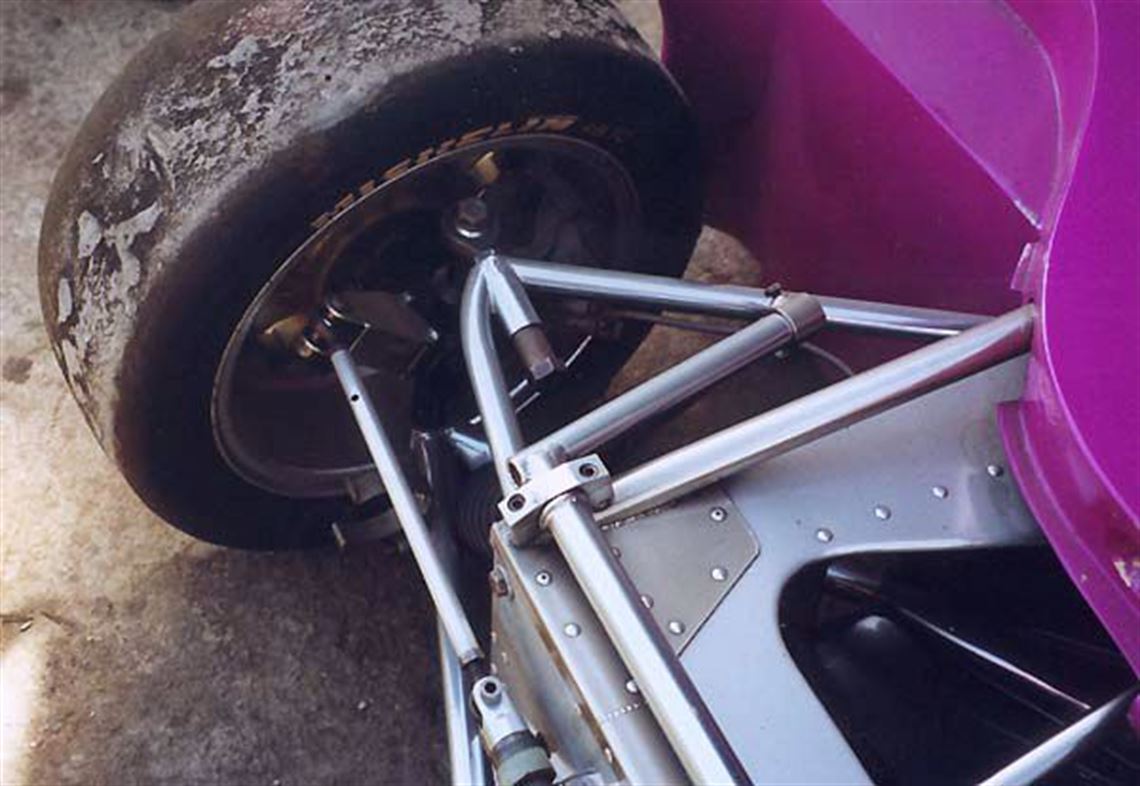

• double wishbone, coil overs, fabricated steel uprights with detachable steering arms, tubular anti-roll bar

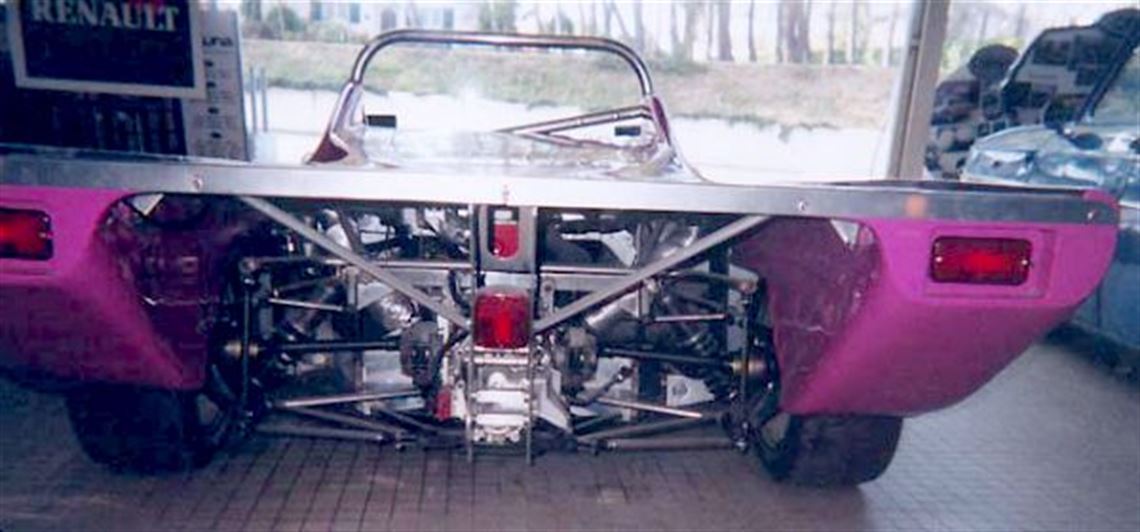

• lower wishbone, top link, upper radius rod, coil overs, aluminium cast uprights, tubular anti-roll bar

• proprietary rack

• 10.25" dia. non ventilated front discs, 9.25" dia. non ventilated inboard rear discs, Lockeed (Metro) steel 4 pot front calipers with new pistons and seals, Lockeed 2 pot FF rear calipers with new pistons and seals, new Girling master cylinders, Mintex 1144 brake pads, cokpit controlled balance bar, Aeroquip hoses, cooling ducts

• centre locked Compomotive split rims, 6" x 13" at the front and 8" x 13" at the rear, Bridgestone slick tyres

• tbd

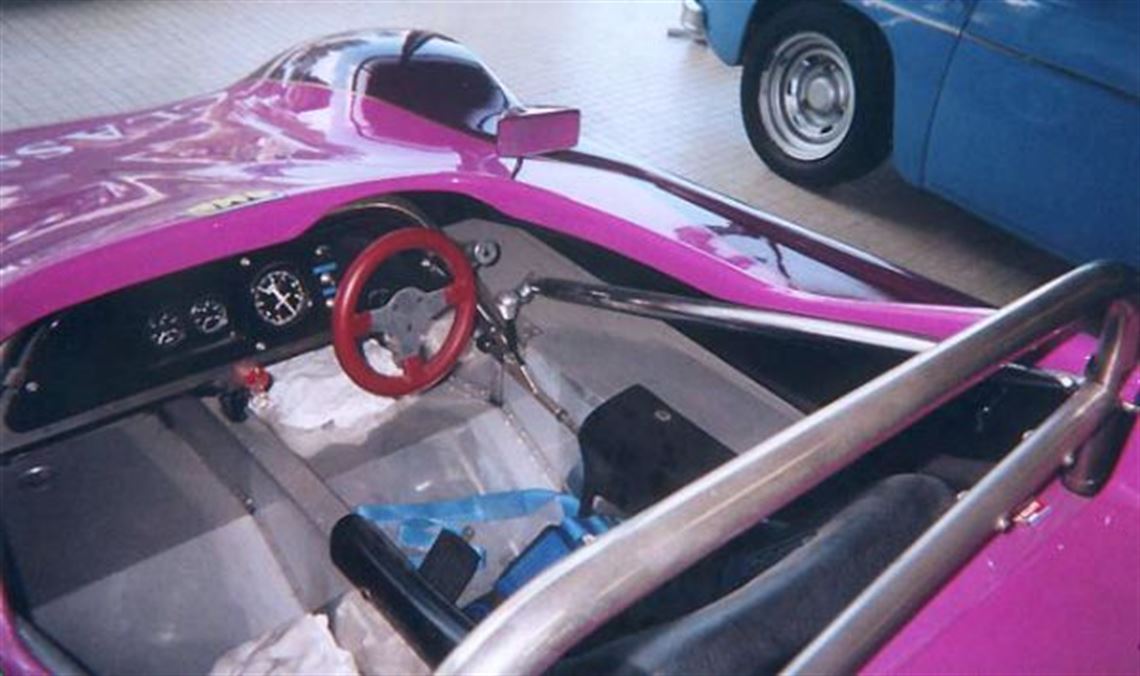

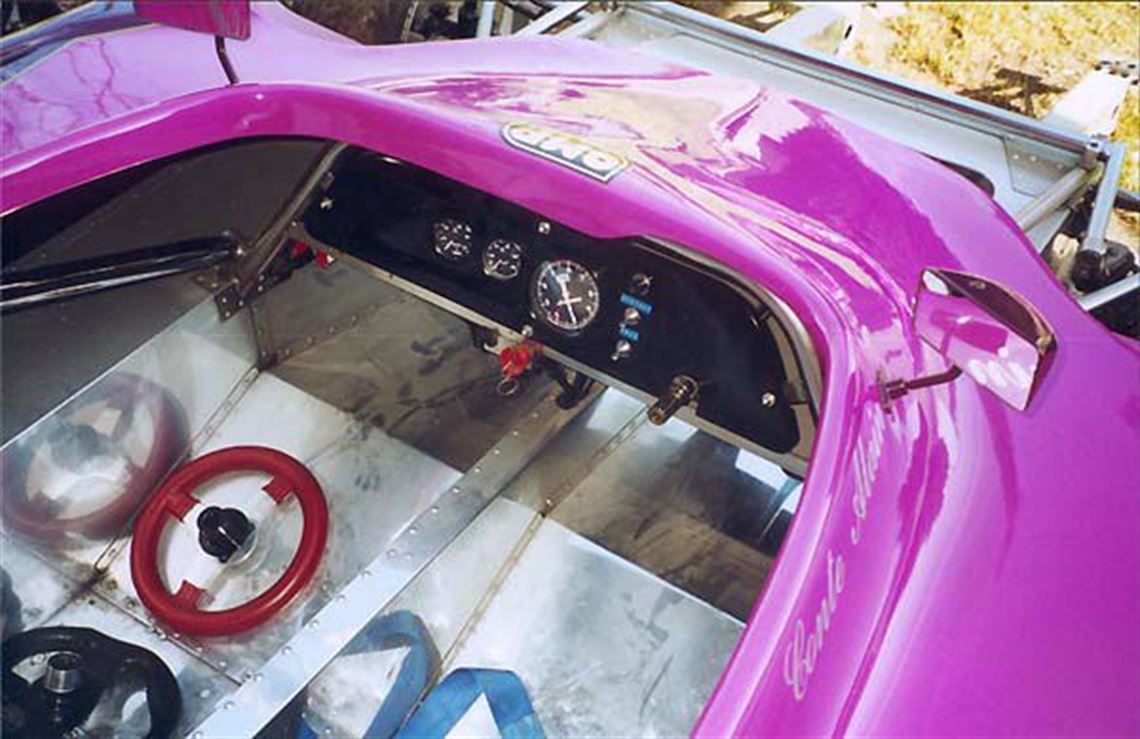

Interior

• Jones mechanical revcounter

• Racetech and Lucas gauges

• New SPA dual chamber electrical fire system

• Steering wheel with quick release

• New Willans 6 point safety harness


Spares

• Compomotive split rims with Bridgestone wet tyres

• one complete standard Pinto engine and almost a second one in bits
