Description:

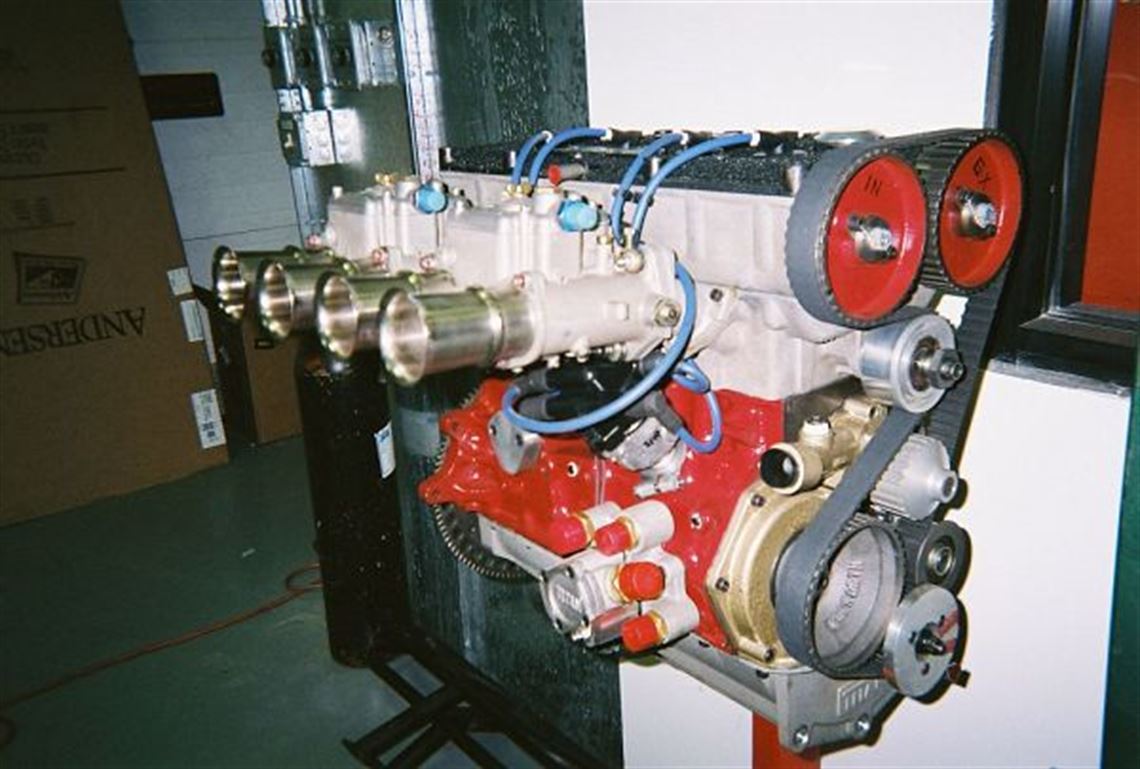

Cosworth BDD short stroke 1600cc Atlantic-new by Arjay Racing Engines, Danbury CT. Twin cam block and BD head used but fully refurbished. All components, the finest available include: Cosworth, Carrillo, J.E., DKE/Arrows Precision, Weber, Vandervell, Titan oil pump, Titan Cast alloy pan, many parts friction-coated and REM. No cost spared. BD head has been ported and expertly flowed along with intake. This is a fresh motor with dyno time only. Very serious motor built for Vintage Atlantic effort.
Engine

• Arjay Racing Engine Ltd

• Cosworth

• BDD Short Stroke

• 1598 cc

• 213@8000

• 147.4@7300

• 2 Weber 48DCOE side draft w/43 mm venturis and long air horns

• BD 3-bolt exhaust--ported--expertly flowed

• Twin-cam 701M short deck

• steel

• DKE/Arrows Precision Engineer.

• Carrillo Cosworth

• JE slipper-coated crowns/skirts

• Cosworth--F1 profile

• Cosworth-coated stems

• Cos.valves+springs/Ti retainers

• NA

• NA

• Steel

• NA

• dyno only

• Short deck, thick-walled block has been bored to 85mm,deburred, line bored, interior painted. Cosworth front cover, jack shaft pulley and steel jackshaft. Arrow Precision steel cam followers. HP numbers limited due to dyno. Motor should run at 9,500rpm.


Spares

• none
