Lotus Twincam race engine - SOLD

F1 Authentics 9

This is now SOLD. Search for similar items.

Description:

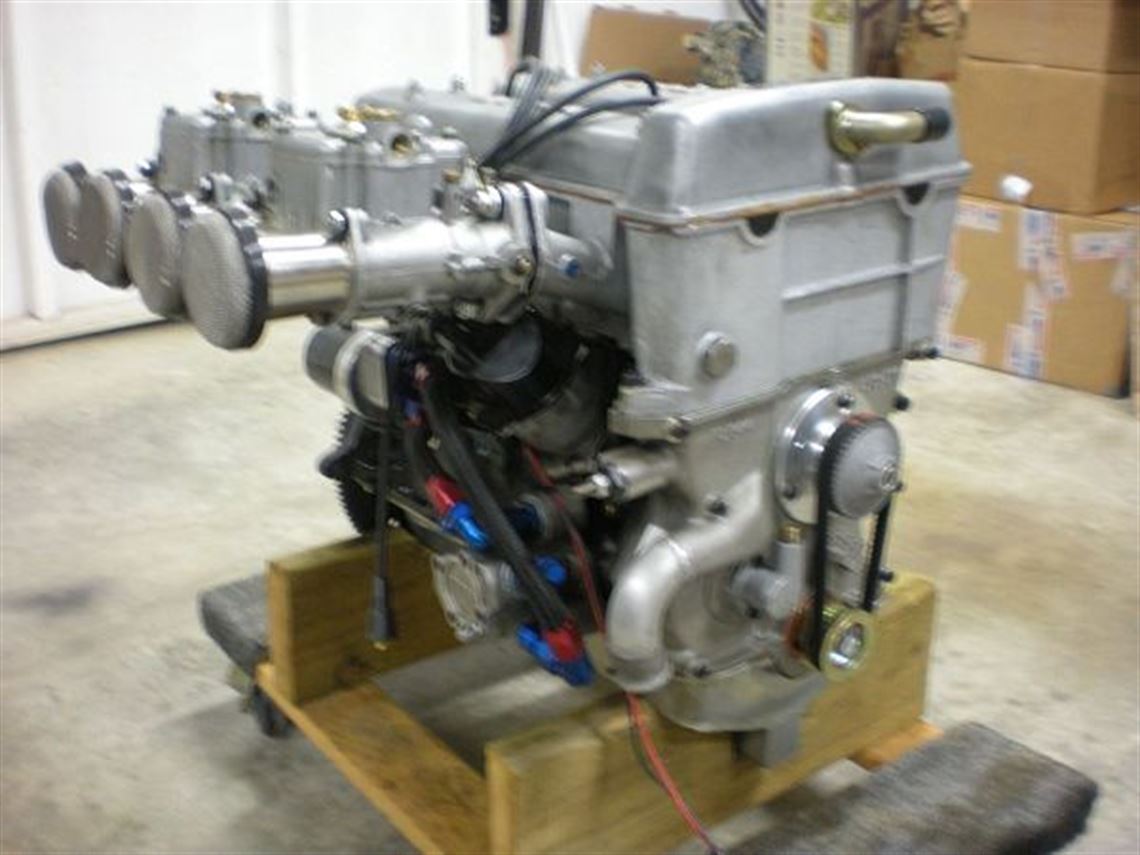

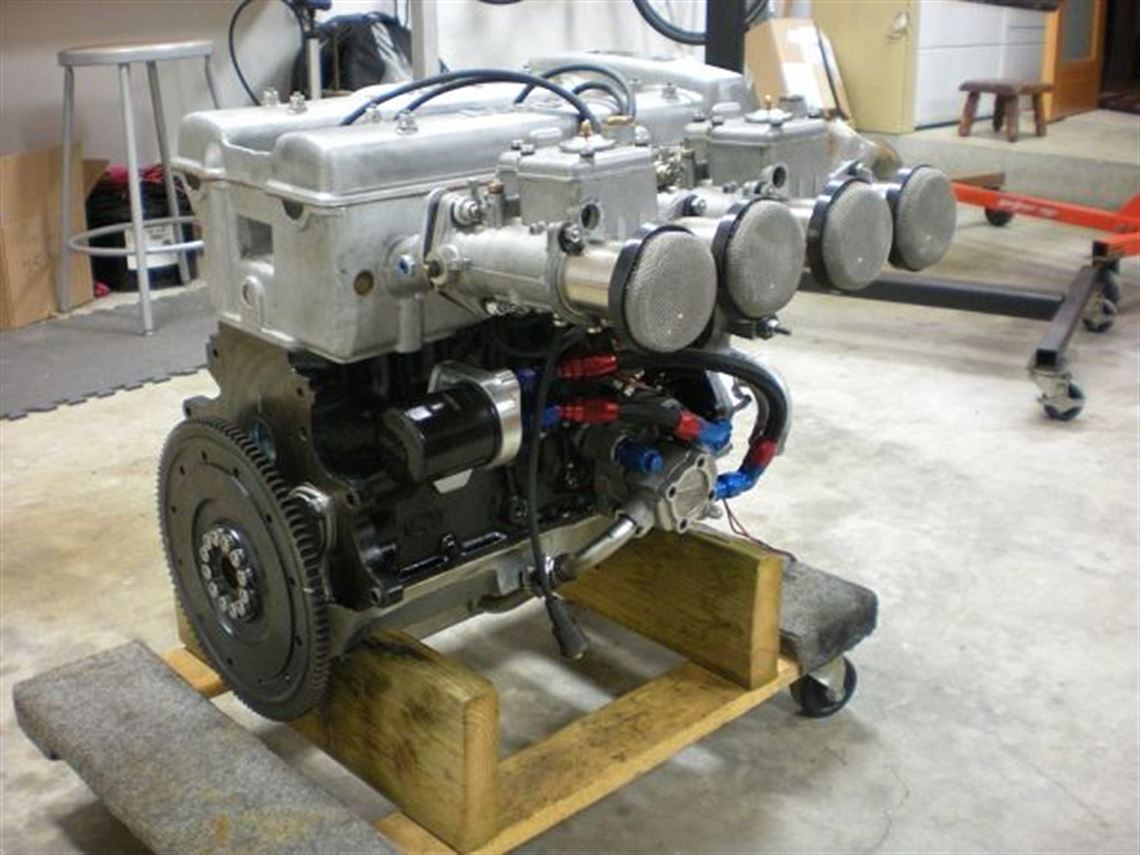

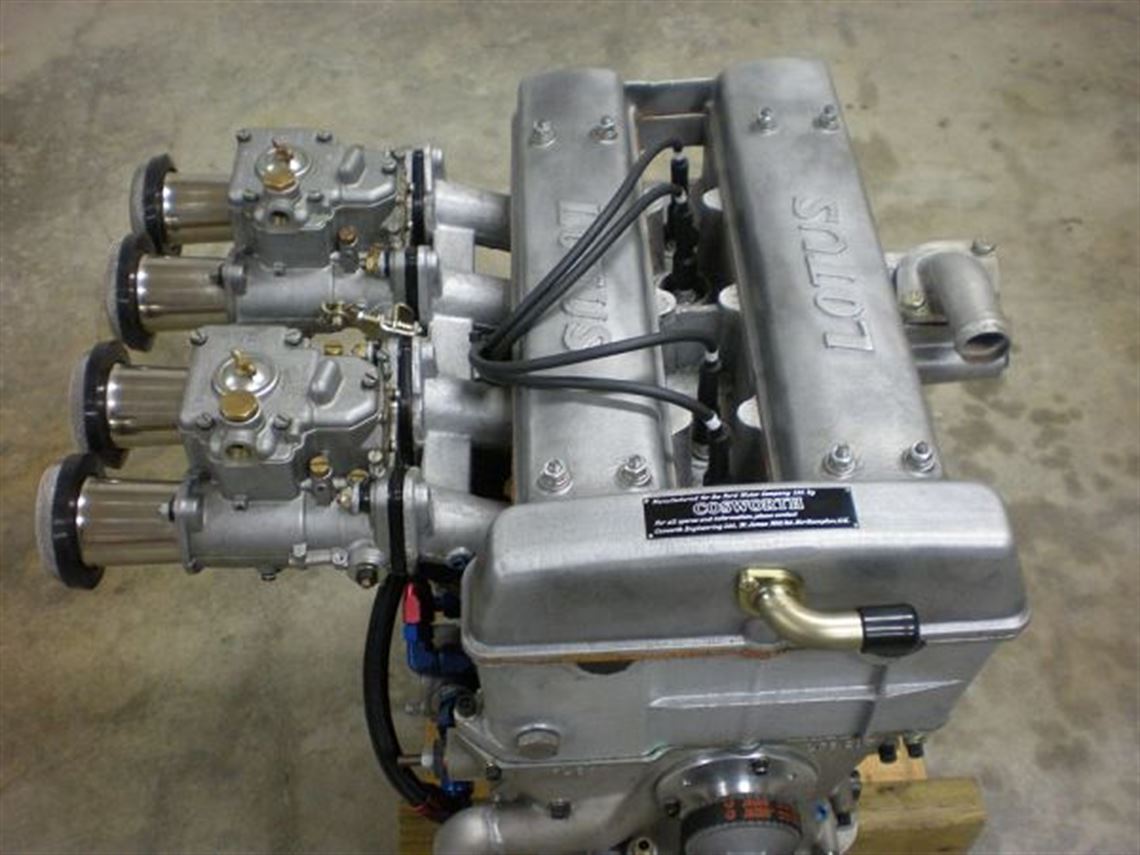

Fresh dyno time only 1600cc race engine. 83.5 mm bore and stock 72.75 mm stroke. 188 hp at 8000 rpm. I have been a professional engine builder for 30 years and built this to run in my own car (1965 Lola T60) but have now decided to run the original Cosworth SCA instead. Vegantune front cover with cartridge-type water pump. Water inlet has been modified for formula car installation but can be changed back if desired.
Engine
  • Rob Shanahan
  • Lotus
  • Twincam
  • 1600cc
  • 188 hp at 8000 rpm
  • 131 ft lbs at 6500 rpm

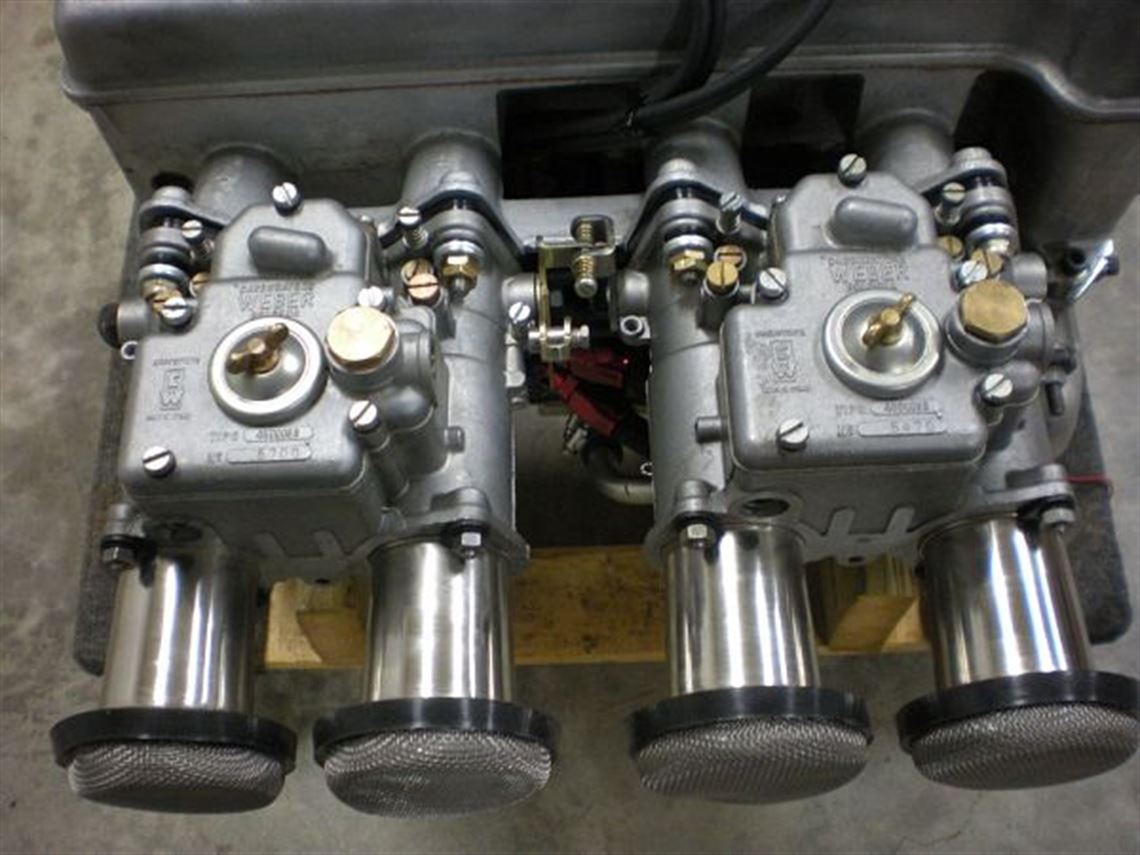

  • 2 x Weber 45DCOE9
  • Lotus
  • Lotus
  • DBE steel
  • Moldex 12-bolt, new
  • Crower, new
  • JE 11.5 to 1
  • DBE 115 (119)
  • 1.625" & 1.375"
  • DBE lightweight steel tappets, new
  • none
  • none
  • DBE flat BDA-style, new
  • none
  • dyno only
  • none
  • Vegantune front cover with cartridge-style water pump ARP fasteners
Spares

  • none
