Description:

The Elva Mk7S is well known on both sides of the Atlantic and is a most competitive contender in sports car
racing. This particular example was the subject of a complete restoration by Elva Racing Components Ltd (UK) in
the early nineties. It has been maintained to the highest standards ever since and has been successful in
endurance racing in Europe. It comes with a Lester Owen 2 litre BMW engine and current FIA papers.


History

Elva (a name derived from the French "Elle va" = "She goes") was a successful car constructor in the late fifties and early sixites, and certainly a force Lotus drivers had to
reckon with as the well built and efficient sports racers proved more than a threat to Colin Chapman's production. Elva produced 69 Mk7s between
1963 and 1965 and this particular car is the 46th . It was built in 1964 and delivered to Car Haas who was Elva's distributor for the USA.
Many different types of engines were adapted to the cars including Coventry Climax, Ford, Lotus Twin Cam, Porsche, and BMW. One car was even fitted with an Osca
engine. The car was bought in the States by Allan Miles who raced it there a few times and then brought the car to the UK to have it restored by Elva Racing Components Ltd.


Competition History

1999 :

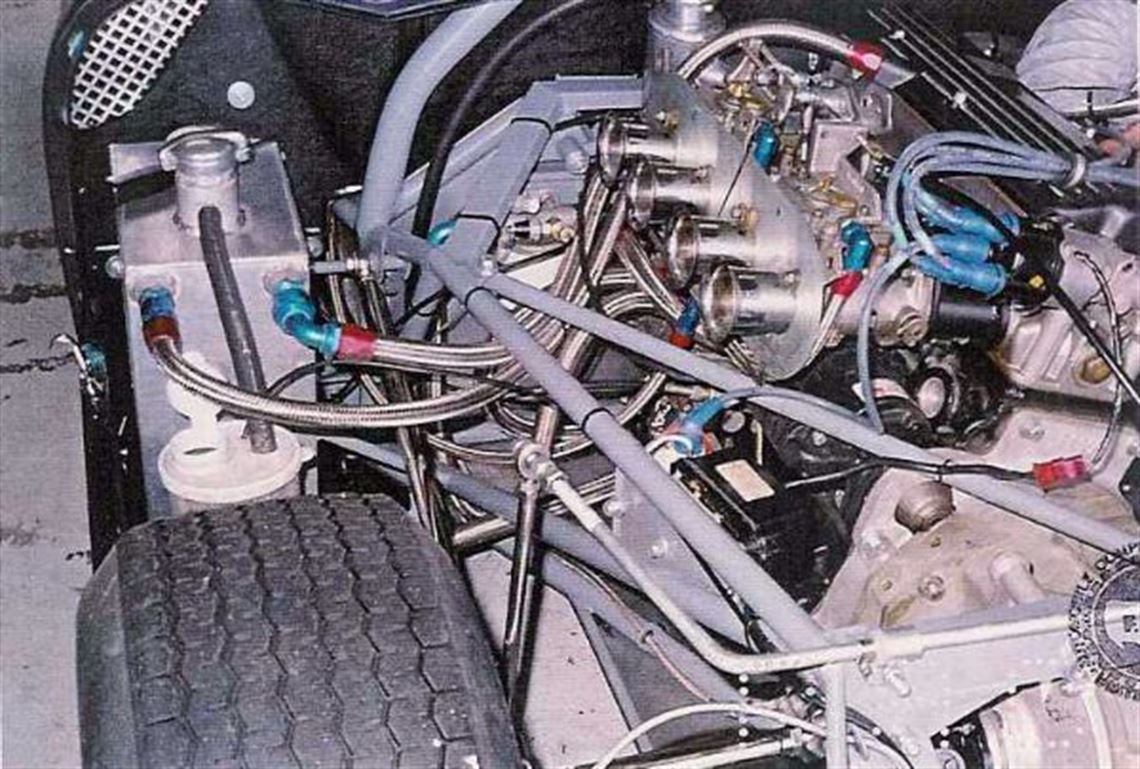

Engine

• 2 litre Lester Owen built BMW M10 (2002) engine

• Rebuilt in 1998

• Weber 45 DCOE carburettors

• Dry sumped

• New starter motor


Fuel System

• 2 electrical fuel pumps

• 2 FIA approved safety fuel cells (30 l and 50 l capacity), dated 1998


Oil/Water System

• 2 front water radiators

• Dry sump oil tank

• Oil cooler


Electrical System

• 12V system

• Master switch

• Front lights and stop lights in working order for 24h races

• New alternator

• Standard ignition


Body

• Light weight fibreglass bodywork (red with grey stripe)

• Standard fibreglass bodywork (blue with white stripe) as spare


Chassis

• Spaceframe chassis with rivetted aluminium panels

• adjustable AVO dampers front and rear

• double wishbones, coil overs, cast uprights, tubular anti-roll bar

• lower wishbones, top links, upper radius rods, coil overs, cast uprights, tubular anti-roll bar

• proprietary rack

• non ventilated front and rear discs, aluminium calipers

• magnesium wheels with 4.50" x 13" tyres at the front and 5.25" x 13" tyres at the rear, Dunlop CR65 treaded tyres, 204 compound

• tbd


Interior

• Original instruments

• FIA approved fire system

• FIA approved safety harness

• Brake bias adjuster


Spares

• 4 magnesium wheels

• some gear ratios
