Description:

This car has been completely restored. Steve Miller stripped it to the bare chassis, refurbished it,
reinforced it structurally, and painted it. The suspension is nickel plated and incorporates Hiem
joints for adjustability. The body is refurbished and has yellow Imron with a green stripe. Restoration
has been done by Stephen Patience Restorations and Phill Reilly & Co. from 1985 to 1996. The engine
was prepared by Phil Reilly & Co. in 1995 and after 8 races was removed for a rebuild in July 1998.
A Mk9 Hewland transaxle was provided by Taylor Race Engineering and fitted in December 1997. There are
zero hours on the car since rebuild. Total receipts for restoration and maintenance exceed $93,000.
Two Renault transaxles are supplied as spares for those required to employ them.


History

This example of the milestone Lotus 18 is fully documented with each of the eight owners since the original
sale in May of 1960 in New York. The ownership trail is as follows:

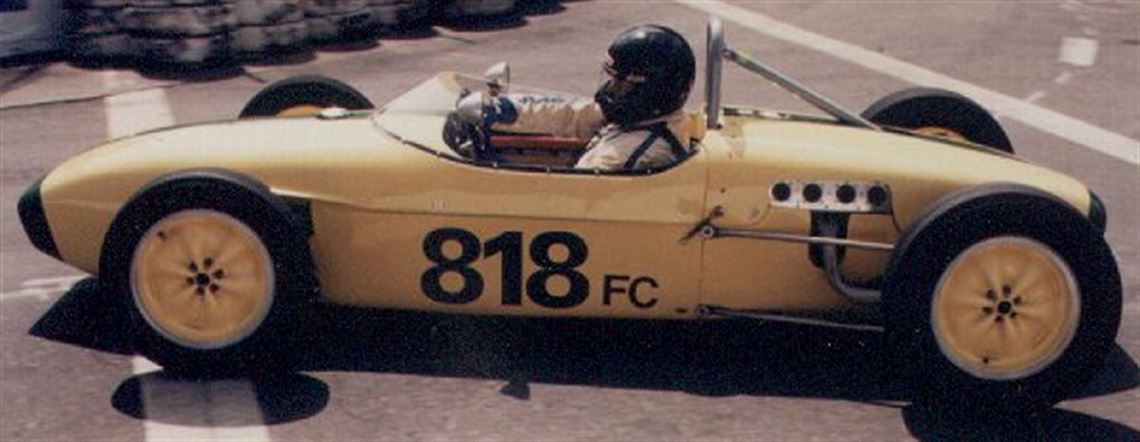

Competition History

1st Sear Point '96, 1st Pomona '97, 2nd Tustin '97

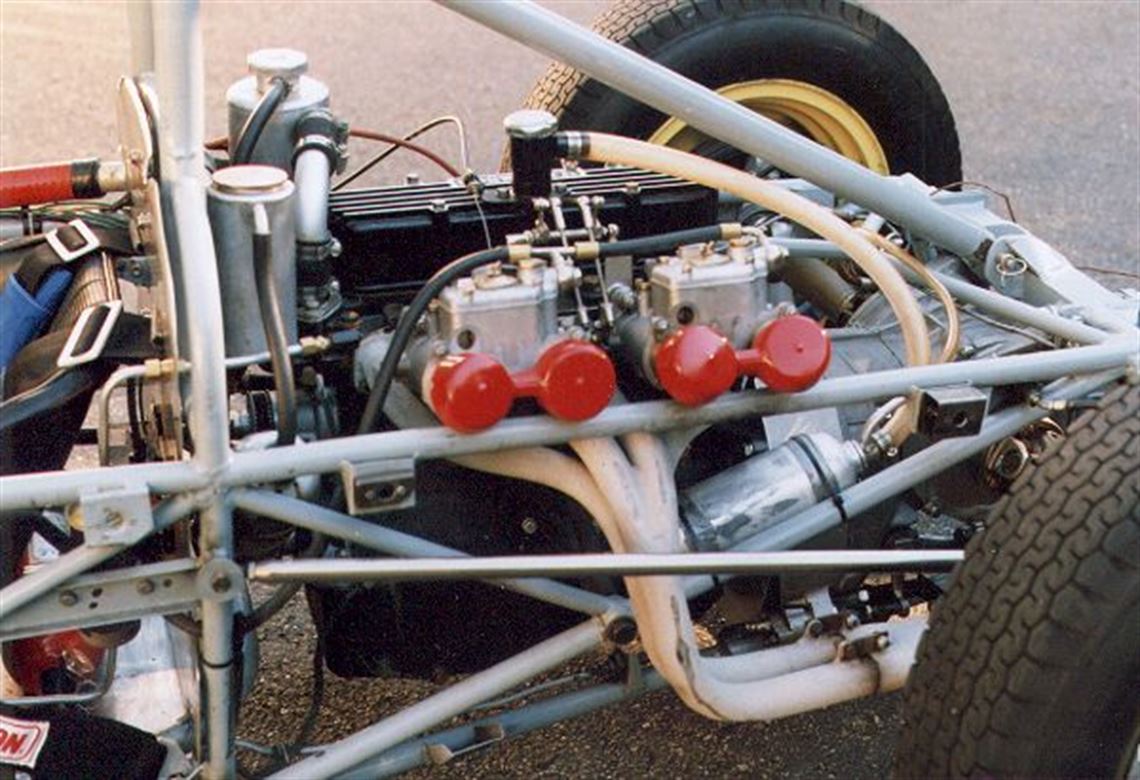

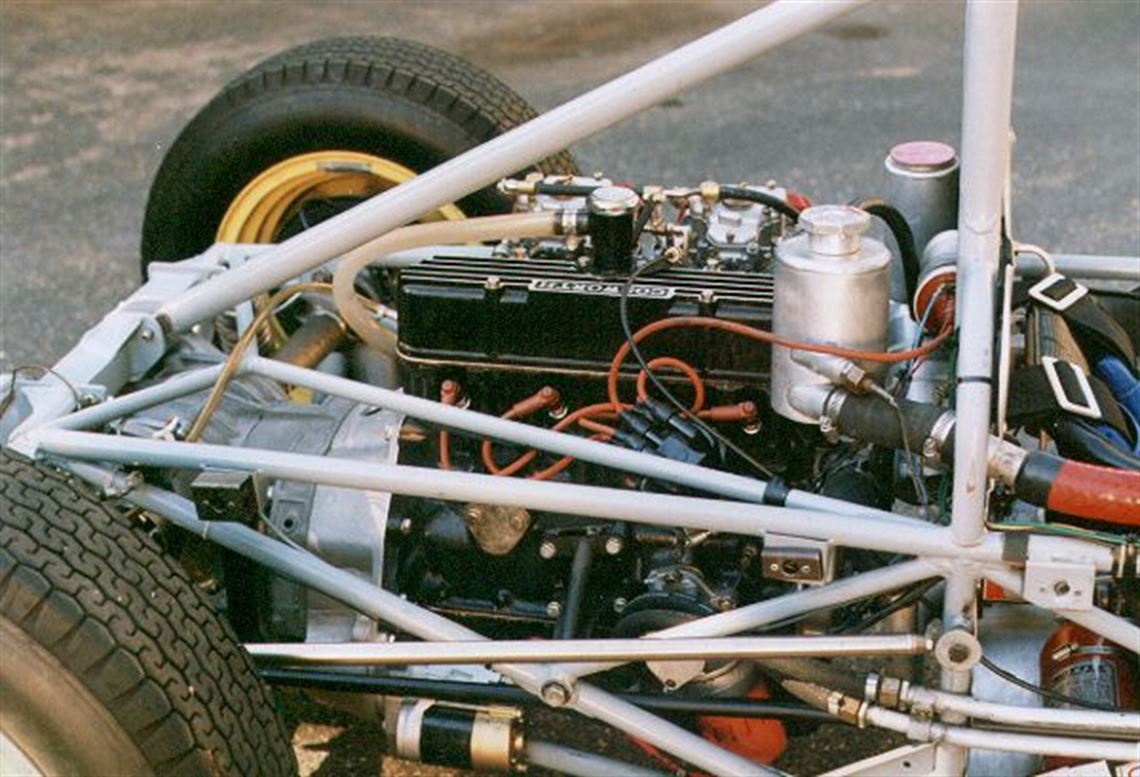

Engine

• Phil Reilly prepared

• Ford 109E 1100cc

• Cosworth head

• all steel bottom end (magnafluxed July '98)

• MAE gear cam drive

• zero hours since rebuild

• Tilton clutch


Fuel System

• fuel cell inside original tank to preserve Monza cap


Oil/Water System

• front water/oil radiator

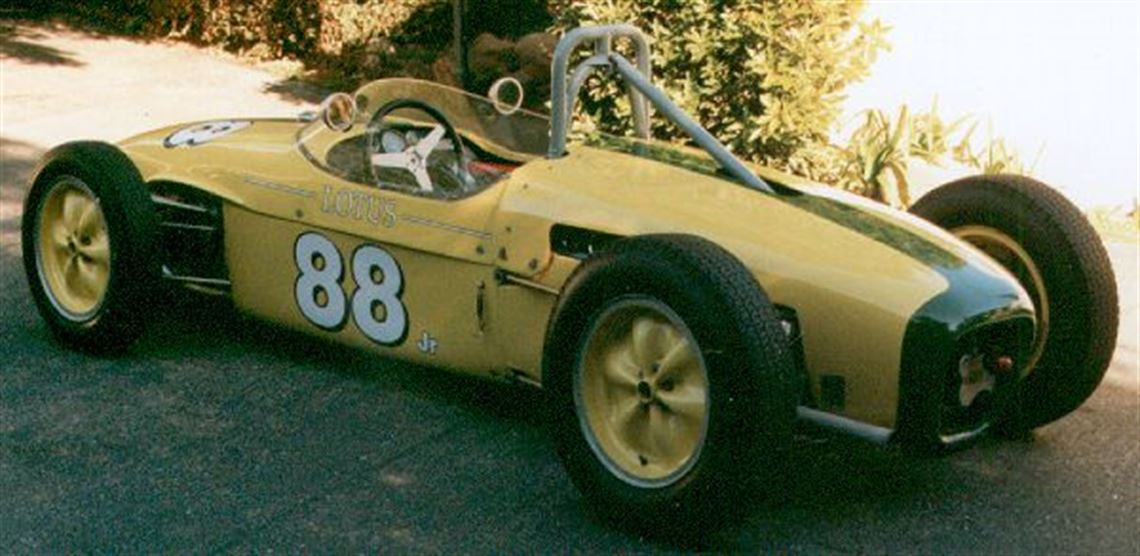

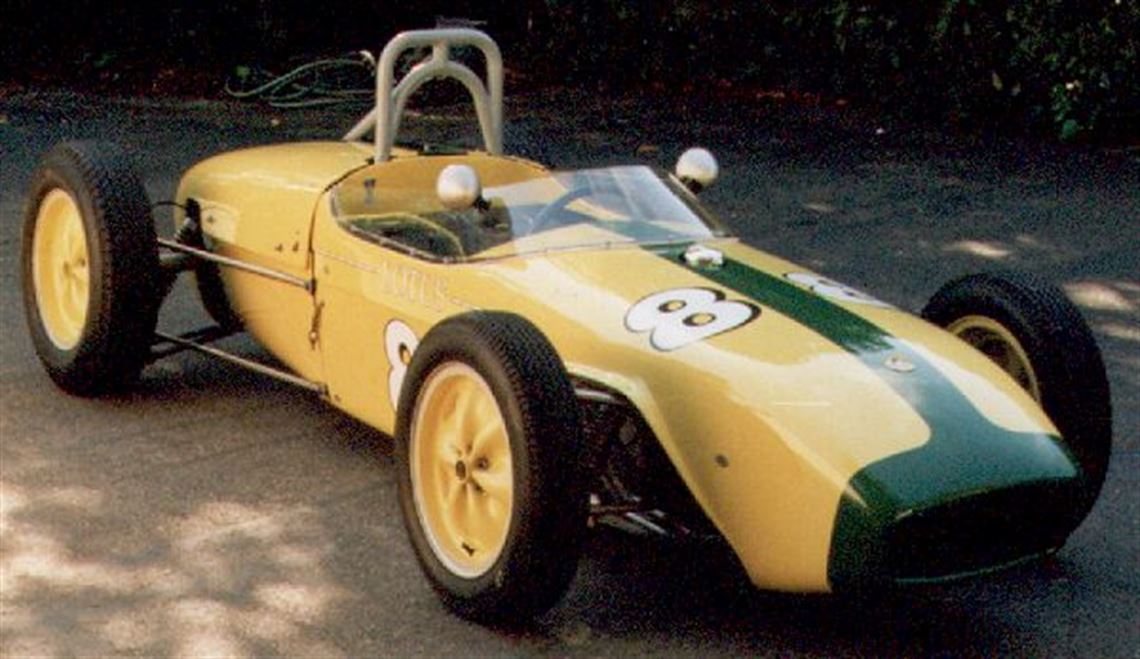

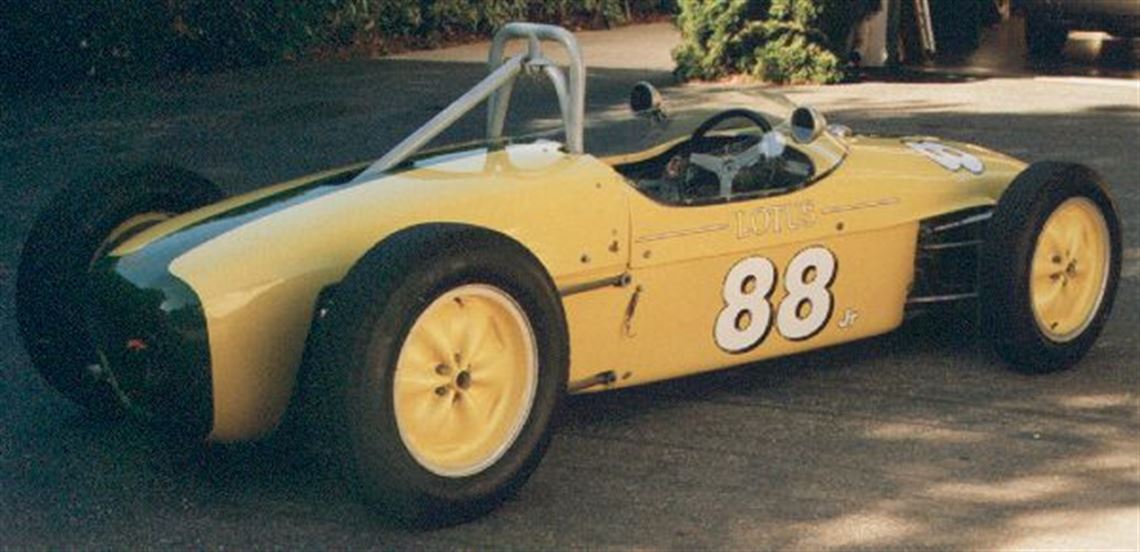

Body

• fibreglass, integral cockpit cowling and nose, hinged tail cover and removable side panels

• Yellow with green stripe in Imron

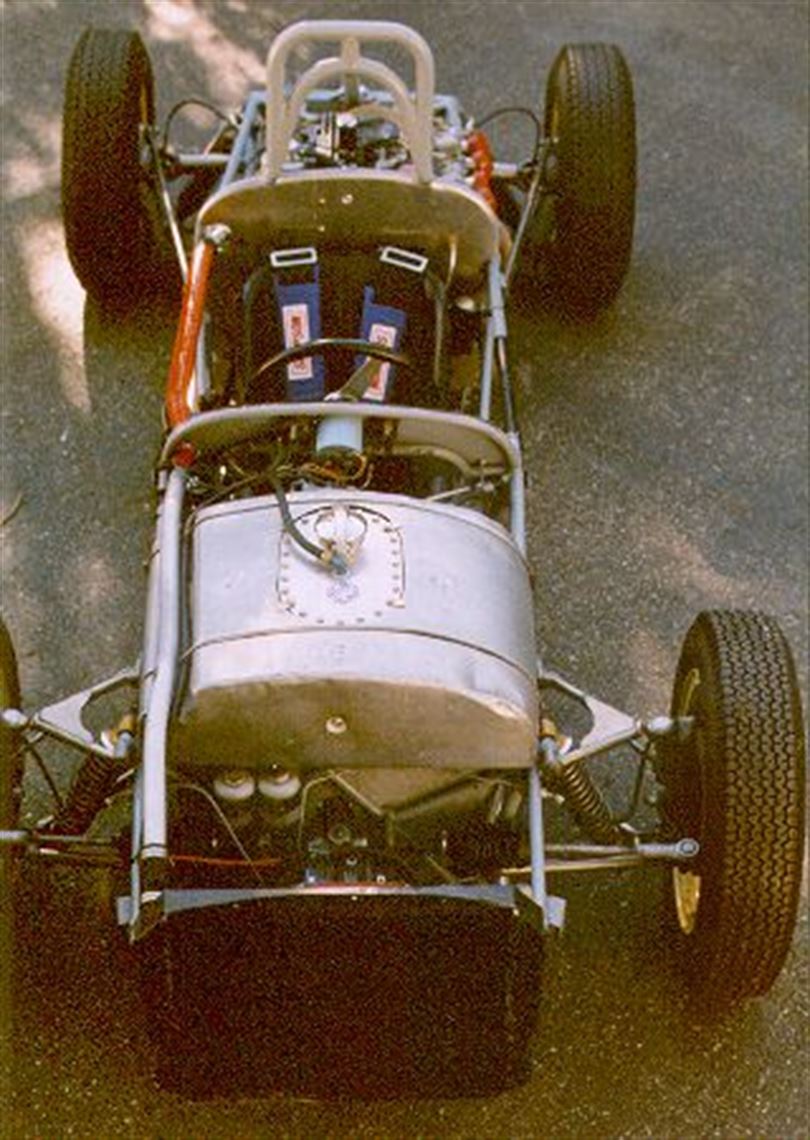

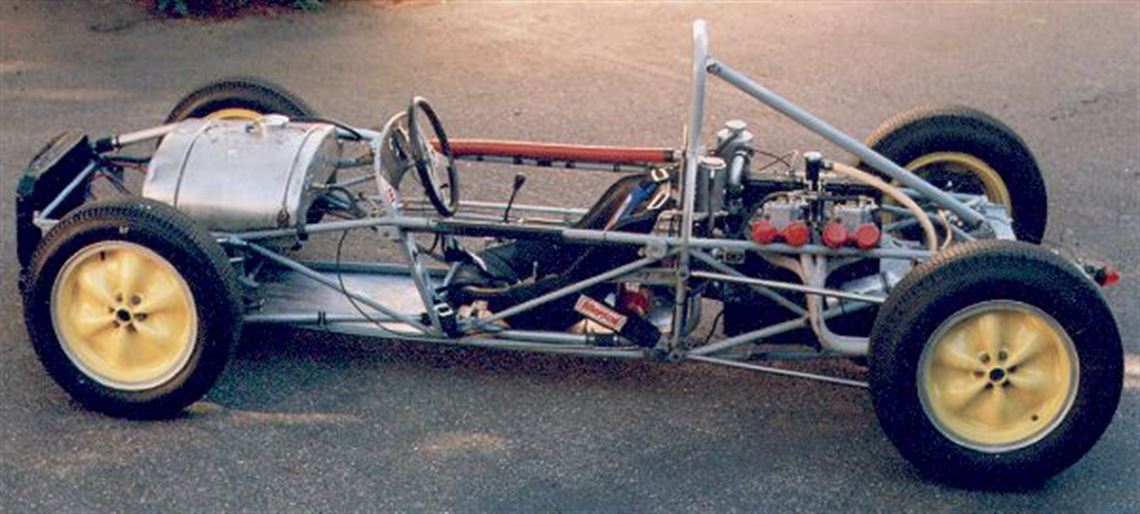

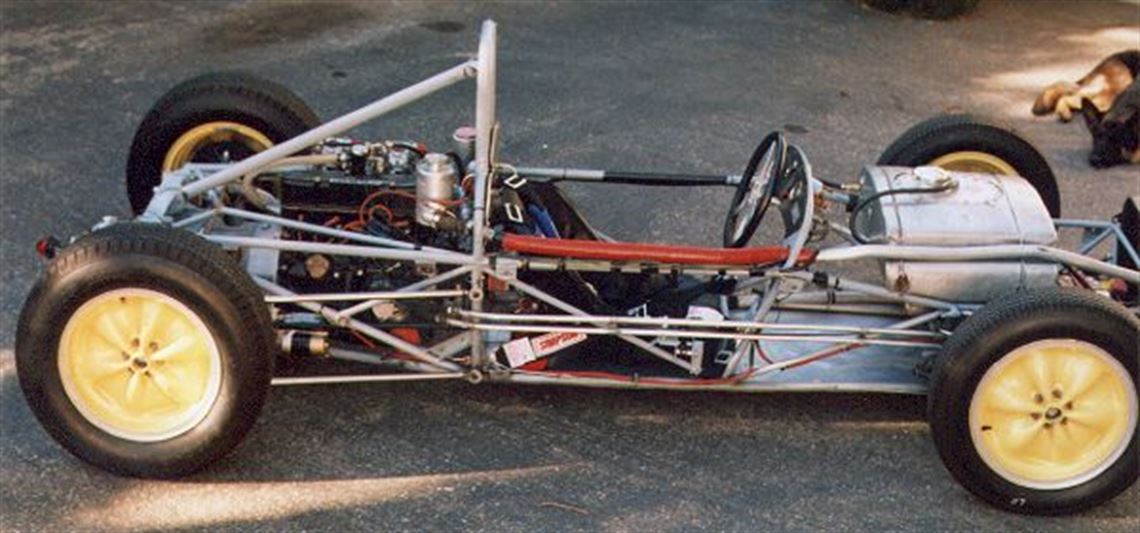

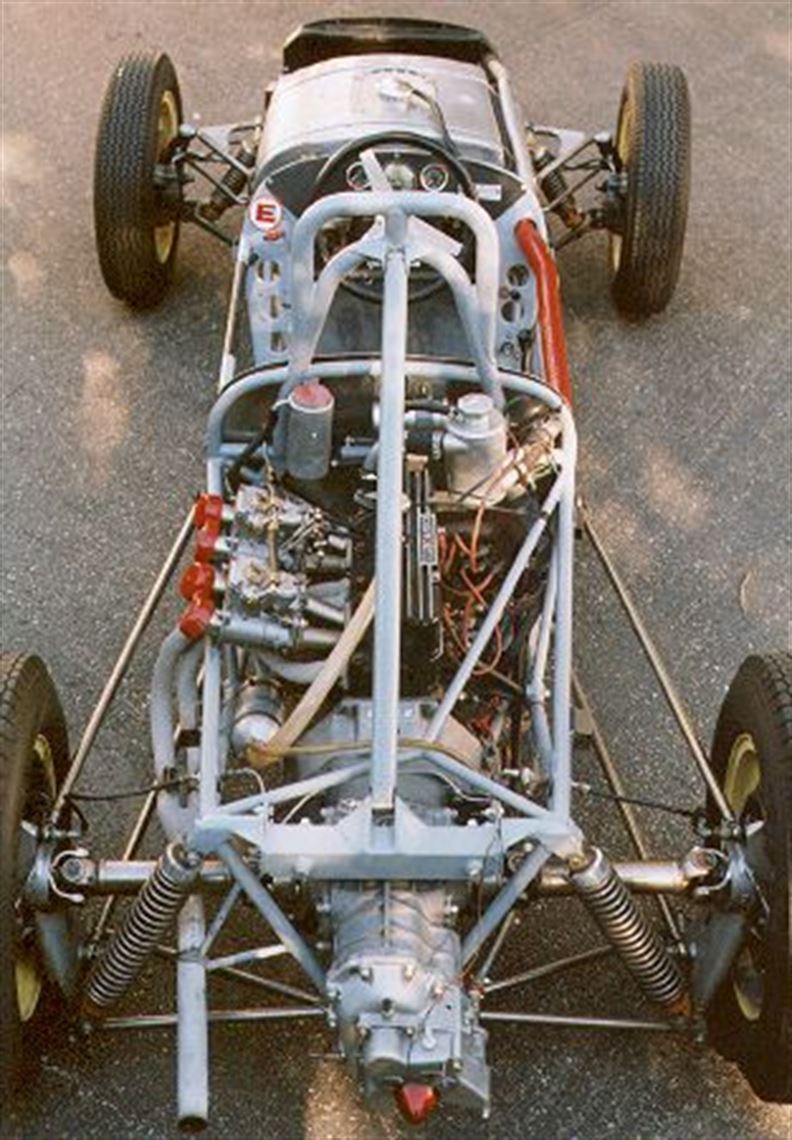

Chassis

• multitubular space frame

• tbd

• double wishbone (gusseted) with coil overs

• lower reversed a-arms, dual trailing arms, with halfshafts acting as upper links

• modified Triumph rack and pinion

• front disc, rear drum, outboard all around

• Lotus wobbly webs (x-rayed)

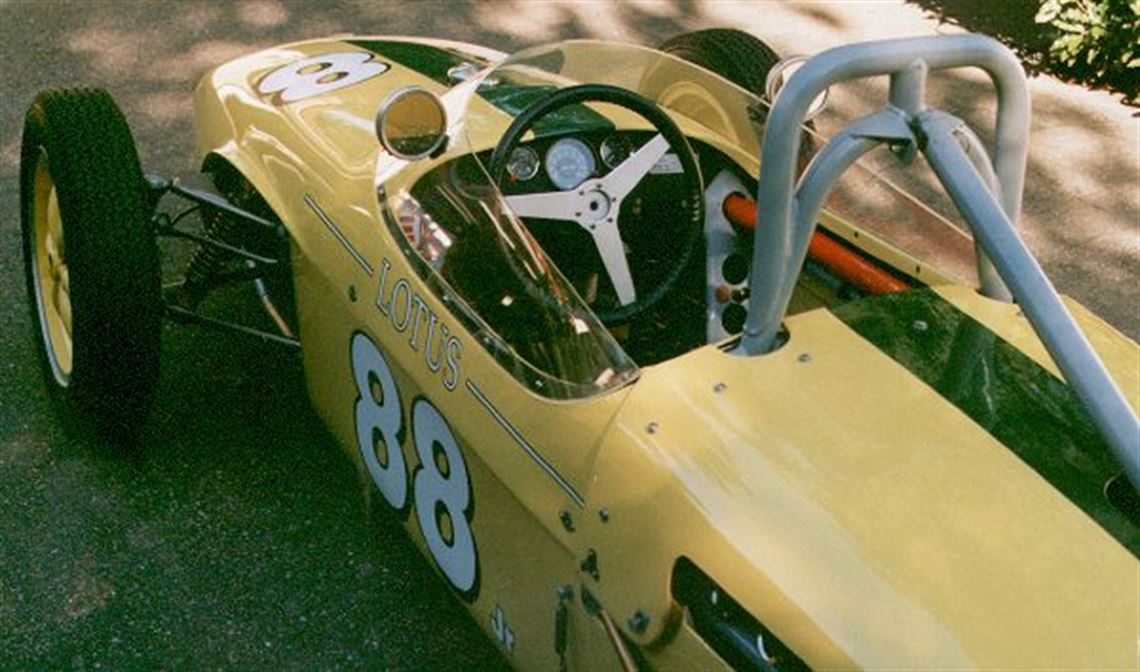

Interior

• new Simpson safety harness

• 10 lb Halon system


Spares

• two Renault transaxles plus misc ring & pinions, cases, etc.
