Description:

This Elan is a no expense spared FIA historics effort. It is a top running car with literally
the best of everything. Preparation costs for the car exceeded $85,000 U.S. The spares package
is easliy valued at $20,000. To enhance its marketability it is offered with a choice of engine
specification, either a FIA legal twincam for the European series or a modern full-race twincam
for U.S. or other National racing. Two transmissions are inclided with different ratios.
Three limited slip differentials are included with varying final drives. Two different front
suspension packages are included, one which is fully FIA compliant and one which is questionable.
This is surely one of the best built and most sorted racing Elans in the world.


History

The car was built/restored during ocktober 1995 to april 1996. The car was originally from the U.S.,
sold through Duchess Auto. It resided in California for twenty years before returning to England.
It currently has an English title.

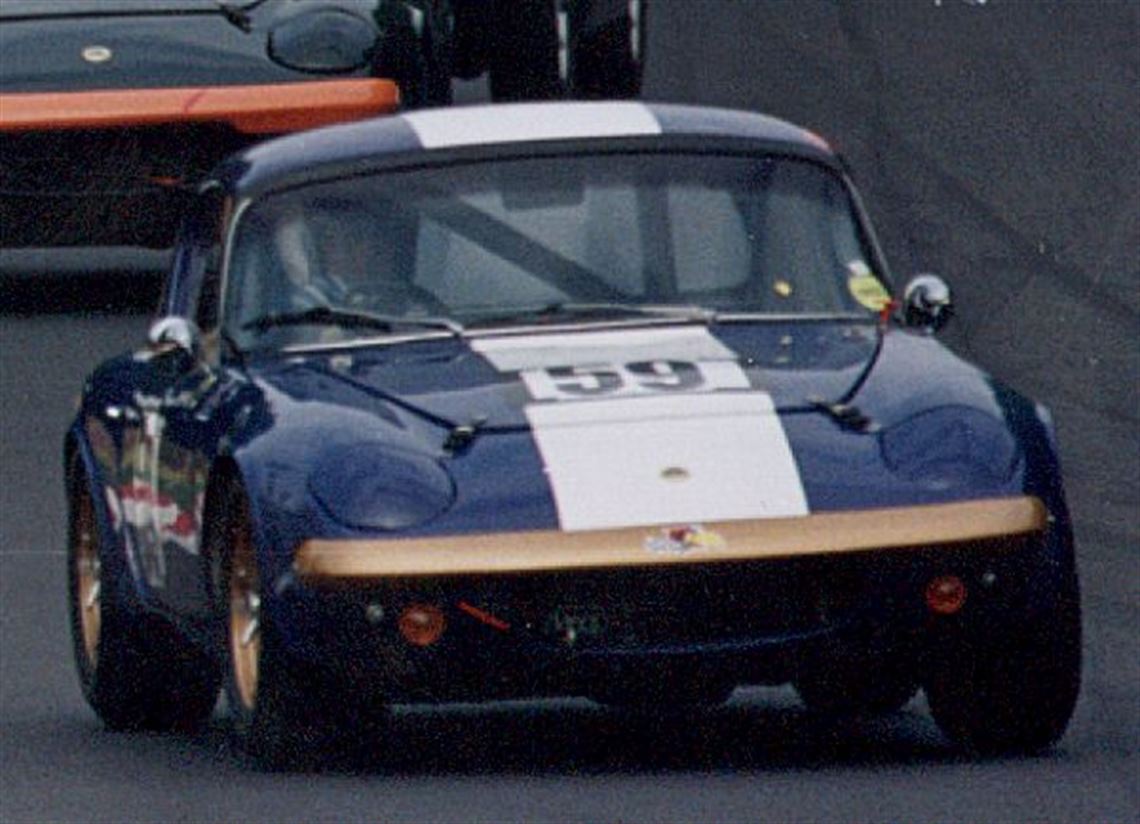

Competition History

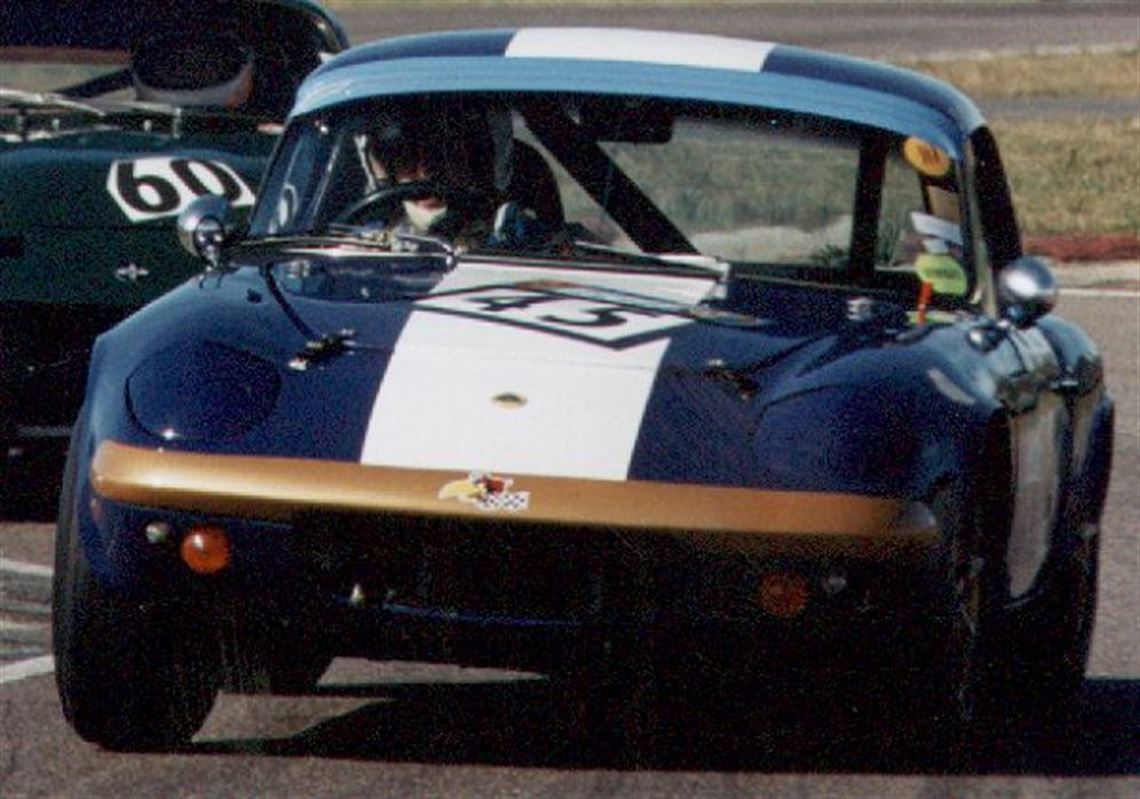

Car has raced at Monza 3:d, Nurburgring 3:d, Salzburgring, Brno 4:th,
Anderstorp 5:th (FIA races)
Several other national races.


Engine

• Buyer's choice or either a FIA legal or modern full race twincam

• Engine no 1, FIA OK



  • BRM camcover

  • four bolt steel EN19 cranckshaft

  • Steel lightend flywheel with original clutch, reinforced pressure plate

  • Type 1 head max ported, with face 5 inlet, face 4 exhaust

  • special valves and springs good for 8.250 RPM

  • Omega 83,65 pistons

  • original caps and conrods

  • Weber 2 x 45

  • 1599 cc

  • compression ratio 12.4:1

  • all built best standard, revs to 8,250 RPM giving approx 170 hp

  • two hours dyno time only

  • extra skeleton flywheel with cluch

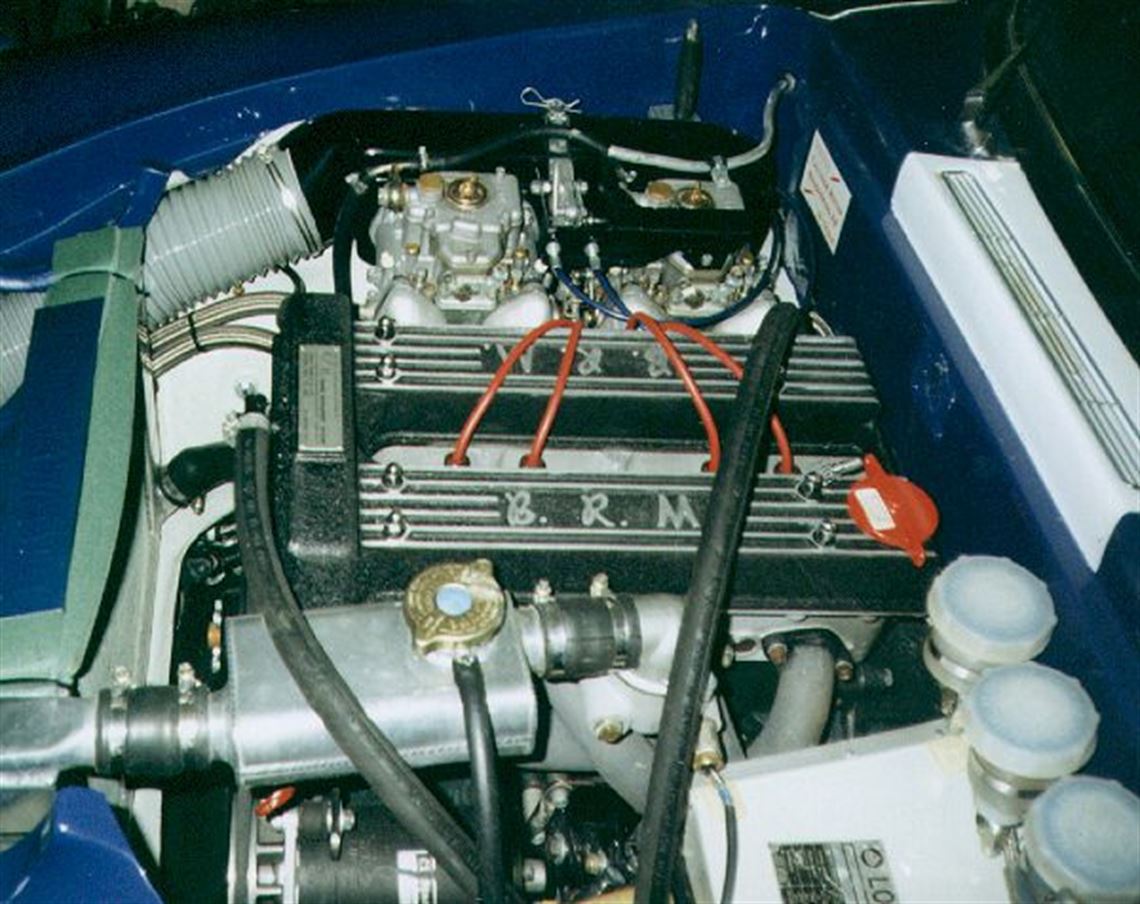

• Engine no 2, in car, modern full race spec



  • BRM camcover

  • 12 bolt steel crankshaft with double weights EN30

  • Skeleton flywheel with sintered Clutch

  • Type 1 head max ported with two face 5 camshafts,

  • special valves and springs good for 8,750 RPM

  • Carillo conrods, Cosworth caps, steel chain mechanism,

  • omega 83,65 pistons

  • Weber 2x45

  • 1599 cc.

  • compression ratio 12.8:1

  • revs to 8,750 RPM giving approx 182 hp

  • engine has two hours dyno time, then driven at Brno for approx two hours,
    then taken apart, checked and put together again




Body

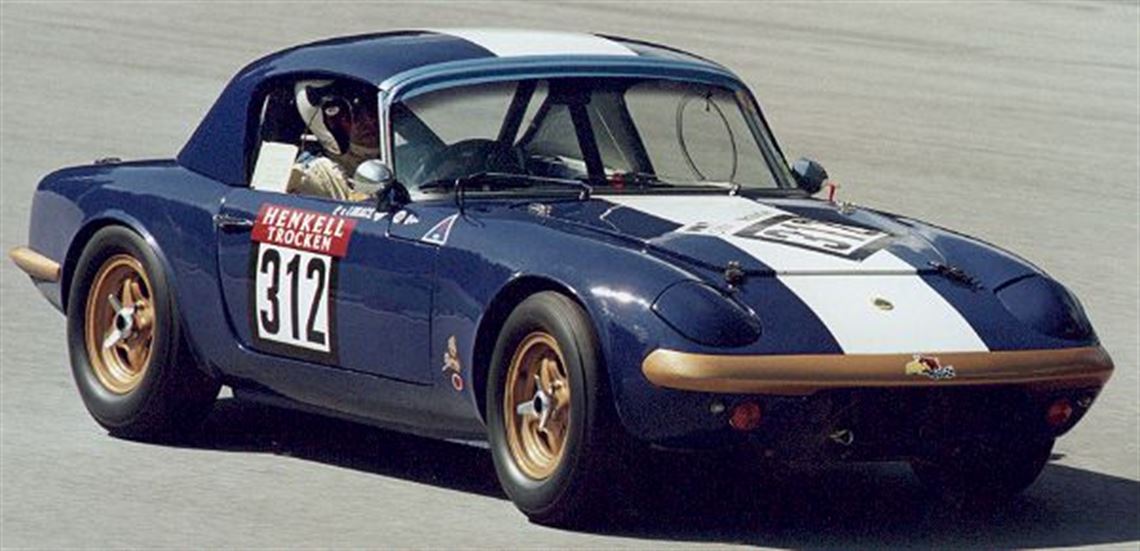

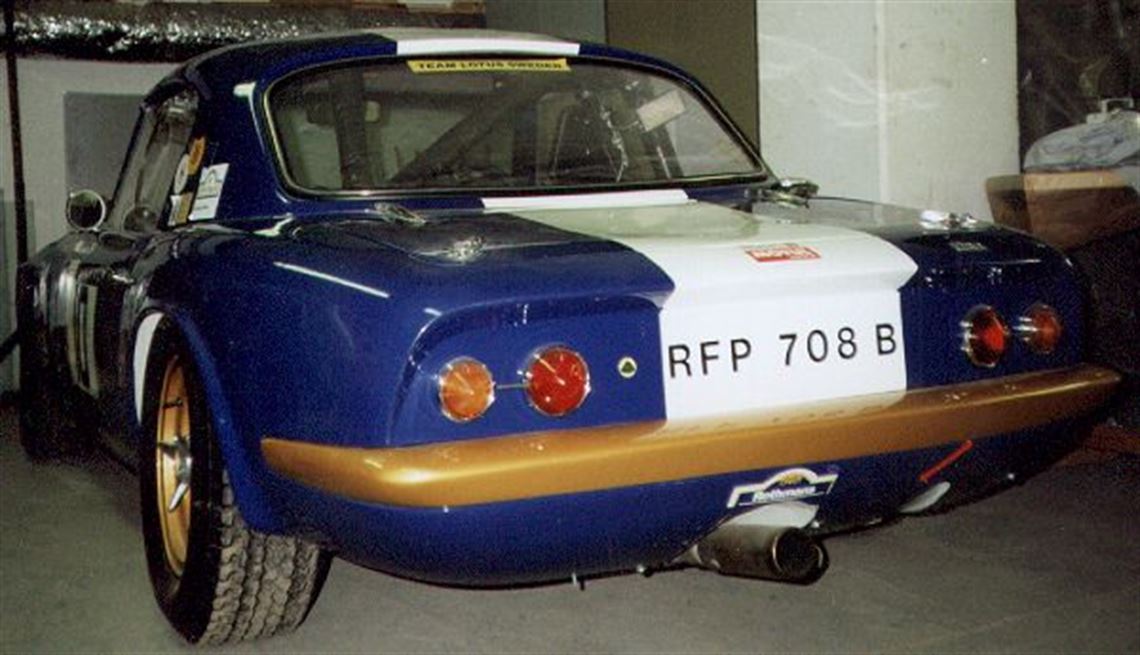

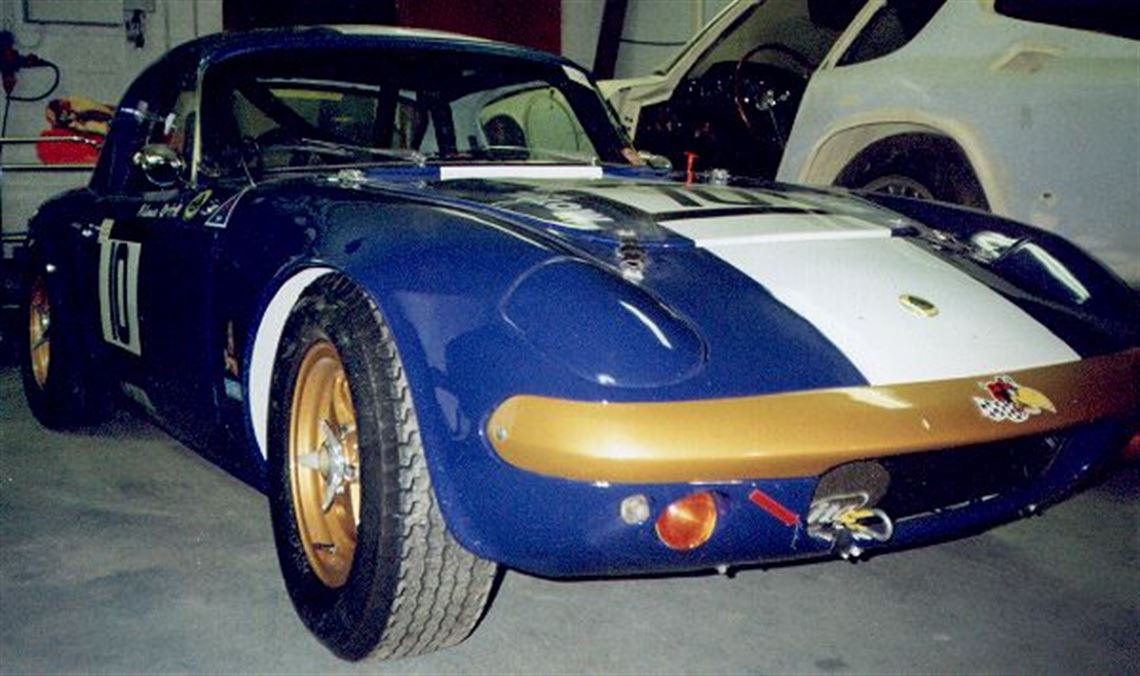

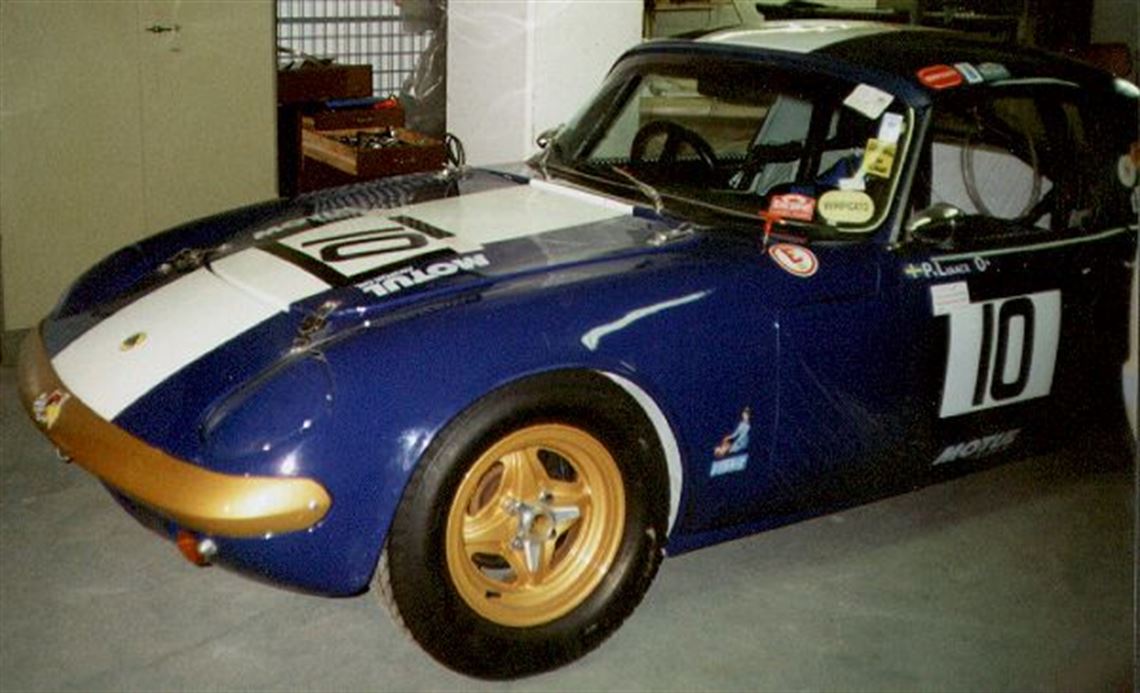

• 26R lightweight body, painted in dark blue with white center stripe

• gold bumpers and wheels

• Body reinforced under drivers seat

• hardtop with persplex rear window


Chassis

• Brand new original non galvanised Lotus Chassis reinforced according to FIA regulations.

• Painted black.

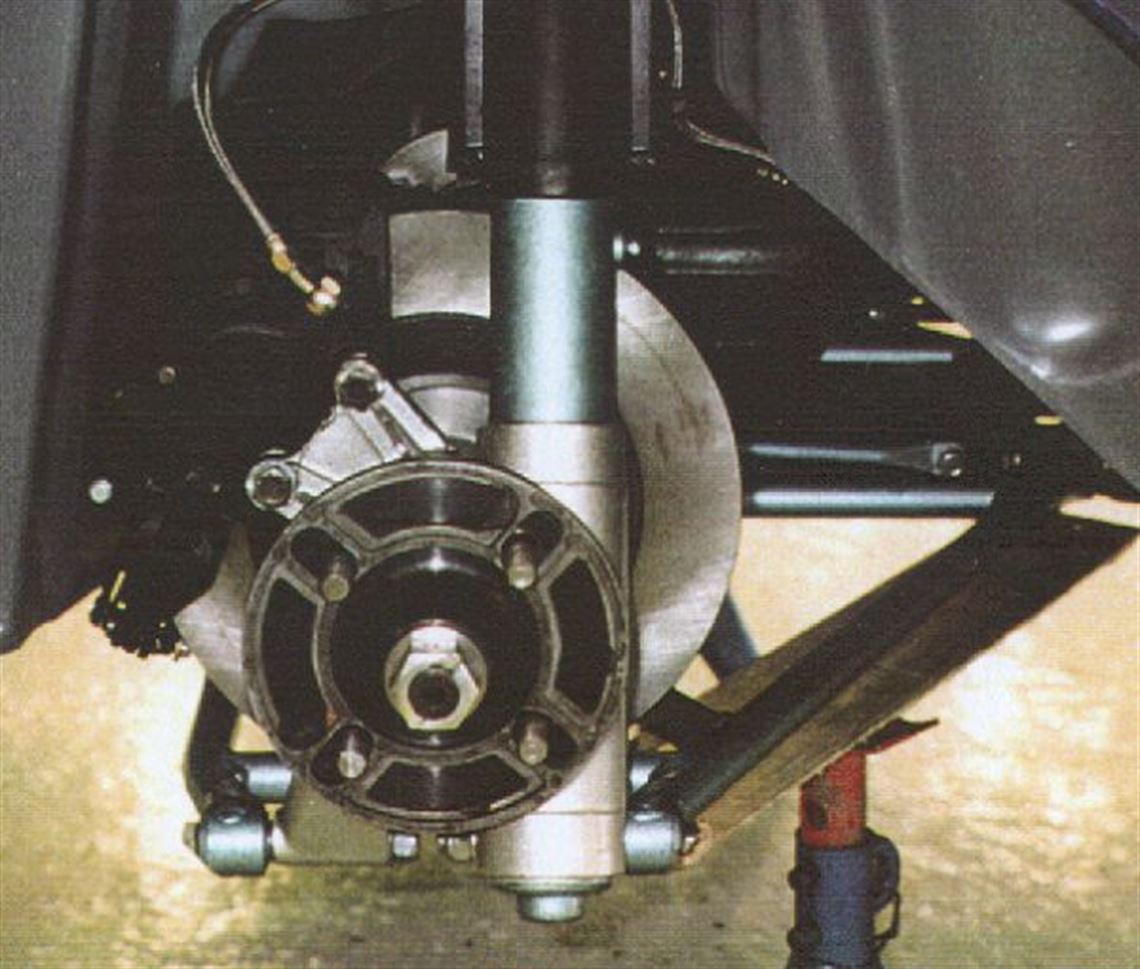

• Two front suspensions are supplied with the car



  • Front suspension currently on car (Questionable FIA ok):



    • 26R Armstrong adjustable shock absorbers with platforms

    • 185 lb springs

    • 26R non adjustable (S1) wishbones.

    • 26R alloy hubs

    • 26R AR3 Girling alloy calipers with +2 discs



  • Alternate Front suspension (FIA ok)



    • S2 non adjustable wishbones

    • S2 steel hubs

    • S1 Girling 14 alloy calipers, with FIA ok discs





•



  • 26R alloy S2 big bearing upprights with platforms

  • Koni adjustable shock absorbers 275 springs,

  • S2 wishbones

  • Original steel brakes all restored

  • 26R gliding spline steel drive shafts

  • Steel reinforced hubs



• Triumph rack and pinion

• All brake lines from special aircraft material

•



  • Drys: 26R Magnesium 6" four bolt with spinners, 5.25 x13 Dunlop racing

  • Wets: Alloy Minilite 5,5" with 4.50x13 Dunlop racing

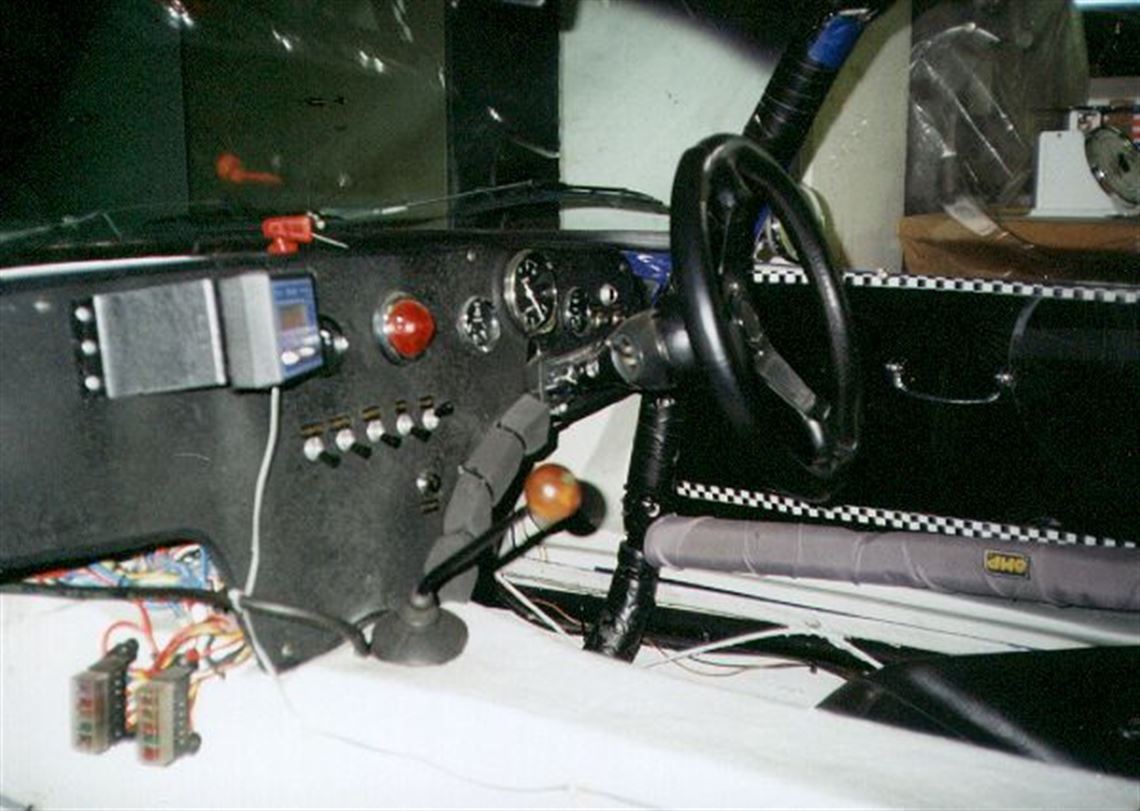

Interior

• Two 26R racing seats

• new FIA ok seatbelts

• front and rear rollover bars from Safety Devices, FIA ok

• Stack classic 10,000 RPM tach, new

• Hot lap timing system

• 26R adjustable brake balance pedal set

• Smith original restored instruments

• OMP Halon fire system

• Alloy instrument board

• original door panels, and original system for window mechanism

• perspex side windows with air ducts

• Race steering wheel in black leather


Spares

• Complete front suspension setup (FIA compliant, see above)

• rear suspension spares:



  • 26R alloy S2 big bearing upprights with platforms (two)

  • S2 wishbones (two)

  • Original steel brakes all restored (two)



• extra 26R steering wheel in alloy/black leather

• Alloy radiator and swirlpot

• Porsche cooling fan

• Airbox

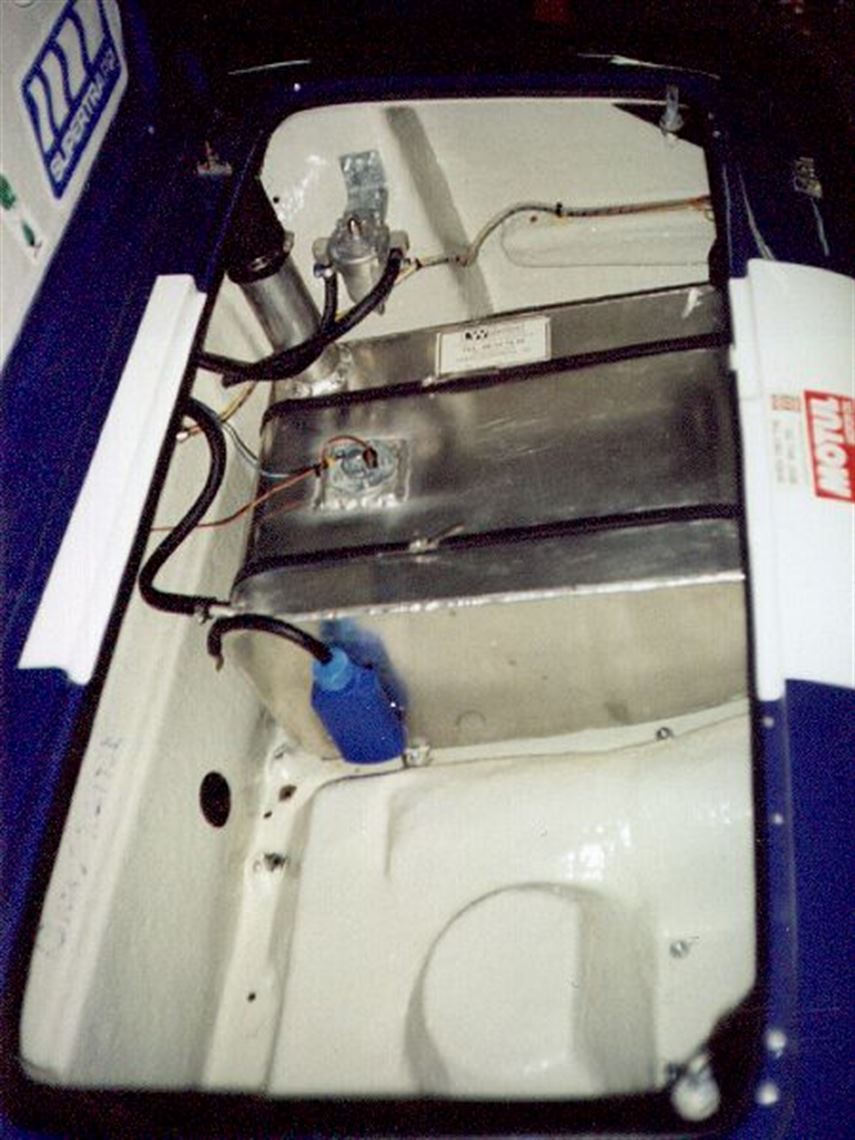

• Brand new foamfilled tank replica of original

• Red top fuel pump

• Working brand new light pod system

• Original front head and position lights

• Original turning lights

• Original S1 rear lights

• Ferrari oil cooler

• lots of additional spares
