Description:

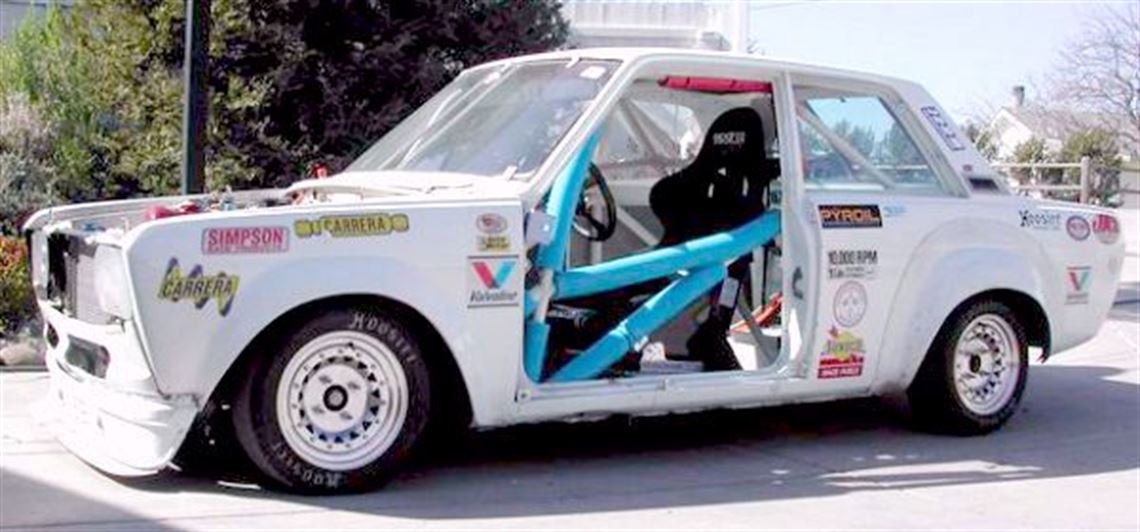

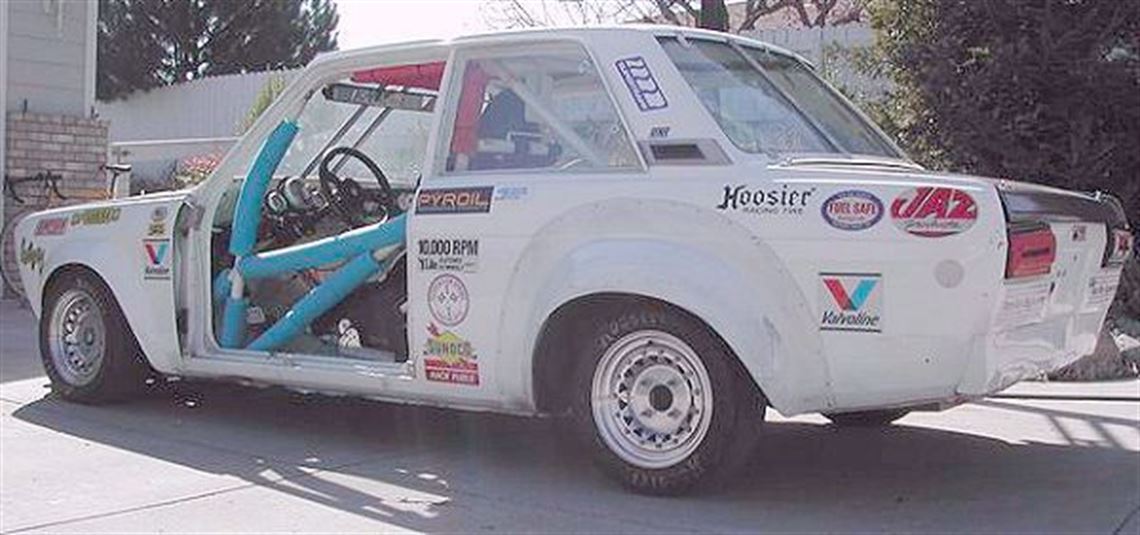

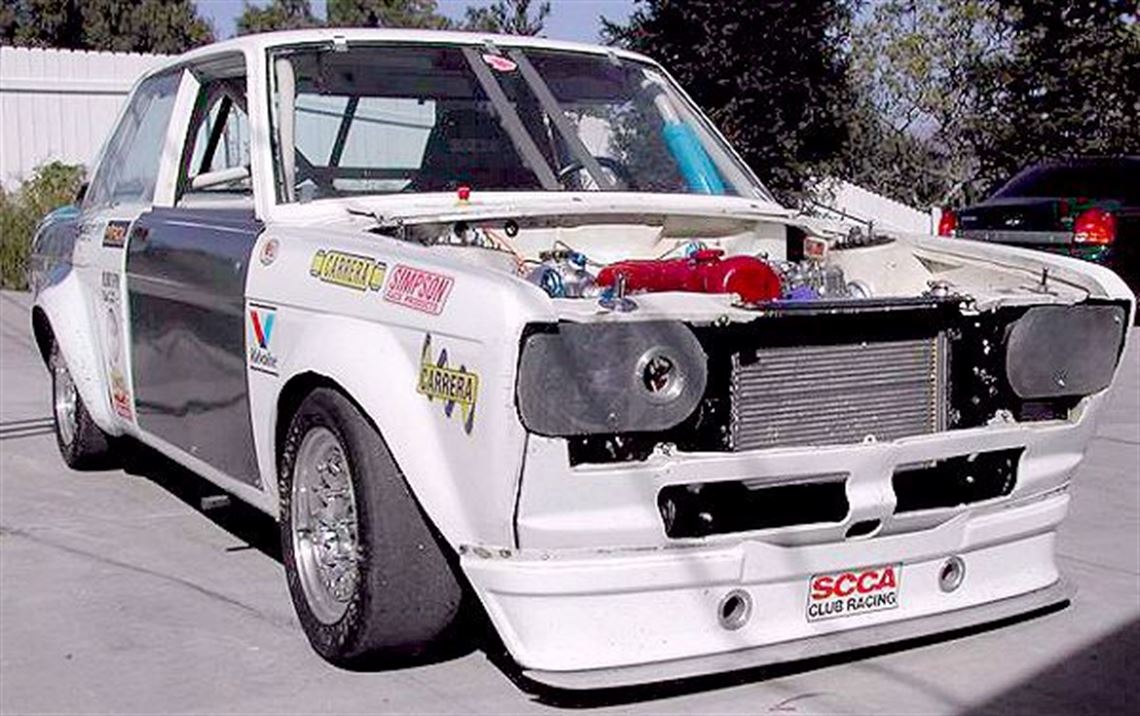

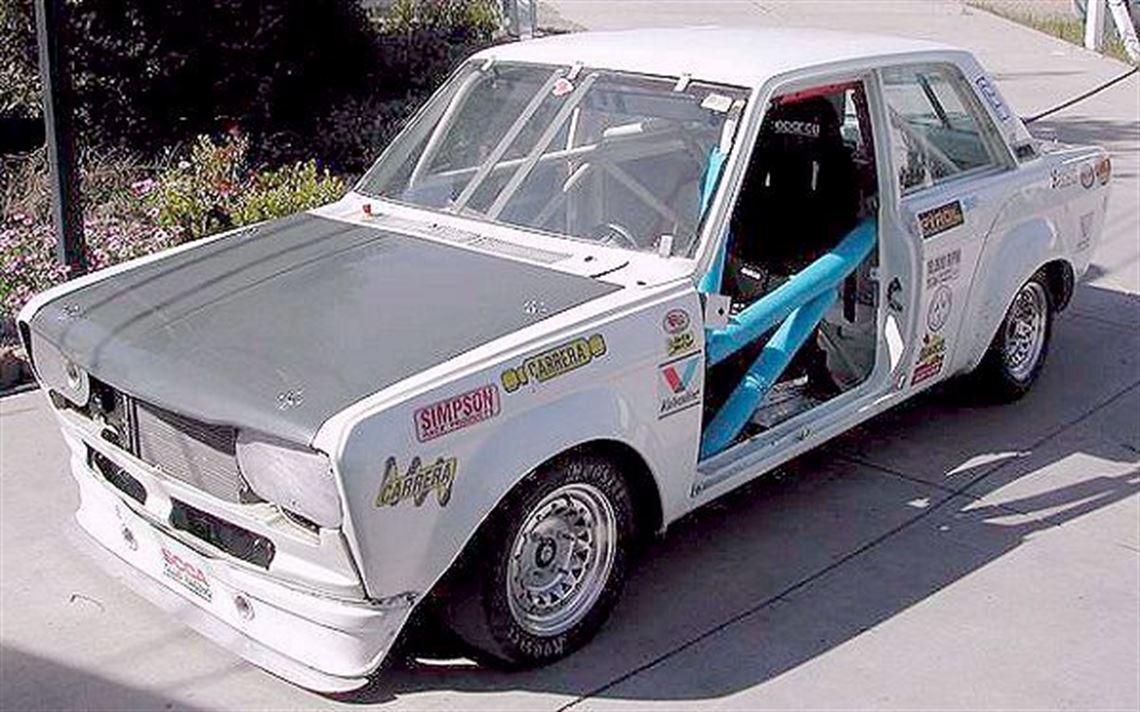

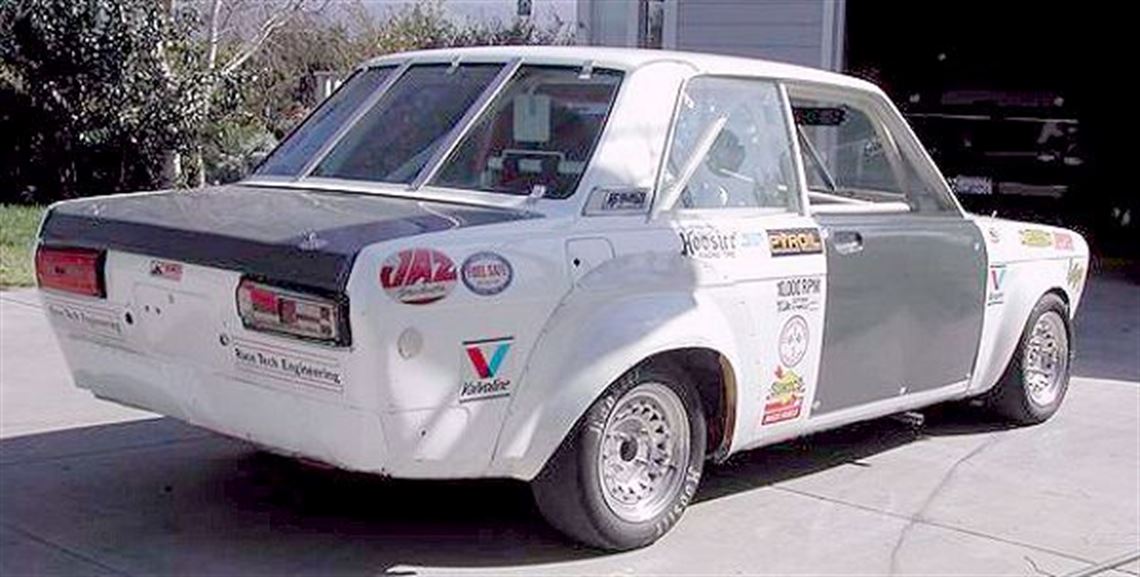

Car was built in 1972 to compete in SCCA 2.5L Trans-am series. The series was terminated before the car was completed. The car is completely original and the unibody is uncut. A complete restoration and homologation was completed in June 2002. Car has zero hours on engine.


History



Competition History

Last raced at harvest Moon 10-26-96, Laguna Seca 6-19-96.
Performance Data

• tbd lbs

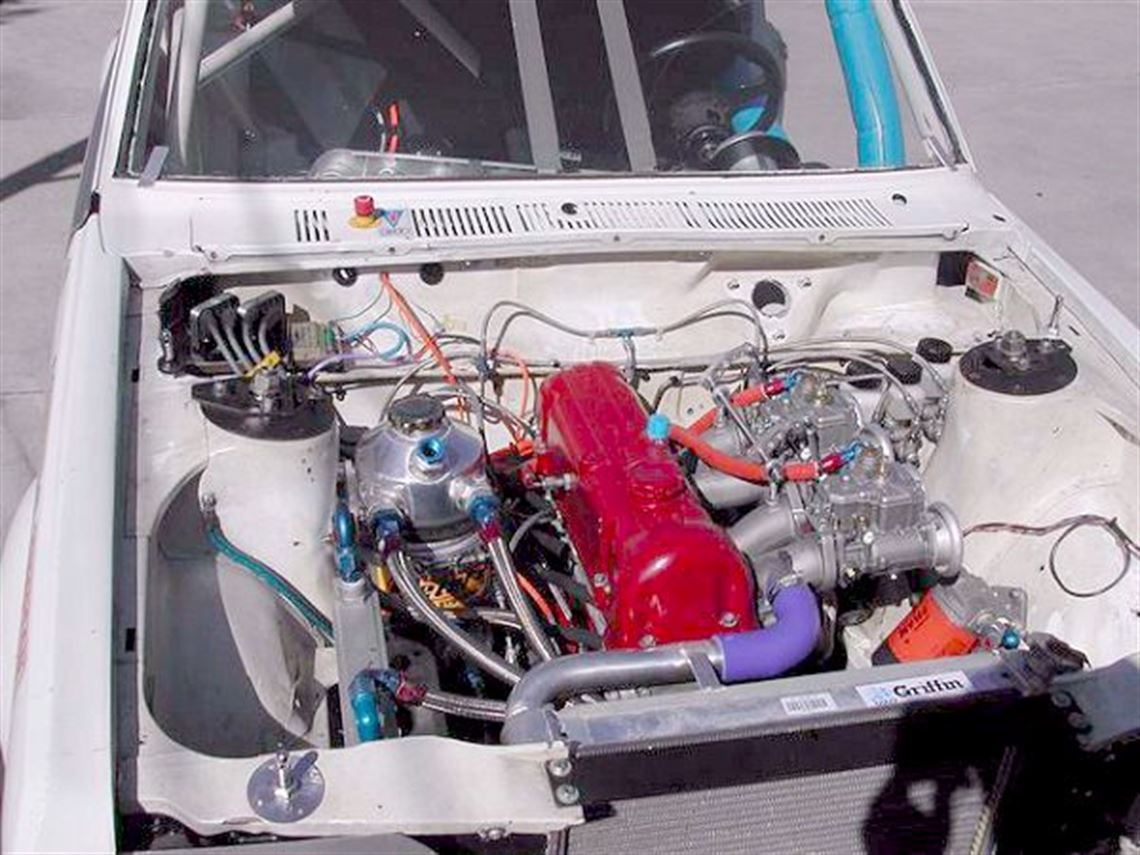

Engine

• RaceMechaniX Engineering

• Nissan L-16

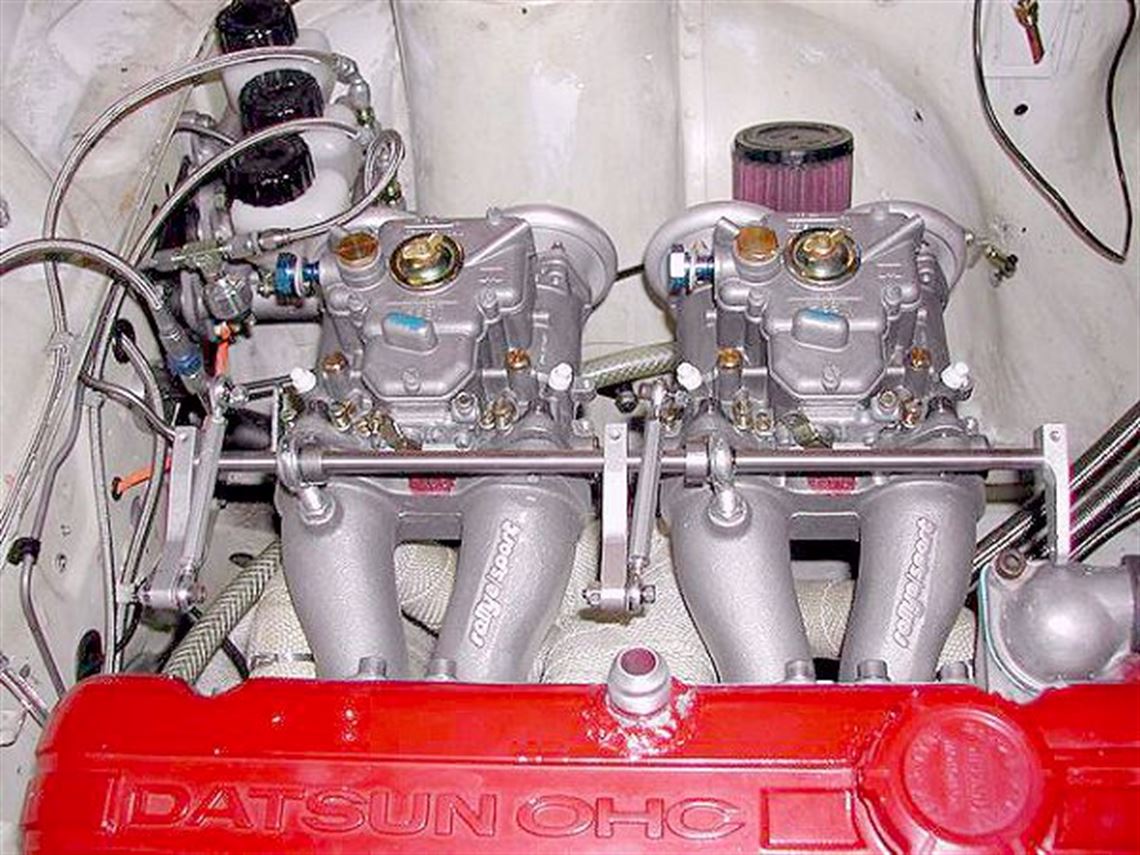

• Rallyesport intake manifold matched to head Dual 45mm DCOE on RallyeSport intake with rod end linkage TWM shorty spun al

• Ported and matched A87 peanut head by RaceMechaniX Engineering

• ARP head studs, intakes studs, main studs and connecting rod

• Massaged stock connecting rods with ARP hardware, balanced

• Ross racing pistons

• Billet cams for GT-4 and G-Production

• 38mm stainless exhaust, 44mm stainless intake valves

• OT-II 7.25” twin disc clutch

• Tilton aluminum flywheel

• Nismo Comp header

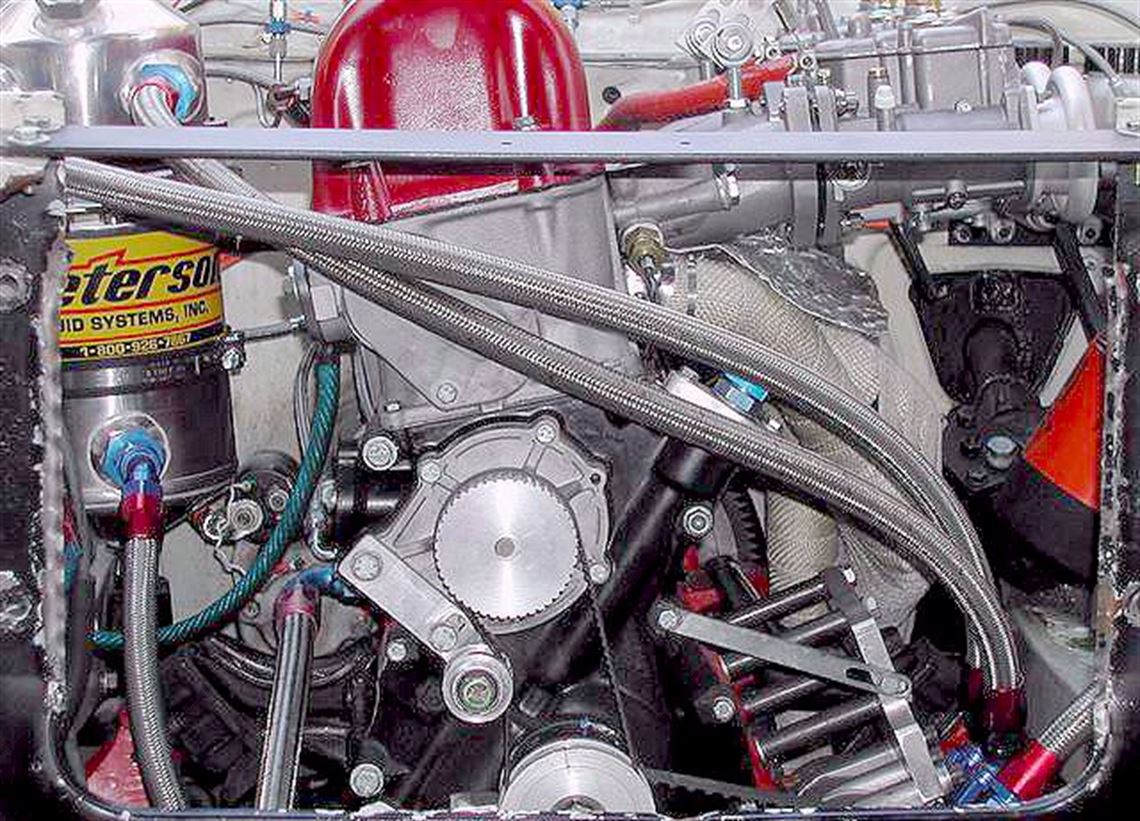

• 3-stage dry-sump, Welded steel dry-sump pan

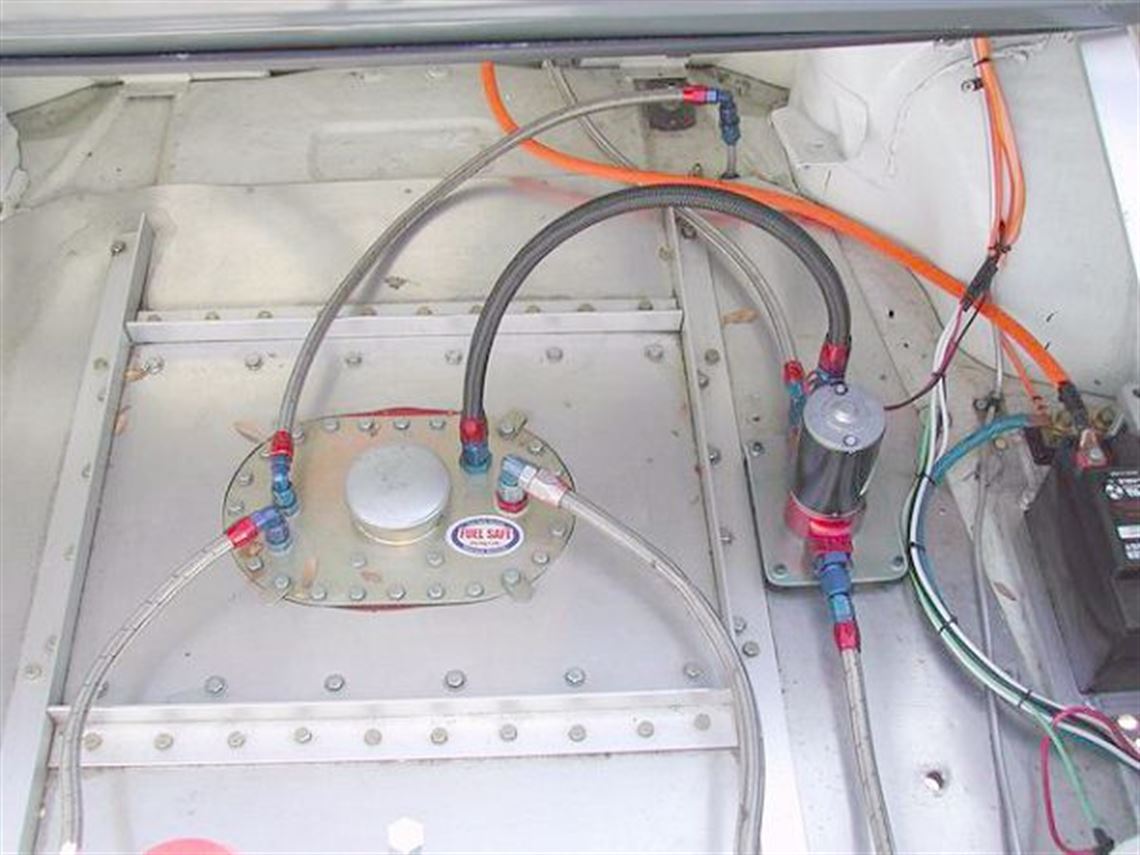

Fuel System

•

• Fuel Safe

• 8-gallon

• Barry Grant BG 300 fuel pump,


Oil/Water System

• Griffin scirocco style twin core radiator

• Earl's 10 row oil cooler


Electrical System

• Electromotive HPV-1 crank fire ignition, Tefzel wire used

• Hawker EP series battery with billet machined tray

• Separate electrical circuit for fuel, ignition and accessories


Transmission

• Nissan 240Z 5-speed for GT-4

• Nissan 240Z 4-speed for G-Production


Rear End

• Nissan R160

• 4.11 locked


Body

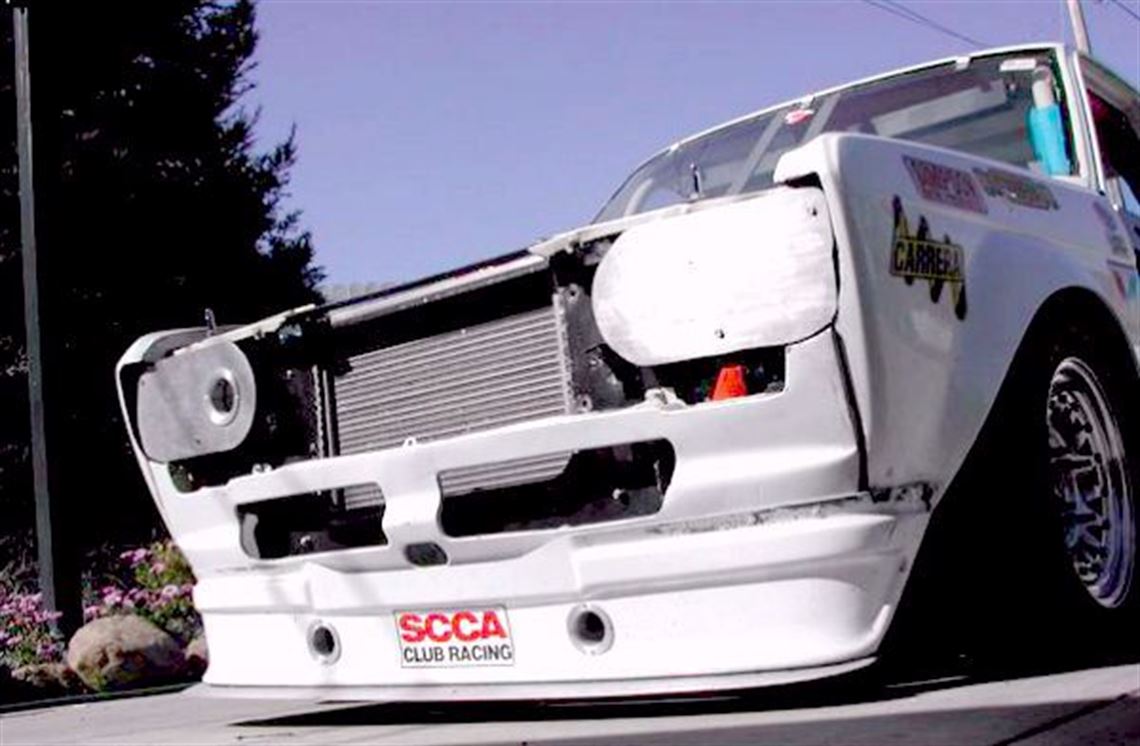

• Quik-skins fiberglass hood, trunk lid, front airdam and both doors

• Lexan rear quarter panels


Chassis

• 1969 Datsun PL510 unibody with 10 point welded rollcage

• modified front A-arms with box tubing, Heim joints and rod ends used throughout front suspension, ad

• Adjustable rear cross member, rear adjustable sway bar

• Adjustable Carrera Coil over shocks with adjustable collars and castor plates

• Wilwood Dynalite four pot calipers front and rear, Cross-dri

• rack & pinion

• Kaiser 3 piece aluminum 13”x7” wheels, . American Racing Lib


Interior

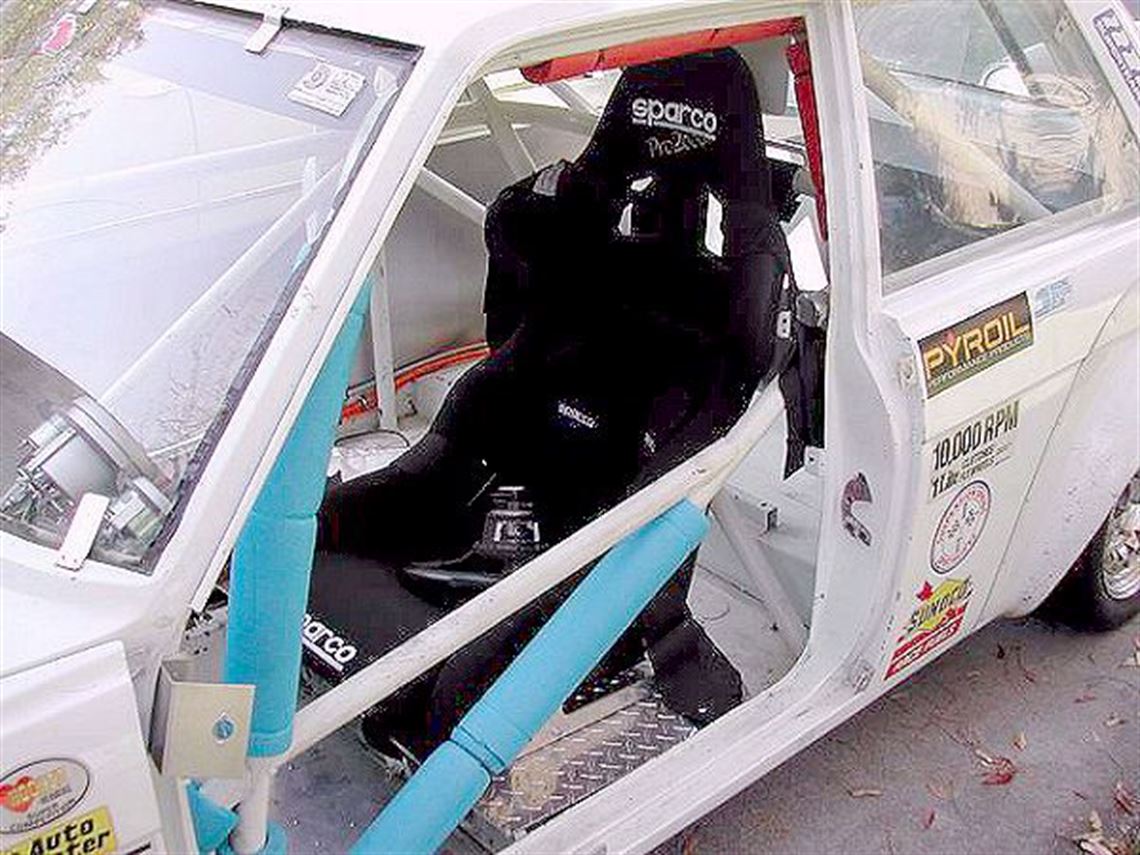

• Sparco Pro 2000 race seat

• Aircraft Safety switches

• 2.5L AFFF fire suppression for driver, 5lb Halon for other

• Simpson 5 point safety harness and window net

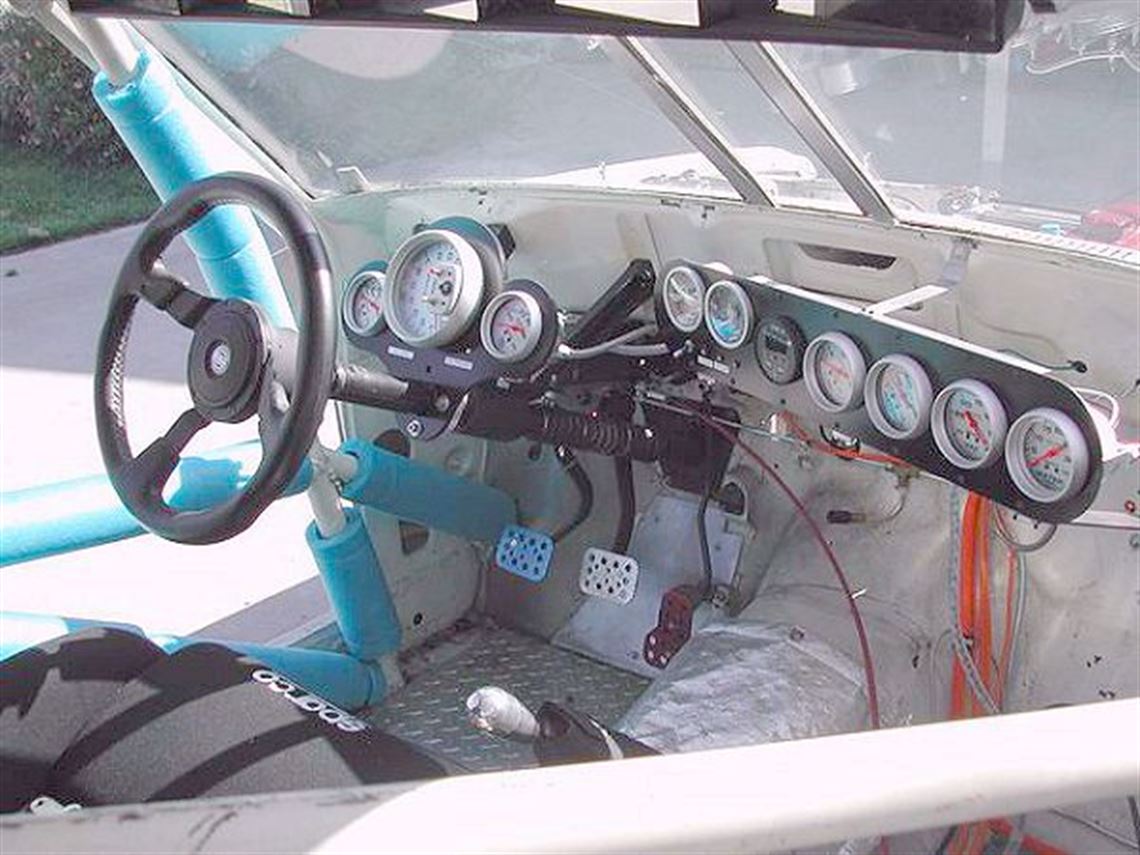

• Warning lights on all critical systems, Autometer oil filled

• Removable Sparco steering wheel


Spares

• Nissan A87 Peanut head port matched and dowel pinned to Cannon manifold

• Weber 40 IDF downdraft with modified 32/36 manifold

• Spare short block with balanced crank, rods and Ross Pistons

• Hooker headers long tube L-16 exhaust manifold

• Additional low ground clearance dry-sump oil pan

• Mocal oil cooler
