Description:

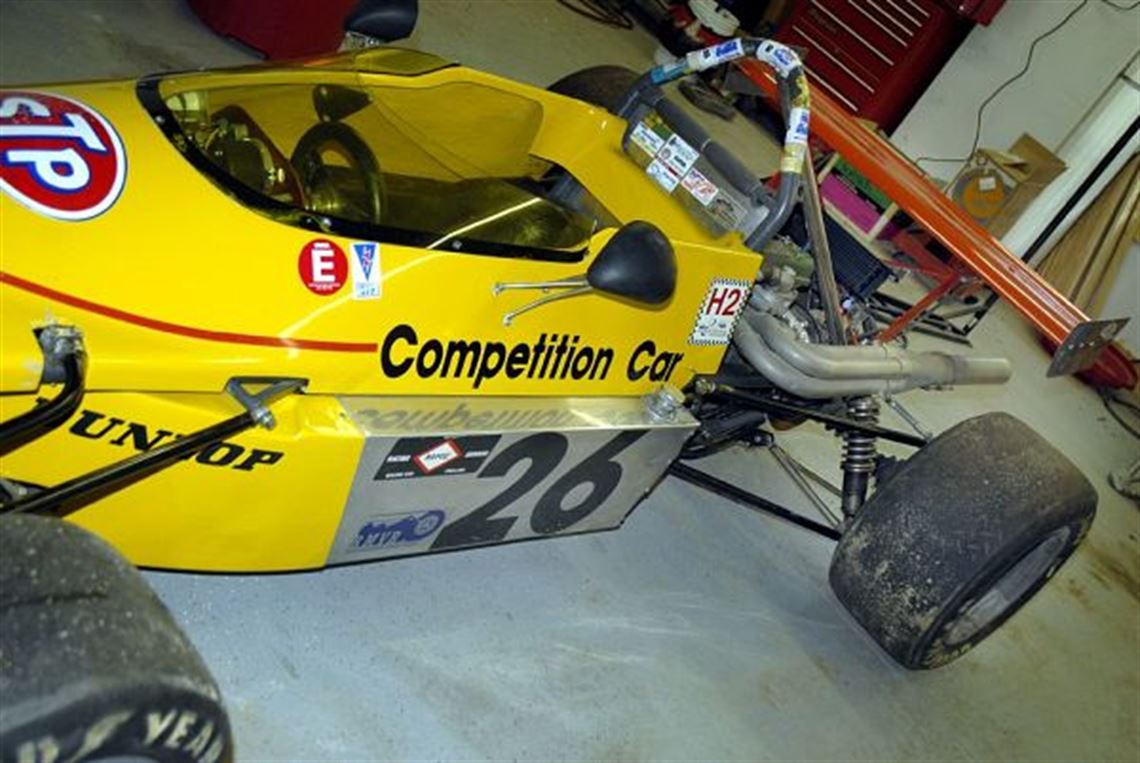

7/31/10: Just reduced the price...please inquire about the car if you are interested, or make me an offer. This car originally raced in the F3 series, and I have photos of it racing in Monaco, as well as orig publicity shots taken in front of the factory. Was driven by Barry Maskell & was the sister car to the one driven by John Bisigiano (was a F-1 pit reporter). I purchased the car from Jim Gleeves and I raced it all over the US with great resuts. Engine is a Lotus Twin Cam, 1598cc. All steel crank & rods, polished. Balanced and blueprinted by Steve Wolff. Mark IX slip differential. Larger lay shaff with fixed first gear for standing starts. I have the dino sheets and tuning parameters for the motor. The only addnl gauge that is not original is a pyrometer, which I used to fine-tune the carboretor settings. All tuning sheets for different altitudes (and jets) are included. With the car, I am including an extra set of rims (4) and one more additional front mag. Also included are additional uprights & suspension pieces. Optional and negotiable are a number of gear sets for the transmission. Will gladly answer other questions you may have.


History

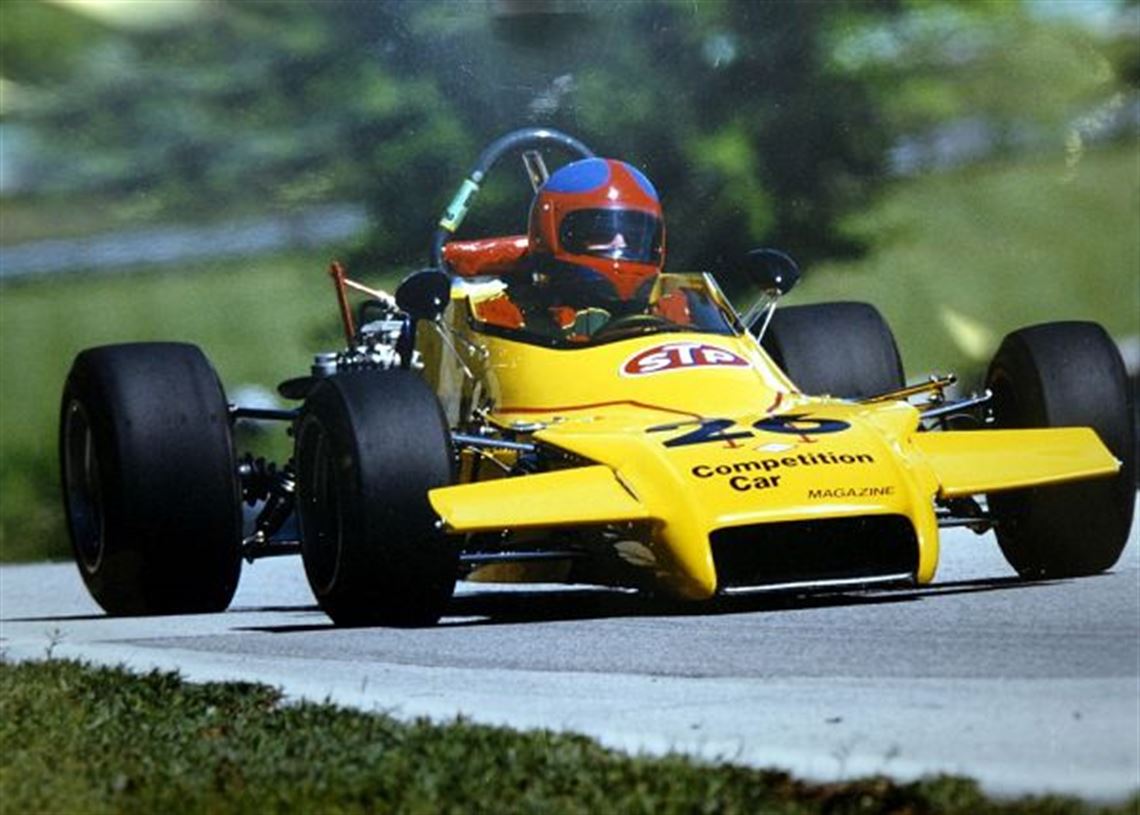

Information provided to me when I bought the car from Jim Gleeves (in approximately 1989) was that this car raced in the F-3 series in Monaco and was the sister car to the one driven by John Bisigiano (who was later a F-1 pit reporter). I have photos of it racing in Monaco, and also of it in front of the factory in publicity shots. I raced it throughout the US with RMVR, VARA, SVRA & The Monoposto.

Competition History

Willow Spgs: 134.5; Rd.America: 235.6; Summit Point: 122.2; Pueblo: 140.1
Performance Data

• F-3

• Watkins Glen


Engine

• MRE

• MRE

• F-3

• 1598cc

• 160

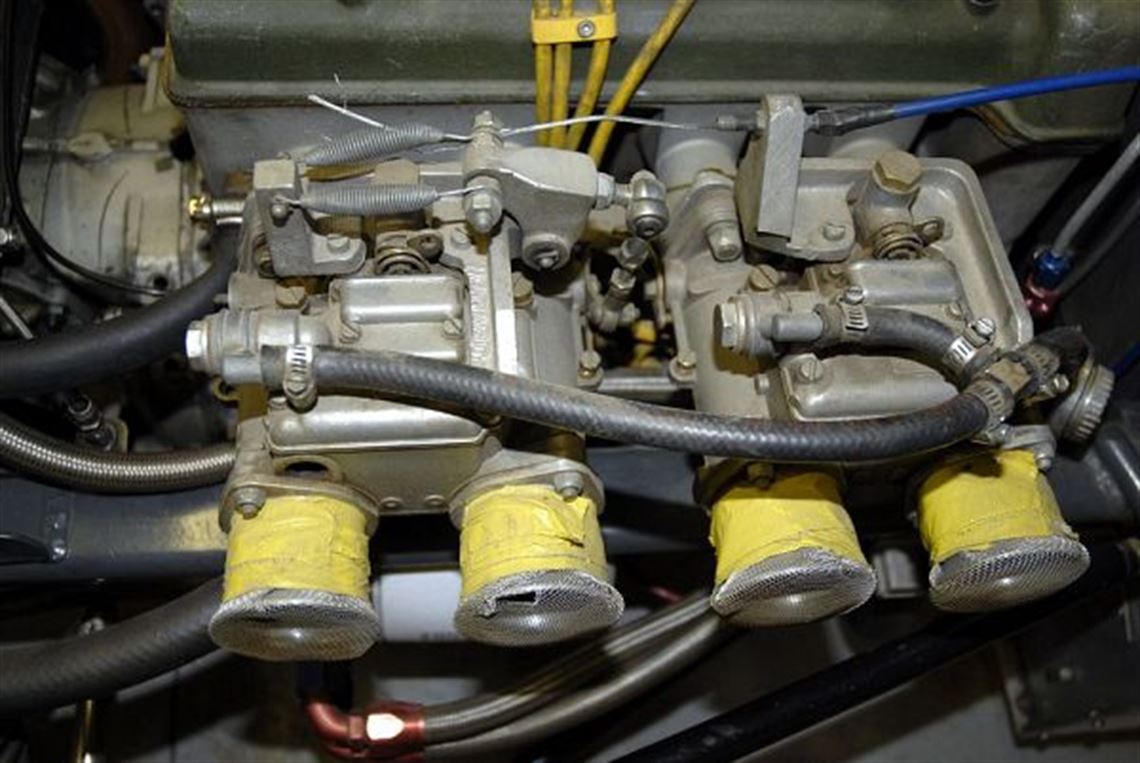

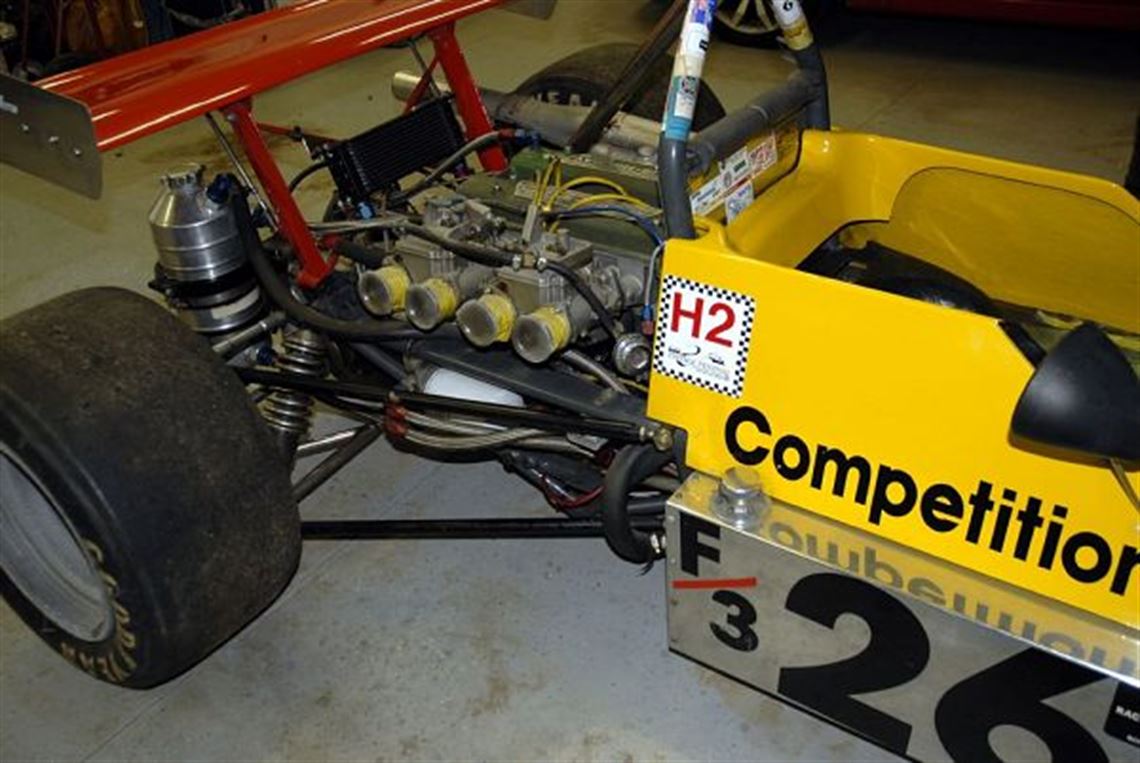

• Twin dual Delordos, 40mm. Addnl set of 40mm webbers included

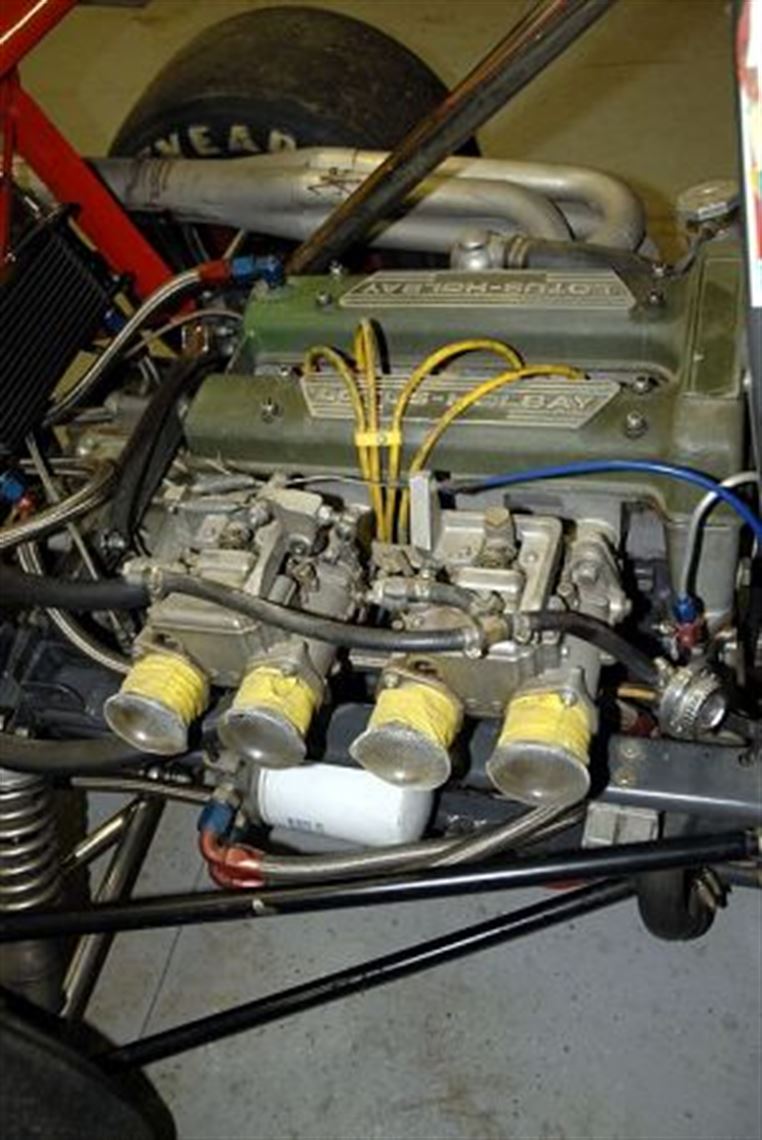

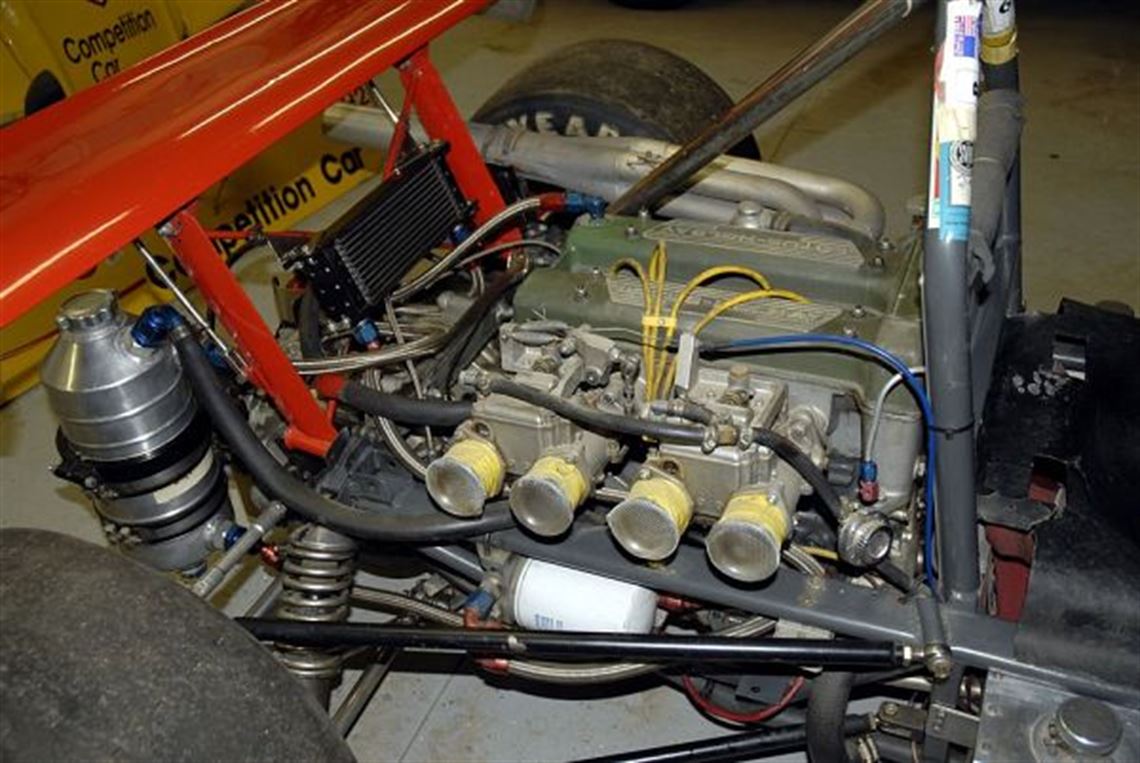

• Lotus Twin Cam

• Ford

• steel

• steel

• steel

• Tilton (NEW)

• Tilton (NEW)

• custom, coated

• low hours

• 3 weekends


Fuel System

•

• Fuel safe?

• new in '91

• 10 gal?

• electric

• gasoline


Oil/Water System

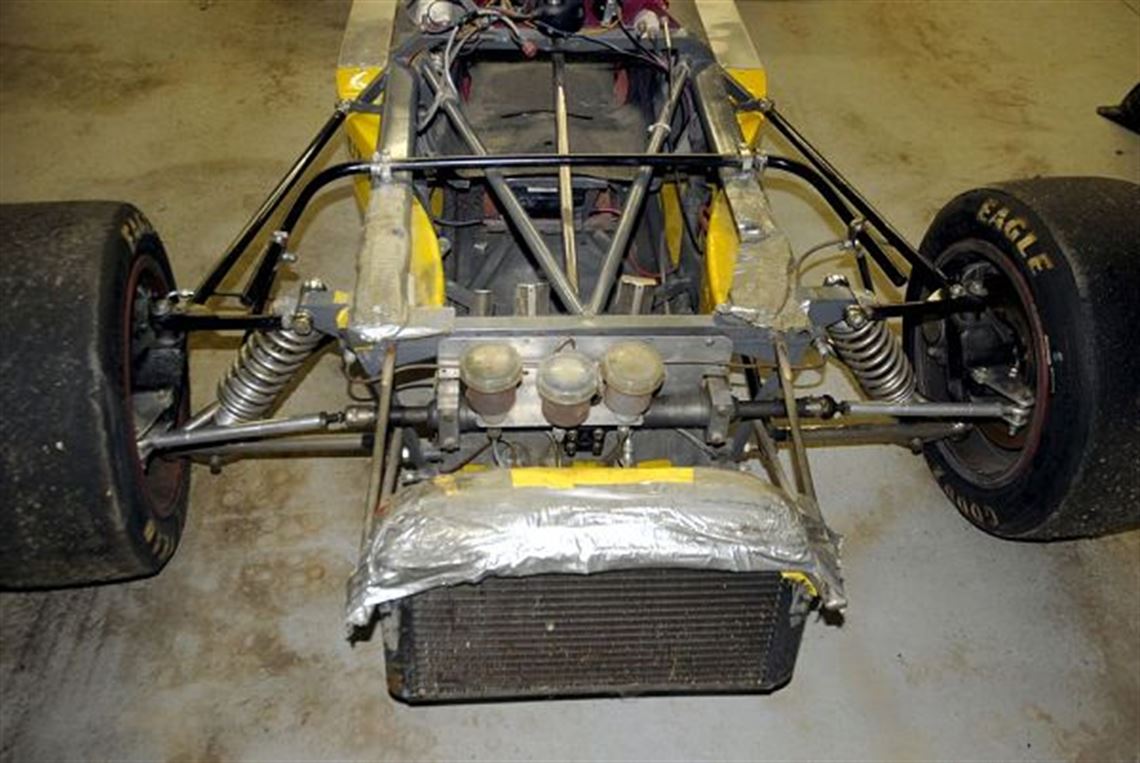

• Front mount

• Milodon, 12 row

• Mounted on wing


Electrical System

• Liminition brakerless

• none

• Sealed formula, under knee area

• none

• none


Transmission

• Hewland, Mark IX

• 5 sp, w/ reverse

• 1: 12-31; 2: 15-27; 3: 20-30; 4: 22-29 5: 23-27

• right ride

• none

• just reblt.

• Lmtd slip, 10-31 cw and p


Rear End

• Hewland

• Mark IX

• inner & outer CV joints, VW type


Body

• fiberglas & aluminum

• Ferrari Daytona Yellow

• PPG

• Good

• Extra center body section & rear cover included


Chassis

• ladder

• MRE

• steel

• grey paint

• excellent

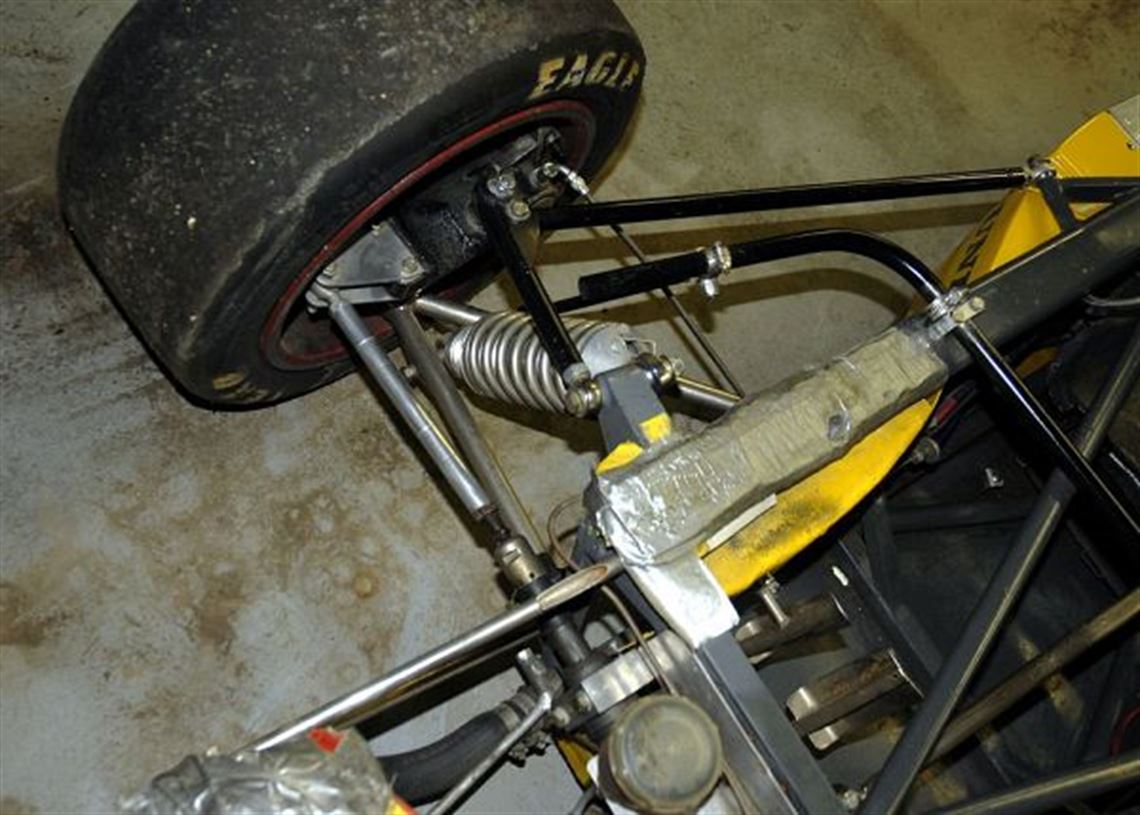

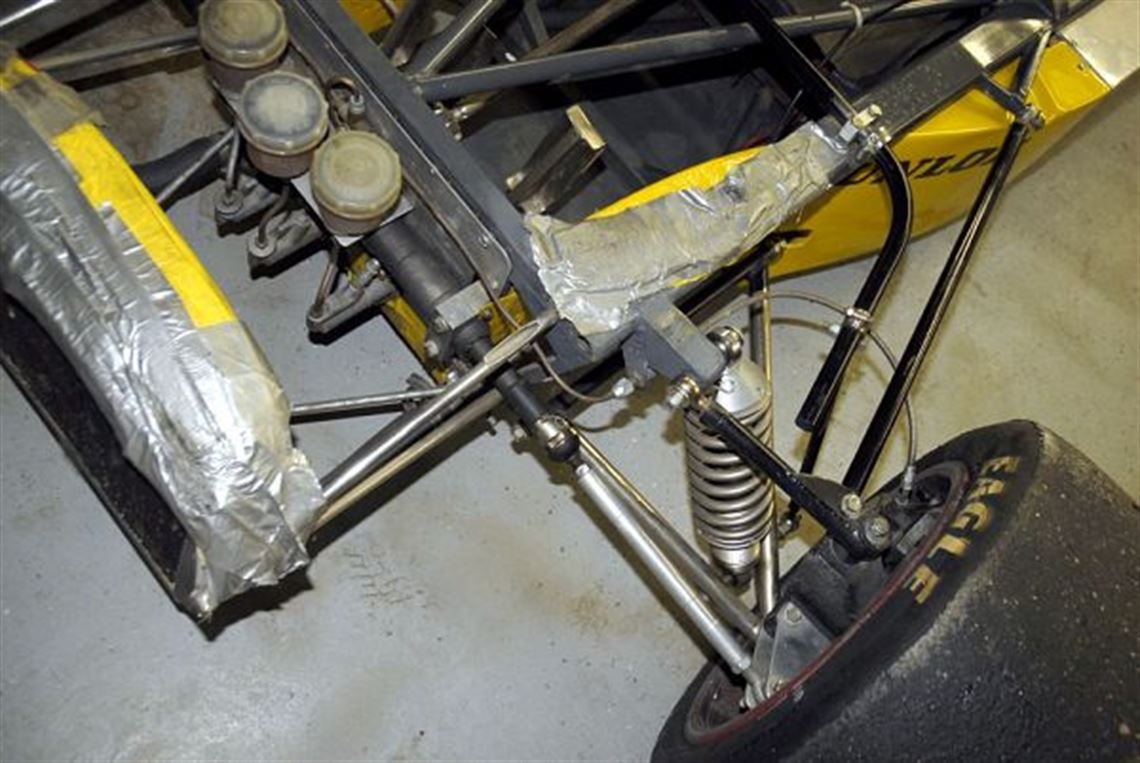

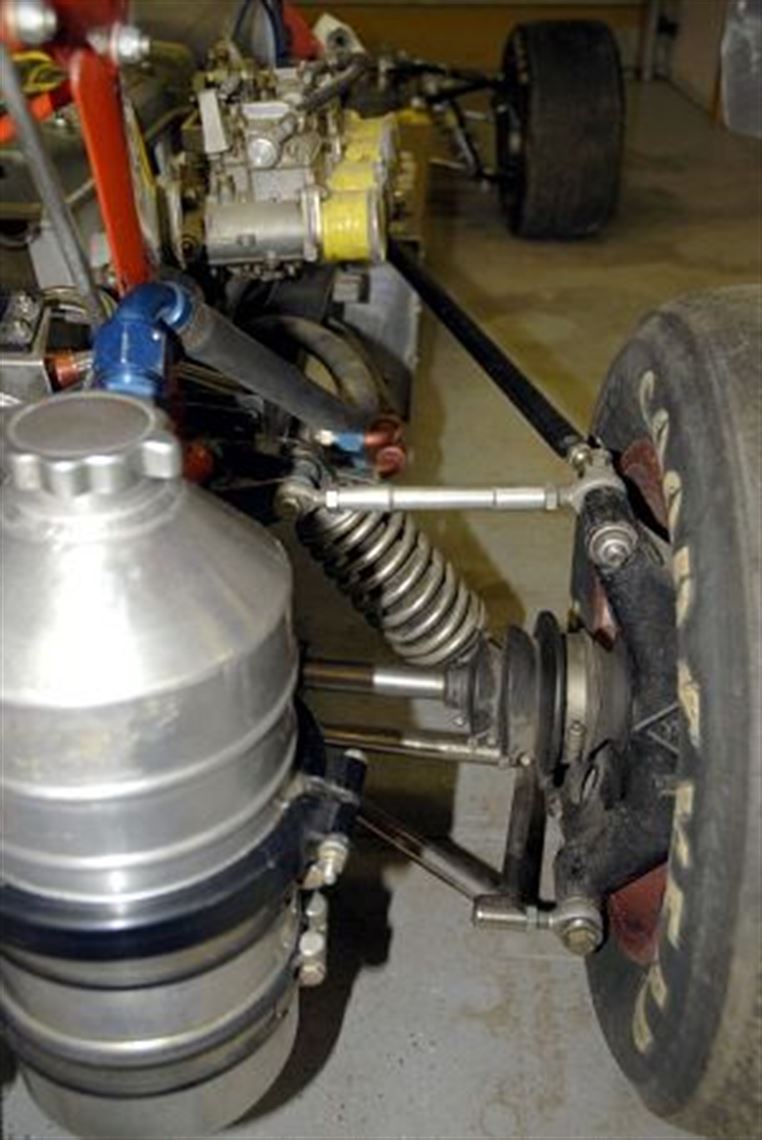

• independent double wishbone, paint, excellent

• same as front

• Fronts: carrera (NEW)

• inboard rear, disc front

• rack & pinion

• Rims: 9

• mounted slicks, historic-frt 7.2/20/13; 9.2/22/13 rear


Interior

• seat: black

• fiberglas

• 5.5 simpson w/ remote

• simpson (out of date)

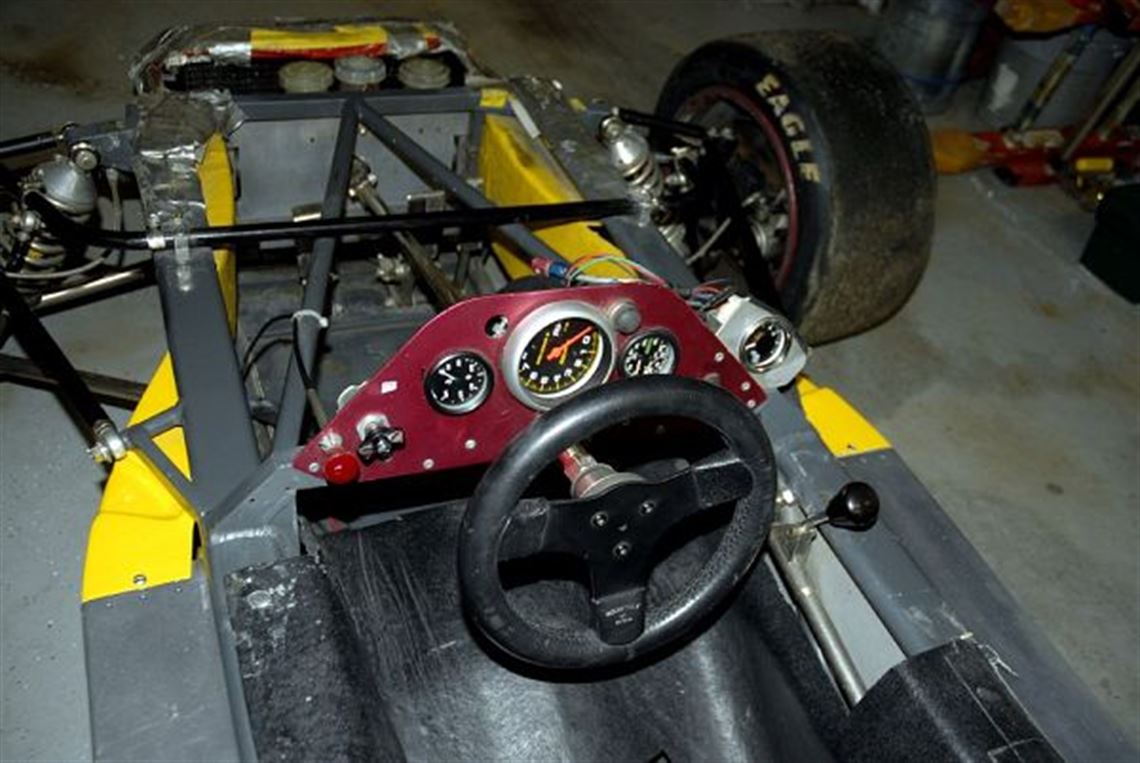

• oil temp,water temp, oil press.,tach (10,000 rpm), pyrometer

• mountney leather, removable (quik disconnect)

• very goo-excellent


Spares

• 5 rims

• brake pads

• uprights

• trailing arms

• center body section, rear cover

• Set of 40mm webbers

• gears and dog rings
