Description:

History

The Formula Junior was initiated by Count Giovanni Lurani in the late 50's. The cars had to weigh at least
400kg and be made up from mechanical parts of Italian street cars. Autosud was aproject of a Italian prince.
The construction was quite revolutionary, FIAT 1100cc engine in the front, FIAT 600 gearbox in the back,
turned over 180 degrees to obtai independent rear suspension. In the middle of the car, left and right from the
driver, two fuel reservoirs. This setup made the weight evenly distributed. IRS was not common in 1959 most
of the Formula Junior's had live axles. This one was raced in hillclimb competitions, but was not fast
enough. The chassis construction was too solid and the car too heavy. The Italian prince lost his interest
in building race cars, 3 cars were built this car is number 2 and the only one in running condition.


Competition History

This car was last competed with in 1993 at Mugello, a complete competion list is available upon request.

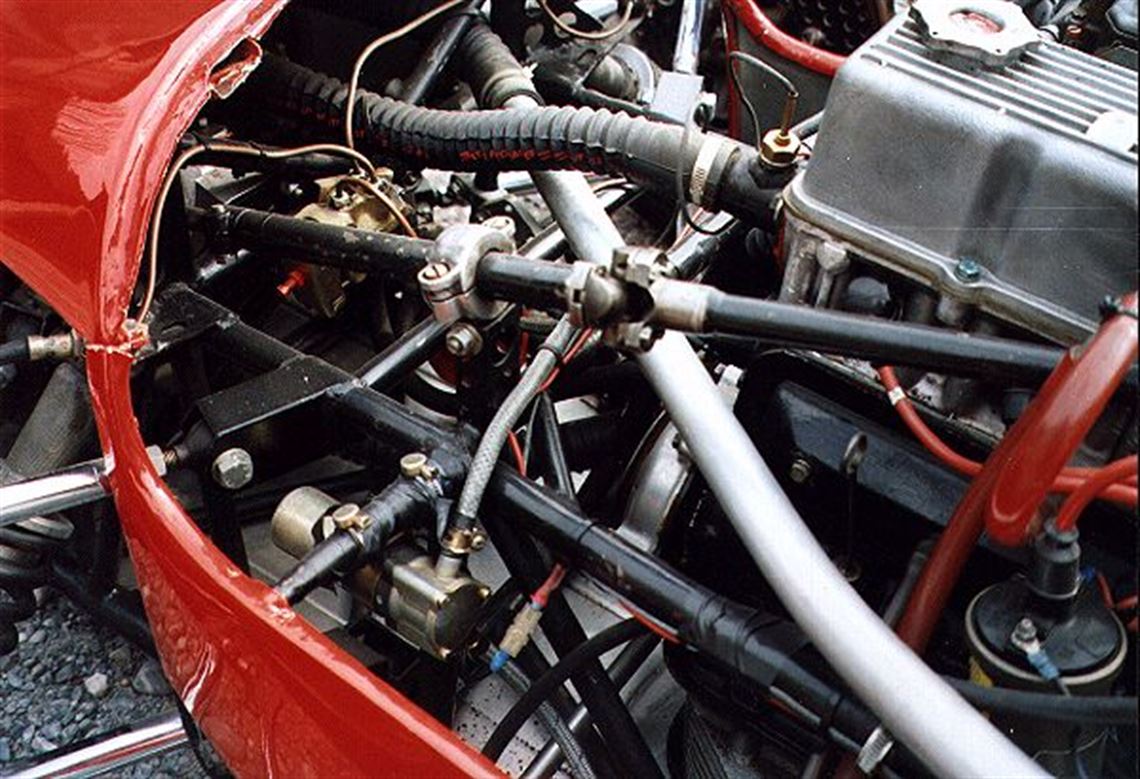

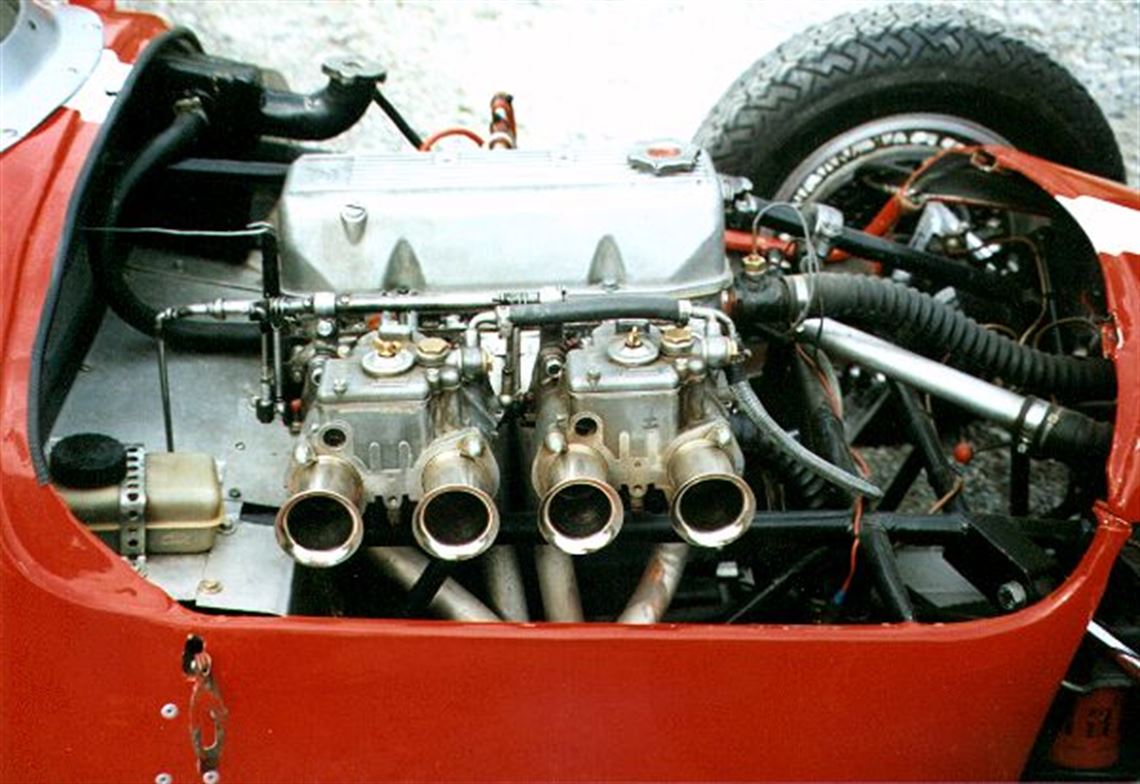

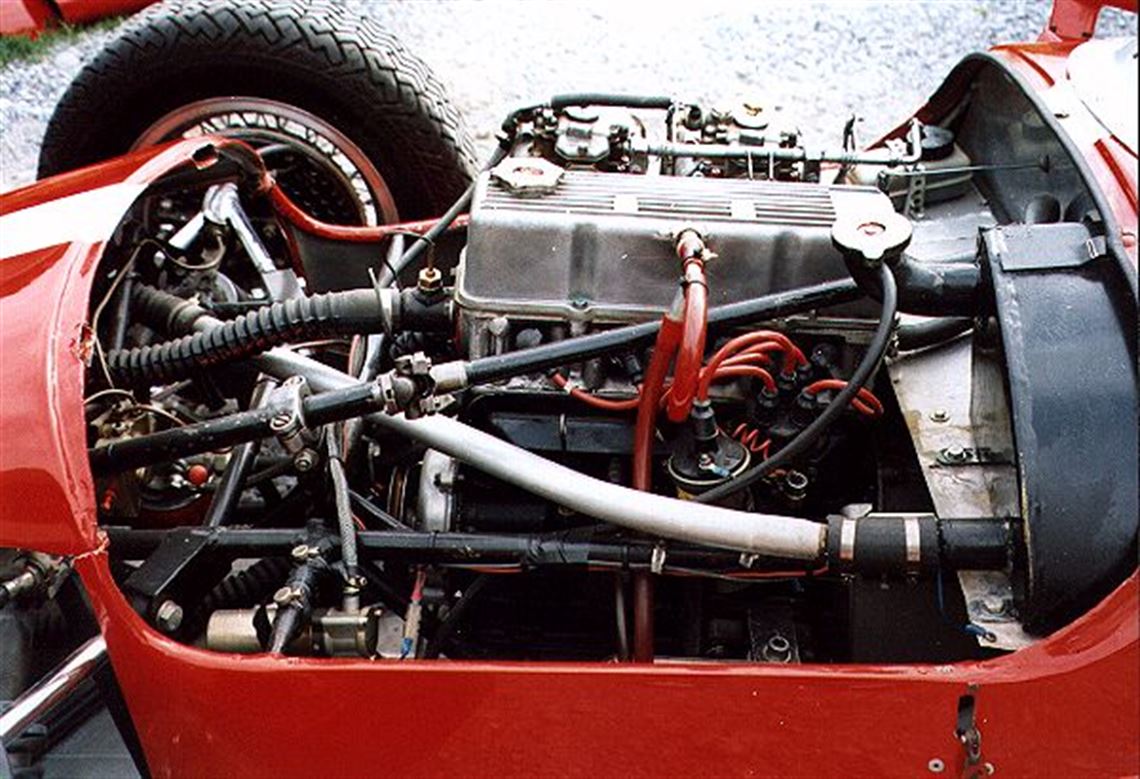

Engine

• FIAT 1100cc

• rebuilt June 1992 by Delio Galassi in Italy


Fuel System

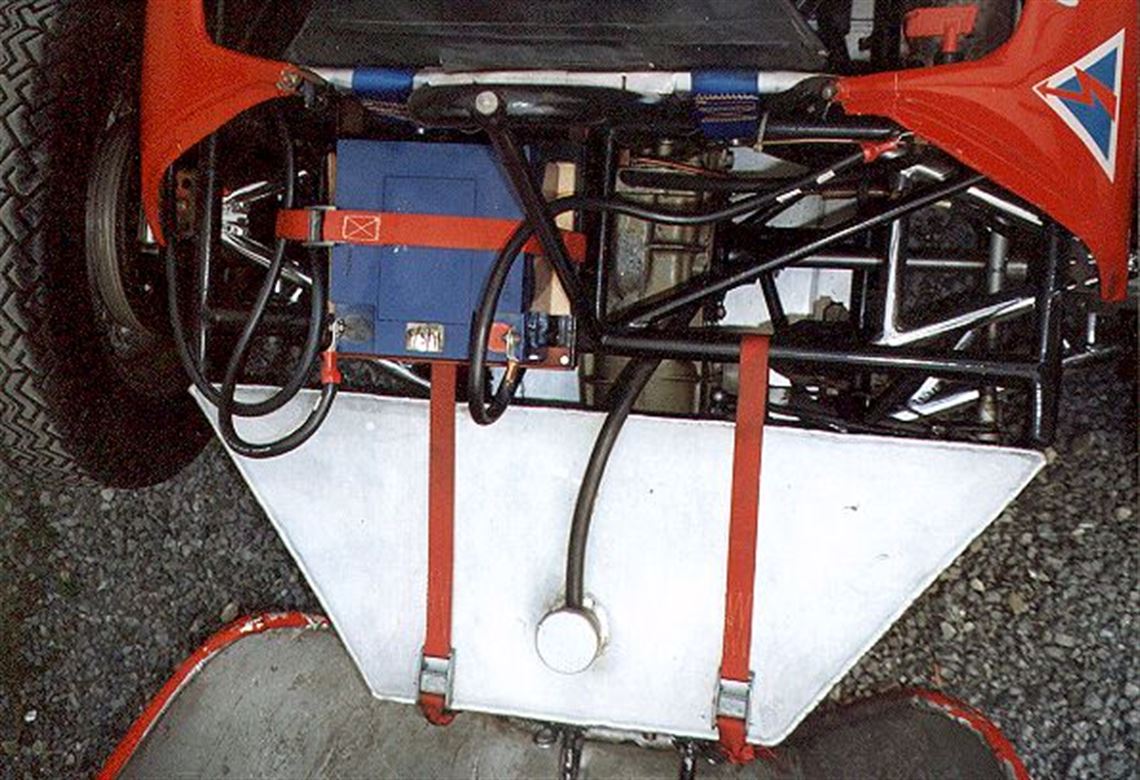

• the 2 original fuel reservoirs have been replaced by one in the back of the car.


Oil/Water System

• front water radiator, electrical water pump

• external oil filter


Electrical System

• 12V system, new battery, master switch

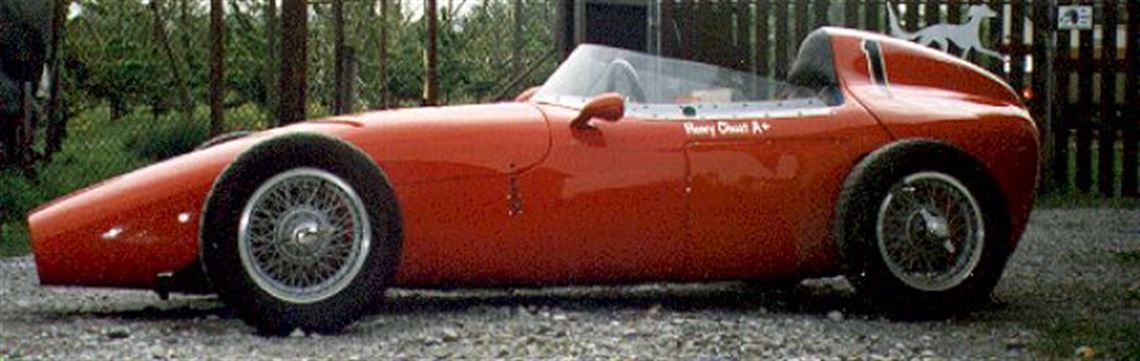

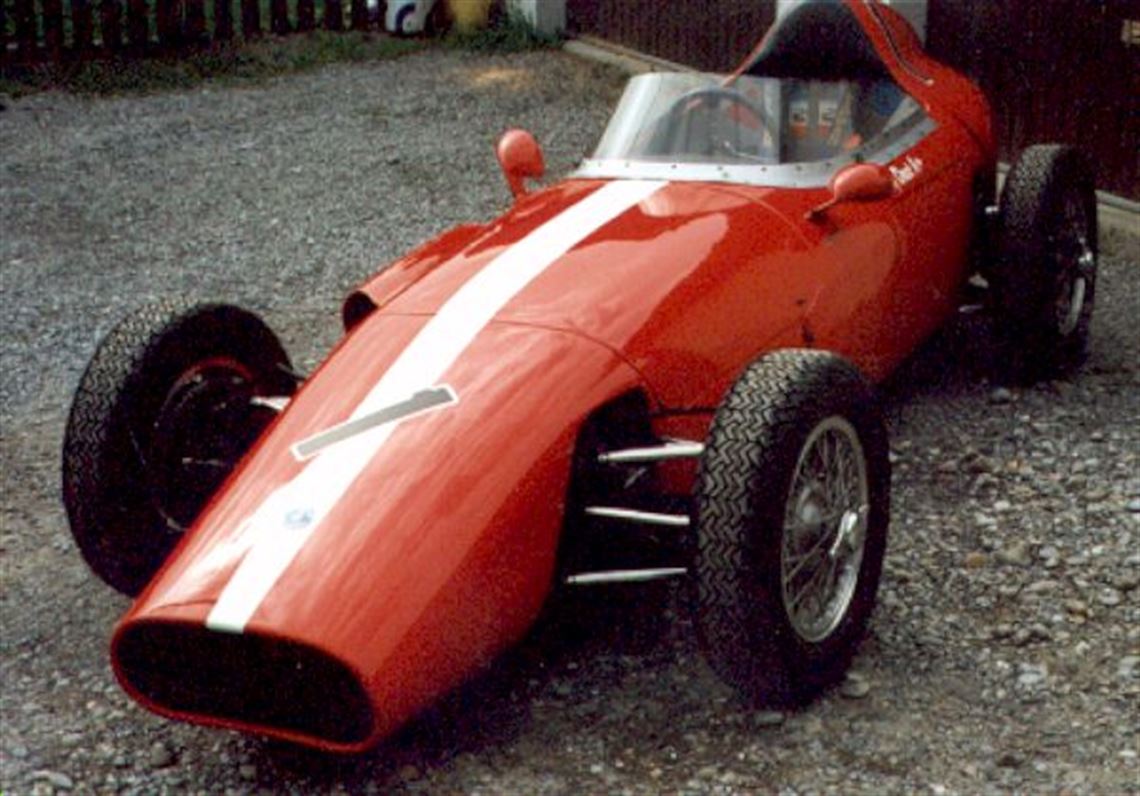

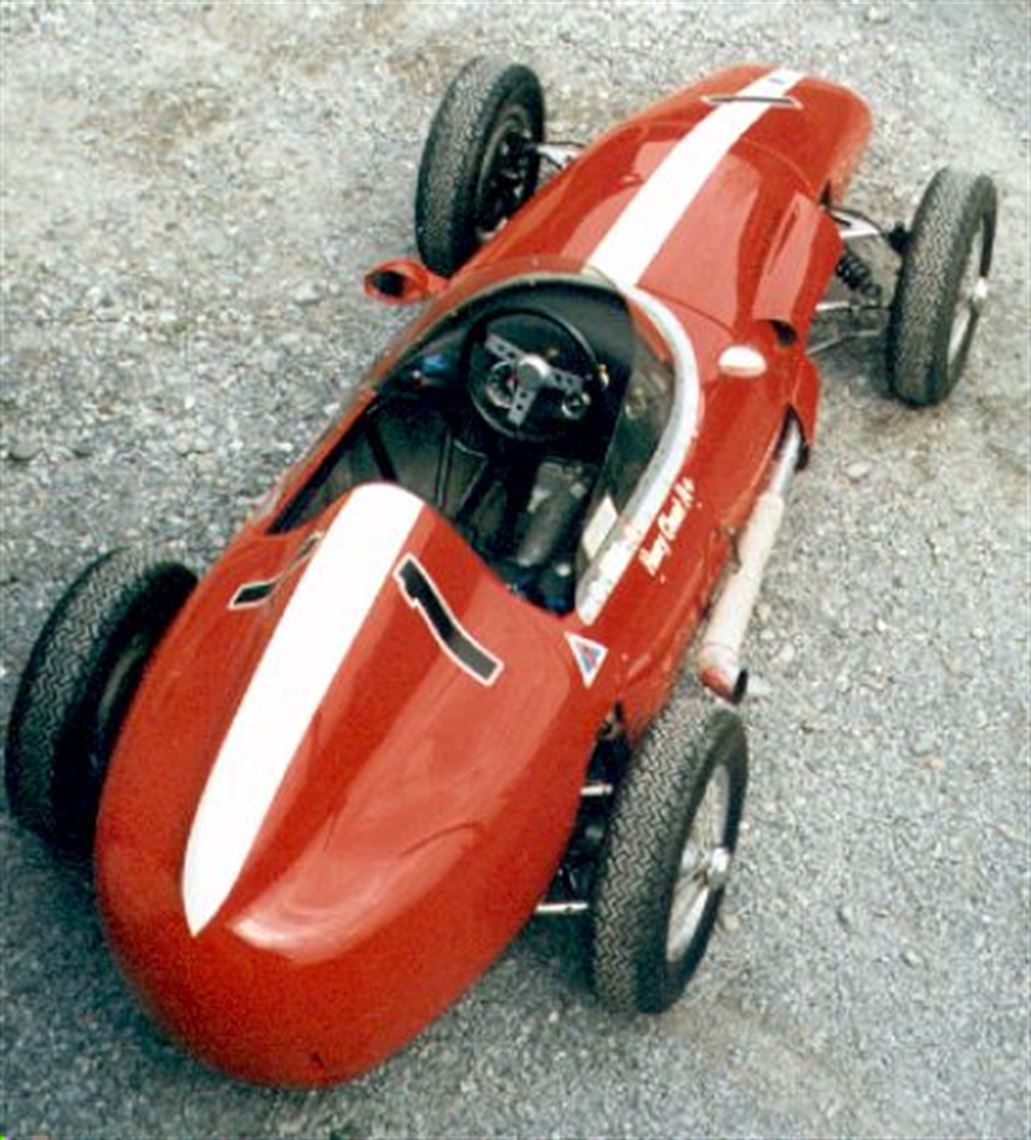

Body

• Aluminium

• Red


Chassis

• ladder type tubular frame, restored in 1984

• telescopic

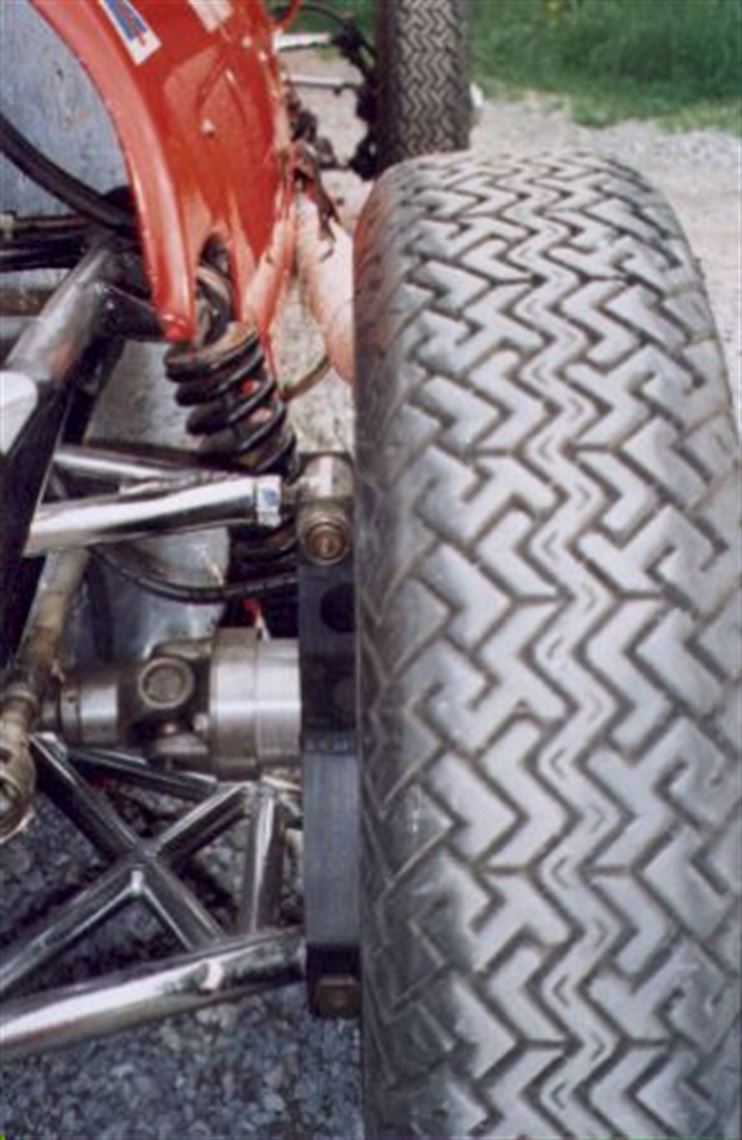

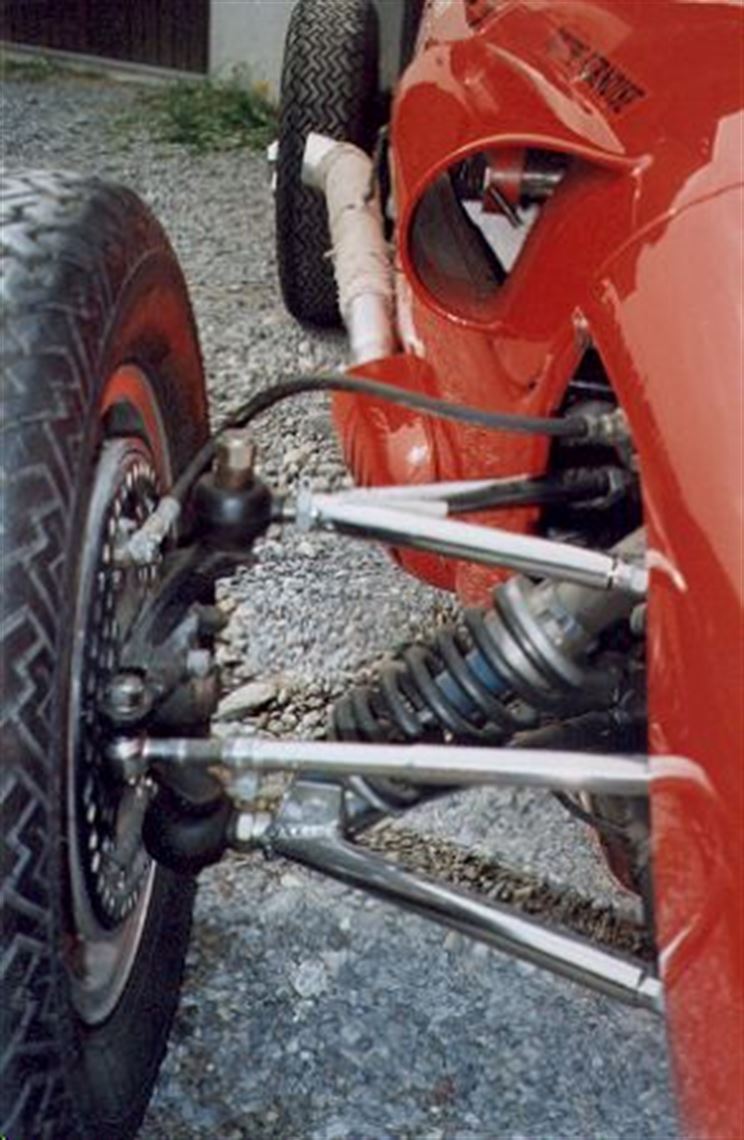

• independent wishbones with coil springs

• independent wishbones with coil springs

• rack and pinion

• outboard drums, adjustable pressure system

• one set Borani 14" knock on wire spoke, with adapters, one set steel, 13" frnt, 14" rear

• 480Kg


Interior

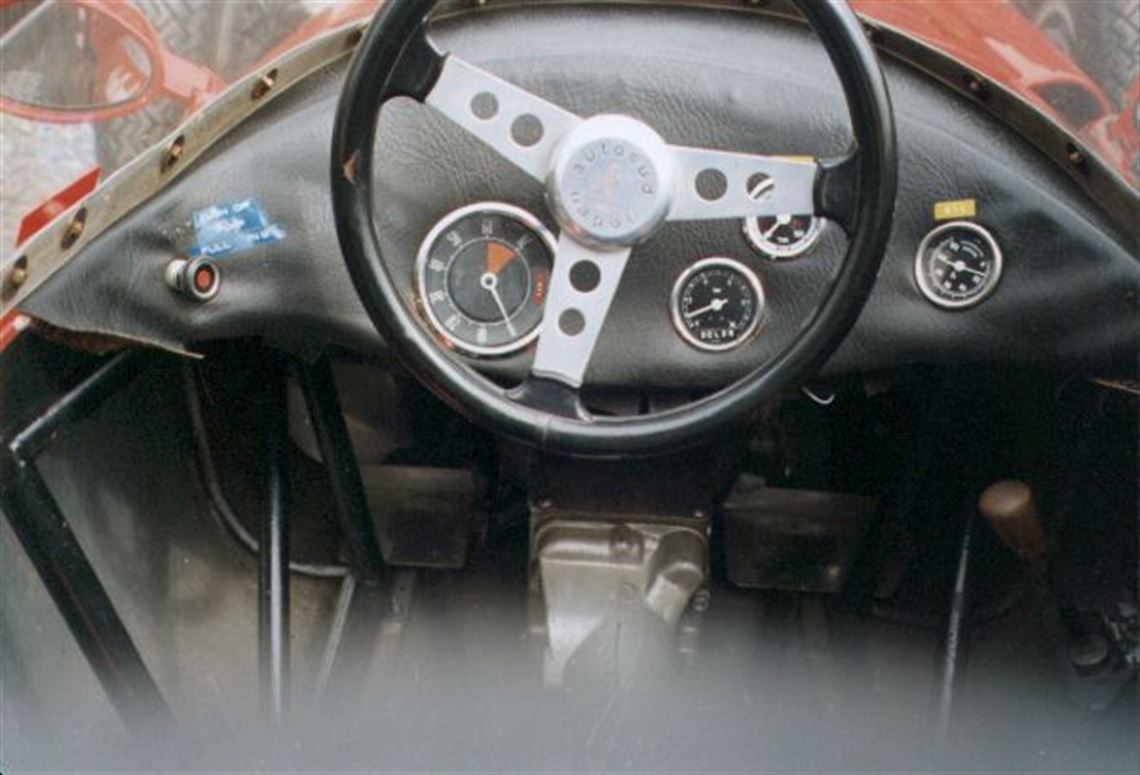

• full instrumentation, fire extinguisher

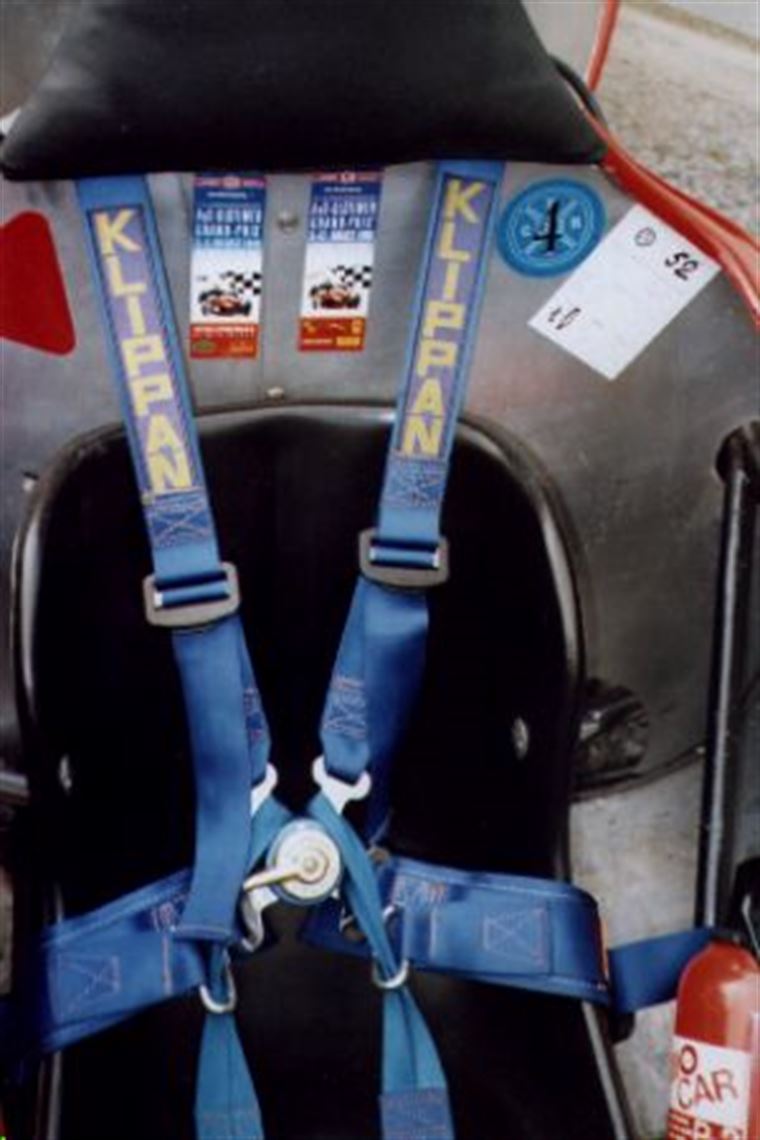

• 6 point safety harness


Spares

• engine block

• crank shaft

• clutch plate

• set of carb jets

• complete gearbox and parts

• oil cooler

• gaskets and bearings

• original fuel reservoirs

• ignition and carb adjusting tools
