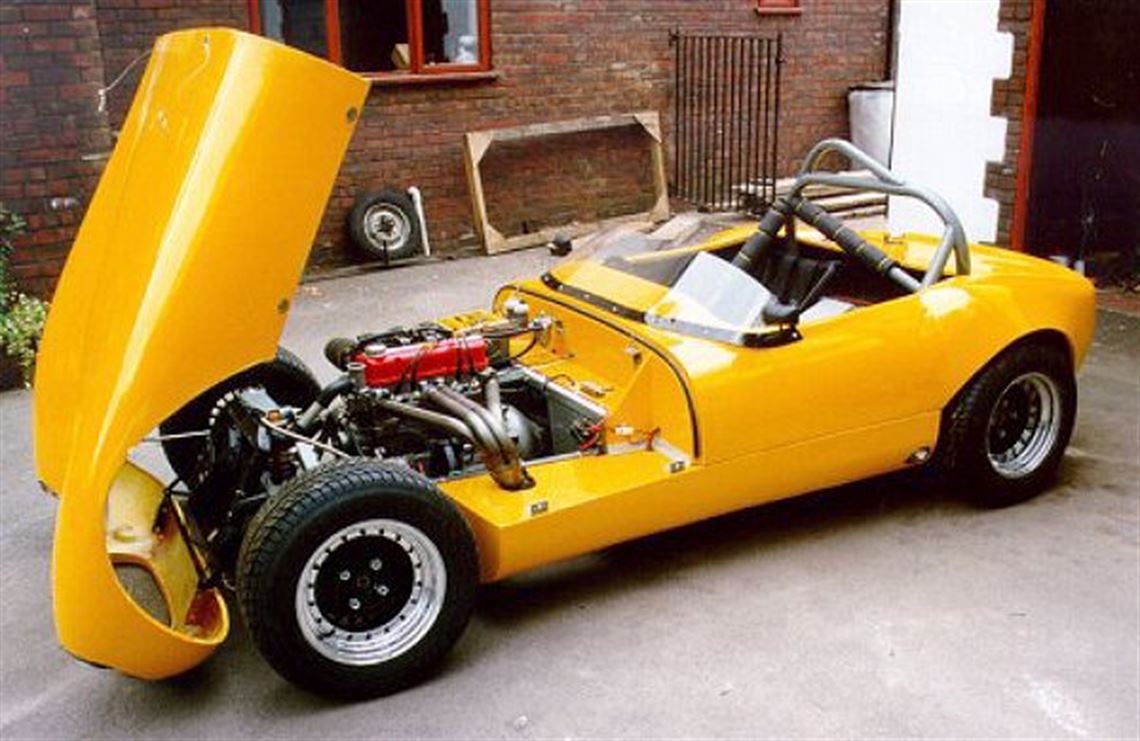

Description:

The Fury has an impeccable track record, much greater torsional stiffness than a Caterham or
Westfield, and will outperform either like for like. Do not confuse this car with cheap kit car where you
strip a donor into a new bodyshell and drive out of the workshop.
This car is virtually brand new and represents a saving of at least £3000 over a factory built example.

History

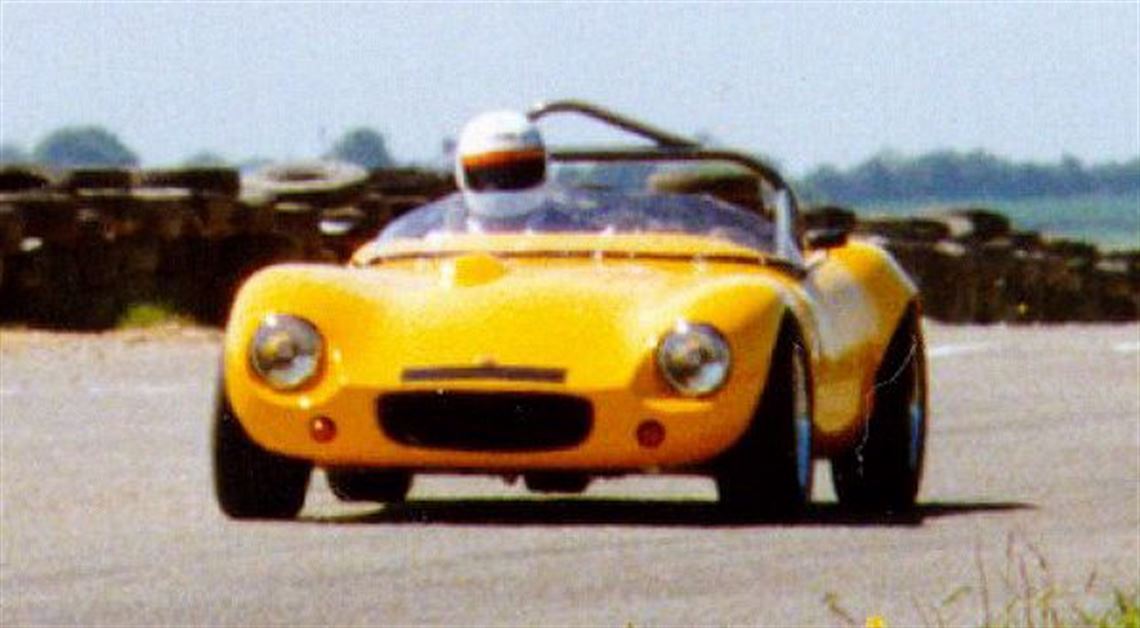

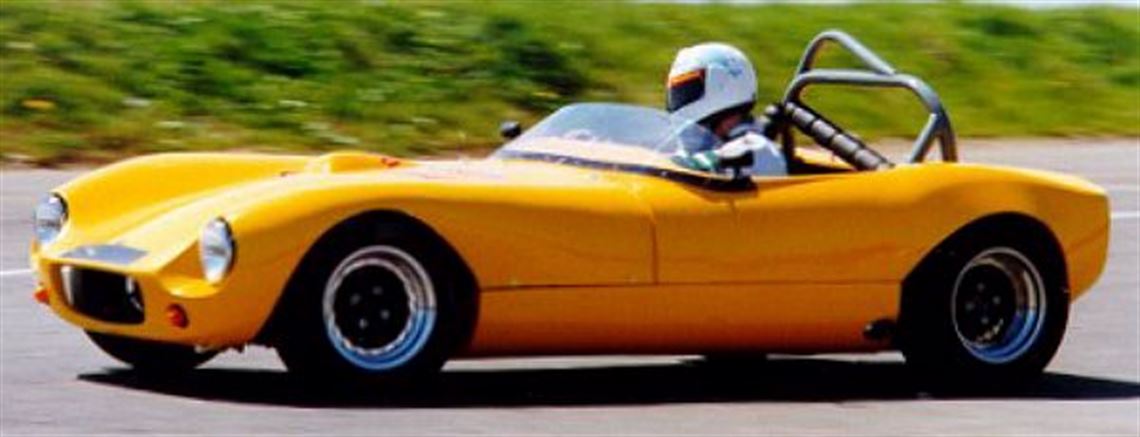

Competition History

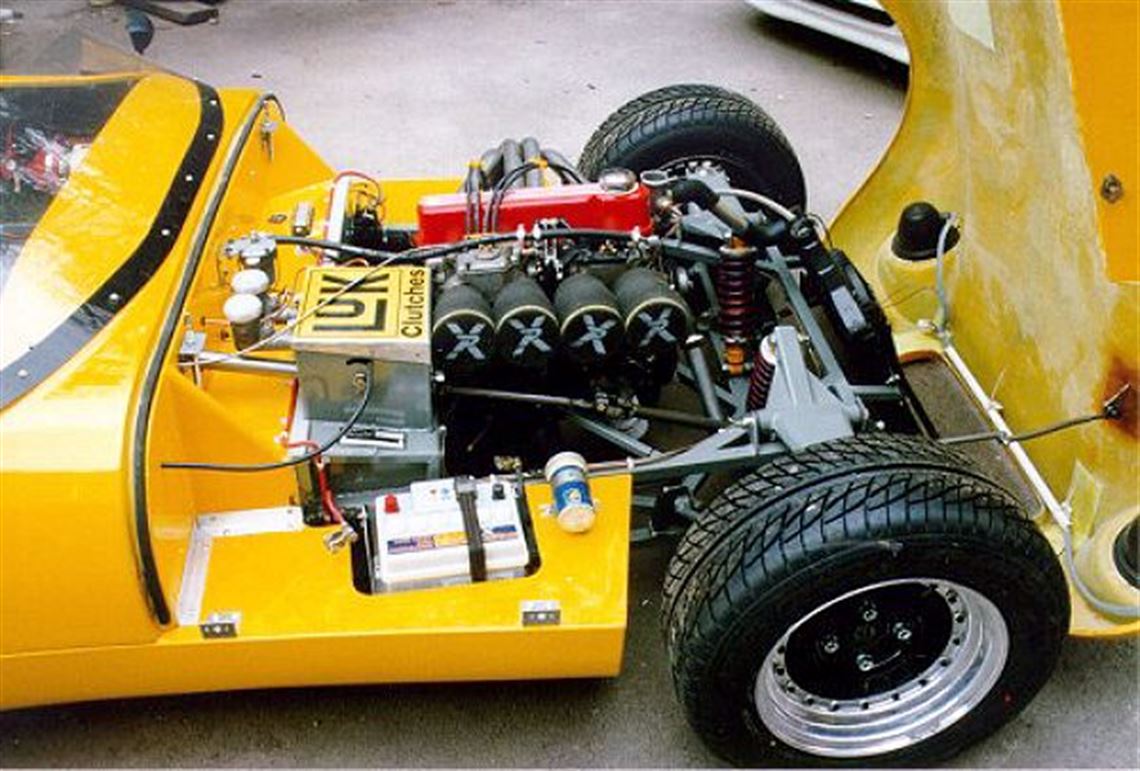

Engine

• 711 crossflow block bored to 1650.

• Balanced rods ( 0.1 grammes)

• New pistons.

• Lightened and balanced crank and flywheel.

• Kent cam and vernier timing chain.

• Kent oil pump.

• Flowed head.

• LCB.

• Twin 40DCOE with pipercross bellmouths and socks.

• Malpassi fuel regulator.

• Alloy rocker cover with breather.

• Race distributor with side exit.

• Big bore Zorst with sill exit

• New water pump, clutch etc..

• over £1500 spent on engine alone.

• Rev limiter.


Fuel System

• Aston big alloy filler cap.

• New fuel tank and sender.

• Facet fuel pump.


Oil/Water System

• All new radiator pipes and aluminium tubing.

• Expansion tank.

• Custom catch tank with k&n breather and sight tube.

• Thermostatic electric fan.


Electrical System

• Battery in aluminium frame in sill

• FIA master switch with remote pull.

• Trimmed loom with full fuse box.

• All circuits on multi-plug connections for easy removal including full bonnet connector.

• All connections soldered and heat shrunk or w crimped and insulated. No crappy blue crimped connectors!

• All runs grommetted through panels.

• Remote low amp connections via relays to steering wheel mounted controls.

• Aircraft flip up ignition switch.

• New lights throughout.


Body

• Purpose built rear carrier.

• Timing strut.

• Tailored car cover.


Chassis

• Powder coated grey spaceframe chassis by Fisher.

• 1996 Chassis number.

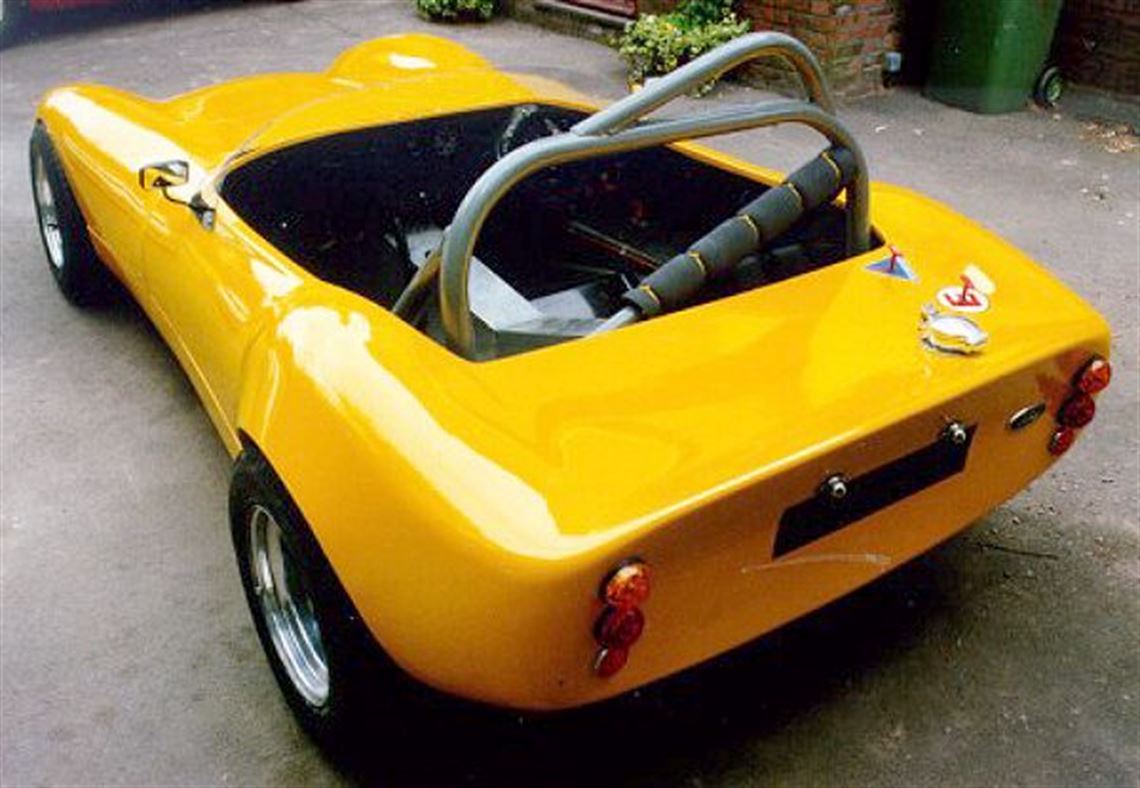

• Race height roll bar, padded.

• Spax adjustable shocks in 400lb and 275lb springs.

• Escort uprights re-bearinged and re-sealed. New top ball joints and adjustable lower wishbones.

•

• Rebushed steering column, new TAS quickrack 2.4, and trackrod ends.

• New 2.8 capri vented discs, 4 pot spaced princess
  calipers and Goodridge lines, Mintex pads.
  New rear discs, cosworth calipers, re-sealed and
  re-pistoned. Twin master cylinders, hydraulic line lock,
  remote brake bias adjustment.

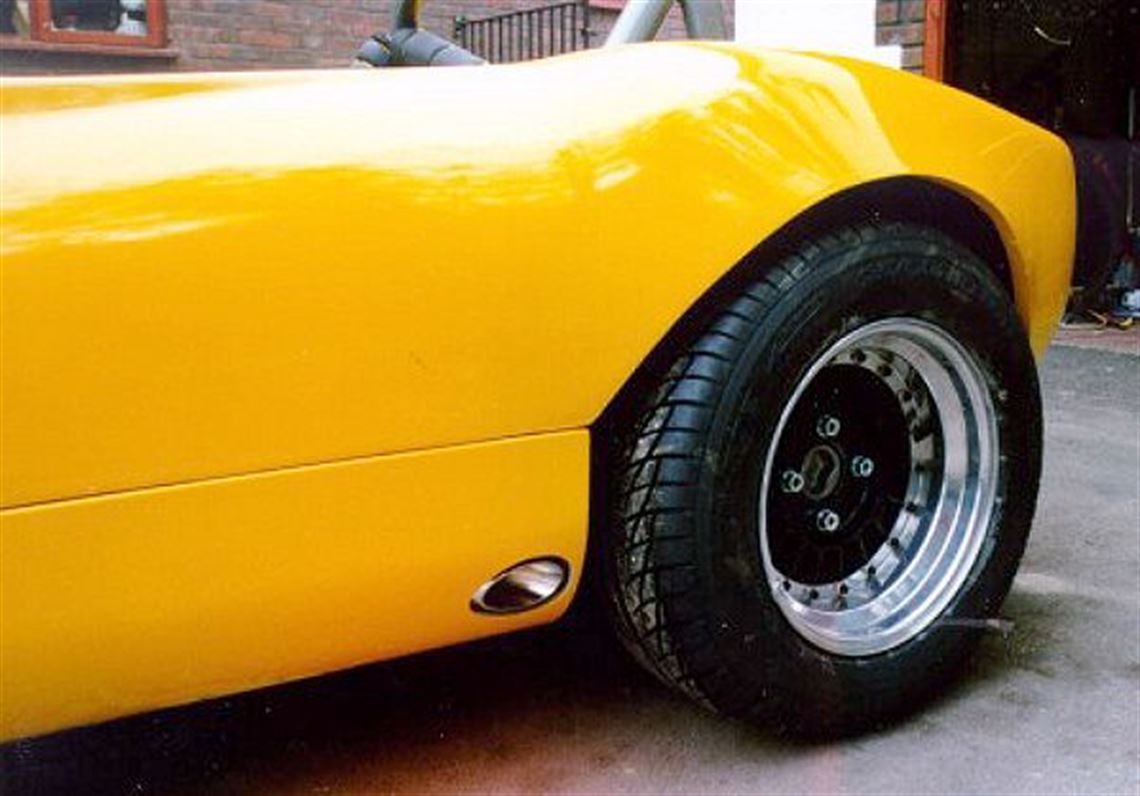

• Raceweight 3 piece 7x13 alloy split rims with Falken ze502 205.60.13 tyres.

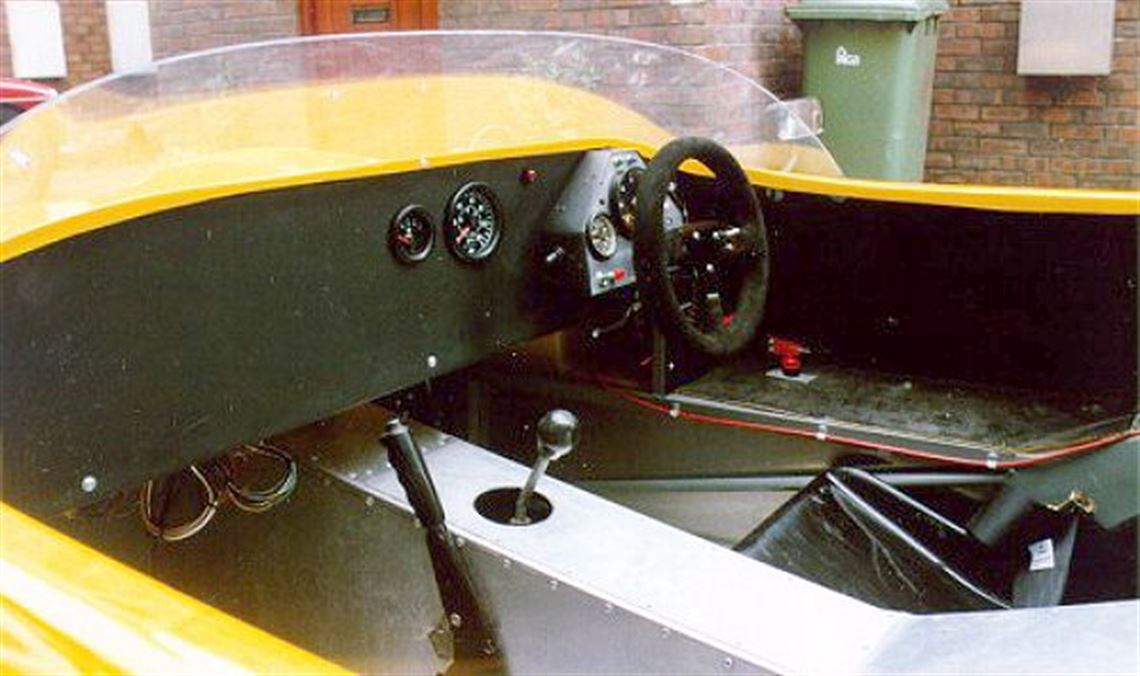

Interior

• Trimmed dash.

• Custom instrument pod.

• Trimmed seats with slip in third seat for shorter driver.

• Racetech Q/R and suede steering wheel.

• Racetech non linear tachometer with adjustable shift lite.

• Rachtech combined capillary water and oil pressure gauge.

• Racetech fuel gauge and electric calibratable speedometer working off front wheel.

• Plumbed in fire-eater system with 2 pulls.
