1990 Jedi Hillclimb Car - SOLD
This is now SOLD. Search for similar items.
Description:

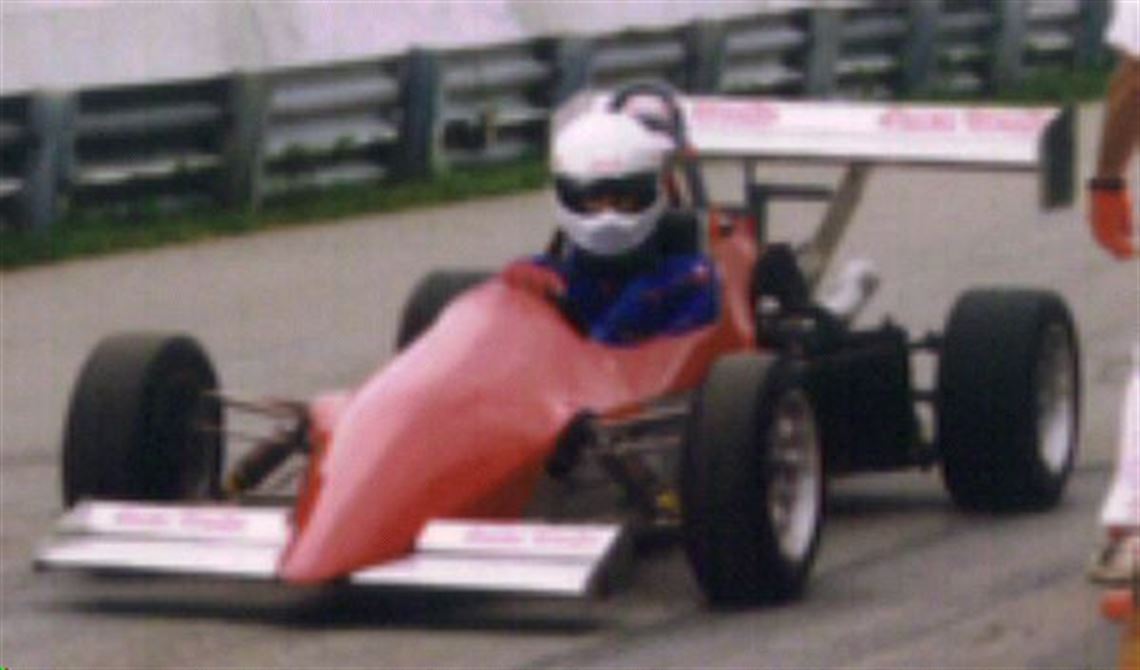

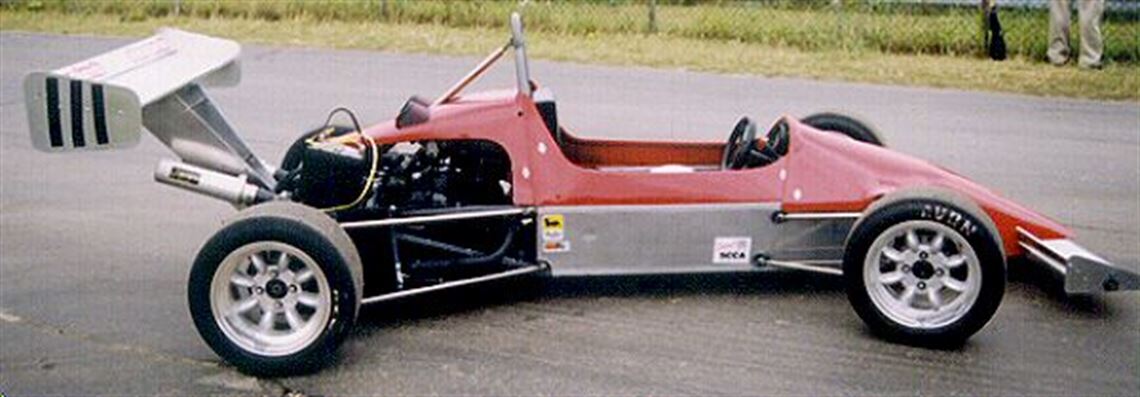

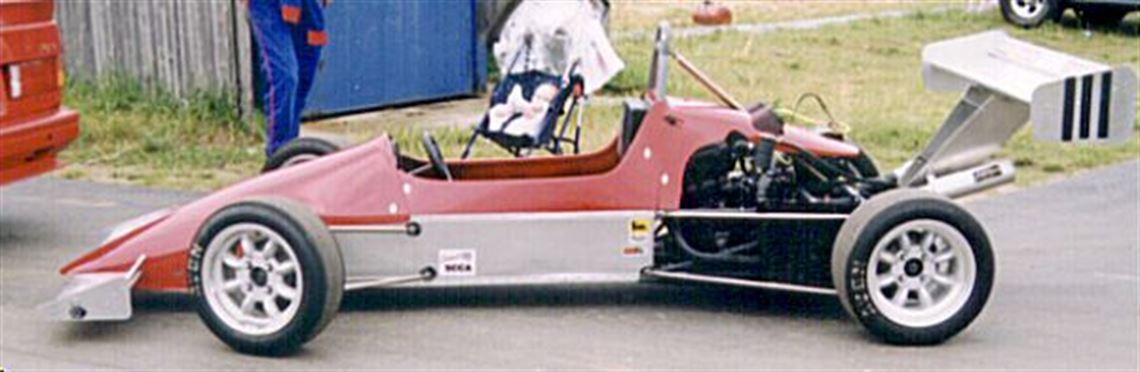

This car is the classic original John Corbyn design. It is a lightweight single seater car with motorcycle
power for UK Hillclimb and sprint events. It has a spaceframe tube chassis, this is a Formula 600 car essentially,
if you were to do a few modifications.
History
Chassis 23 was built in England with a Suzuki T500 two stroke twin cylinder engine. The car ran in hillclimb events in England,
it has seen approximately 20 starts in this configuration, with good results. It has been in the USA since
early 1996. In 1997 the car was rebuilt with the Kawasaki ZX10 engine and ancillaries. In 1998 new brakes were
fitted on the car, it was also painted. Since coming to the states it has run approximately 8 Autocross events
in 1998. It has never been damaged.
Competition History
8 Autocross events in 1998.
Engine
- Kawasaki ZX10
- 997cc
- Stage 3 Dynojet Kit
- K&N Filters
- 4 into 2 exhaust with Aluminum Mufflers
- electric starter
- Alternator available not wired
- 6 speed transmission, sequential shift
- Approx 1 Gallon tank, not a fuel cell
- facet pump
- pressure regulator
- in line filters
- oil cooler
- ZX10 radiator with manually operated fan
- dry cell battery
- fuse box
- glassfibre body in 4 sections
- painted Red
- spaceframe with Aluminum panels
- Spax
- double wishbones with outboard dampers
- double wishbone with trailing rods, reversed lower wishbone and outboard dampers
- racing rack
- 4 wheel disc, Girling calipers (FF), Brembo rotors
- Minilite Alloy, front 6"x13", rear 8"x13"
- 650 Lbs dry
- glassfibre seat
- Willans 6 point harness
- Kawasaki rev counter
- 1 drive shaft
- 1 driveshaft flange
- 1 diff drive sprocket
- various spacers for chain tensioning
- heavy duty clutch springs
- 2 front 6"x13" Weller steel racing wheels
- fuel filters
- new chain
- wooden set up platforms
- setup data
