Description:

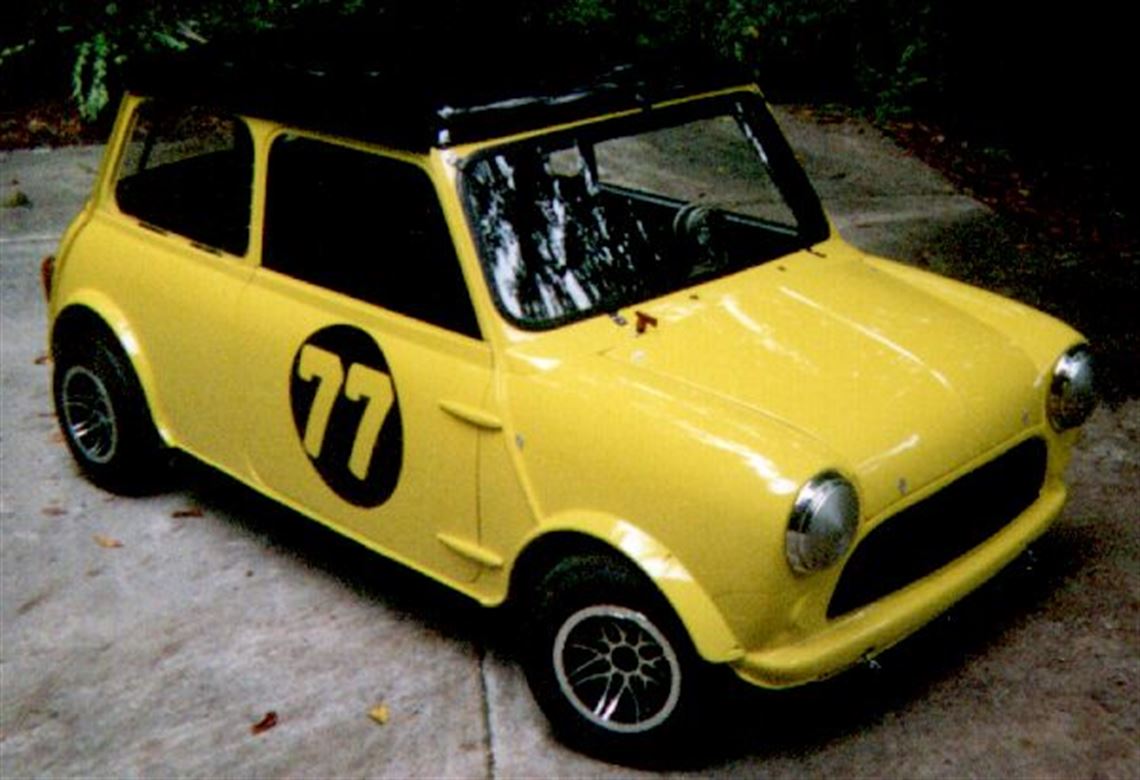

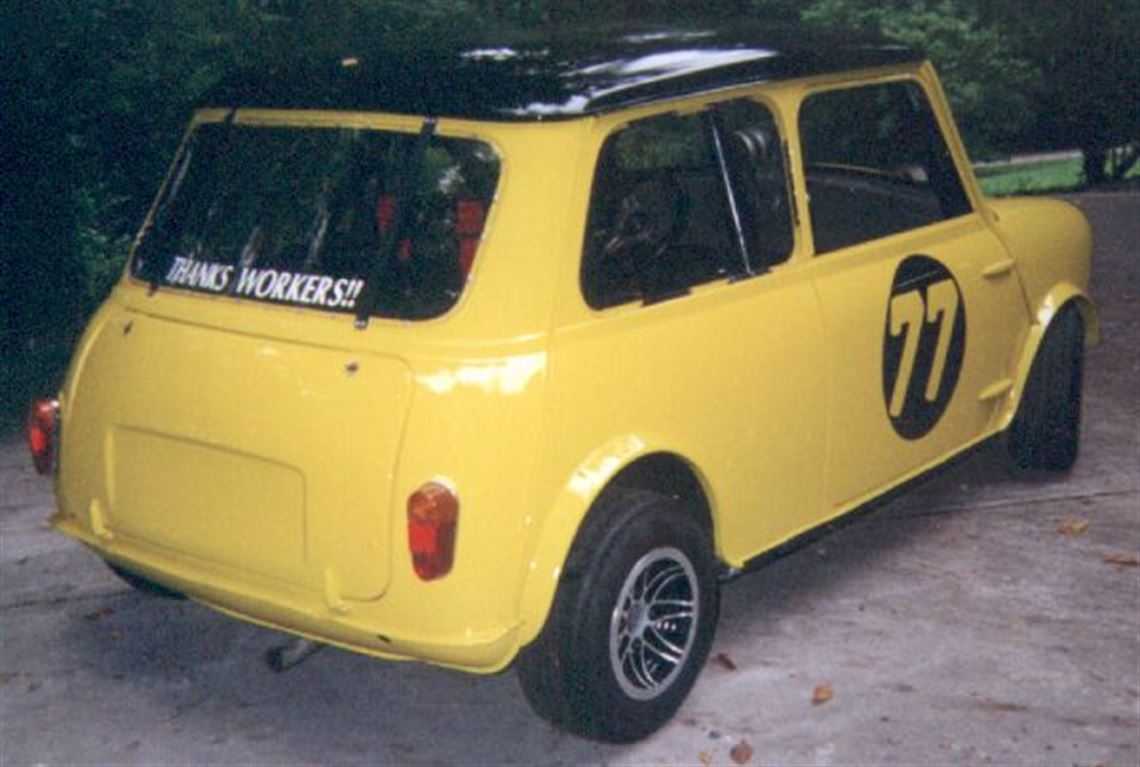

This car is a former SCCA GT-5 car that had been in storage for 14 years and has now completed a 4 year conversion into a vintage racer that is legal
in HSR, SVRA, VDCA, VSCDA, and Brian Redman events. The car was never converted to coil over suspension and is race ready and will be on the track
this Fall competing with the above groups.


Competition History

None.

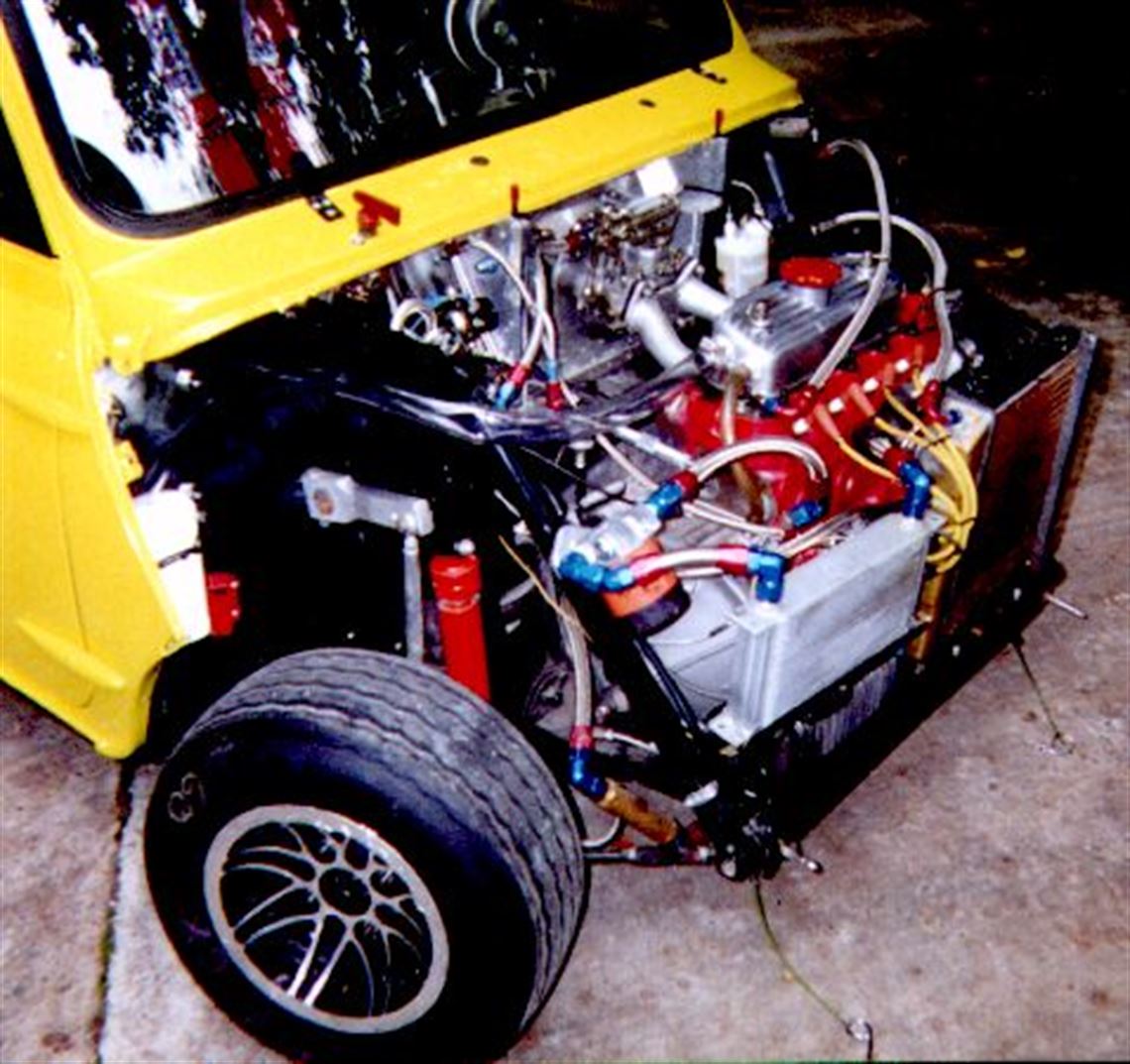

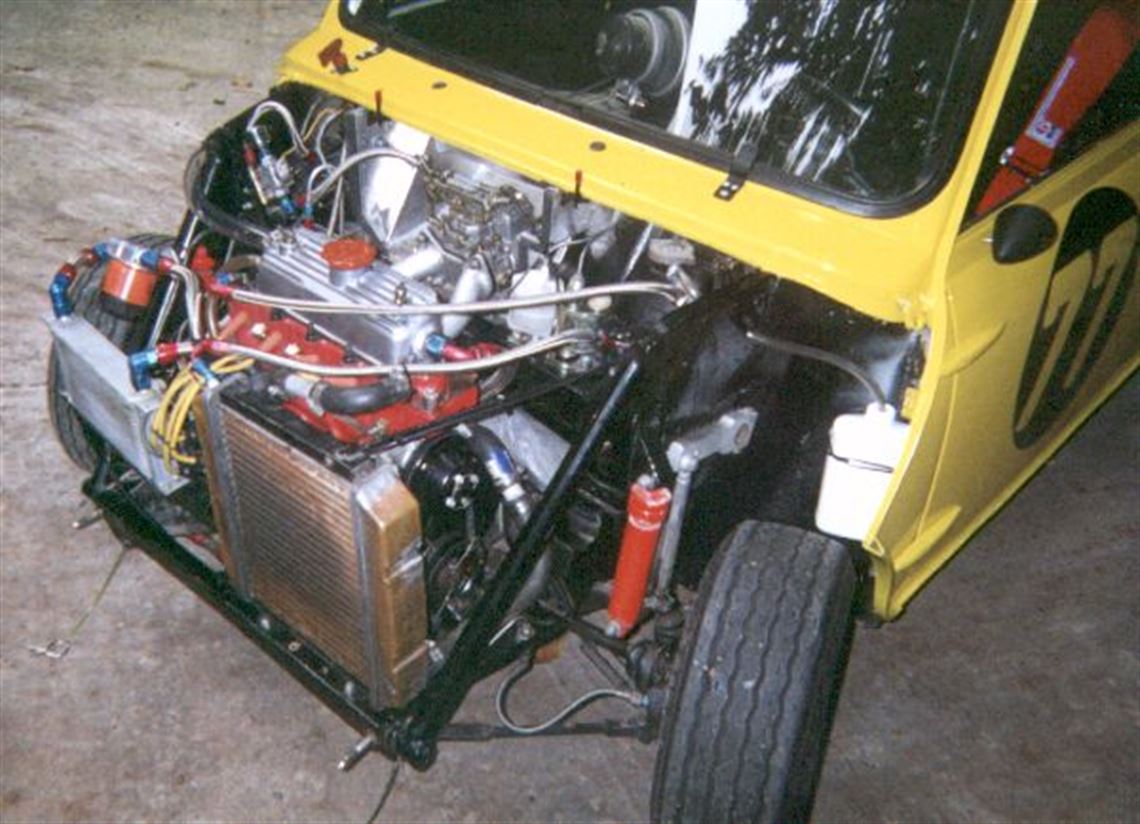

Engine

• 1275 + .040cc built by "Jon Stamps Racing"

• A+ block

• Logman head

• S rods

• 649 cam

• 1.5:1 rockers

• 45 DCOE Weber on long manifold

• LCB headers

• electronic ignition

• solid engine supports top & bottom

• all ARP hardware

• 4 bolt strapped main

• engine produces approx. 120HP and has two weekends since last freshening in Summer 2000

• lightweight flywheel & backing plate

• Competition clutch & diaphragm

• completely balanced


Fuel System

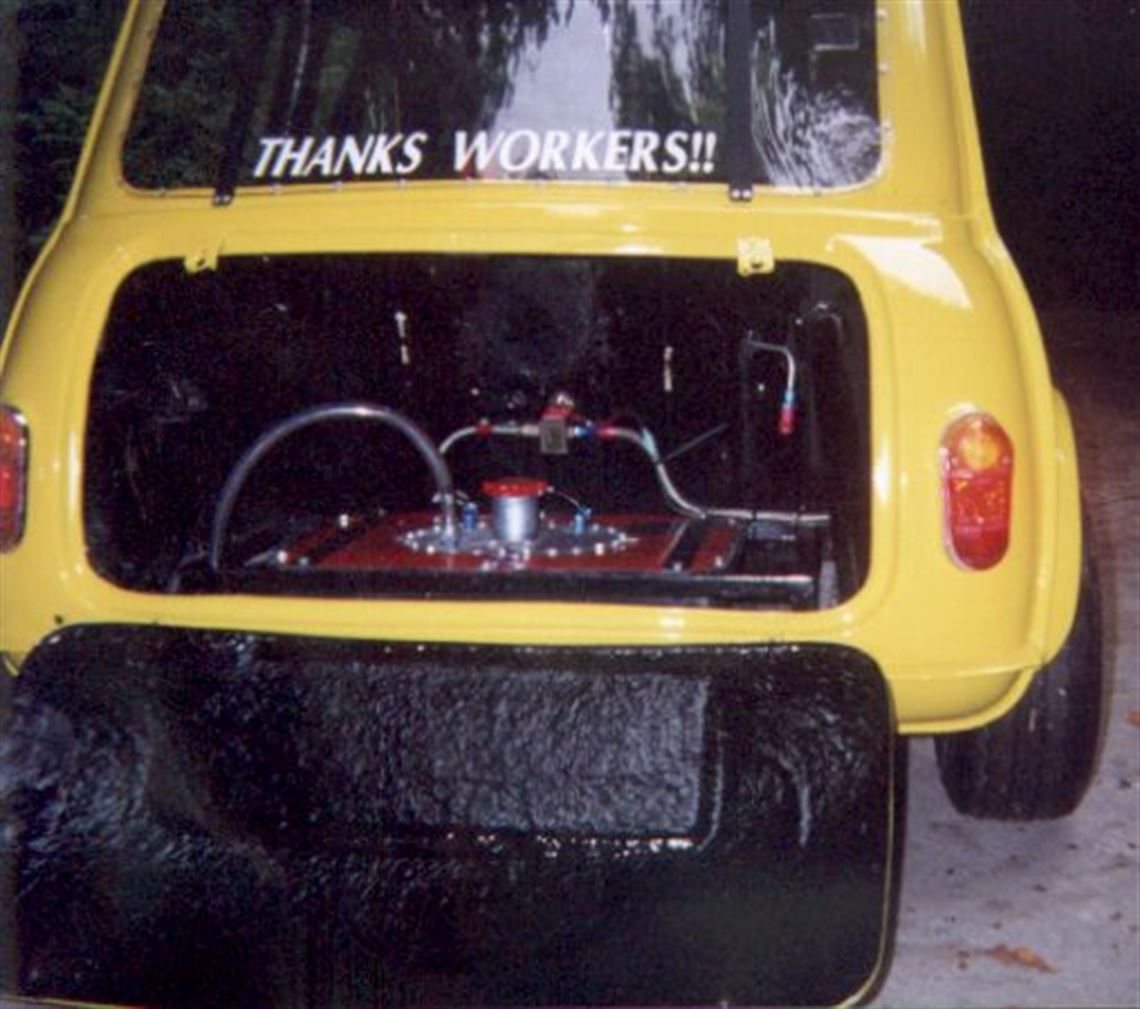

• 8 gal. ATL cell in metal box w/separate frame attached directly to rear sub frame

• Aeroquip lines


Oil/Water System

• custom front mounted radiator w/plumbing directly off of cylinder head

• auxiliary oil cooler

• remote oil filter

• 3 Qt. Accusump

• engine pre-filter prior to oil pump

• Aeroquip lines


Electrical System

• electronic ignition system

• custom switch panel next to driver


Body

• rust free w/new steel panels

• removable front clip attached w/Dzus tabs

• new rear quarters

• body is super straight

• paint: yellow w/black roof & interior

• paint is base coat/clear process

• fiberglass hood & trunk lid attached w/Dzus tabs

• glass windscreen, Lexan side & rear windows


Chassis

• stock sub frames

• Koni

• lowered w/adj. heim jointed lower arms, heim jointed tie rods, tubular adj. sway bar built by "Foretech" & Hi-Lo adj. ride height adj.

• lowered w/adj. camber plates & adj. heim jointed sway bar

• rack & pinion w/small diameter steering wheel

• Cooper 'S' disc fronts, Minifin drum rears w/vented backing plate

• Cosmic Mk 1's, 6x10 w/Hoosier 165/70 -10 tires

• 1350lbs

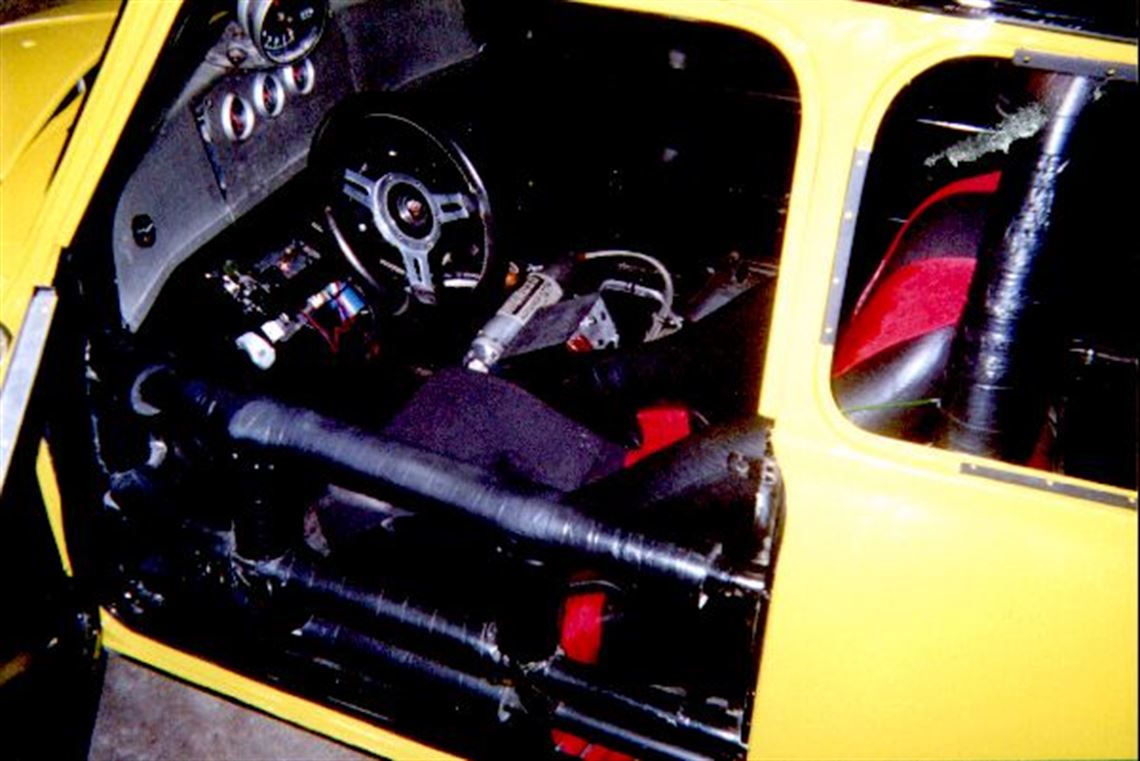

Interior

• painted black

• Corbeau GT seat w/new G-Force 6 point belts & new window net

• water temp, oil temp, oil pressure gauges

• low oil pressure warning light

• tachometer

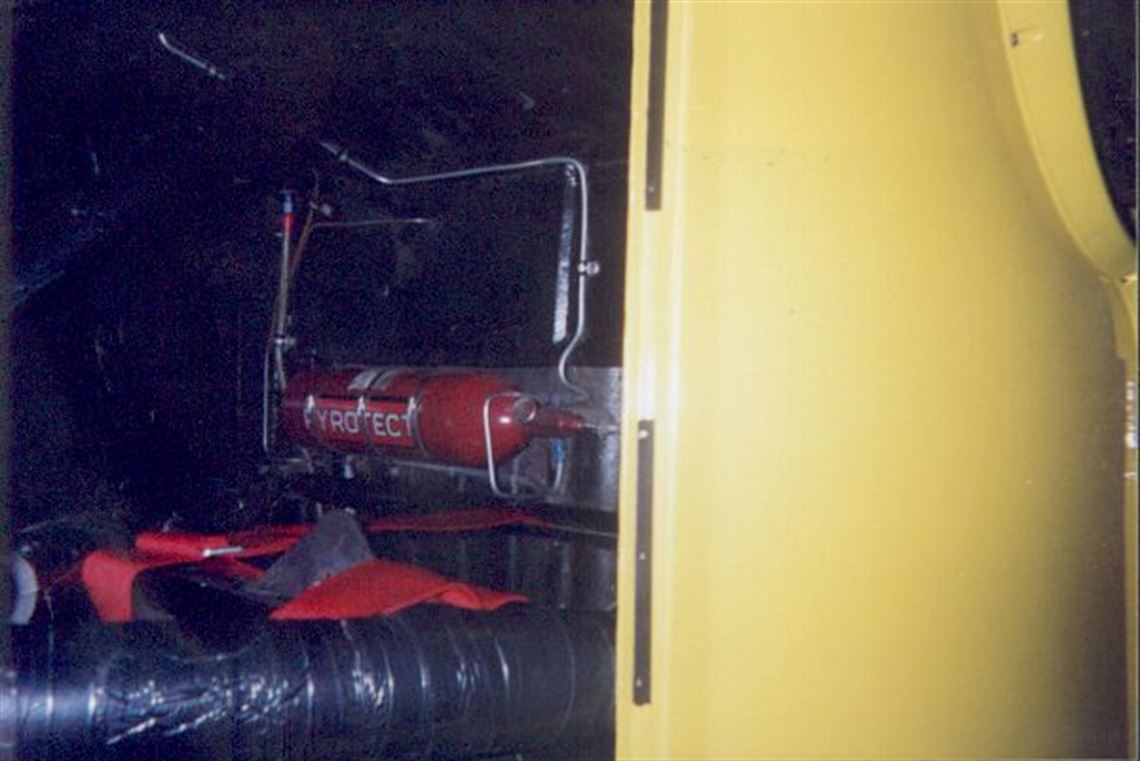

• Halon fire system w/nozzles in the trunk & driver's compartment

• Wink 4 panel mirror

• full SCCA roll cage w/NASCAR door bars & braces to front fire wall


Spares

• none
