1974 Rhubarb Model 2 Sports Racer - SOLD

F1 Authentics 2

This is now SOLD. Search for similar items.

Description:


race ready


History



Competition History

Last raced 12/4/99 where it placed third.

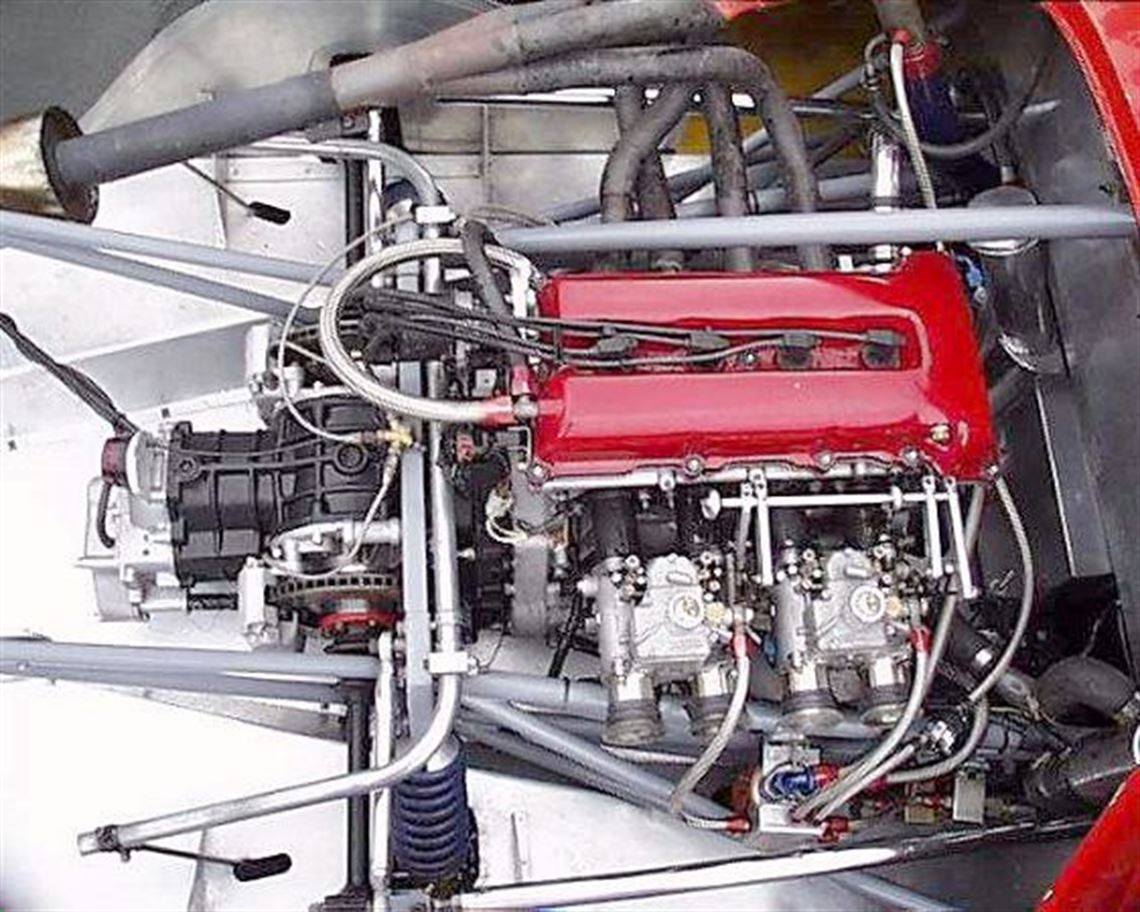

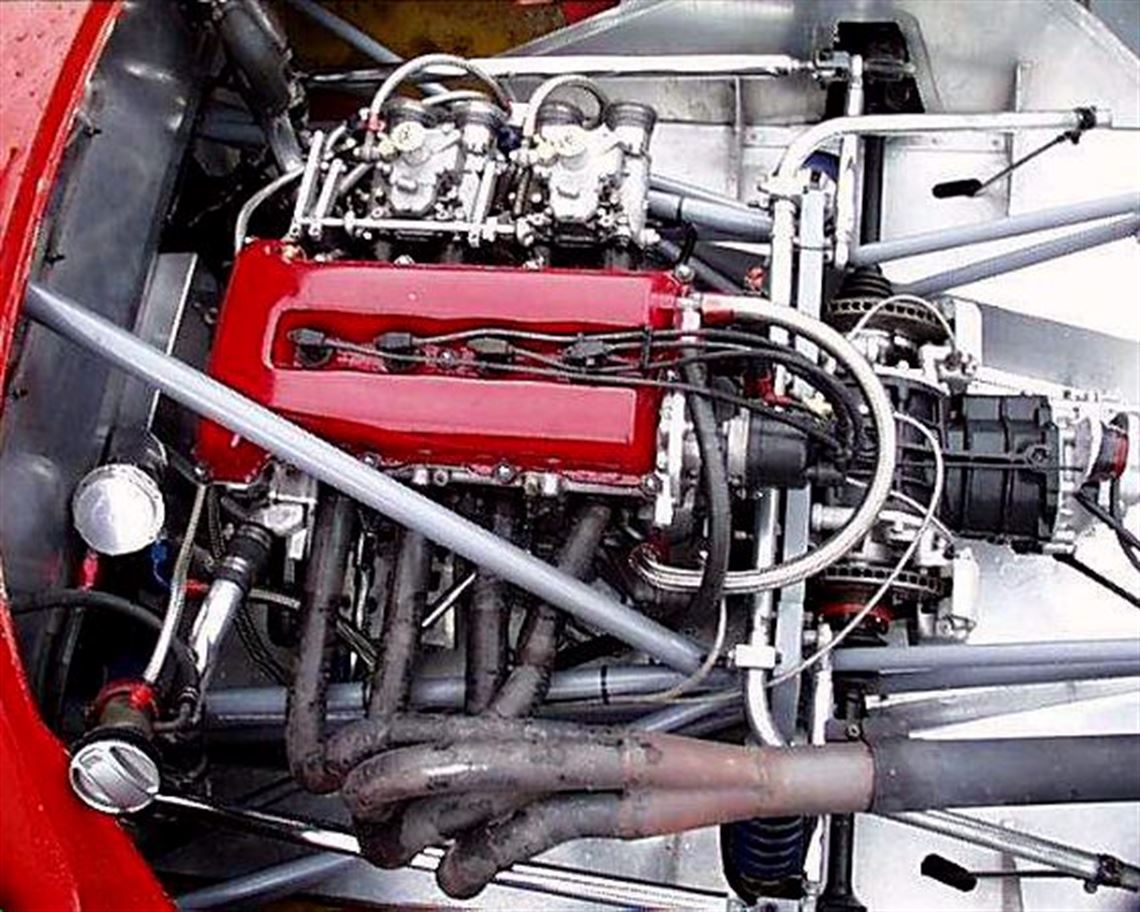

Engine

  • Nissan SR20 2000cc 4 stroke inline DOHC 16 valve
  • twin 48DCOSP Webers
  • custom made extractors
  • twin plate Tilton clutch on custom made aluminium flywheel
  • mild cam
Fuel System

  • Fabricated aluminium tank
  • twin Facet pumps
  • approx 30 litres, pump gas or race fuel.
Oil/Water System

  • Belt driven dry sump pump
  • Fully aeroquiped
  • Fabricated tank with air separator
  • front mounted radiator
  • aluminium water lines
  • twin temp guages
Electrical System

  • Mitsubishi electronic distributor
  • full size lead acid battery, 2 races since new

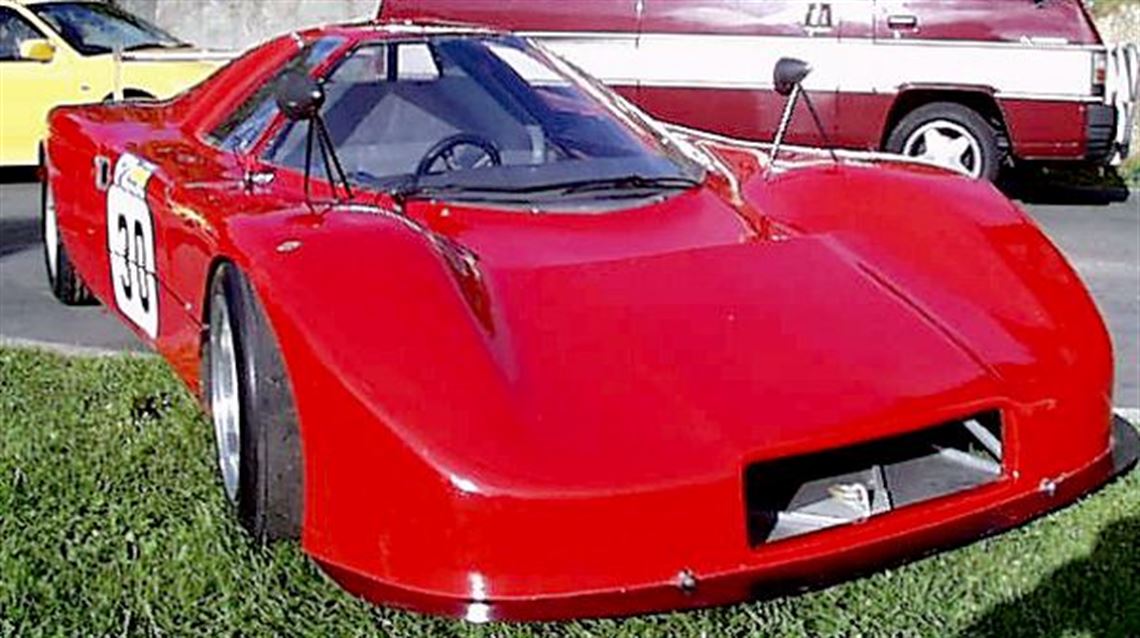

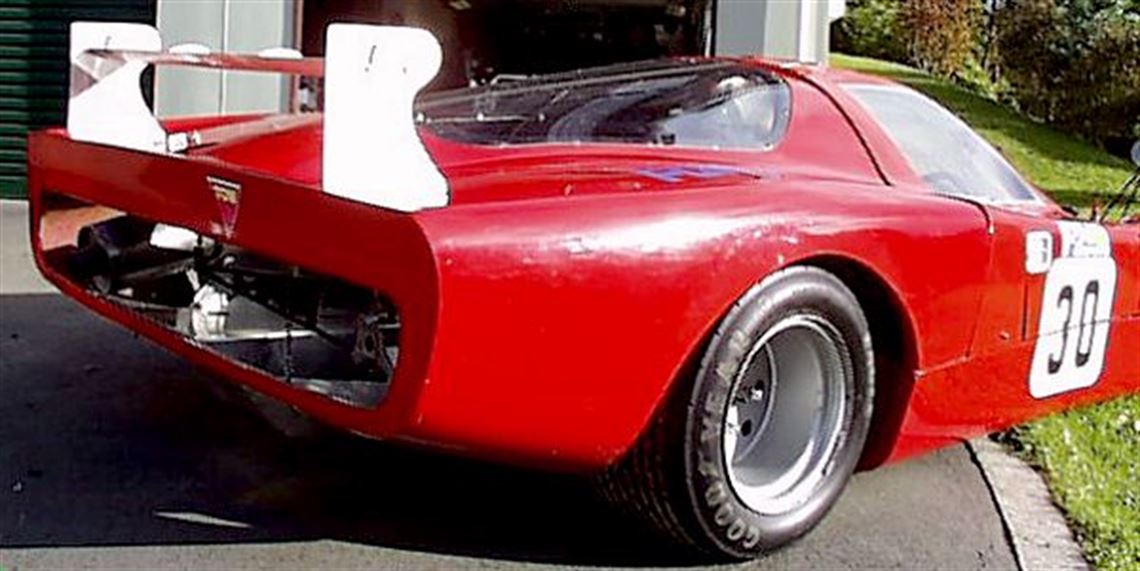

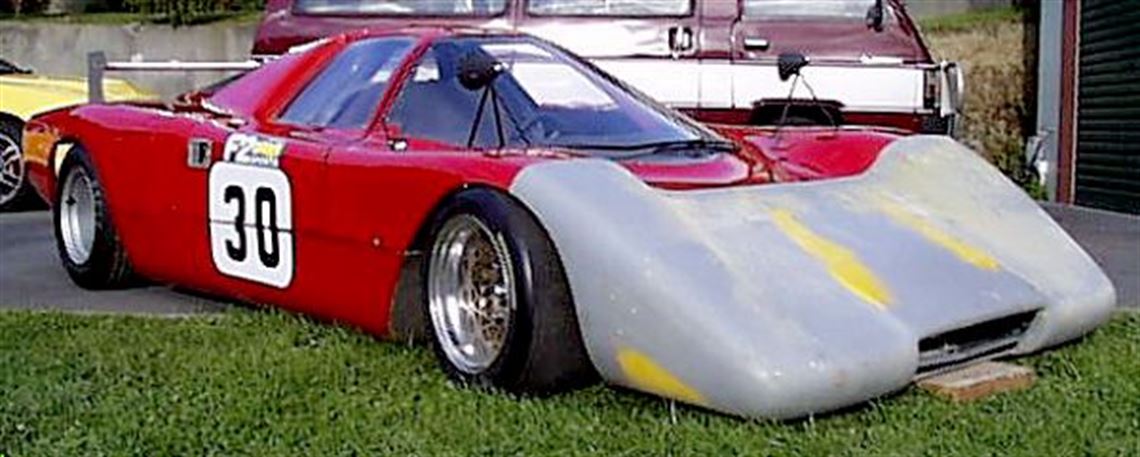

Body

  • Fibreglass, ex Andretti Lola Indycar carbon Fibre wing flap.
  • red, enamel suffering from a few stone chips

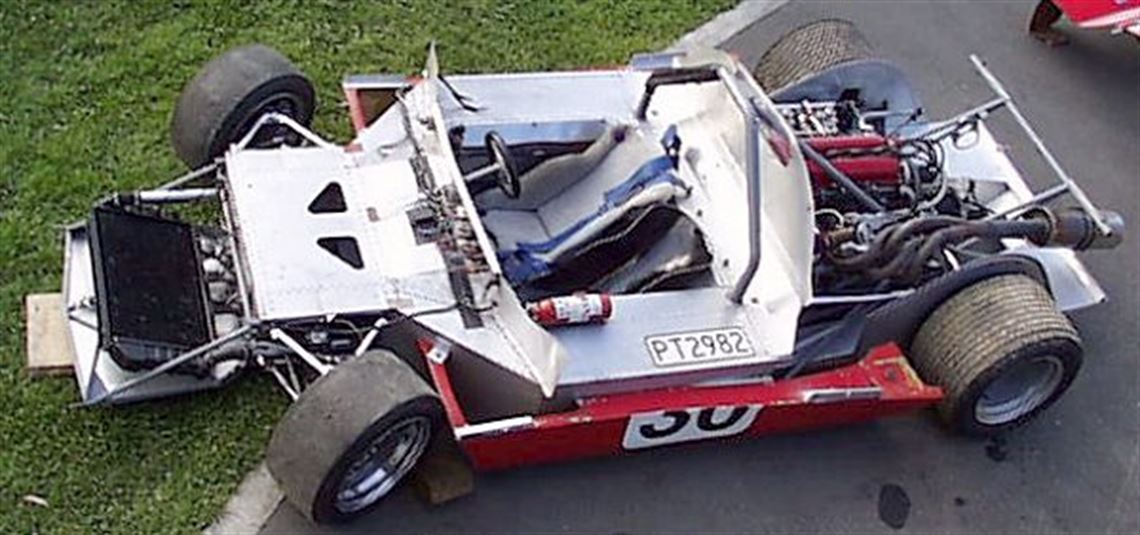

Chassis

  • Aluminium Monocoque tub with steel rear subframe
  • Spax twin tube gas adjustables with adjustable platforms & rose jointed ends
  • Double wishbones, chrome plated, good condition.Lotus BRP cast magnesium uprights. Nissan hubs. Fully rose jointed.
  • Reverse lower wishbone with radius rod, Upper radius rod arm with single arm, March 722 uprights
  • Custom made wheel. Jack Knight magnesium case rack. Unassisted.
  • Front Telstar vented discs with JFZ 4 pot calipers. Rear JFZ vented discs & 4 pot calipers. Dual unassisted master cylinders with adjustable balance bar.
  • Front; 13" Formula libre/Halliday 3 piece alloys polished rims with gold lacquered centers, Dunlop slicks.
  • Rear; 15" Arrow polished rims with Formula Libre/Halliday centers gold lacquered, Hoosier slicks.
  • tbd

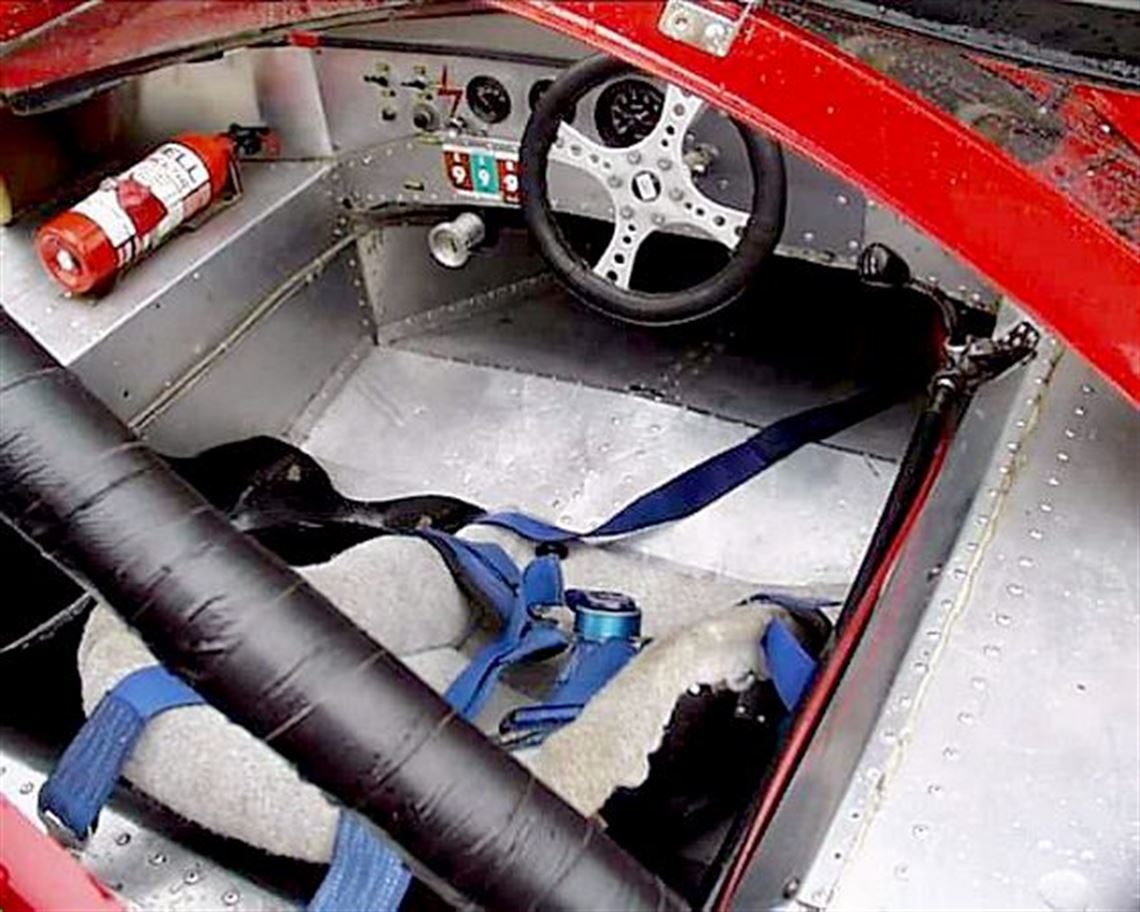

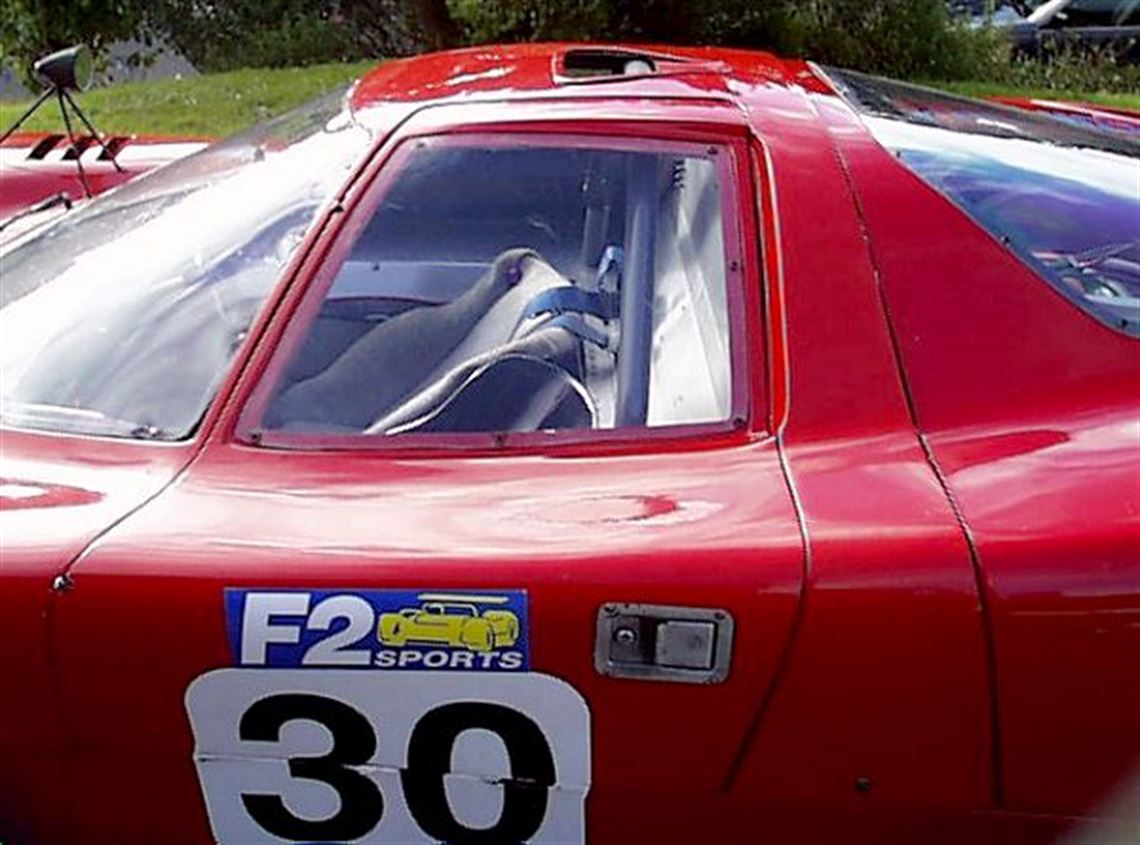

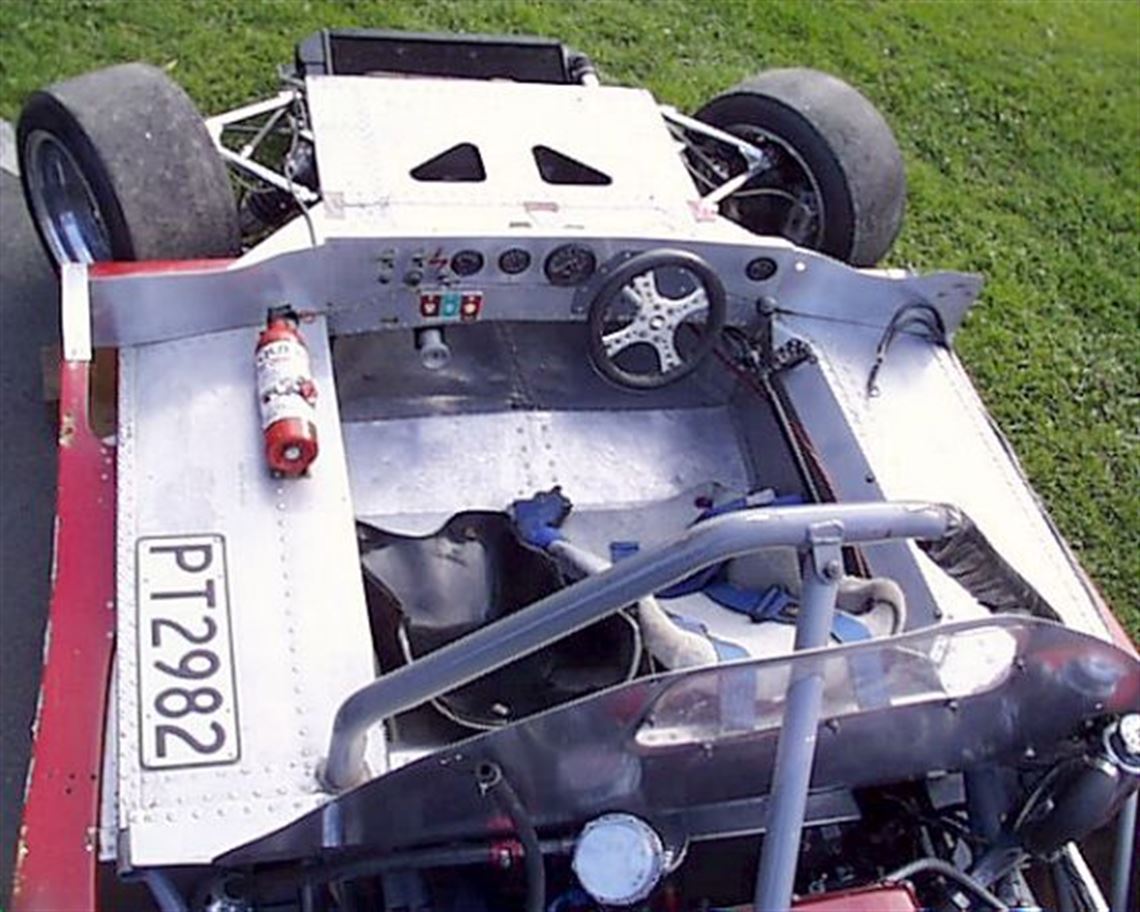

Interior

  • Mainly aluminium. Padded fibreglass drivers seat, 1/2 size fibreglass passenger seat.
  • Quell fire extinguisher, instruments of unknown origin, Willans 6 point harness, custom made steering wheel.

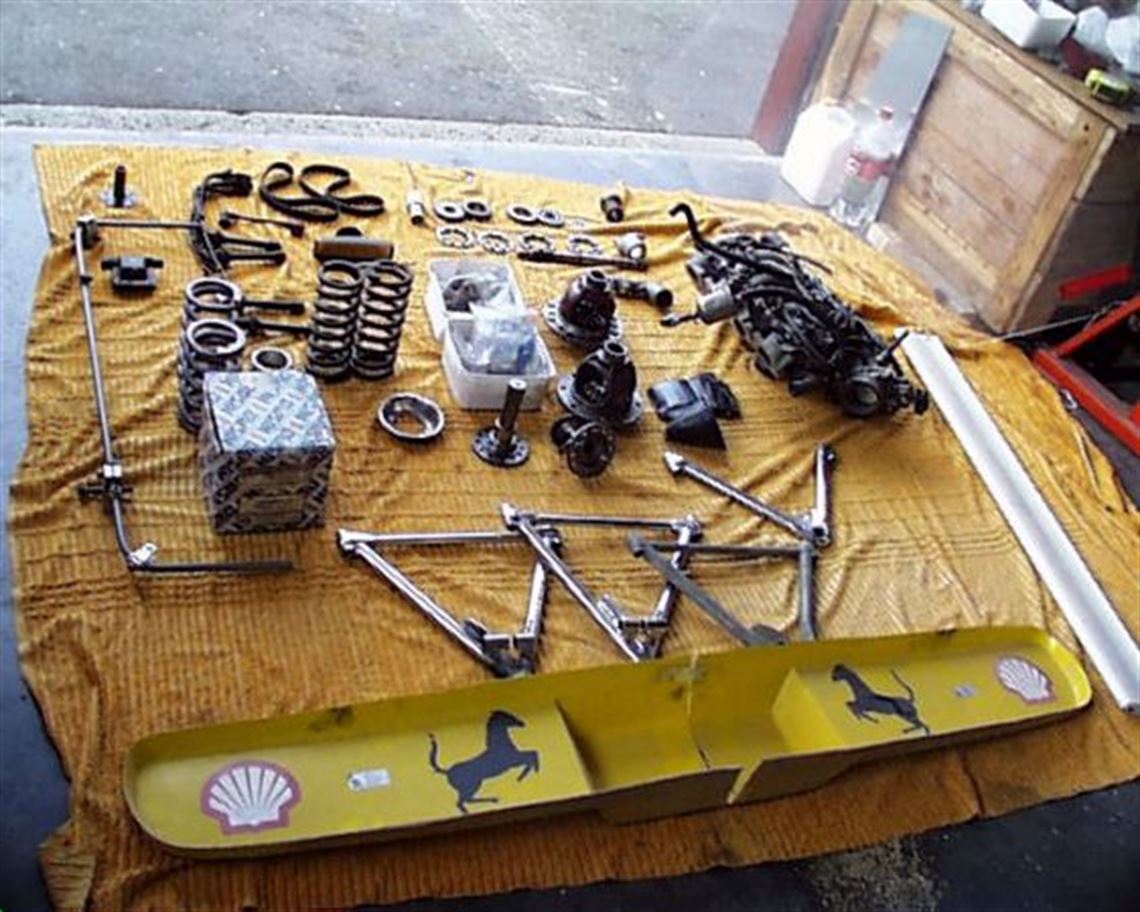

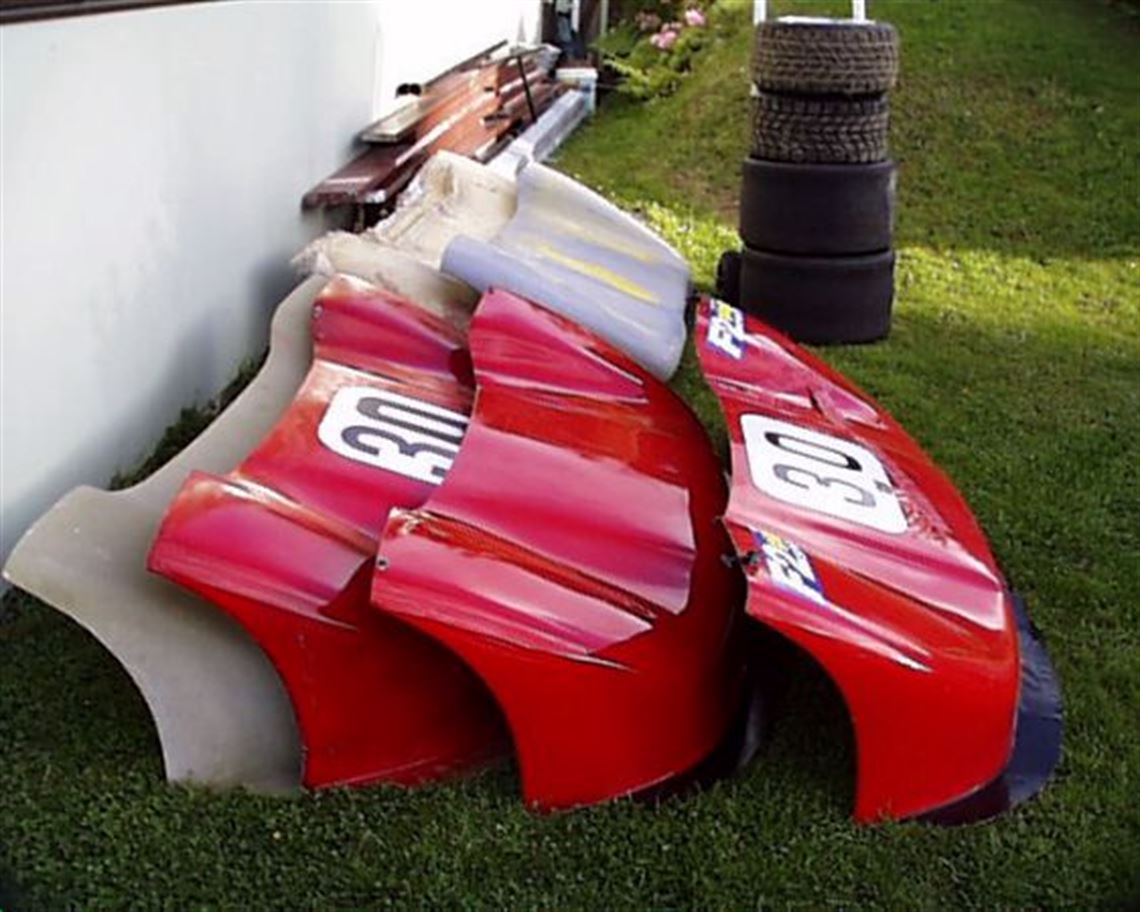

Spares

  • 3 noses in two shapes with moulds for both, mould for center section, rear anti roll bar, open diff carrier with axles.
  • and many others
