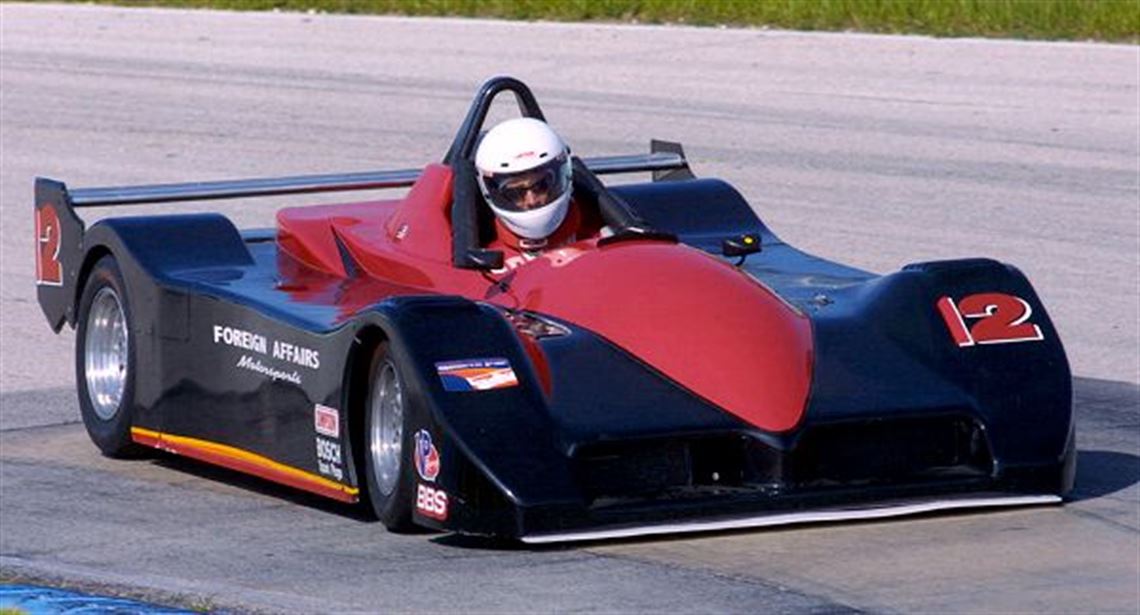

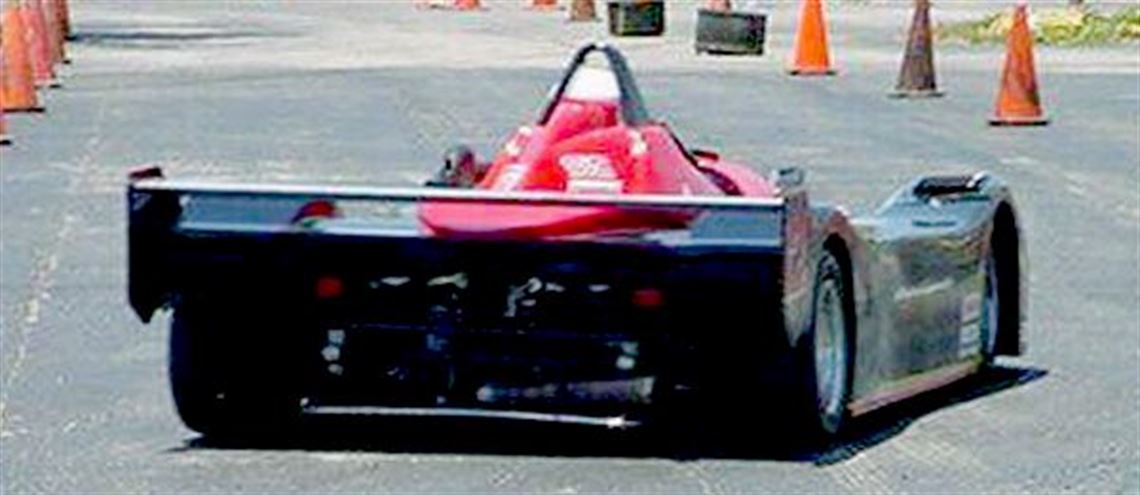

Description:

Spare car for KnightHawk racing team. Currently prepared for SCCA CSR class. Has all chassis and motor updates since WSR series began.

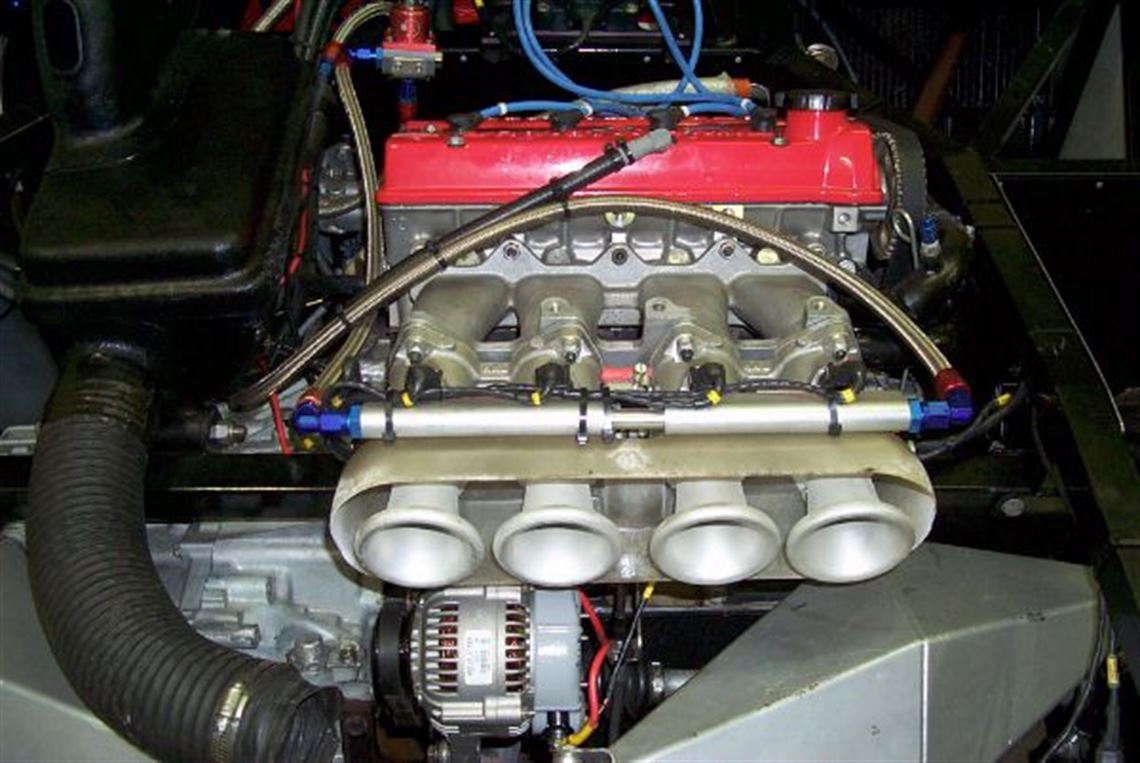

Engine

• Toyota 4AG 1613cc twin cam version D

• Prepared by Loyning Engine Builders 10/18/01 (dynoed @ 175hp)

• Less than 2 hours since rebuild

• Custom port and polish by Arnie Loyning

• Harmonic balancer in place

• TWM inducton manifold

• 12.35:1 compression ratio

• 42mm supercharged crank

• 42mm supercharged connecting rods with ARP hardware

• JE forged aluminum pistons

• High volume oil pump

• Custom sump with baffles and extra capacity

• SuperTrapp stainless muffler with new packing


Fuel System

• Fuel-Safe 8 gallon fuel cell

• SX-Performance remote fuel pressure regulator with pressure gauge

• Aeroquip fittings throughout

• Bosch electric high pressure fuel pump

• Kinsler inline fuel filter


Oil/Water System

• High capacity radiator located at right rear tunnel (water wetter)

• High capacity Earl's oil cooler located at left rear tunnel (mobil 1)

• Remote oil filter


Electrical System

• Pectel T2 Motorsport ECU

• Pectel data logging with software and datalink cable

• Custom mapping by Arnie Loyning

• New Pectel wiring loom (fully labeled and sheathed)

• Injectors flowed and tested 4/02

• New Odyssey AGM racing battery

• New alternator (driven at half shaft)

• Aircraft quality switches and harness


Body

• Hand laid fiberglass

• Inter-locking keyed structures

• Louvered nose with retention pins

• Aluminum latches

• Aluminum adjustable wing

• Adjustable front splitter

• Black with red center feature

• CIPA mirrors


Chassis

• Chromoly & mild steel space frame

• Fixture welded replaceable sub structures

• Engineered crush zones

• Bonded and riveted steel floor pans

• Carrera 6340 E model, Eibach springs 2.25 x 6.00 ERS

• double wishbone, coil over shock

• lower wishbone, Upper ratio rocker & inboard coil over shock, nickel plated

• Manual rack & pinion, Removable suede OMP steering wheel

• 4 wheel ventilated discs, front brake ducting from tunnel, carbon pads, bias adjuster in cockpit

• 3 sets of wheels, 2 new style 13's BBS silver center (7's front, 9's rear), 1 set 13's weld (6's front. 7's rear)

• 1350 pounds

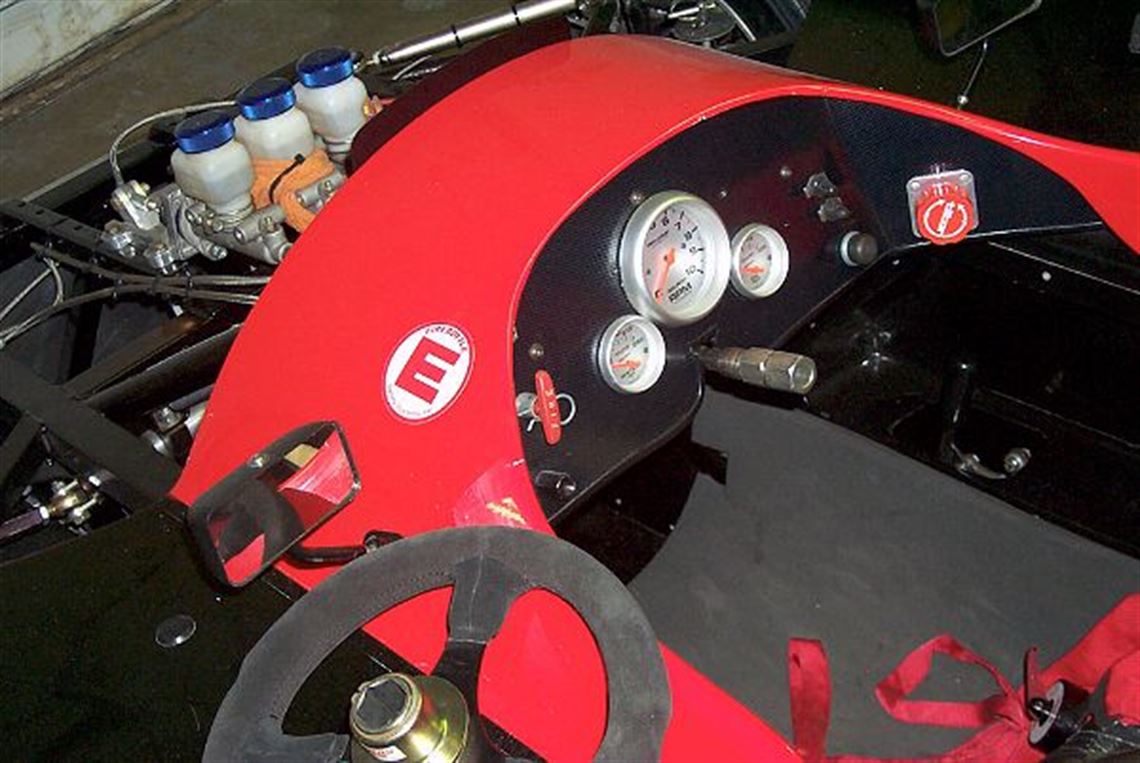

Interior

• Simpson 6 point harness

• Autometer gauges

• Fully adjustable steering, shifer, and pedal locations

• Padded head area

• Wind splitter


Spares

• Complete nose with louvers painted to match

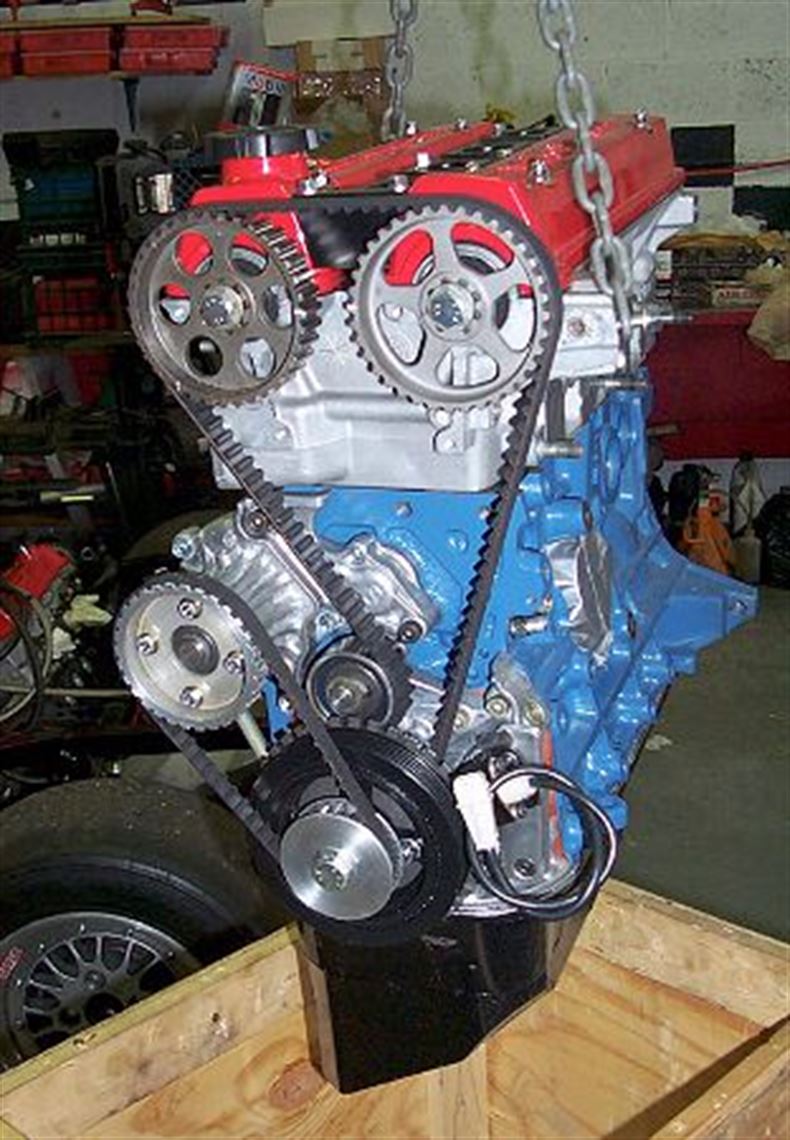

• complete spare motor

• steel motor cradle with wood shipping crate

• complete carburetor induction system with original fuel pump and wiring loom

• 2 sets of hoosier slicks 50%

• 1 set yokohama rains new

• various suspension and brake components

• extensive original documentation

• 2 fuel filter cartridges

• 4 eibach springs

• carbon dash panel
