Description:

The car was rebuilt over the course of 1997-98 stemming from a wreck the owner was involved in at Connellsville

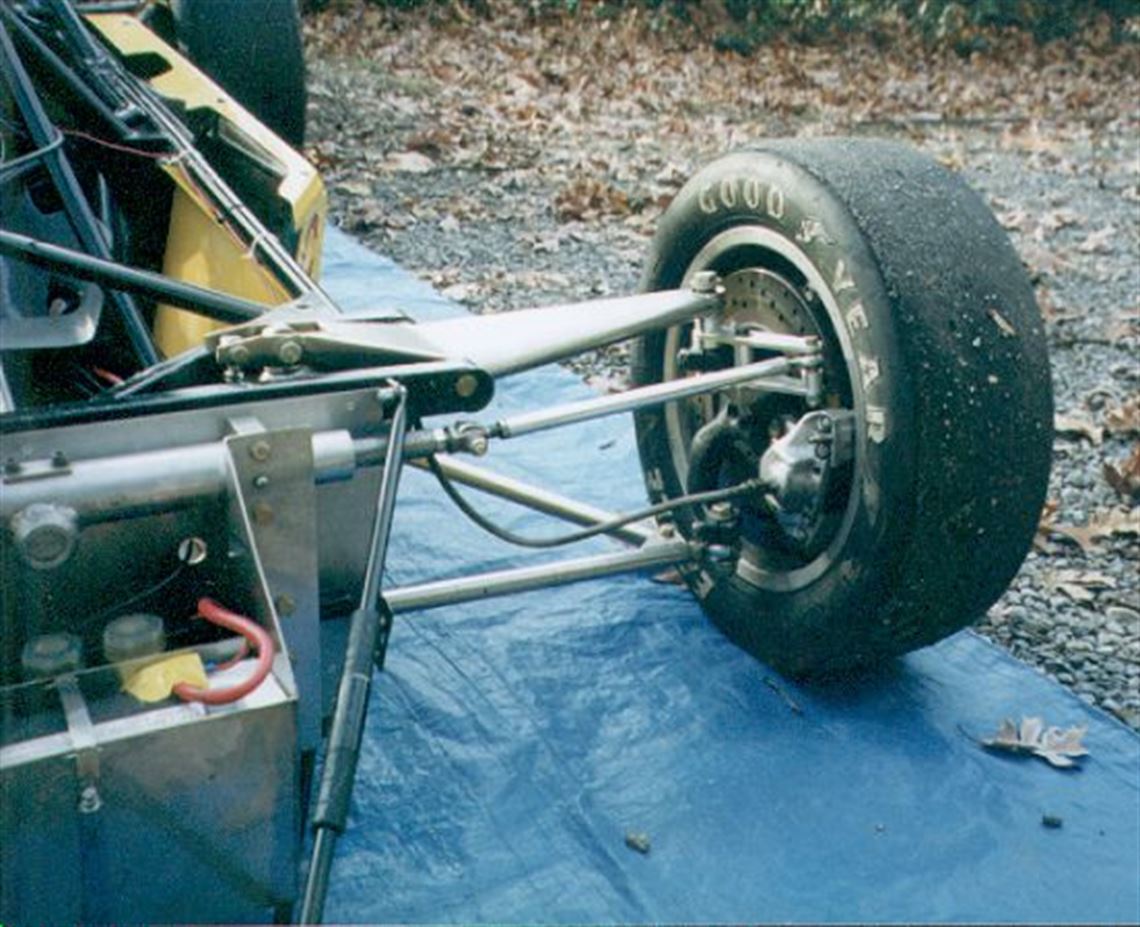

in 1997. The frame was straightened and upgraded to meet the new SCCA requirements by Steve Cole. A new Z10C
front suspension with full Ackerman steering was also done by Steve Cole. The nose was replaced with a new style from Danny Dennis
(molds designed by Rex Gunning) in Texas. It is a bullet style nose rather than the "old" chisel shape.


History

The current owner bought the car, a 1978 Zink Z10A, in 1995, he cleaned it up mechanically, had Quicksilver rebuild
the engine and painted it Yellow and raced it in 1996 and early 97. The car was wrecked as mentioned above
and restored over the course of 1997 and 1998.


Competition History

none.

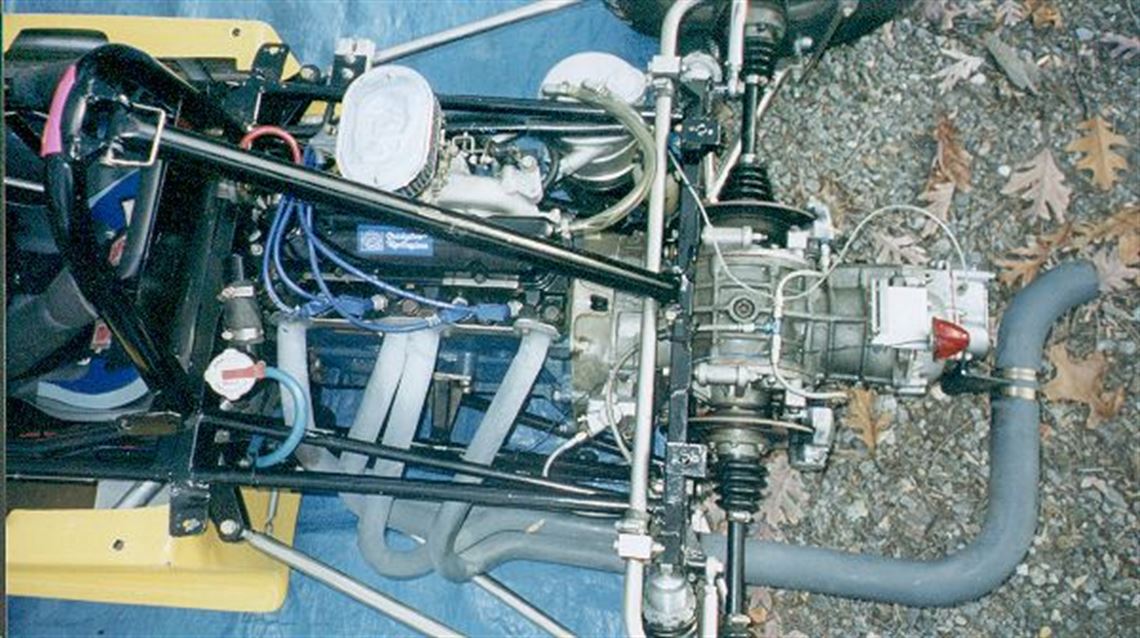

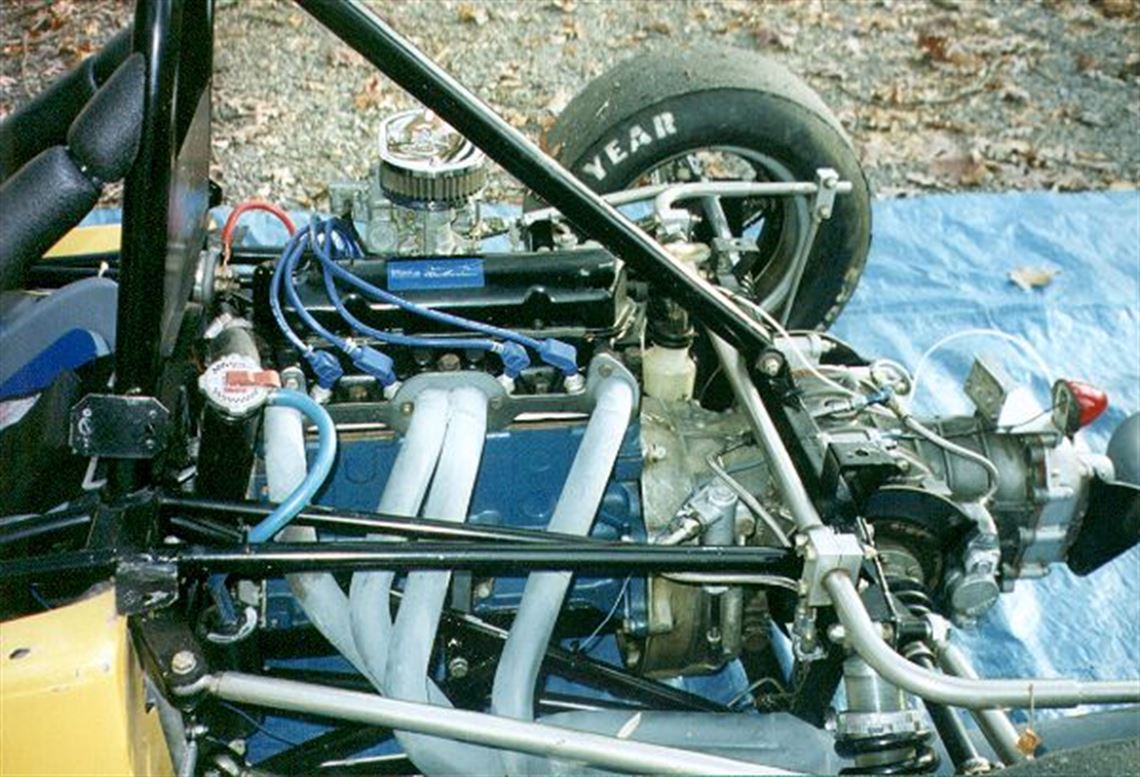

Engine

• Quicksilver rebuilt in 96 with about 7 races since.

• leakdown shows only 3 to 6% loss

• oil pressure 40 PSI at racing temps

• Quick silver head, but not the new improved ones

• F3 AP clutch


Fuel System

• fuel cell in right sidepod

• should be replaced soon


Oil/Water System

• side water rads

• no oil cooler


Electrical System

• Bosch ignition, new battery, rev limiter


Body

• fiberglass, in excellent condition

• painted Ford Chrome Yellow


Chassis

• repaired, aligned, and upgraded by "Cole Performance"

• Bilstein "rebuilt in 98"

• Z10C nickel plate, new

• Z10A nickel plate, wishbones and control arm

• rack and pinion rebuilt by Citation in 98

• disc

• Revolution mag wheels, black and silver

• 1084 all up

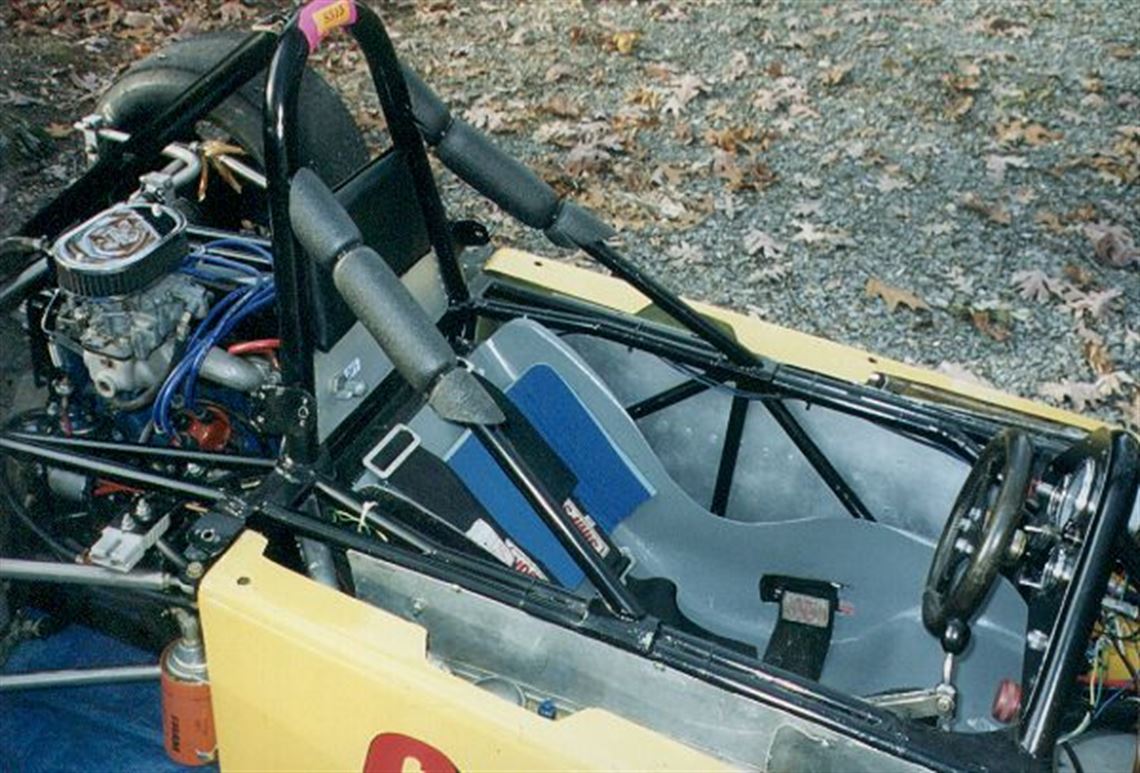

Interior

• excellent condition

• new dash panel and instruments


Spares

• 3 frnt spindles, fittings for VW (Ate) calipers

• 2 frnt spindles, fittings for Lockheed brake calipers

• 2 frnt rotors (top hat), drilled, with bearings

• 4 VW (Ate) calipers

• 4 Lockheed calipers

• 1 frnt anti-roll bar (5/8")

• 1 set Z10A Rf control arms

• 1 Z10A RF lower A-arm

• 2 rear uprights, Z10A, complete with bearings and wheel backing plates

• 3 rear axles with CVjs

• 4 Carrera adjustable shocks

• 3 aluminum cones for Carrera coil/shock units

• assorted frnt and rear springs, including 2 ea 500# springs for frnt

• spare crankshaft, std journals, race modifed

• 1 dry sump oil tank (original ZINK design)

• 1 radiator, VW Rabbit, fits Z10 sidepod

• fuel cell, with foam, in sidepod

• Bosch ignition

• optional rev limiter (not sure if legal for SCCA)

• gearsets: 17/33 - 20/30 - 24/27

• Zink Z10C frame, damaged LF (not the owners car)

• sidepods, L and R, unused and never painted
