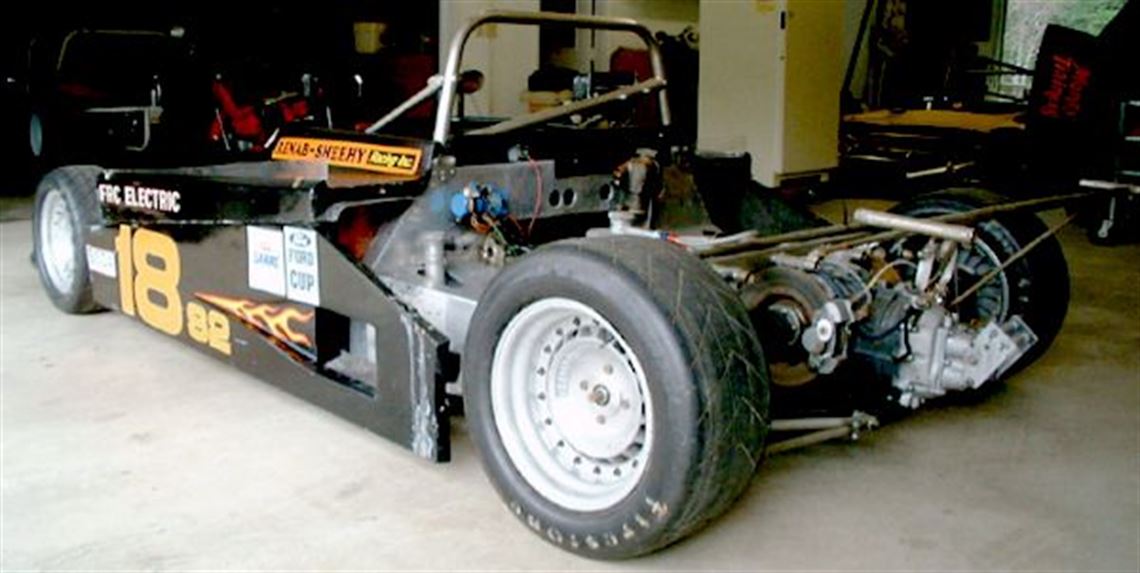

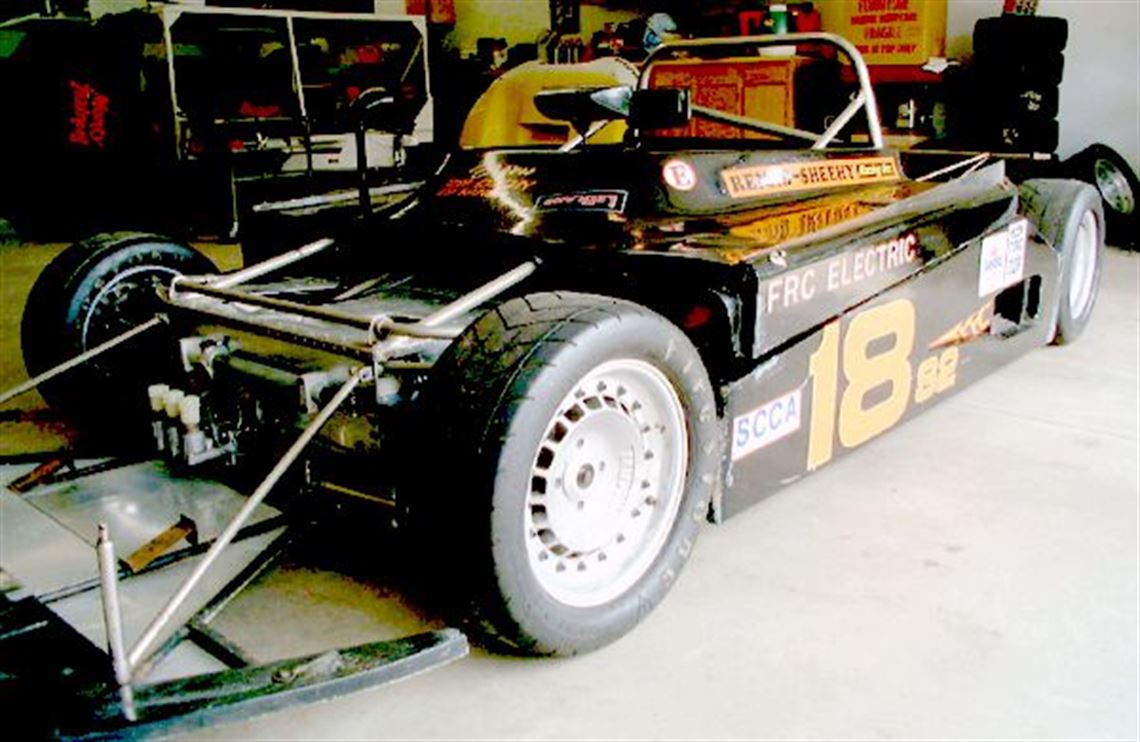

1984 Royale RP-37 Sports Racer Roller - SOLD

F1 Authentics 7

This is now SOLD. Search for similar items.

Description:

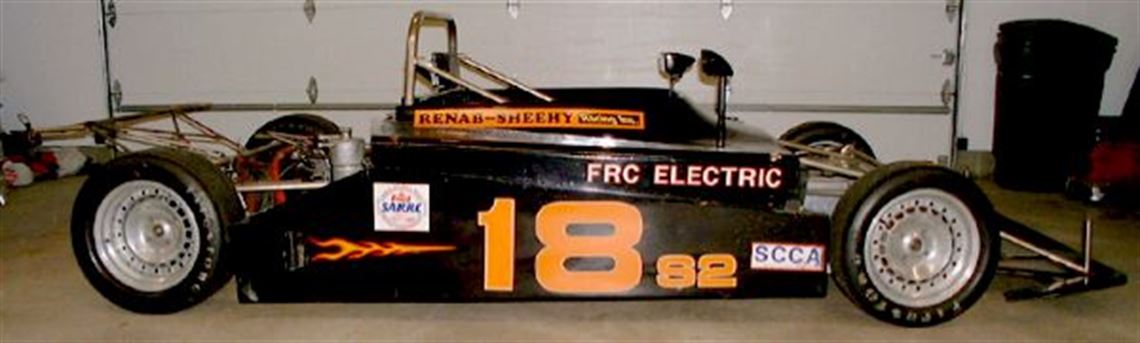

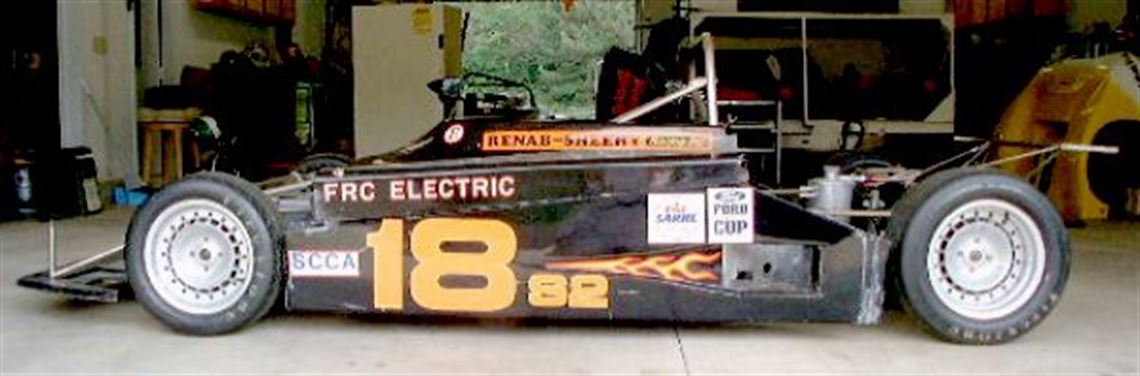

1984 Royale RP-37. Original tall roll-bar hoop to accommodate tall drivers. The chassis on this Royale is in almost perfect condition!

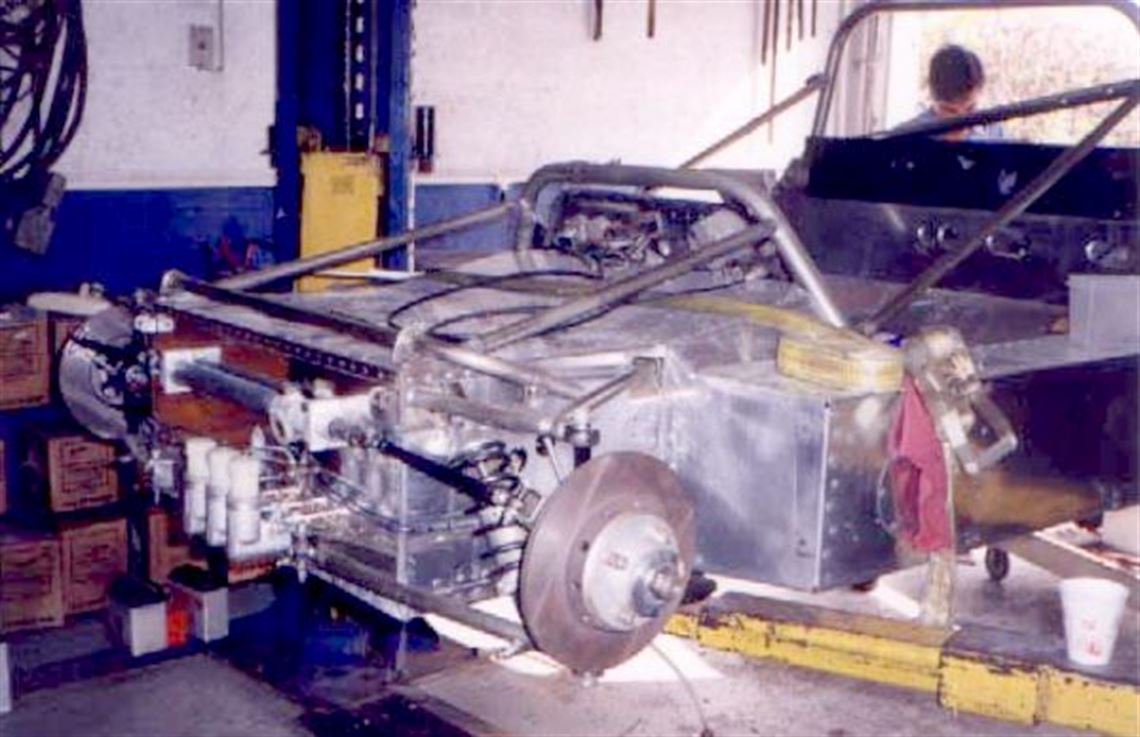

There are no scrapes or creases anywhere underneath and the whole chassis is still shinny! In 1999 the entire suspension was removed and
inspected then reinstalled. All brake calipers were rebuilt and new pads installed. New wheel bearings were installed all around.
When the car was apart, a new Halon fire system was installed along with a new fuel cell. Everything is AN fittings and braided lines.
Quick disconnect steering wheel, Compomotive wheels, full-formed foam seat for somebody around 160-180lbs, but it could be trimmed further.
The belts are excellent and new also. The dash has tach, water temp, oil pressure and oil temperature. There is also a volt meter installed
in the rear inside bulkhead to access battery condition. There is a complete set of bodywork on the car that is in very good condition with
no apparent repairs as well as one spare nose and splitter. The bodywork does need paint but looks fine from a distance. Also, all bodywork
including the spare stuff is the EXTREMELY LIGHT. It's almost like it's a Lexan body, but it's fiberglass. This car will be very, very light
when complete. The engine was removed from the car and disassembled prior to my purchasing the package and does not come with the car.
Just add a complete motor, and spend some time going over the car and tightening everything again and you will have a strong, straight,
fast S2. Complete exhaust system and rebuilt starter included. Royales have extremely rigid chassis's and are great short track/slalom cars.



History

Both the original and current SCCA Log Books and SCCA Homolagation papers come with the car as well as a large binder with pictures of races,
entry forms, and pit passes, from almost every race the car has been in over it’s lifetime. Pretty good chronological representation of the
life of the car. The car has been raced and has resided in Southern Florida for it’s entire life. Many races from Sebring and Daytona.
The car also has the original ROYALE literature and set-up sheets for alignment, ride height, gear changes, etc.


Competition History

The car comes with two SCCA Log Books and has listed 34 races since new. It was first raced in 1984 and last raced in 1998.

Engine

  • none
  • all mounting hardware & brackets included
  • header, exhaust system
Fuel System

  • mechanical fuel pump
  • brand new fuel cell
Oil/Water System

  • front radiator oversized unmounted
  • original aluminum dry sump oil tank
  • oil cooler AN lines, flushed unmounted
Electrical System

  • total loss 12V system
  • rev limiter, coil, and ignition box in place
  • master switch
  • wired for tail & stop lights to the tail but there are currently no lights attached
Body

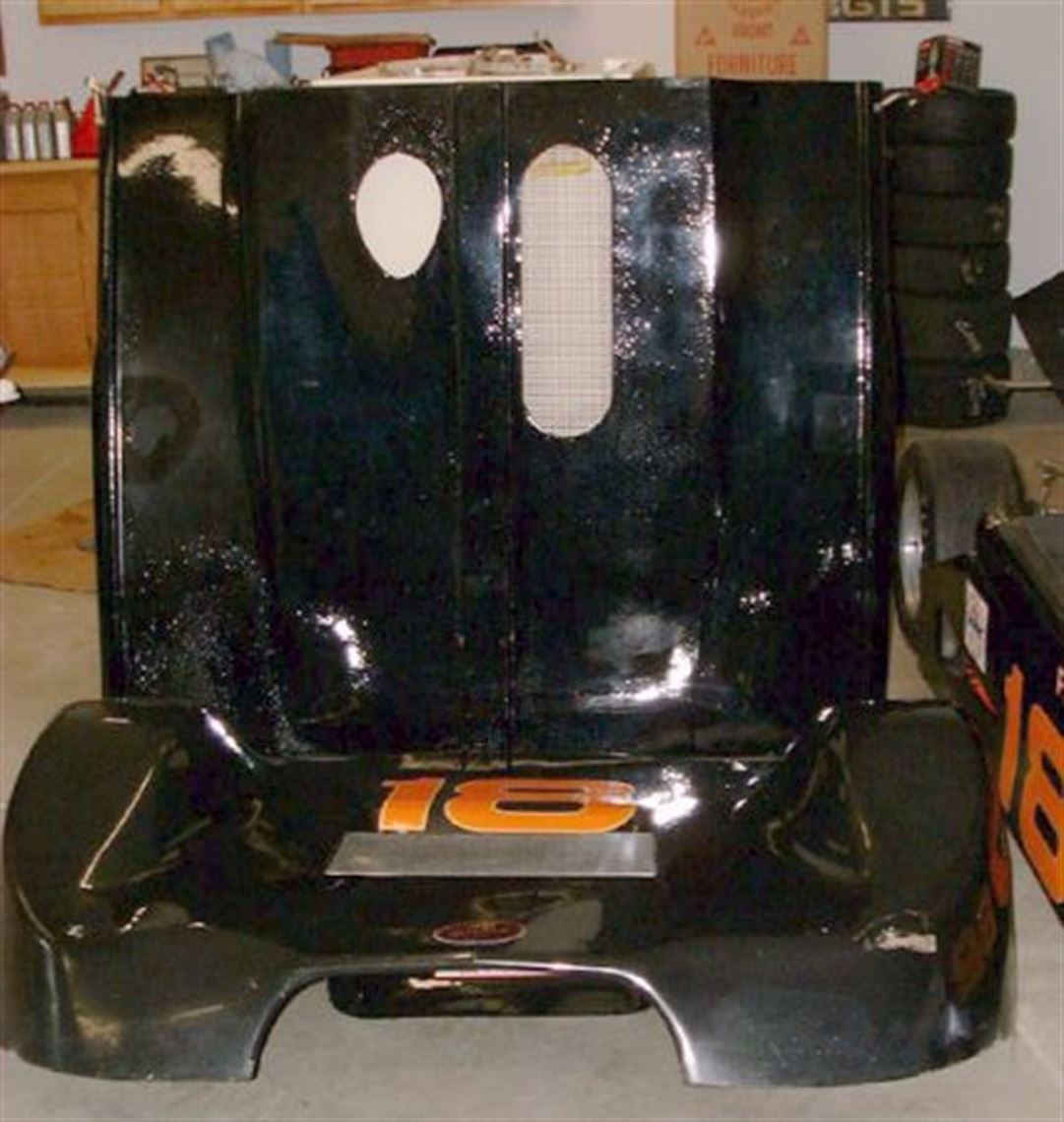

  • extremely light RP-37 bodywork
  • the owner states"this is the lightest S2 bodywork he has ever seen"
  • owner races another RP37 and this body is 3 times lighter than that car
  • paint is bubbling and needs to be resprayed

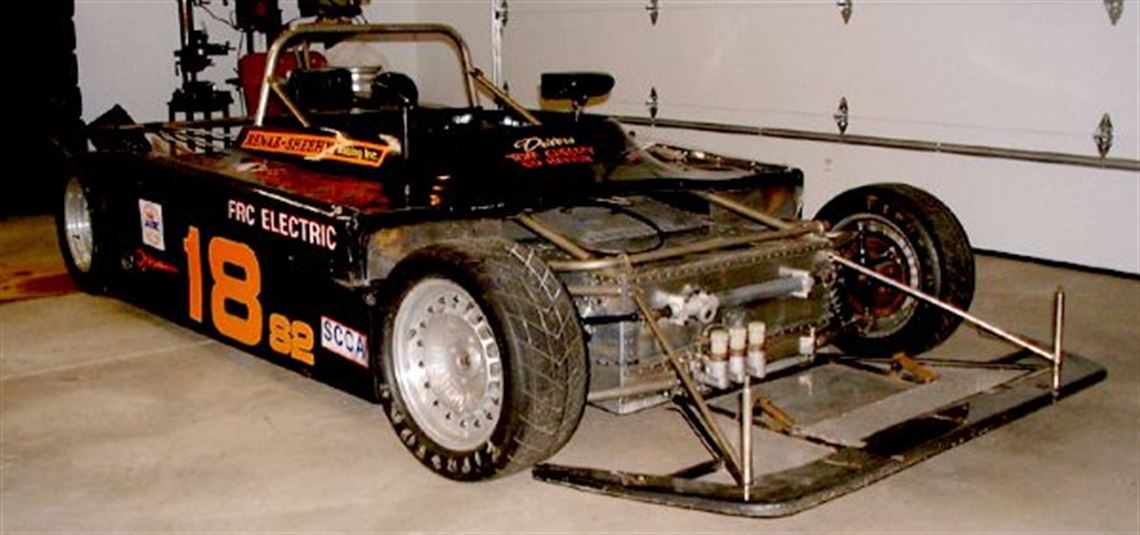

  • body is currently off car and needs race prep and reinstalled
  • snorkle air intake in racing picture is no longer installed

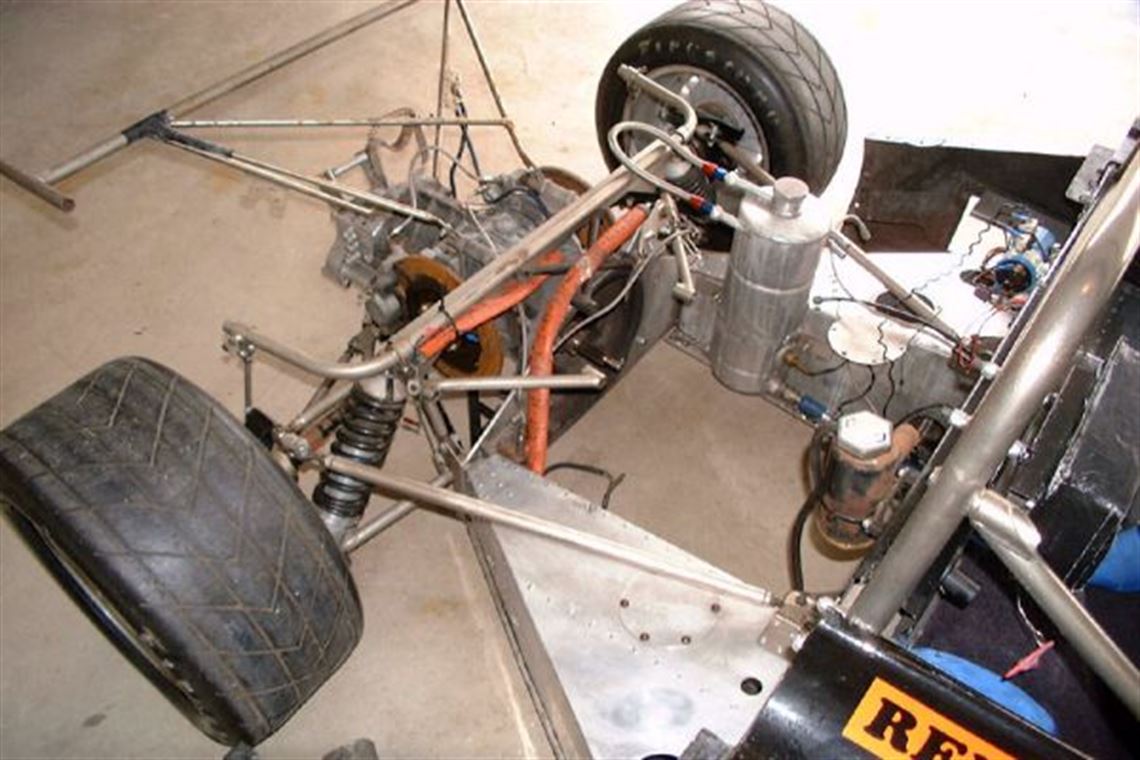

Chassis

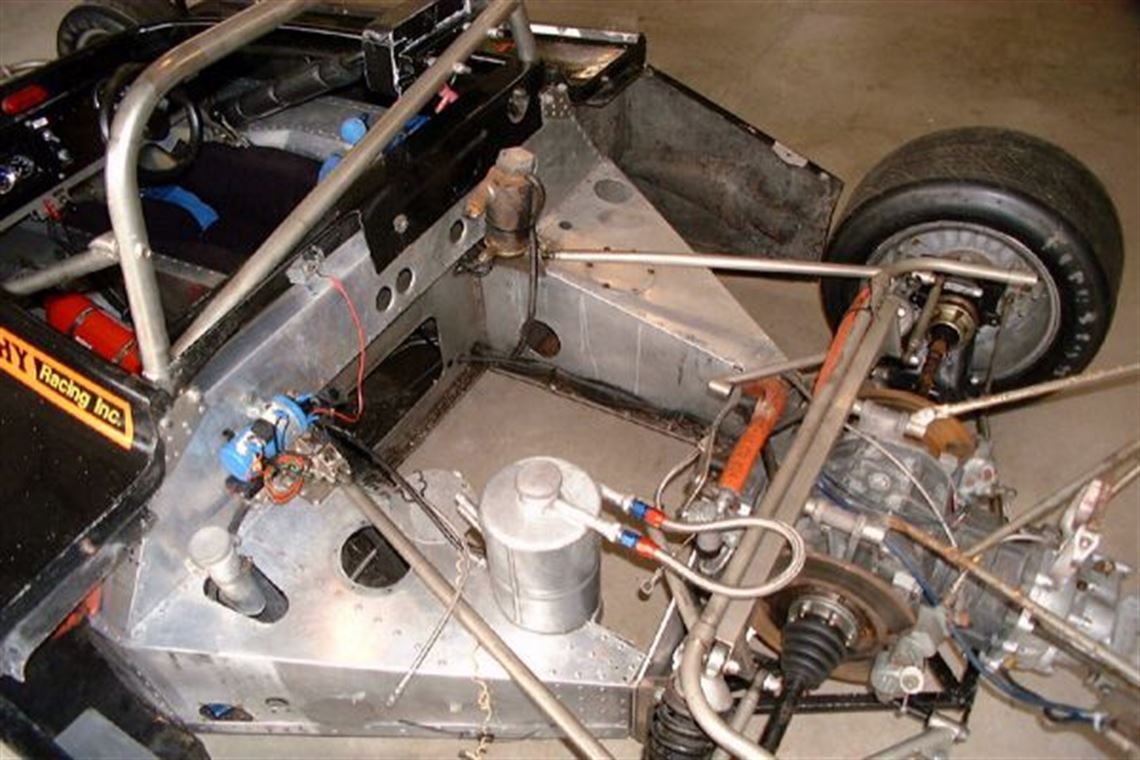

  • aluminum monocoque in excellent condition, reinforcement has been done to the rear monocoque
  • gas filled Bilsteins front & rear

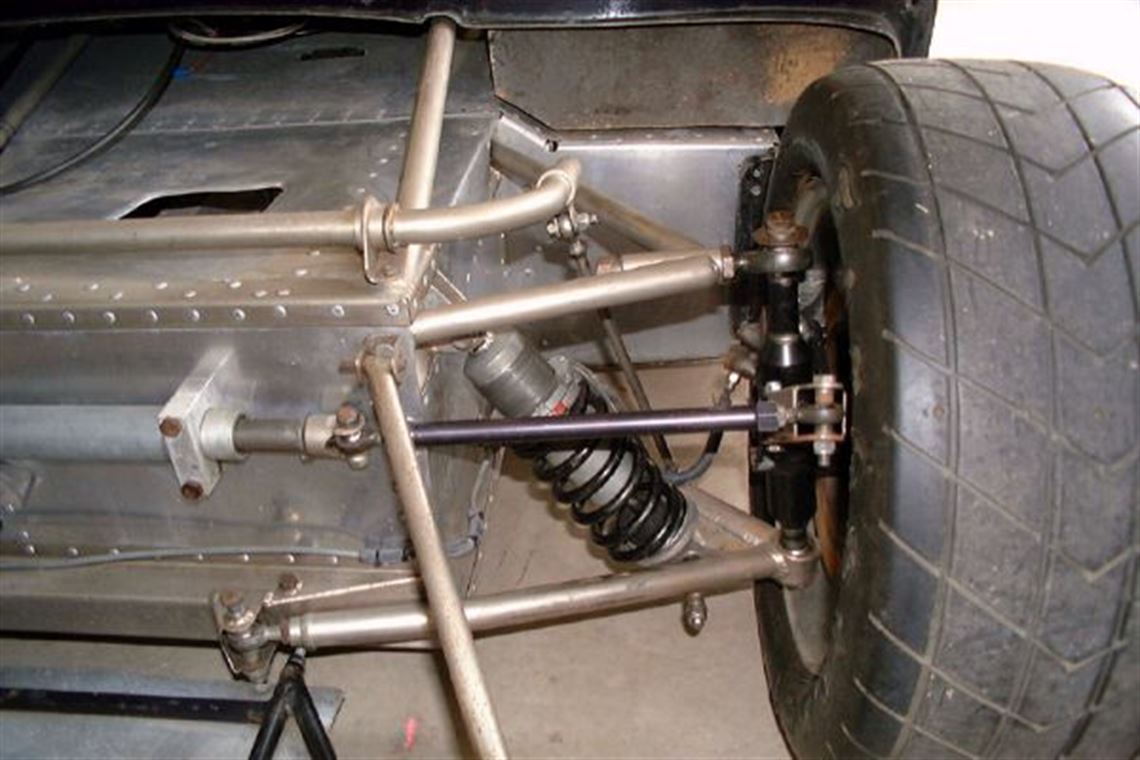

  • double wishbone, coil overs, fabricated steel uprights with detachable steering arms, tubular anti-roll bar
  • lower wishbone, top link, upper radius rod, coil overs, aluminum cast uprights, tubular anti-roll bar

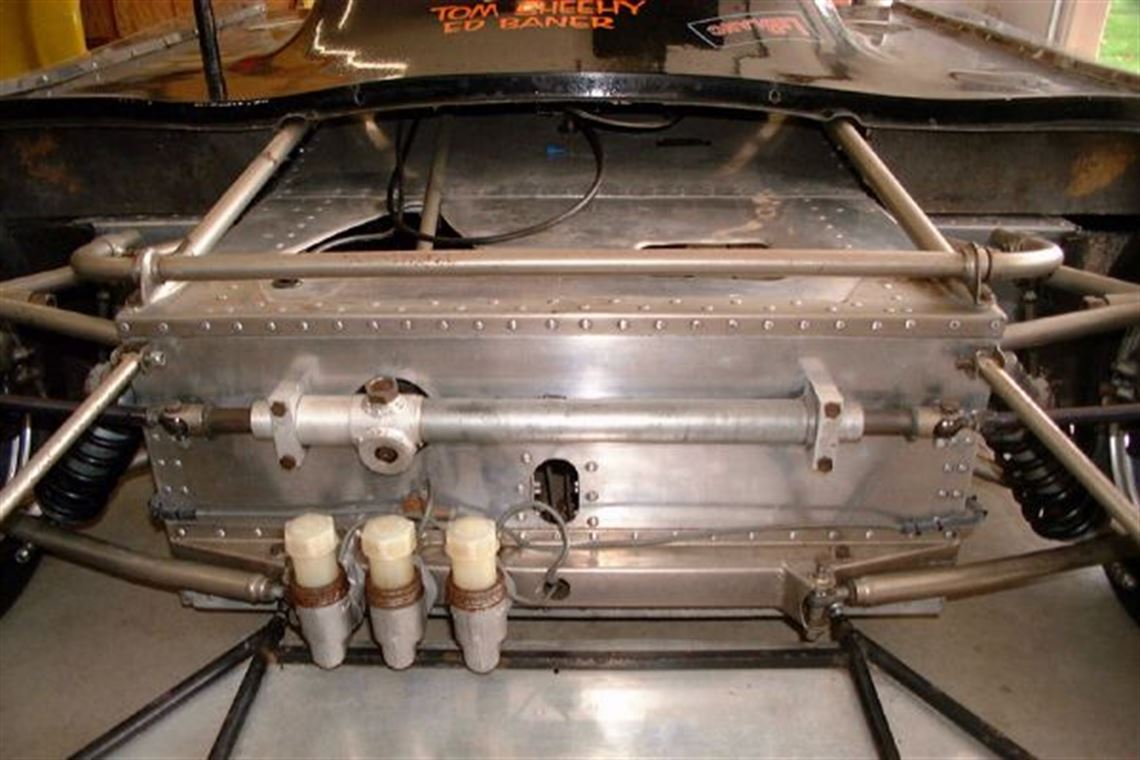

  • proprietary rack
  • 10.25" dia. non ventilated front discs (almost new), 9.25" dia. non ventilated inboard rear discs (NEW), Lockeed (Metro)
    steel 4 pot front calipers with new pistons and seals, Lockeed 2 pot FF rear calipers with new pistons and seals, rebuilt Girling master
    cylinders, new HAWK Black pads, cockpit controlled balance bar, Aeroquip hoses, cooling ducts
  • center locked Compomotive split rims, 6" x 13" at the front and 8" x 13" at the rear, set of older rain tires provided with the car.
  • This S2 will be VERY LIGHT

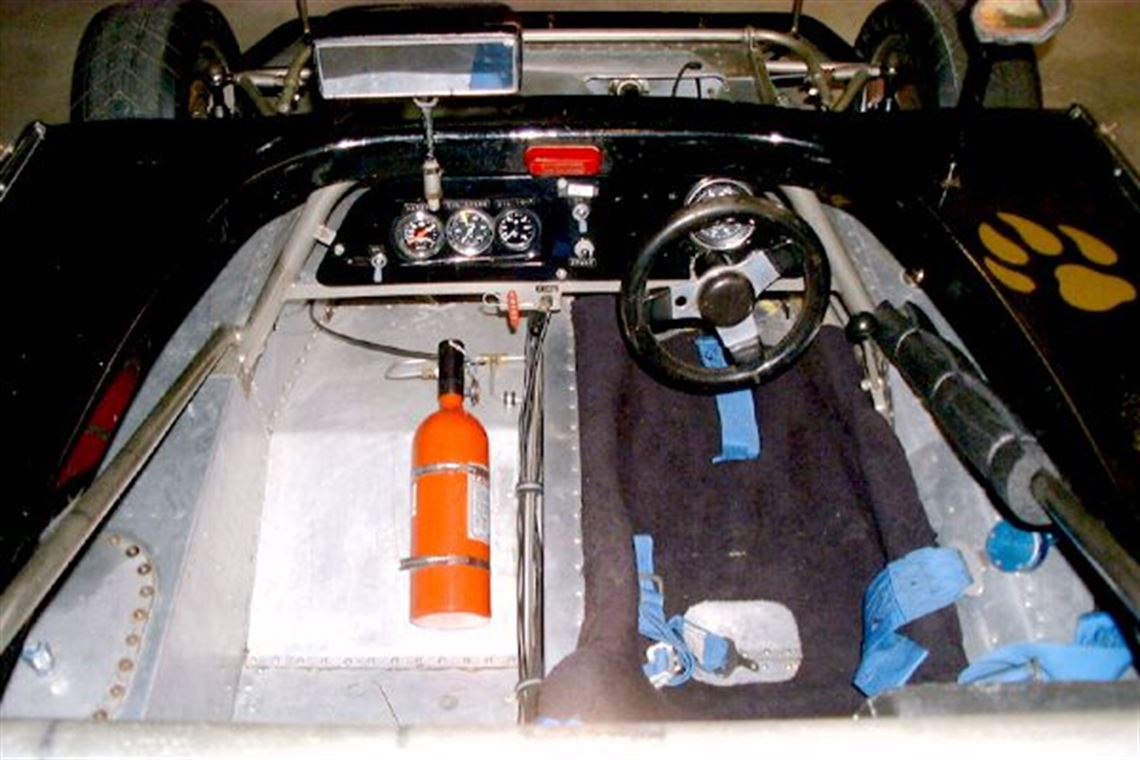

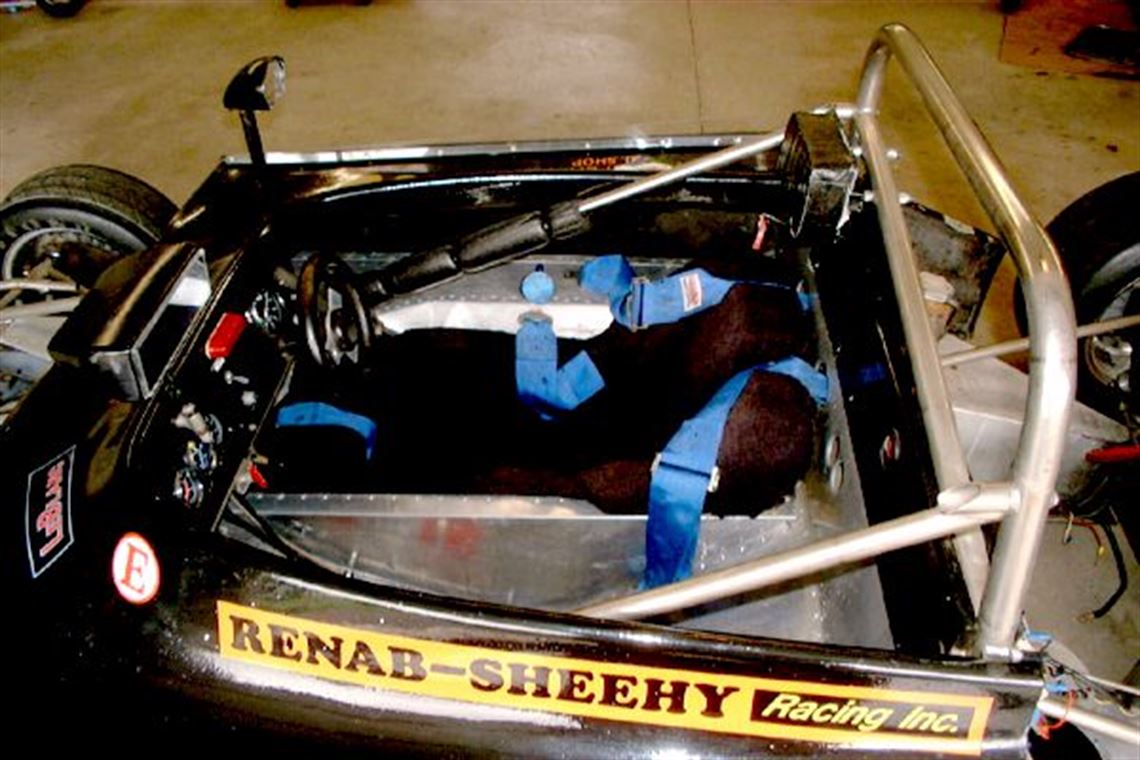

Interior

  • original ROYALE mechanical tachometer
  • race Parts Oil and Water temperature gauges in dash
  • new dual chamber Halon electrical fire system (driver/engine)
  • steering wheel with quick release
  • new Safe Quip 5 point safety harness; 1999 tags but never used
  • voltmeter gauge mounted in rear bulkhead on inside of passenger compartment to access battery condition
  • foam formed racing seat for approximately 160-180 pound driver. Can be trimmed further and recovered.
Spares

  • one extremely light front nose painted same as bodywork
  • one spare splitter painted black
  • header and exhaust system for a 2.0L motor
  • 1 fresh rebuilt starter
  • lot’s of fasteners and misc. mounts for re-installing a 2.0L motor
