Description:

The current owner has not used the car since it
was completely looked through and race prepared with a lot of new parts.
A new fire system, new master cylinders, and new guages, and new pads and tyres are typical of the
components which have been replaced. Both the chassis and bodywork were resprayed during the go-thru,
which amounted to a virtual restoration.


History

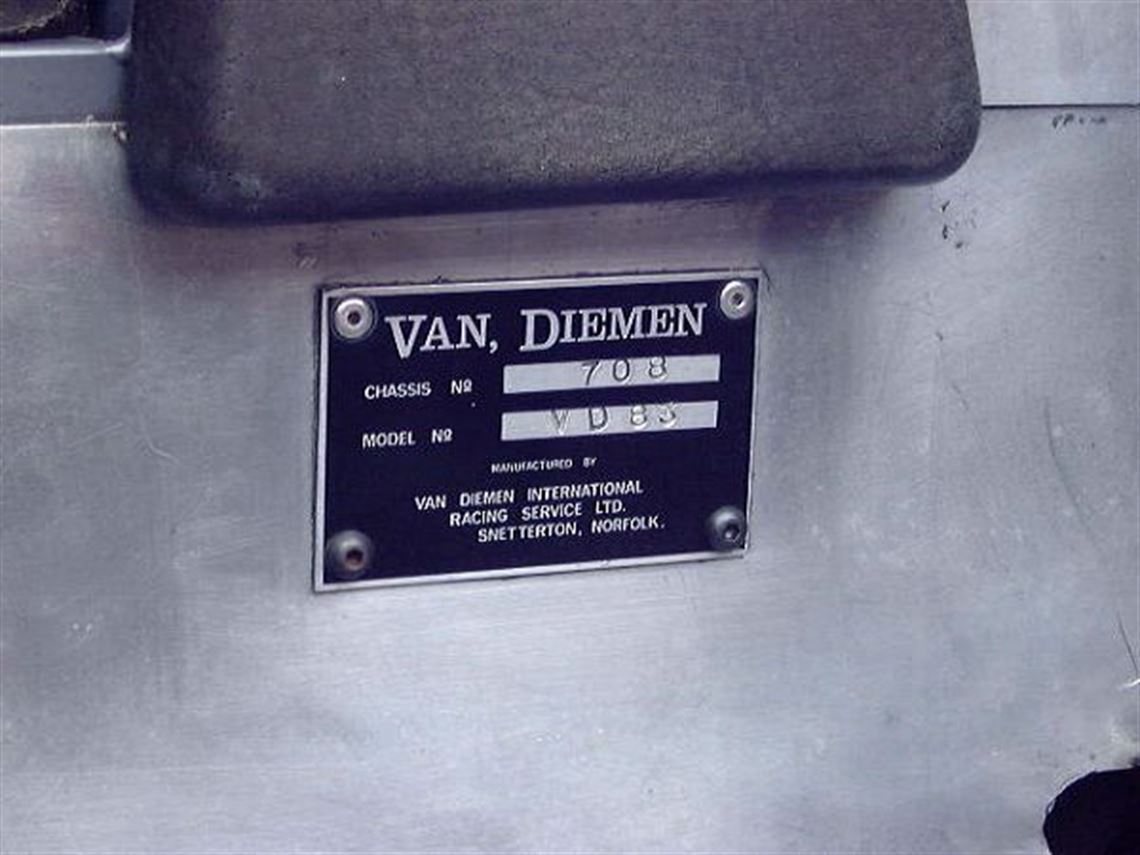

The last evolution of the Dave Baldwin chassis which gave Van Diemen and its drivers very successful years
between 1977 and 1983. Fitted with a narrow track, this car had a good top speed although probably at the
expense of handling. Usually considered as the end of an era, this model however proves to be quite
competitive in the Oldies Formula Ford series. A wider tracked version was used in Formula Ford 2000
with side radiators.

Competition History

No recent racing history.

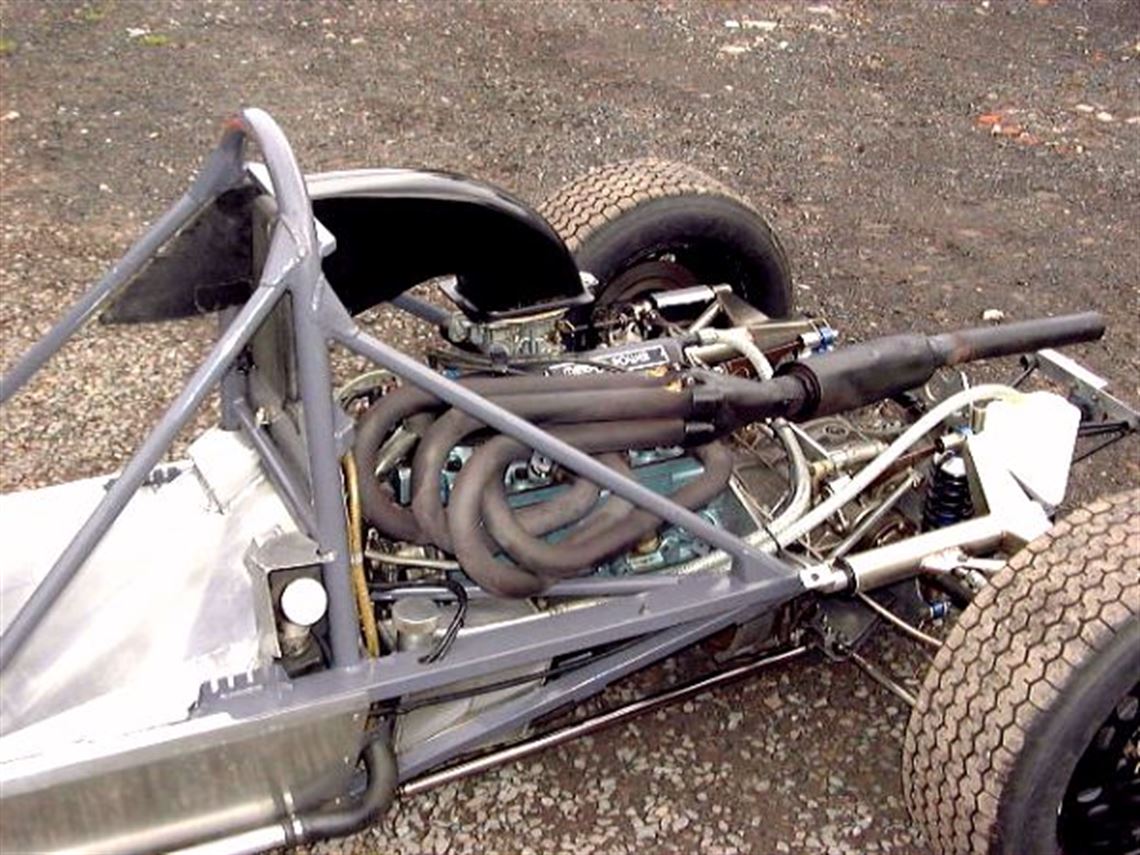

Engine

• Ford "Kent" 1600cc.

• Minister prepared to European specification.

• dry sumped

• Van Diemen exhaust system


Fuel System

• Aluminium tank separated from cockpit by enclosing aluminium plates.


Oil/Water System

• Original Van Diemen aluminium oil tank

• No oil cooler

• Front water radiator, checked throughout


Electrical System

• Lumenition electronic ignition

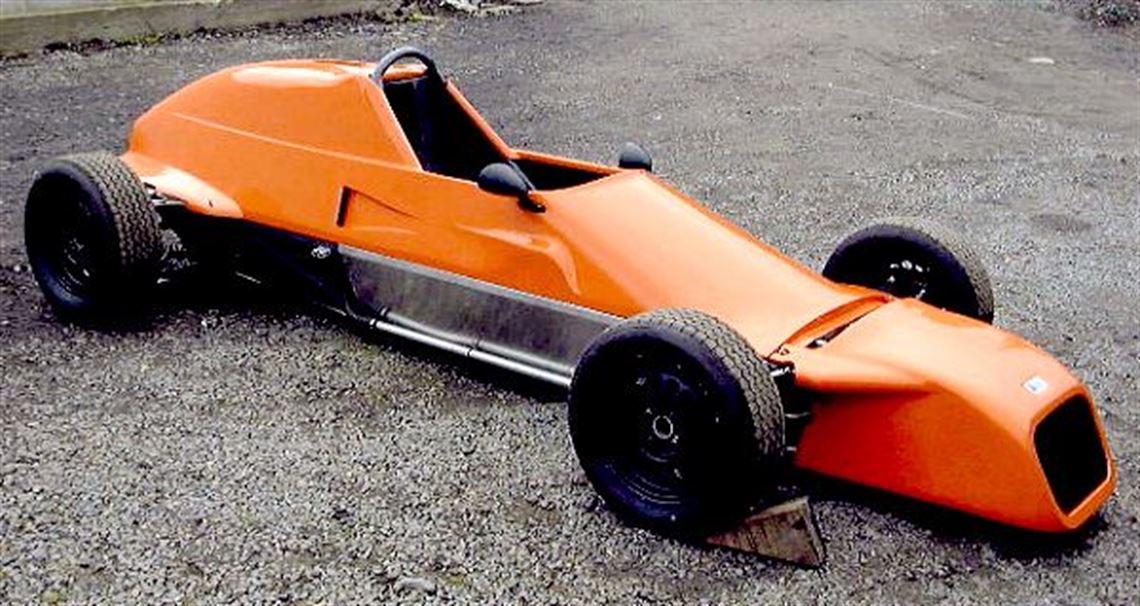

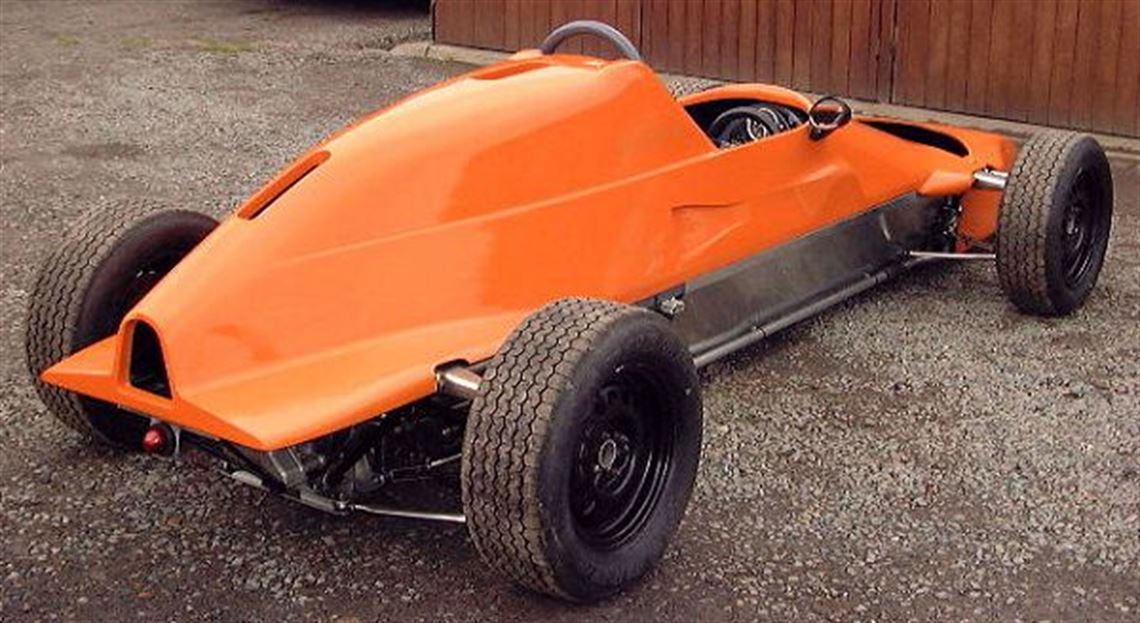

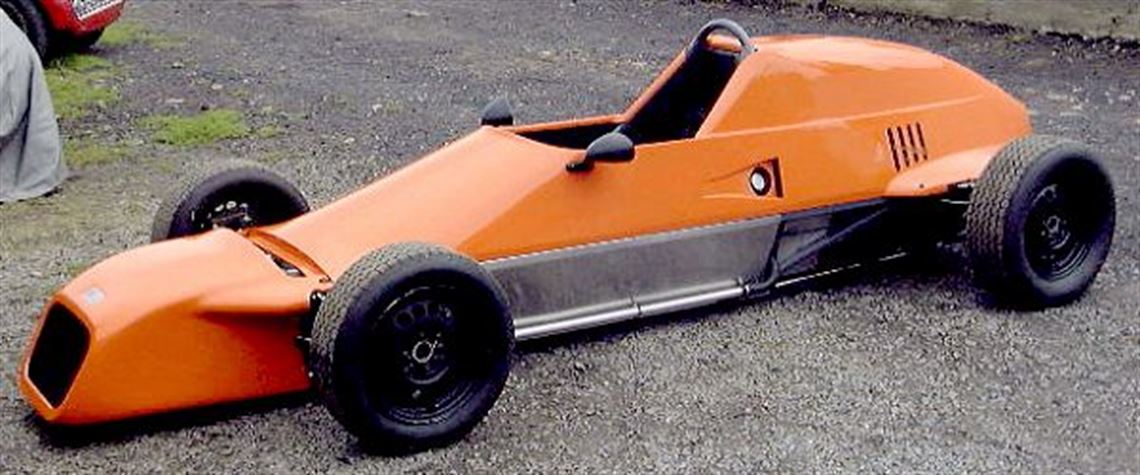

Body

• Original fiberglass bodywork in good condition

• recently sprayed in Mc Laren orange

• New aluminium side panels

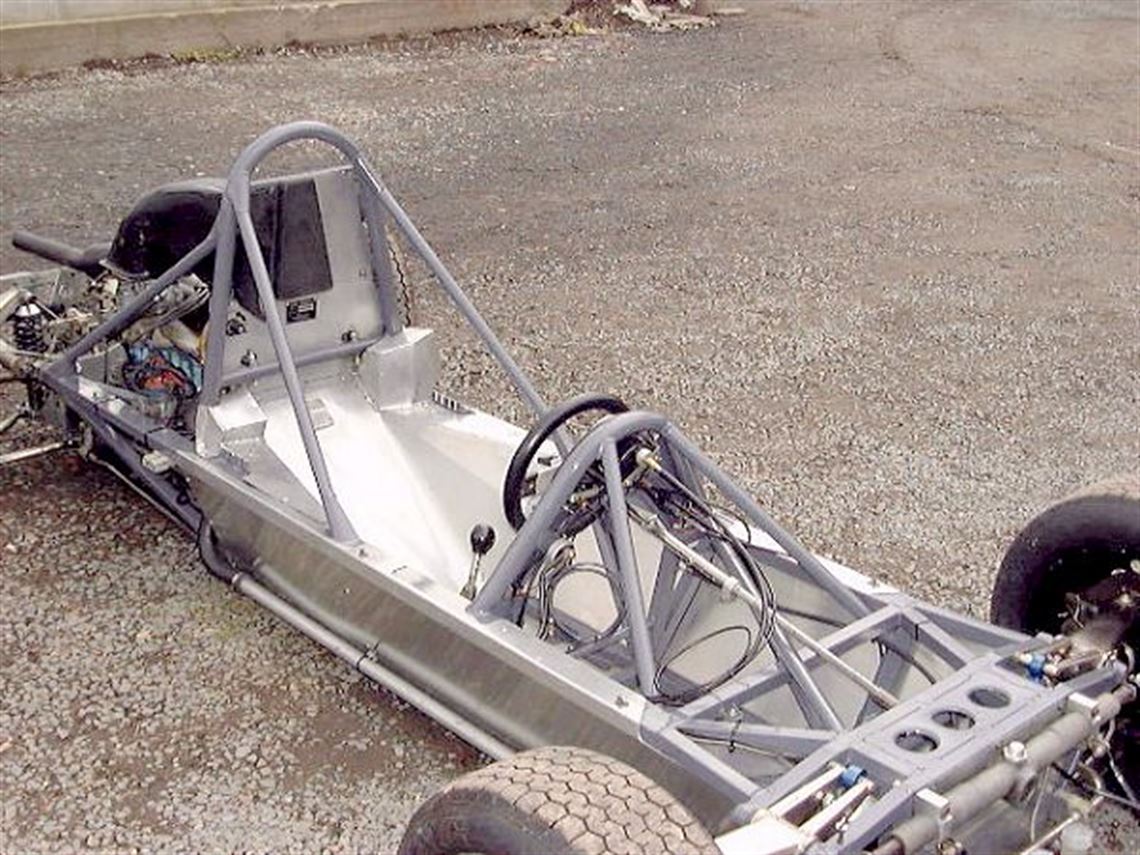

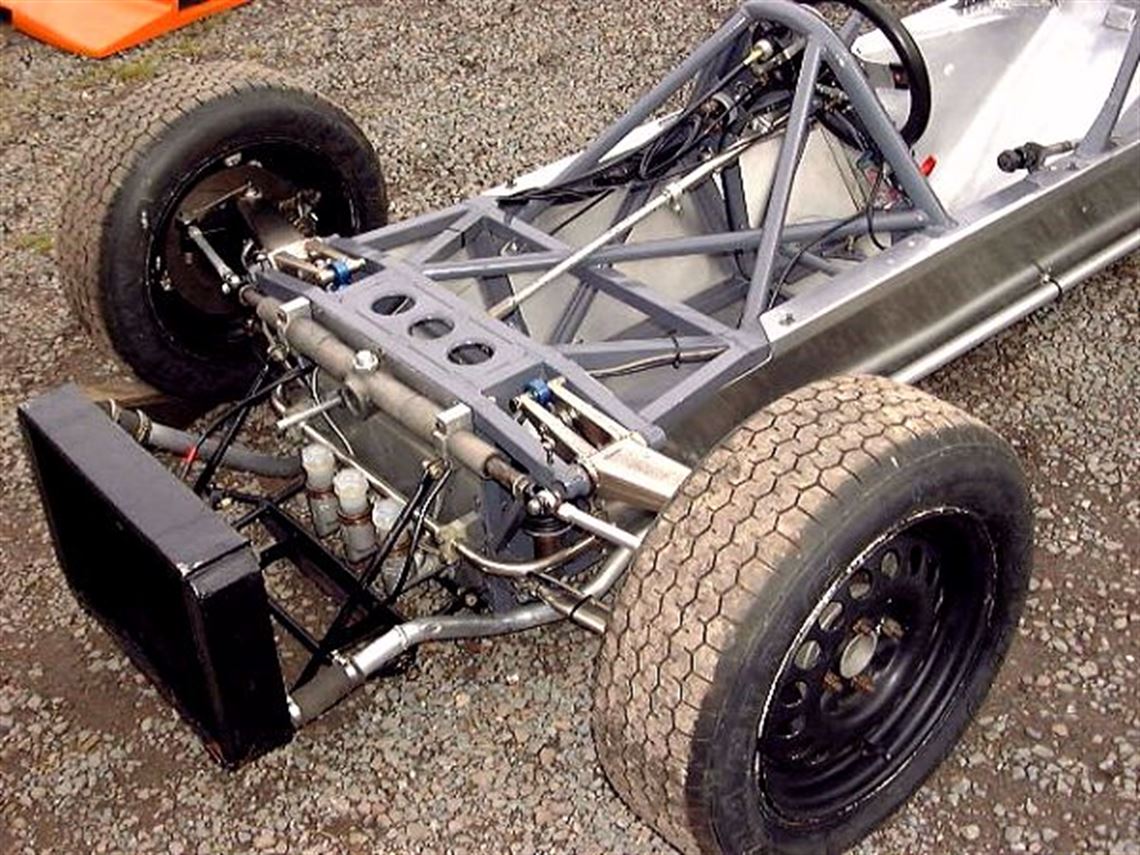

Chassis

• Arch Motors built spaceframe

• recently checked and resprayed

• Girling

• inboard with top rockers and lower wishbone

• inboard with top rockers and lower wishbones

• proprietary rack and pinion.

• new master cylinders, outboard discs front and rear, rebuilt Lockheed Formula Ford calipers, new Mintex brake pads.

• 5.5 x 13 steel wheels. Painted black. Brand new Avon ACB9 Formula Ford treaded tyres

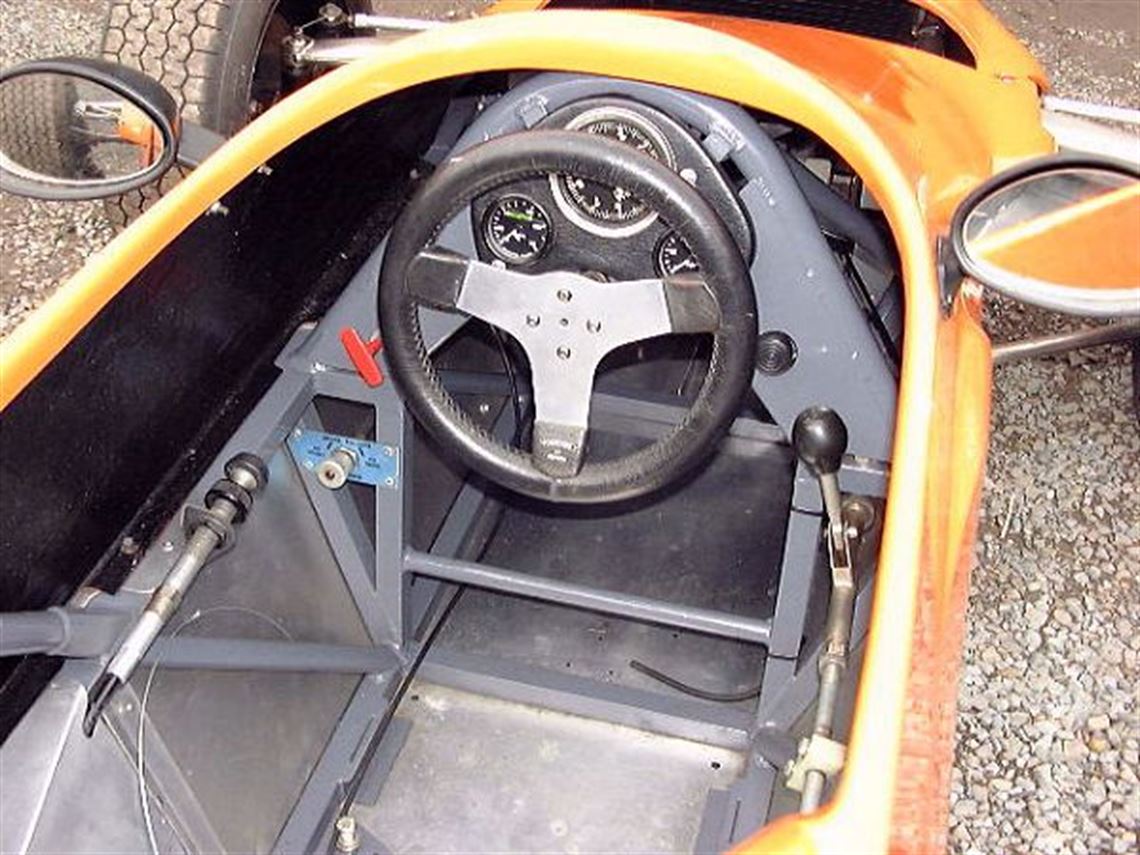

Interior

• New FIA homologated Lifeline 2.25 litre Club Fire Marshal plumbed in fire system

• 6 point Britax/Sabelt racing harness

• Jones mechanical rev counter

• New Racetech water temperature gauge

• Racetech oil pressure gauge

• rear anti-roll bar adjustable from the cockpit

• balance bar adjustable from the cockpit


Spares

• none
