Nissan Close-Ratio 5 speed trans - SOLD

This is now SOLD. Search for similar items.

Description:

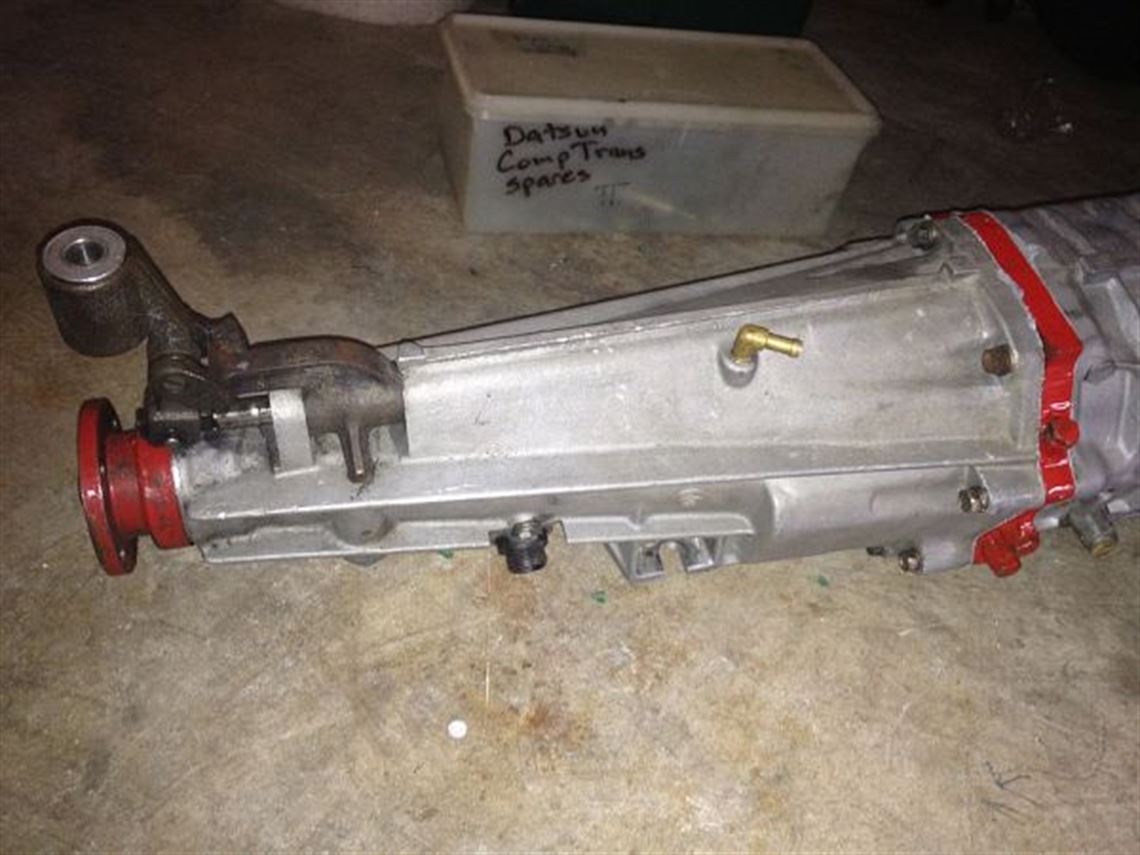

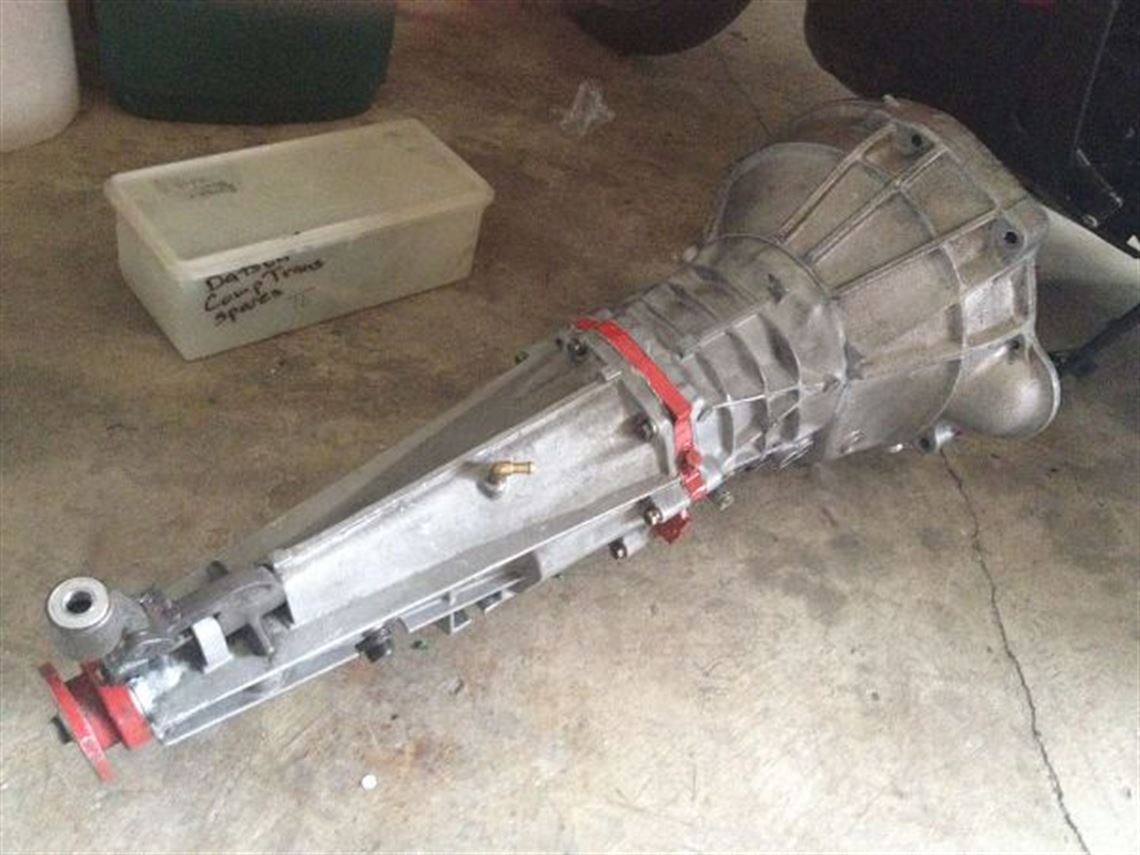

Early Datsun Close-Ratio OverDrive 5 speed transmission. Originally built for the Roadster, it now has the 'L' bellhousing and long tailshaft for use with a 510 or 240Z. Excellent case, steel synchros, splined 5th gear (not pressed or welded), double-pinned shiftforks, flanged output shaft, solid shiftlever bushings, fresh rebuild/blueprint by reputable Datsun race specialist and not used since. Sale includes freshly built/balanced, flanged 510 driveshaft. This is a great trans for a mild race motor, peak RPM around 7K. This is not an Ultra-Close ratio trans that goes better with hot race motors and peaks of 8K+.
Technical Data

75 lbs

Transmission

Nissan
CR OD Comp
CR 5 speed
OE with custom bushings
no
zero
2.9-1st 1.9-2nd 1.3-3rd 1.0-4th .85-5th

Spares

none
