$POR
Race Cars
$ 62,500
Fast 1700cc crossflow-powered G4 owned and run by Michael's Vintage Racing

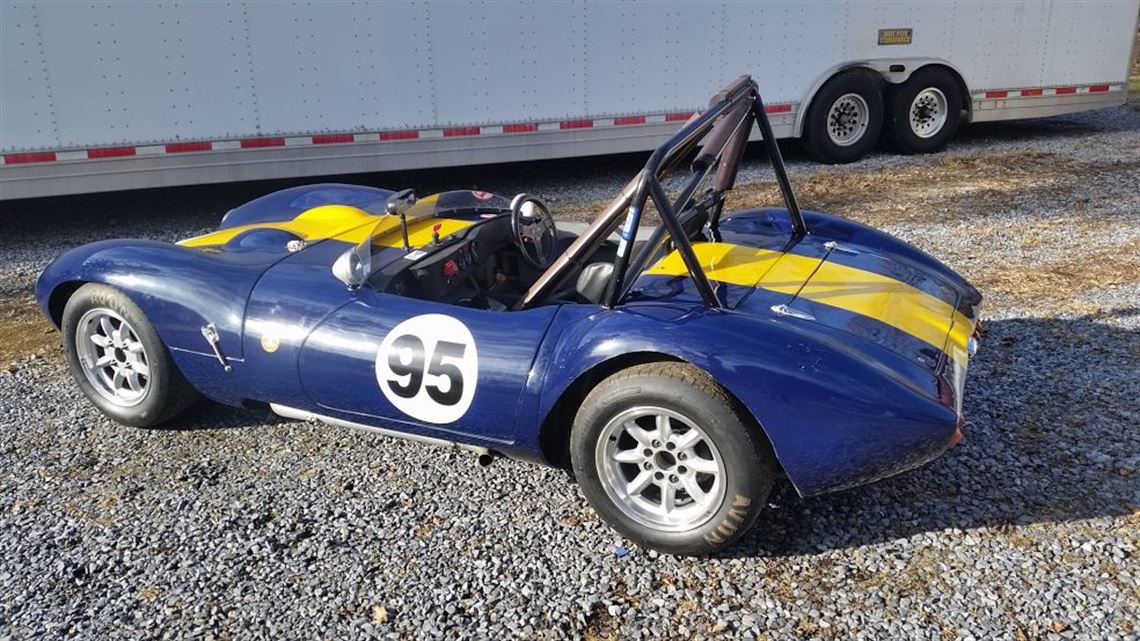

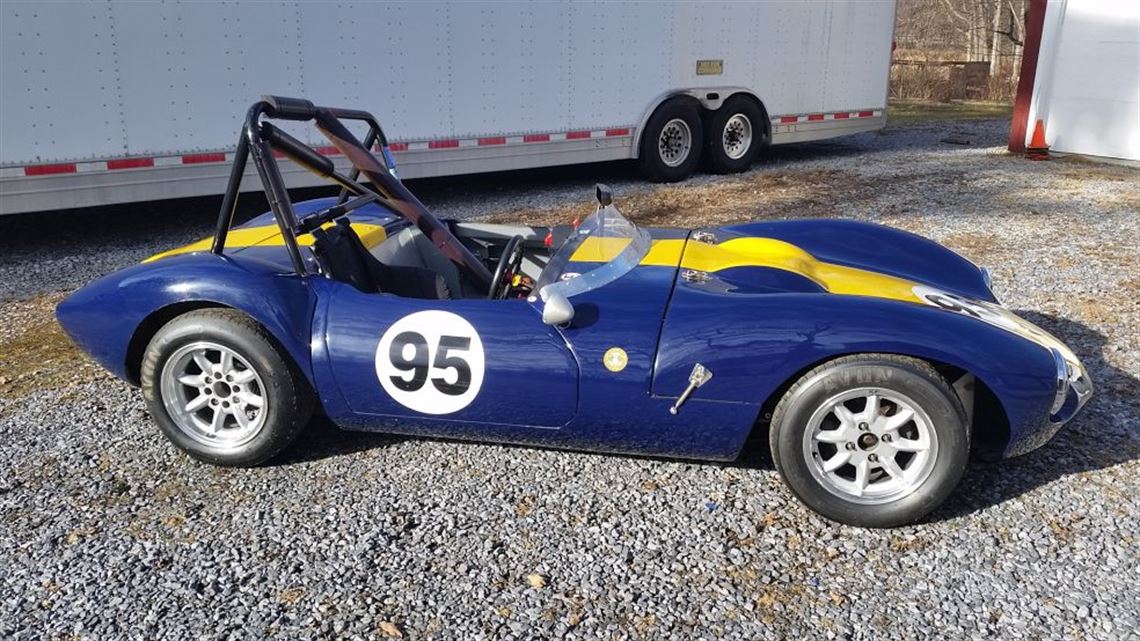

Side view

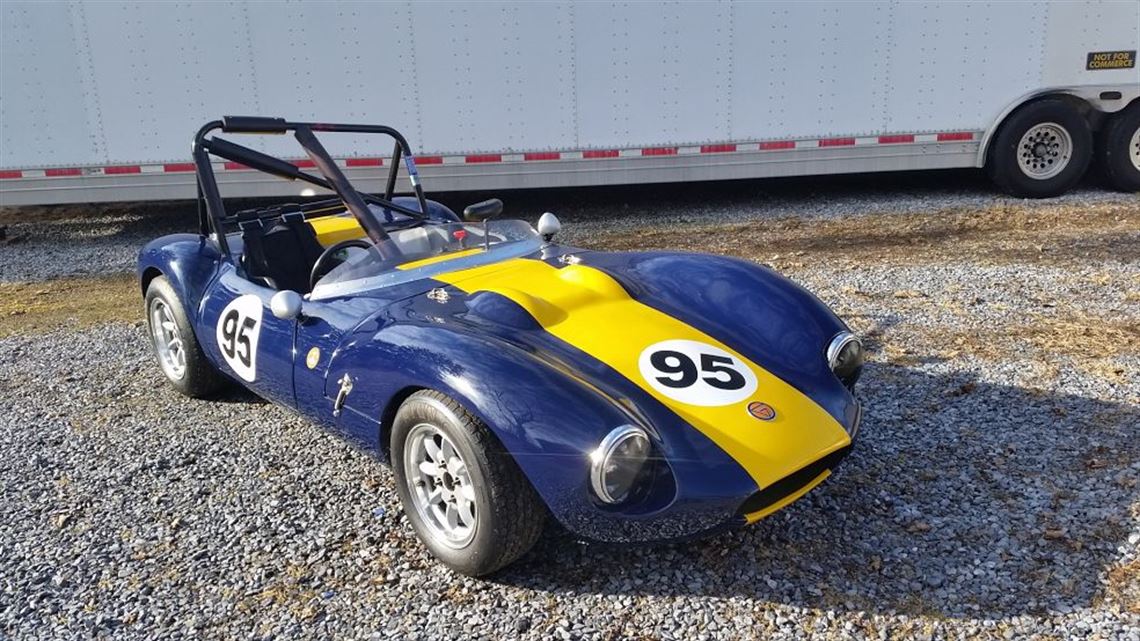

Front quart
Rear Quarter

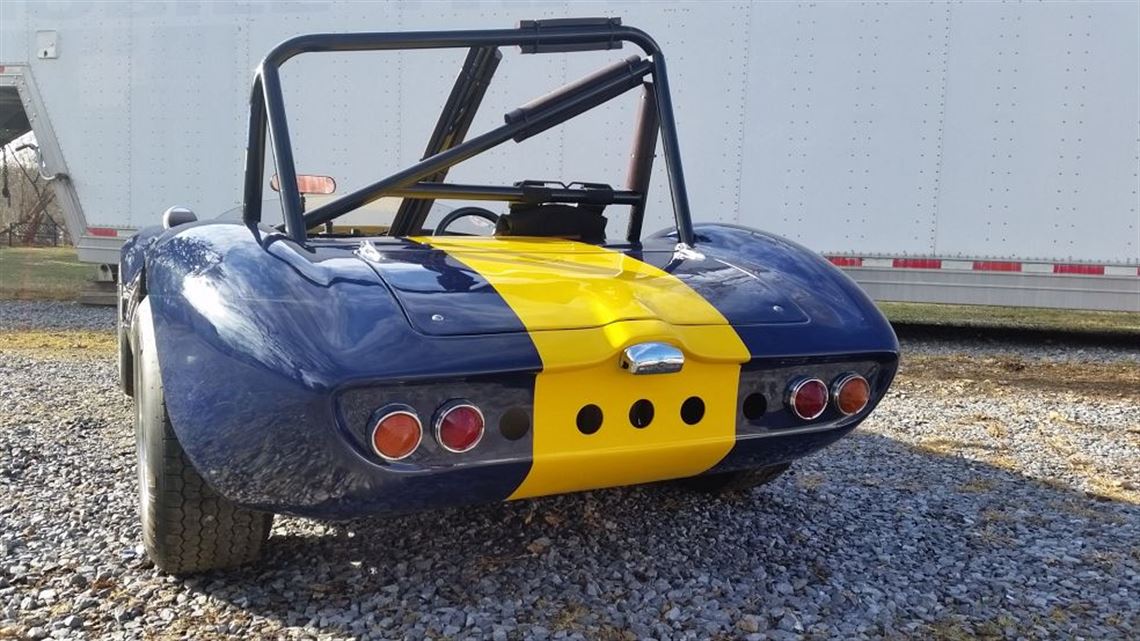

Rear view

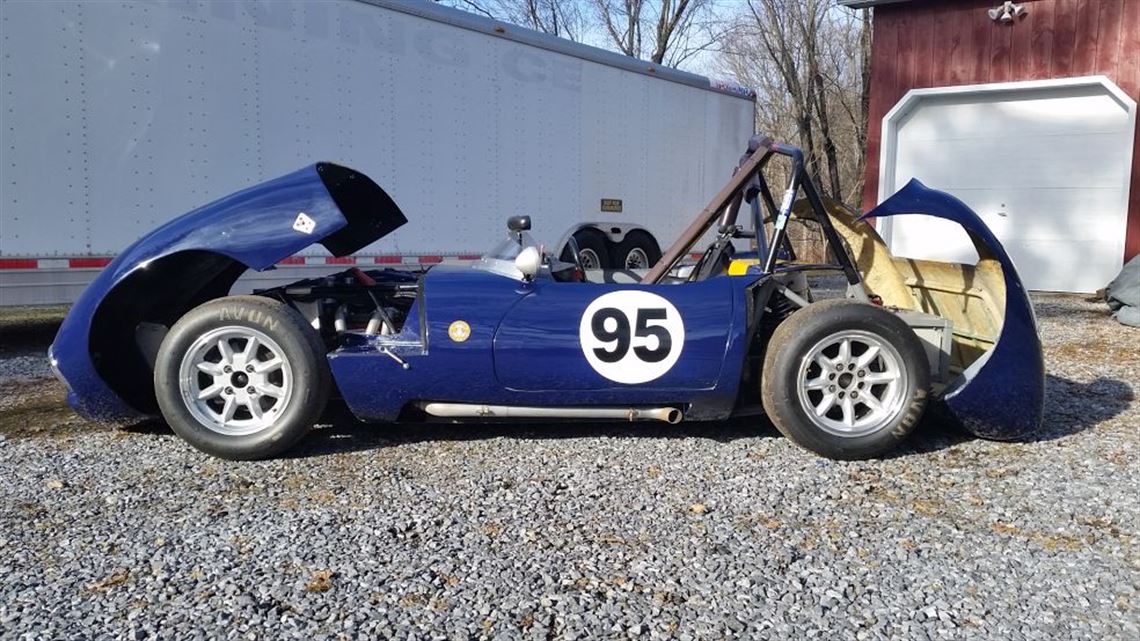

Body open

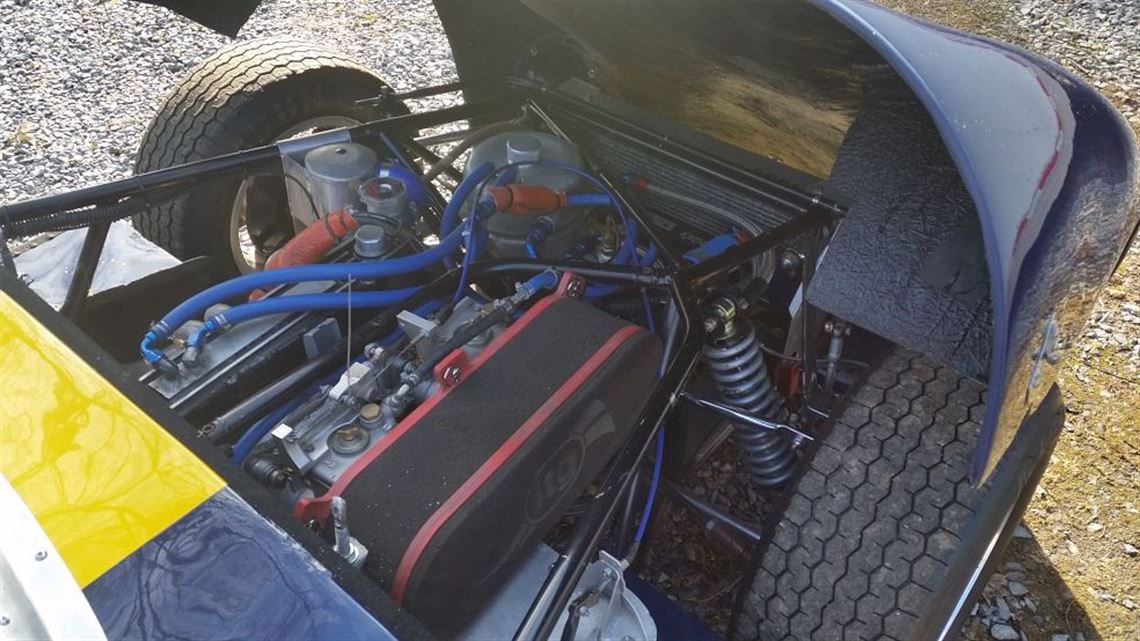

Engine bay

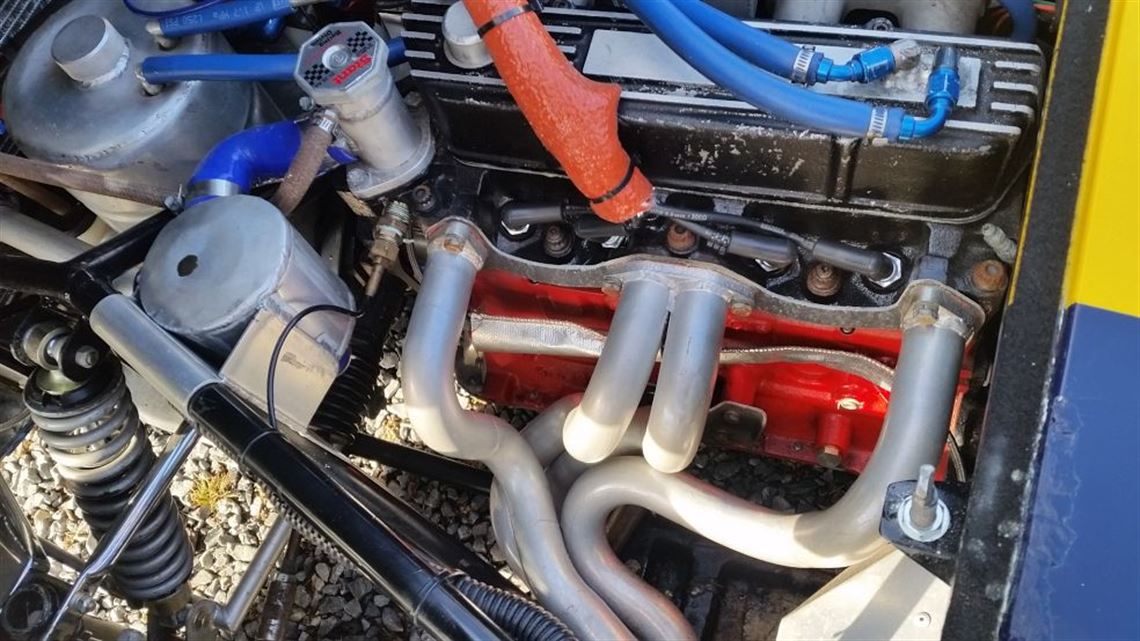

Headers

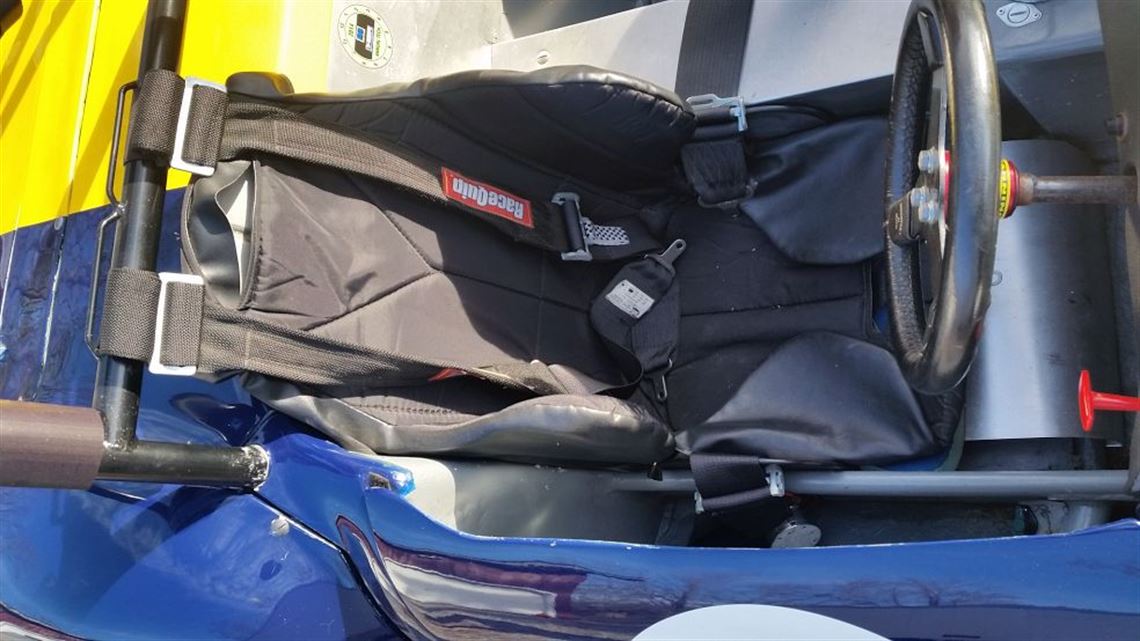

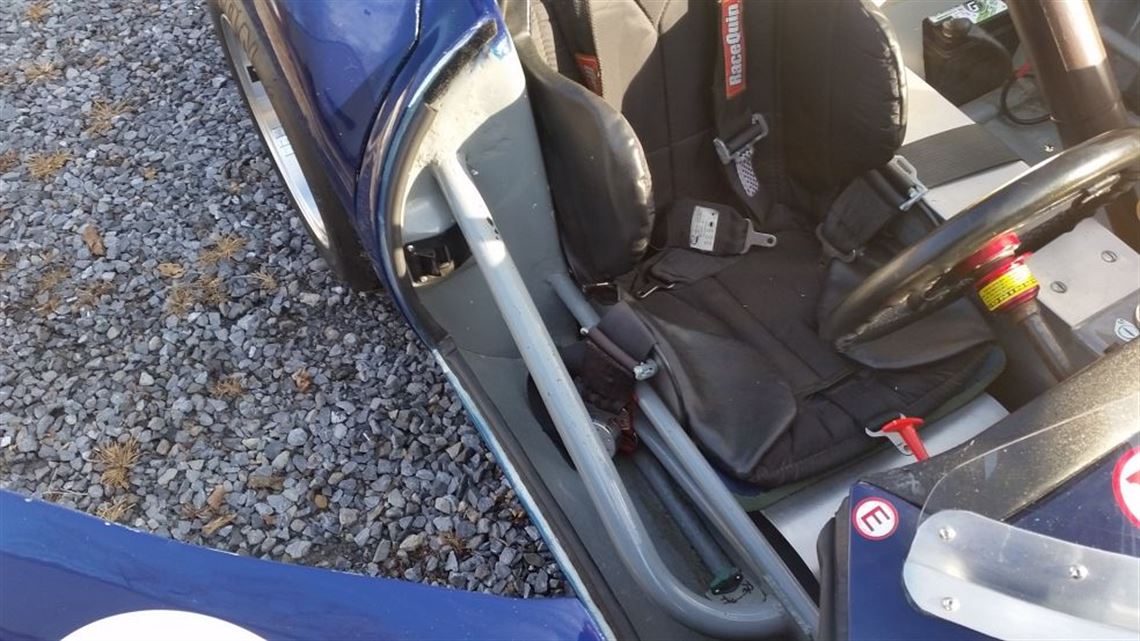

Seat

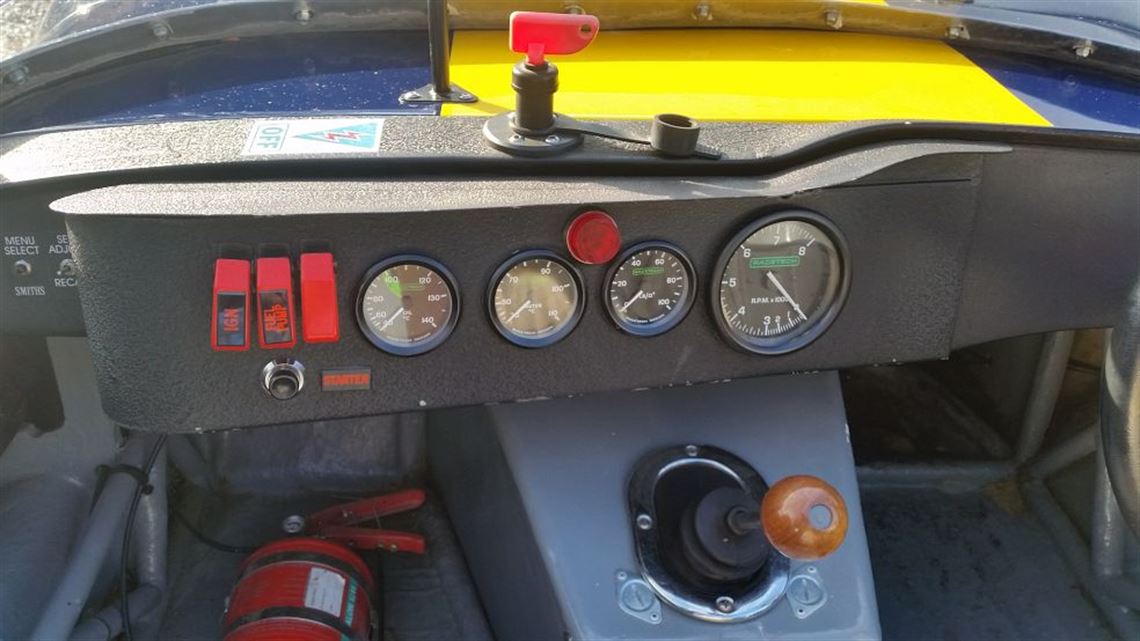

Gauges
Side bar

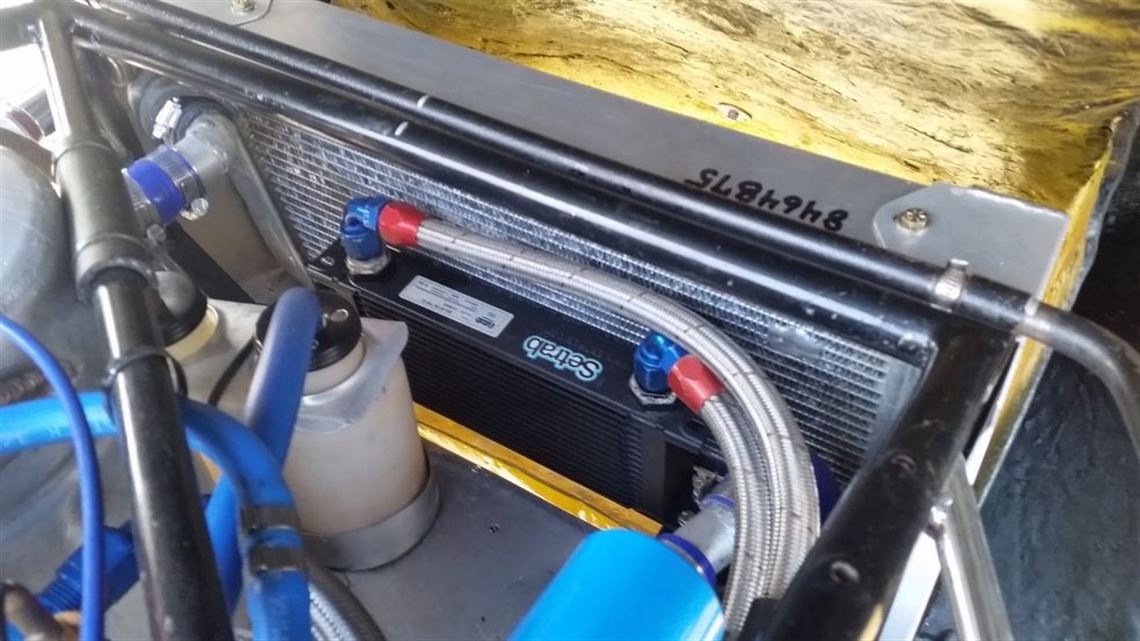

Radiators

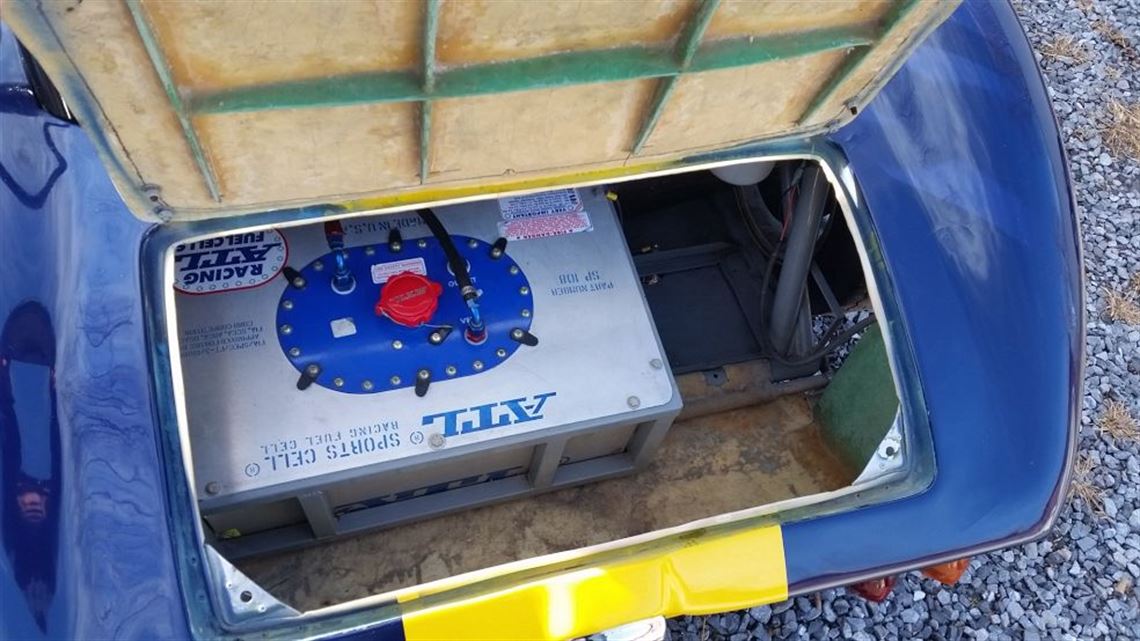

Fuel cell

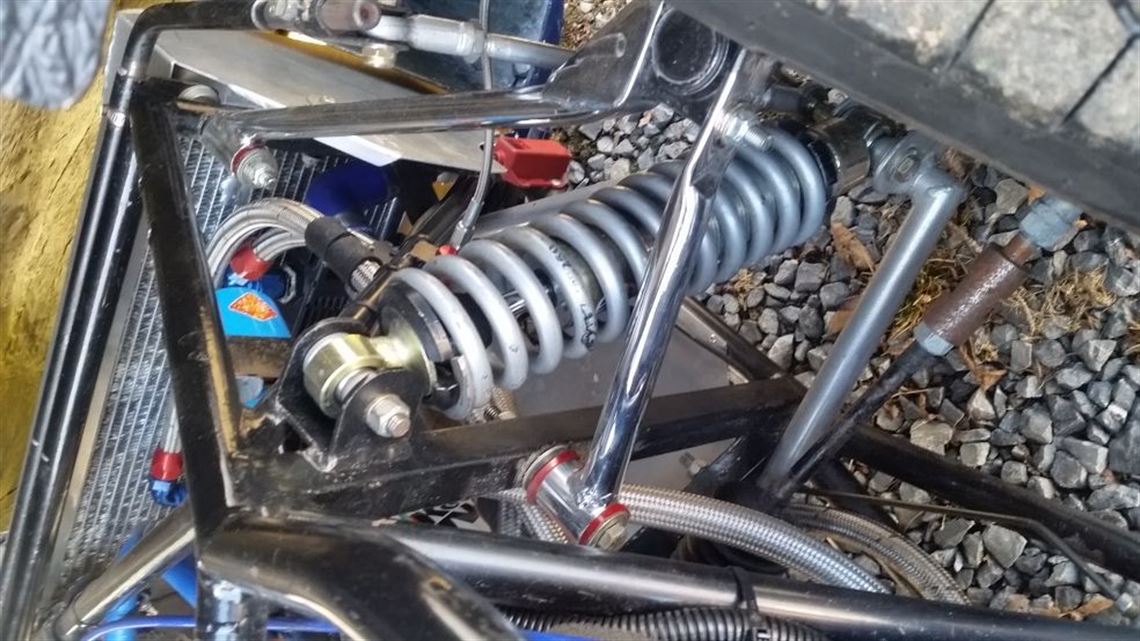

F suspension

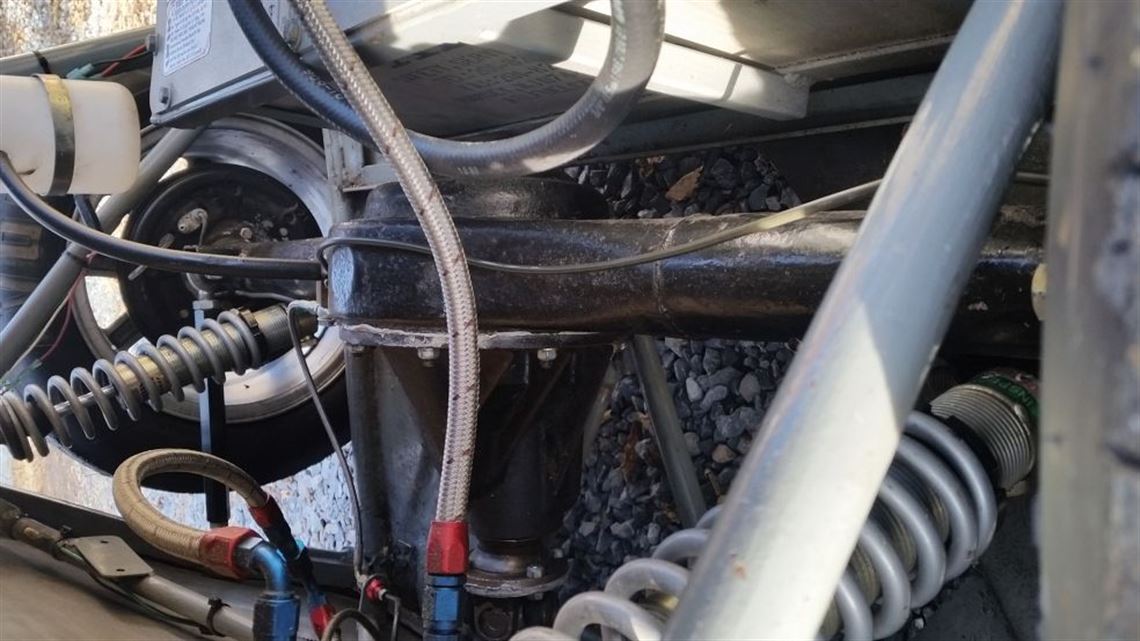

R suspension

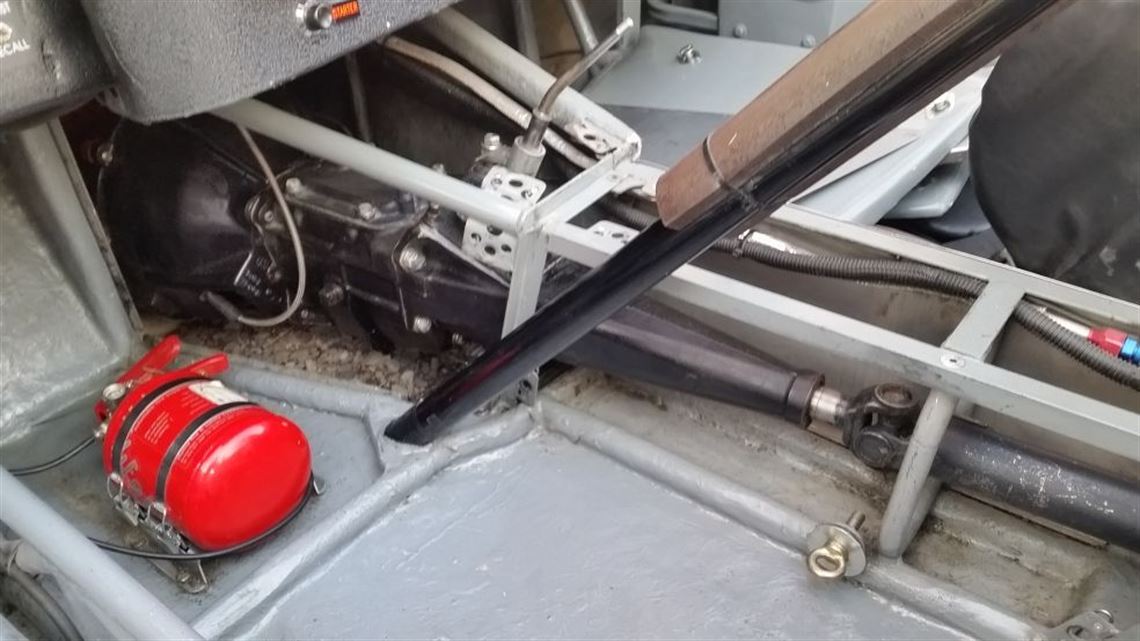

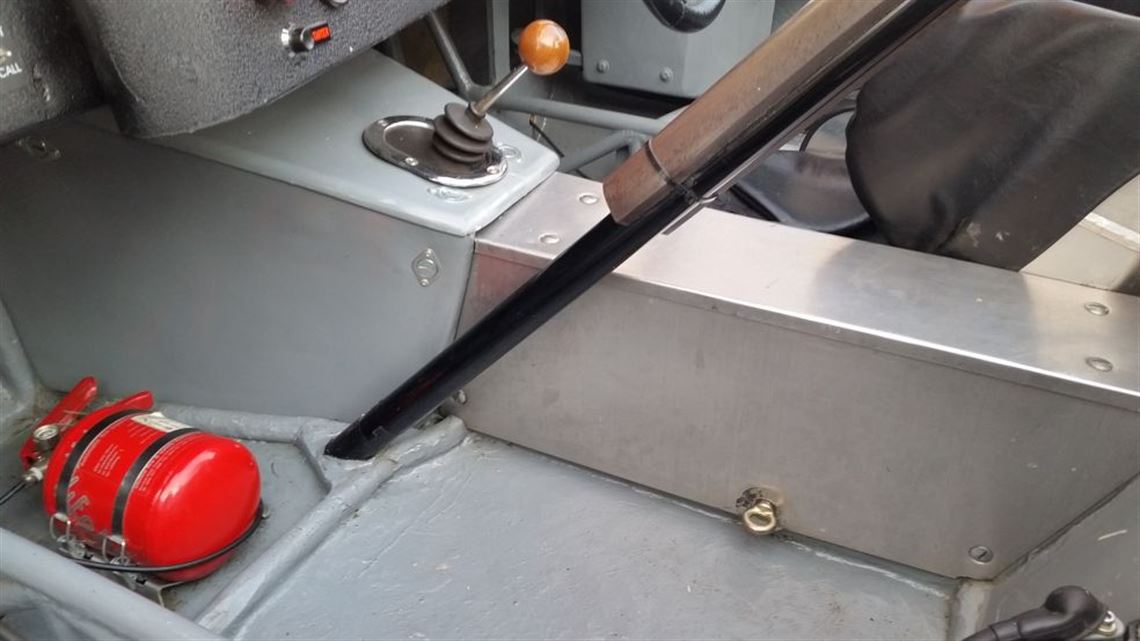

Tunnel
Uncovered

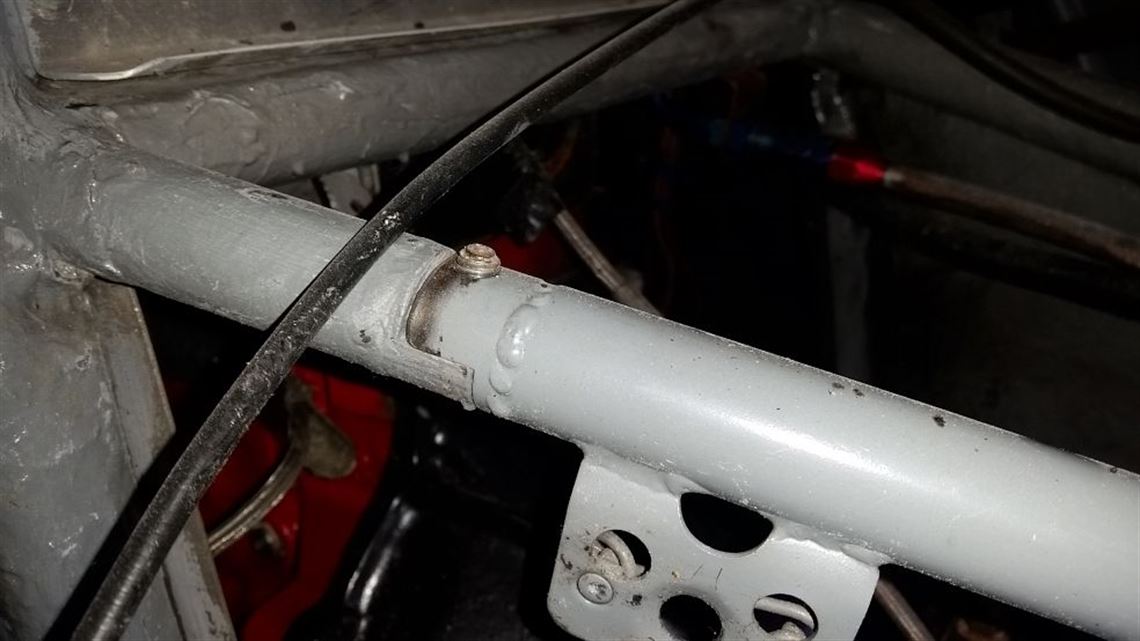

Bar fittings

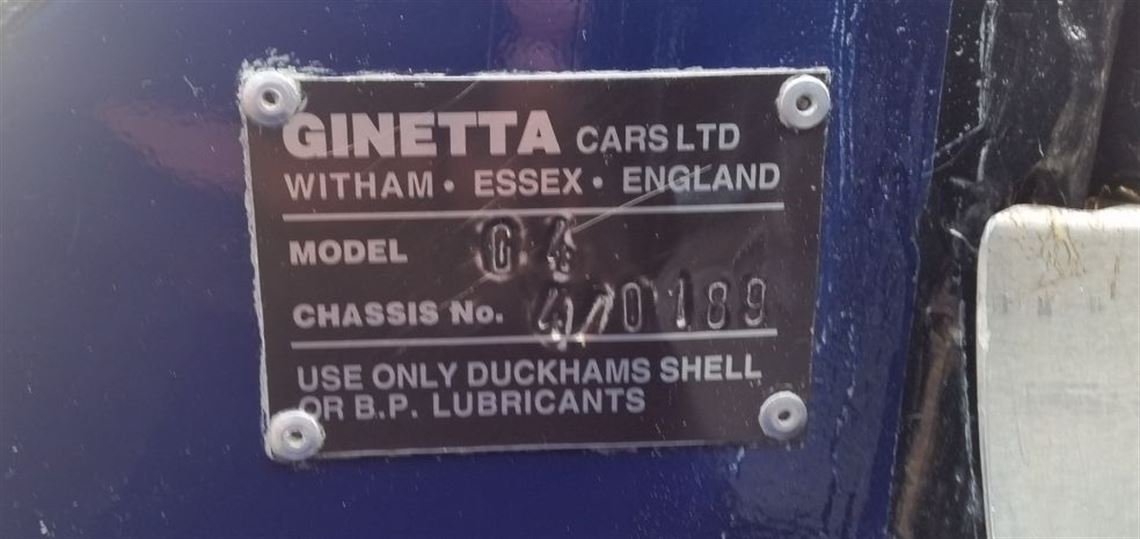

Number plate
MOT papers

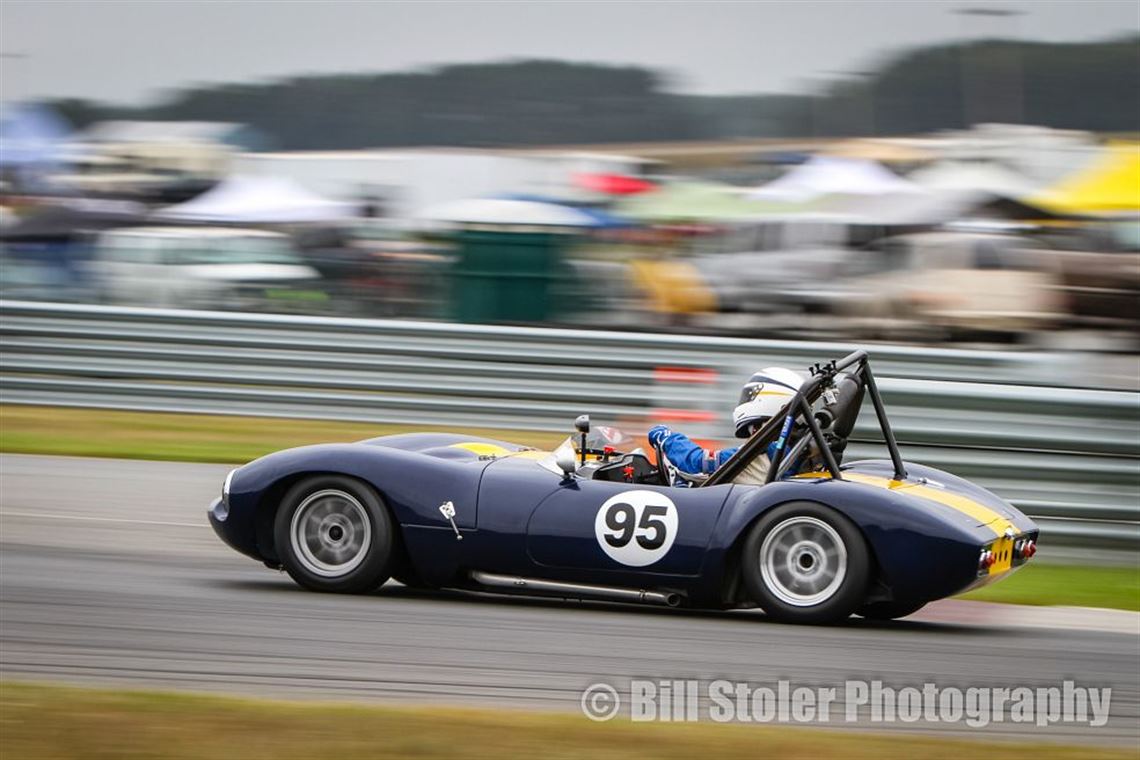

NJMP
Summit Point
PVGP
Description:
Campaigned by the owner of Michael's Vintage Racing. 1,700cc Ford crossflow, uprated front brakes/uprights, very competitive and ready to race. Special chassis allows gearbox removal from inside the car.- History: Built in 1965 as a 1,000cc road car, sale includes original MOT papers. Driven on the street in England until it was disassembled for restoration. Michael's Vintage Racing imported the car as a bare chassis and built it from the ground up as a vintage race car in 2012.
- Recent Competition History: Multiple podiums and wins in medium- and big-bore groups with VRG, Waterford Hills, and SVRA
- Class: VRG Group 2
- Weight: 1200 lbs
- Track: Summit Point
- Engine Builder: MWE
- Engine Manufacturer: Ford
- Engine Type: Ford Kent Crossflow
- Displacement: 1,700cc
- Horsepower: 190
- Torque: 145
- Induction: Twin 45mm Weber DCOE
- Heads: Cast iron
- Block: Cast iron
- Main Caps: Steel
- Crankshaft: Billet, narrow-journal
- Connecting Rods: Steel
- Pistons: Forged JE
- Camshaft: Cosworth
- Valves: Big valves
- Valve Train: Cosworth DFV valve springs and retainers
- Clutch: Single Tilton
- Pressure Plate: 7.25
- Flywheel: Lightweight billet steel
- Exhaust: Custom tubular header, ceramic coated
- Total Time: 13hr bottom, 3hr top
- Fuel Cell
- Manufacturer: ATL
- Age: 4 years
- Capacity: 8 gallon
- Fuel Pump: Facet electronic
- Fuel Type: 110 octane leaded
- Radiator: Aluminum
- Water Rad Location: Front
- Water Pump: Ford, Gilmer belt drive
- Oil Cooler: Setrab aluminum
- Oil Cooler Location: Front
- Ignition: Points, recurved distributor
- Alternator: No
- Logger: No
- Computer: No
- Transmission Manufacturer: Ford
- Type: Quaife
- Gears: 4
- Shifter: Ford
- Trans Cooler: No
- Races: 3 races
- Notes: Ultra-close ratio dogbox
- Rear End Manufacturer: 3J
- Type: Limited slip
- Cooler: No
- Ratio: 3.9:1
- Case: Cast iron
- Differential: Cast iron
- Axles: Heavy duty
- Races: 5 races
- Construction: Fiberglass
- Color: Blue/yellow
- Paint: Dupont
- Condition: Good
- Notes: Freshly painted nose
- Chassis Type: Spaceframe
- Builder: Ginetta
- Material: Steel
- Finish: Gloss black powder coat
- Condition: Excellent
- Front Suspension: Unequal length A-arm, plated, like-new condition, adjustable sway bar
- Rear Suspension: Live axle with lower A-arm and coilovers, painted, excellent
- Shocks: Gaz externally adjustable coilovers, new 2 races ago
- Brakes: Triumph GT6 disc front, Ford drum rear
- Steering: Triumph rack&pinion
- Wheels: VTO aluminum
- Tires: Avon ACB9 6/22-13
- Interior Color/Finish: Gray paint
- Material: Fiberglass, aluminum dash, aluminum seat
- Fire System: Current Halon
- Restraints: Simpson 5-point harness
- Gauges: Racetech tach, oil pressure, oil temp, water temp
- Steering Wheel: Mountney Aluminum with quick-release hub
- Condition: Excellent
- Spare Part: Aluminum front wheel
- Spare Part: Aluminum rear wheel
