Description:

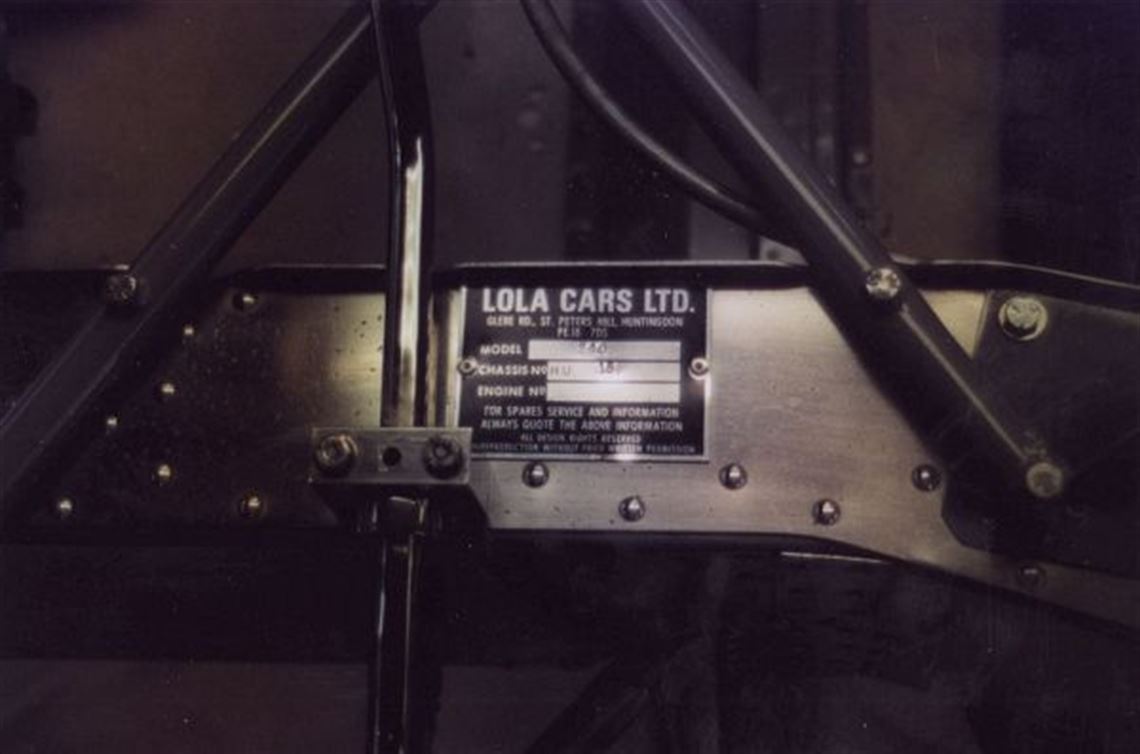

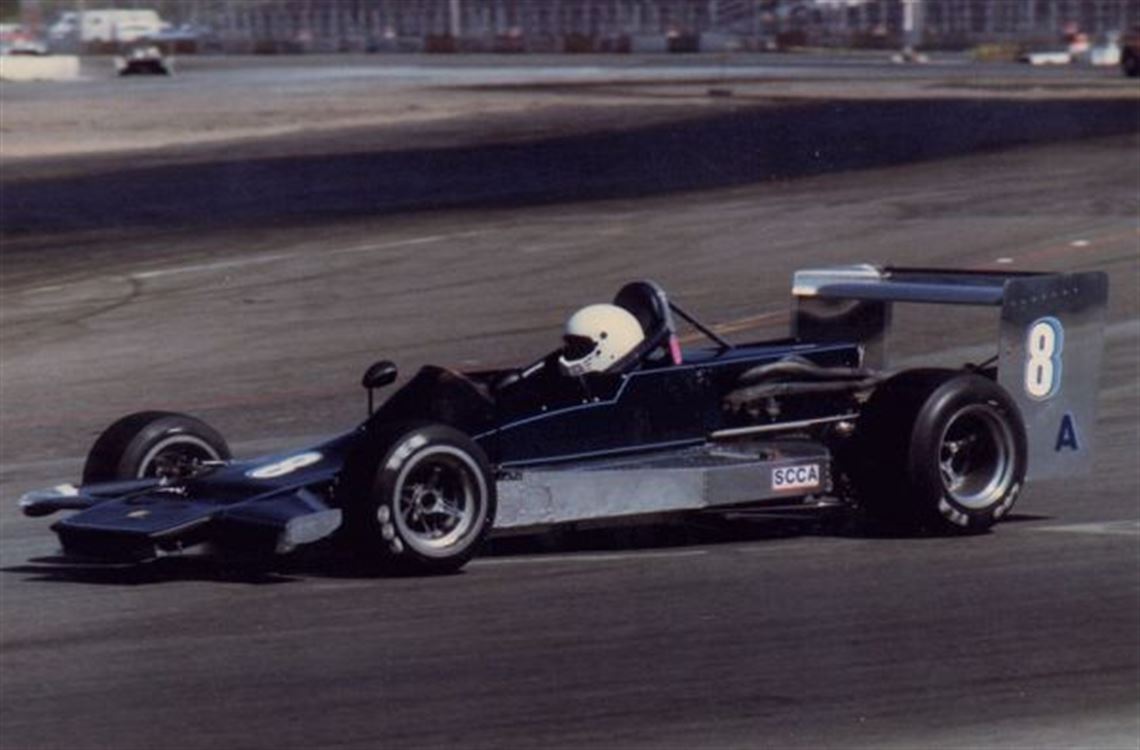

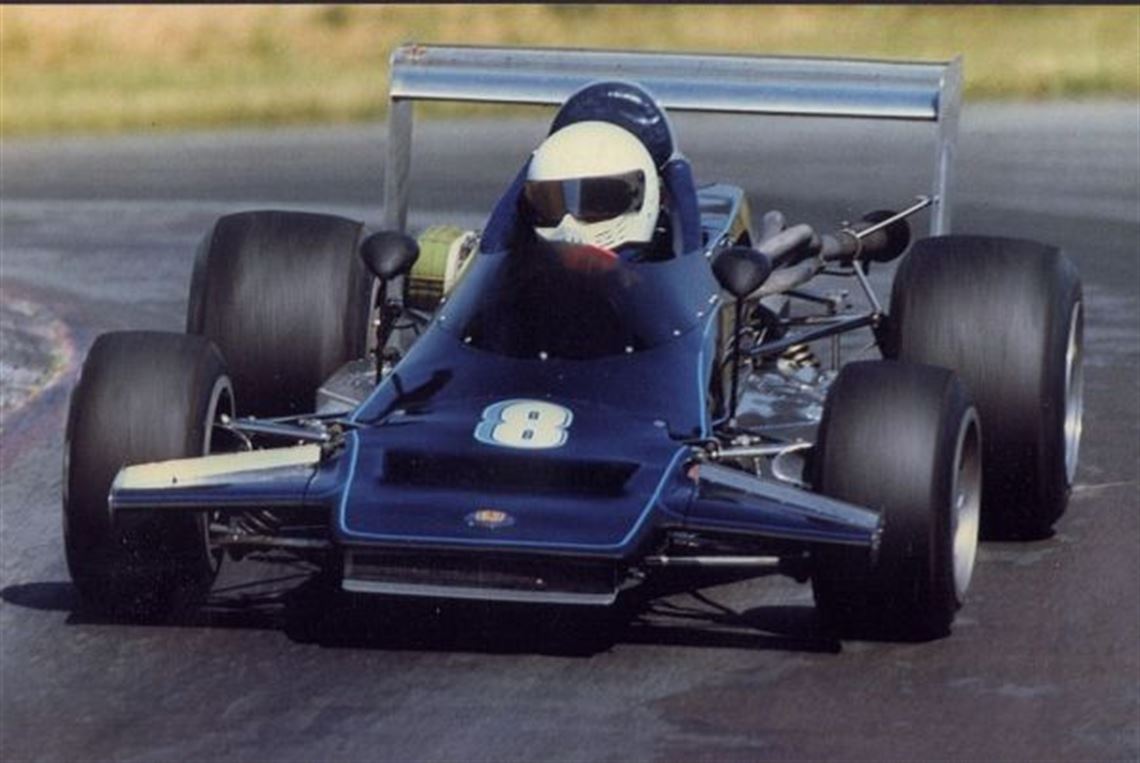

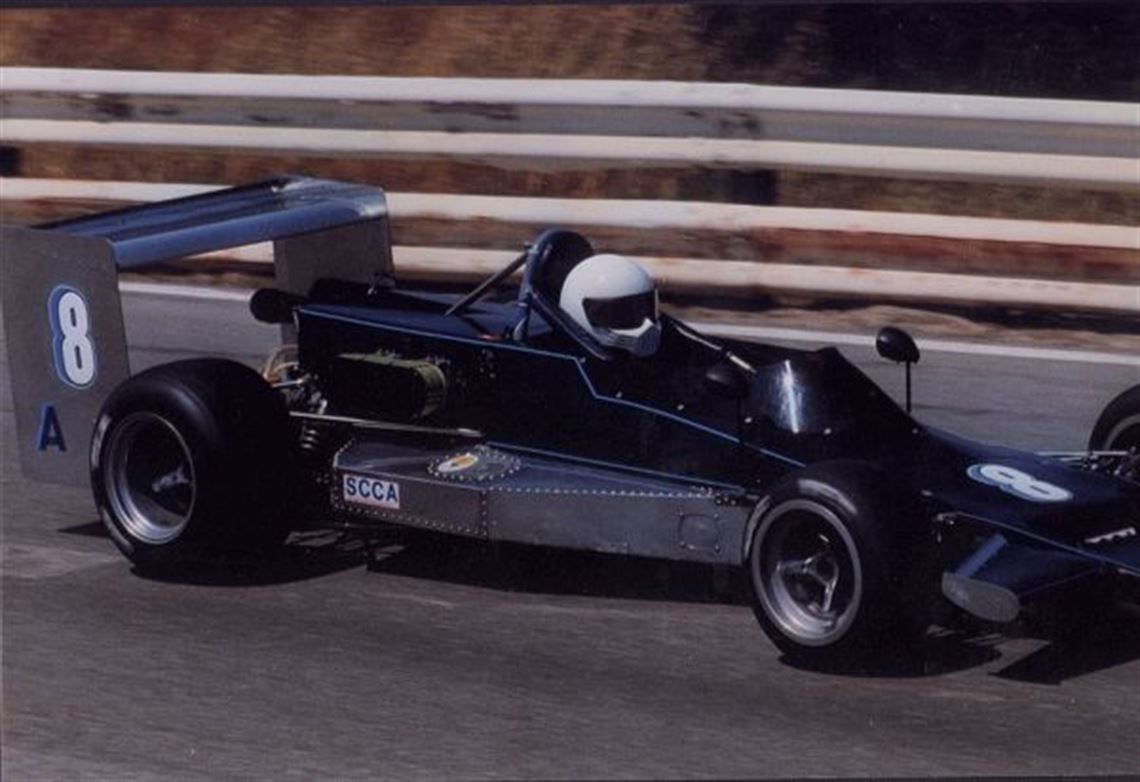

1971 Lola T-240 Formula B/Atlantic, Lotus 1600 Twin Cam, Hewland FT-200, serial number HU-15. This is believed to be the last one manufactured. This is a restored original with a fresh motor. The chassis is very similar to the Lola T-330, but does not have the extra 12-gallon fuel cell on the left side of the car. It has a custom front roll hood forward of the dash panel. Radiator water pipes have been placed inside of larger pipes in the driver compartment, per SCCA requirements. The previous owner(Rob Mullaney) updated the rear wing to improve car performance. I drove this car from 1980 to 1984 in regional and west car championship races with great enjoyment. The car was very forgiving while cornering and always got feed back before going out of driver control.

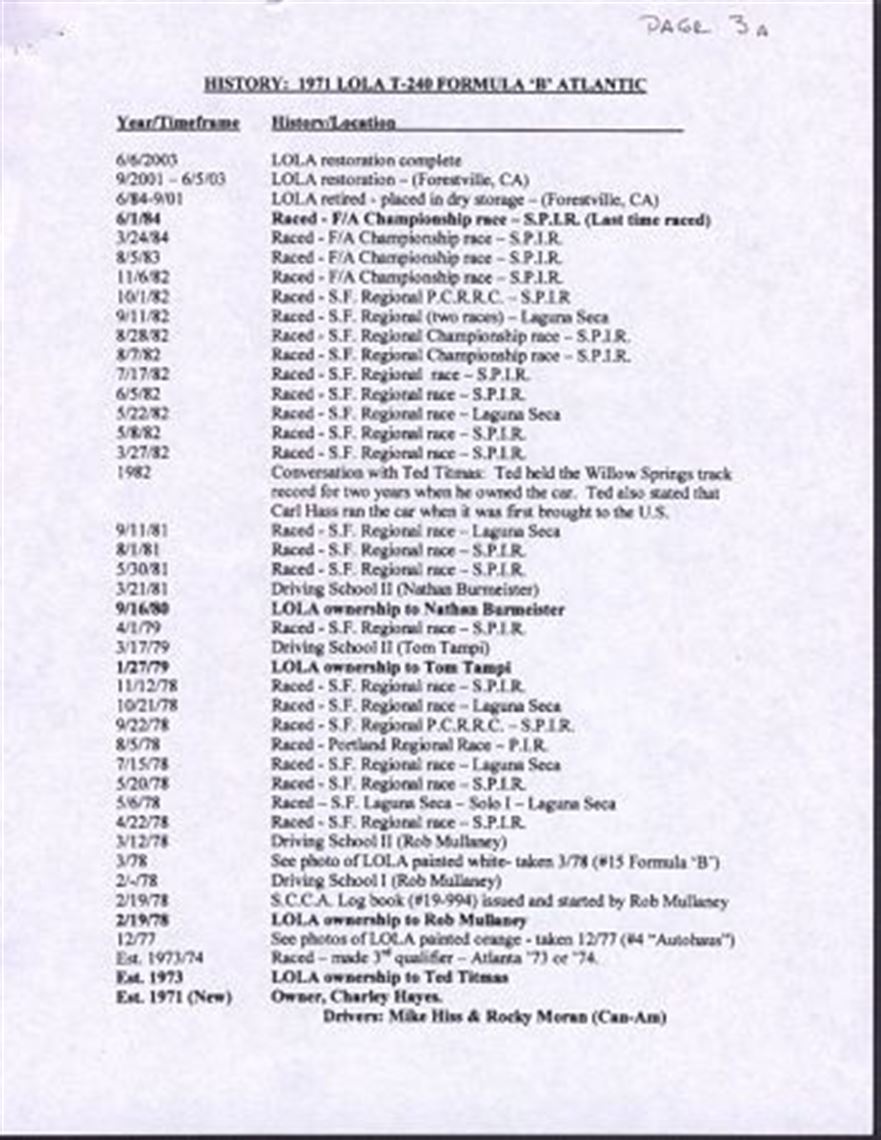

History

see attachment in photo section.

Competition History

see attachment in photo section.
Performance Data

• FB/FA

• 975 lbs

• Laguna Seca(old)

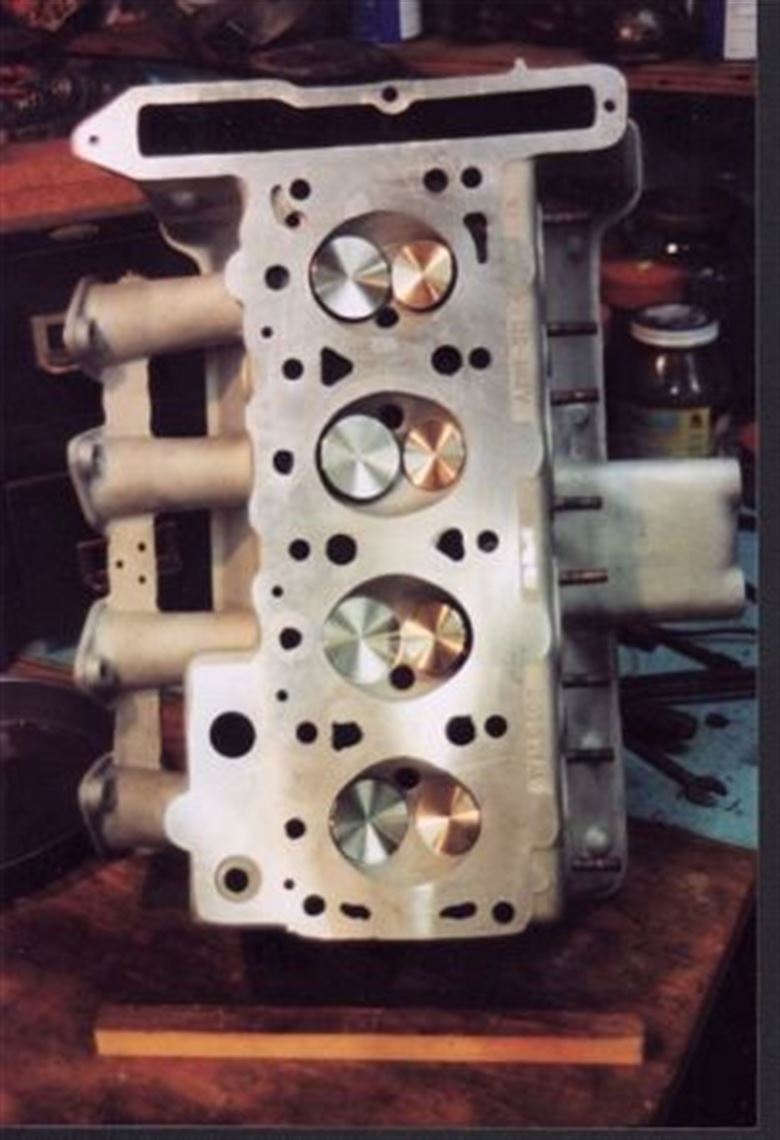

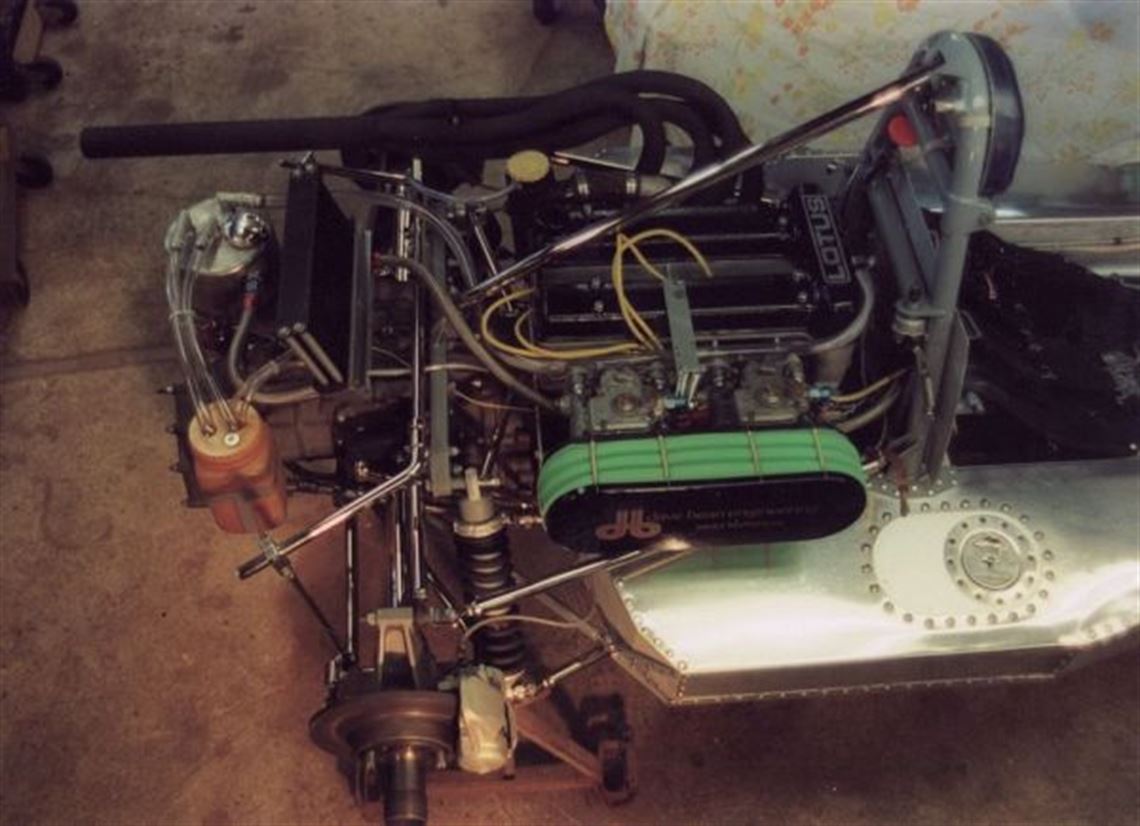

Engine

• Lola

• Lotus twin cam

• Formula B T-240

• 1600

• 185

• n/a

• weber 45 DCOE Carburetors

• Lotus

• Ford #3020E6015

• steel

• laystall-nitrided

• cosworth

• new: J&E 84mm

• similar to brian-hart ZL-1

• new stainless steel

• full racing spring packs

• one 7-1/4

• steel

• 4 to 1 w/super trap

• test only

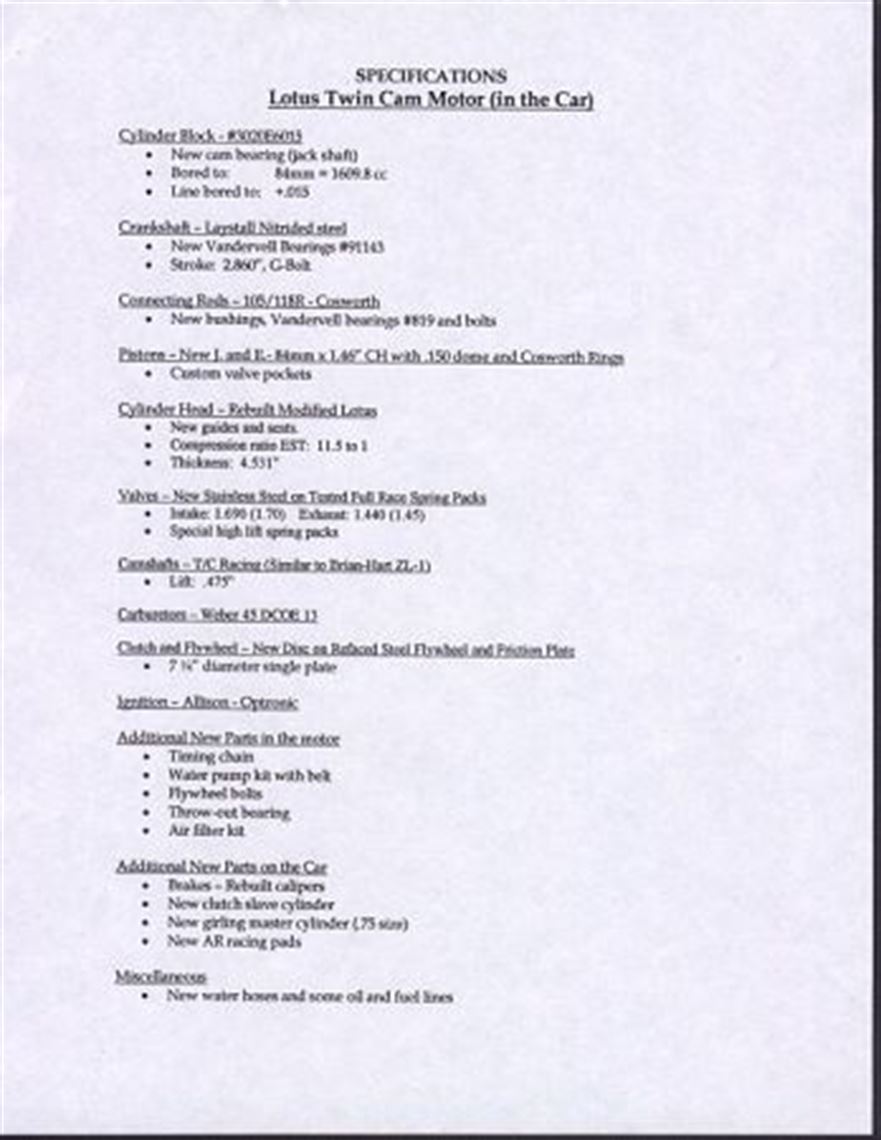

• see additional attachments


Fuel System

•

• flexible rubber

• 1974

• 12-US

• electric

• 108 octane


Oil/Water System

• brass-fin and tube

• front

• Lotus

• Earl's

• rear-over gear box


Electrical System

• lumenition optronic

• none

• new 12V-gel type

• none

• none


Transmission

• Hewland

• FT-200

• 5 speeds

• right hand

• none

• 'doughnut' drive w/out-board brakes


Rear End

• see above


Body

• hand 'lay-up' fiberglass

• dark blue metallic

• has rock-nicks from races

• has only 3 pieces to paint in your colors

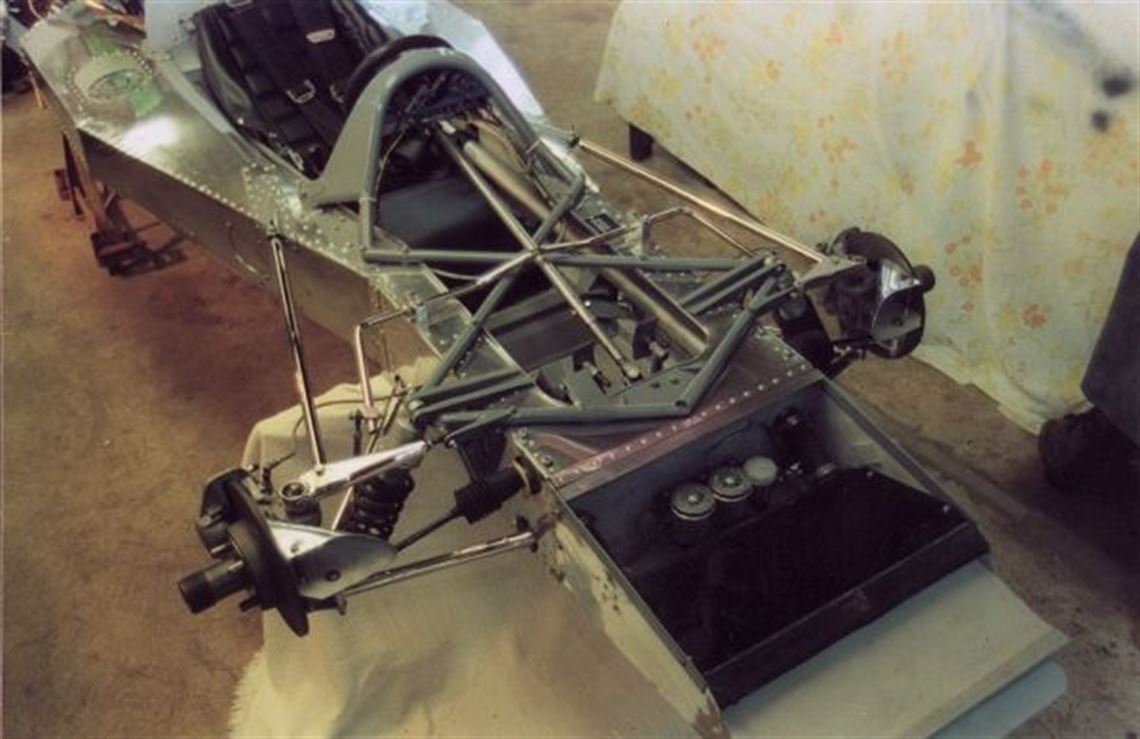

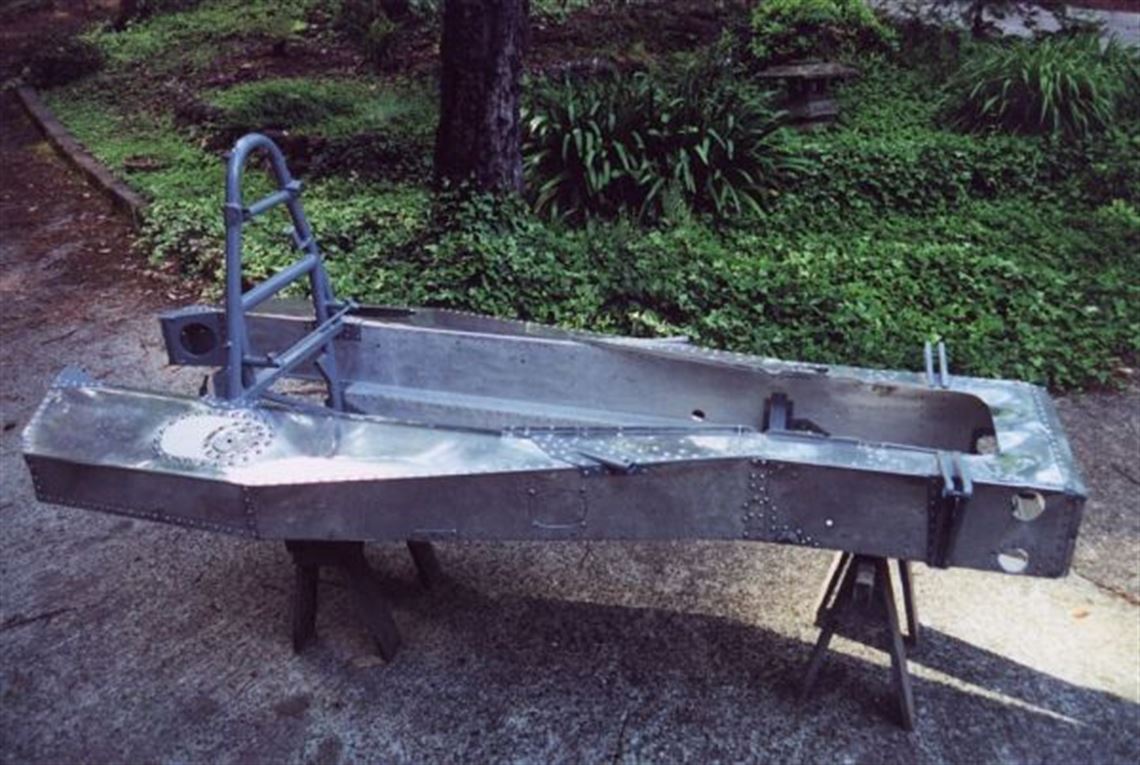

Chassis

• moncoque

• Lola

• L72 and NS4 aluminum

• polished exterior

• very good

• db tubular wishbone, nickel plated

• wishbone-radius rod, nickel plated

• gas bilstene, 1981

• 10.4

• rack & pinion, 11

• Lola 13

• Goodyear-used

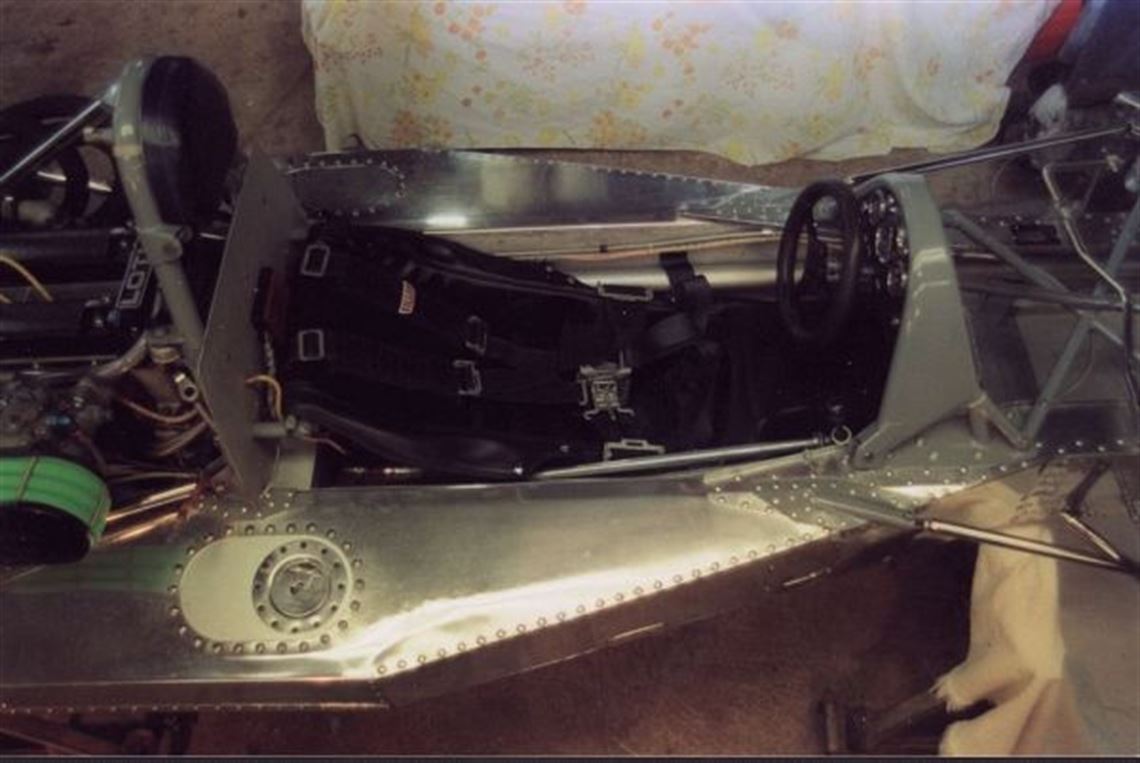

Interior

• black vinyl

• new seat covering

• bottle-10LB w/tube around driver

• Smiths. tac, oil, temp.

• 11

• restraint needs updating for racing


Spares

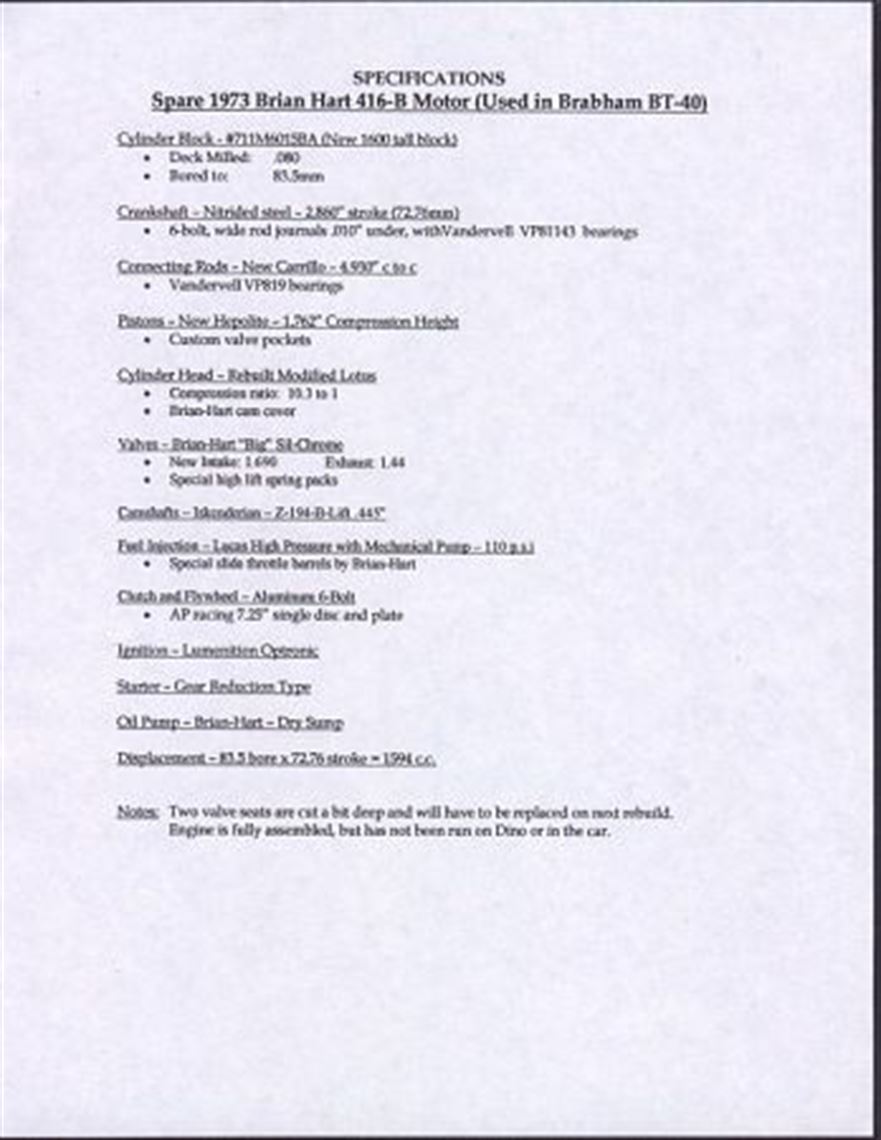

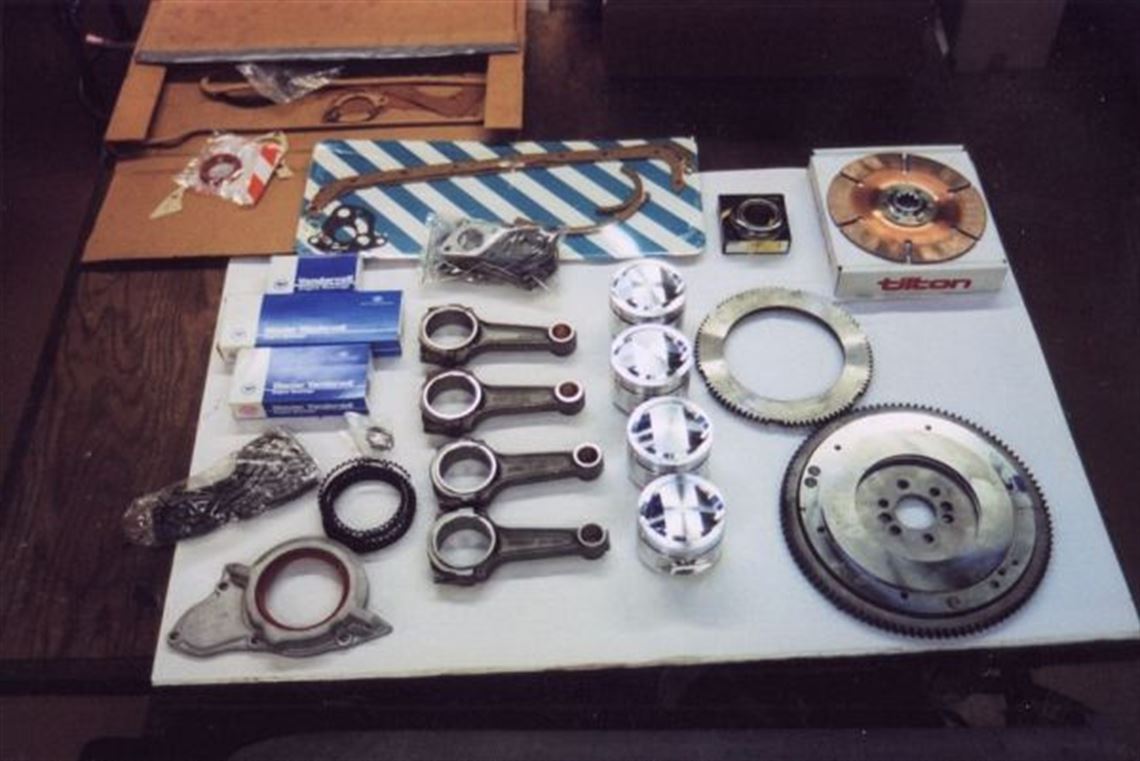

• fresh Brian-Hart 416B motor

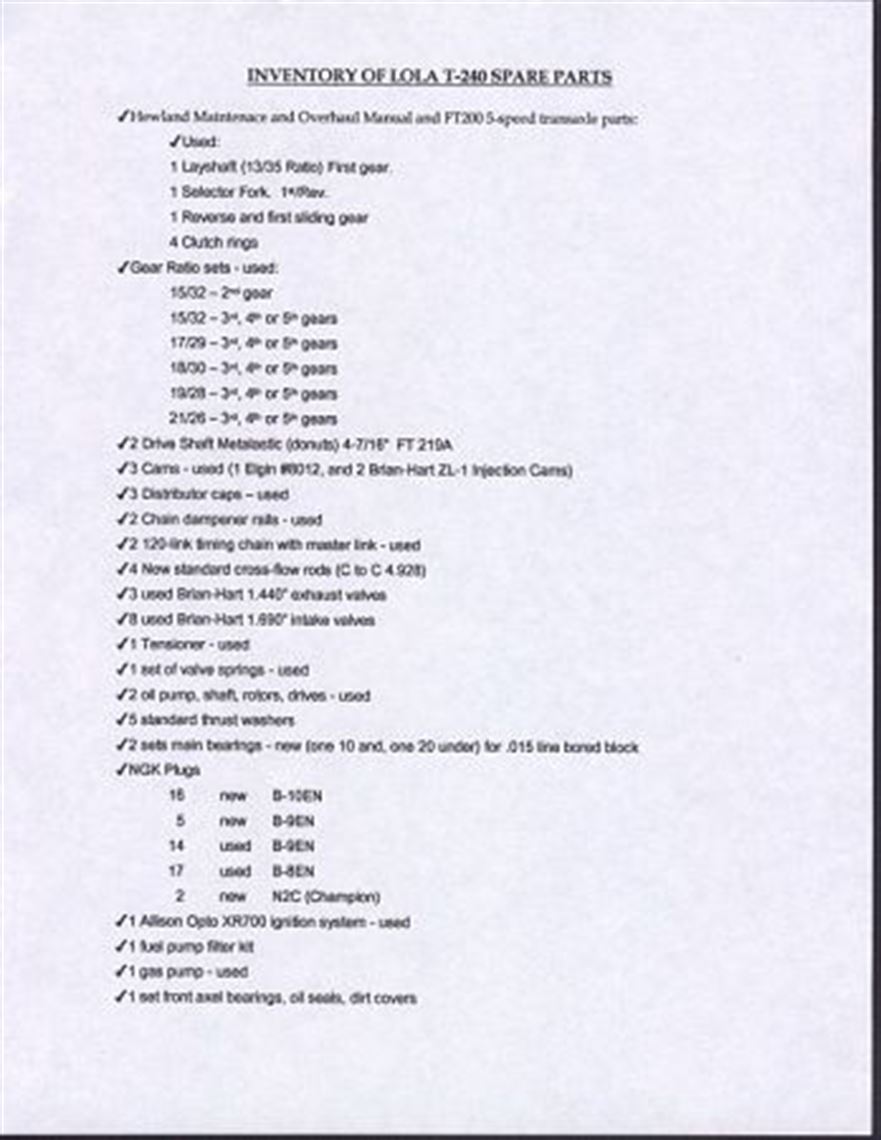

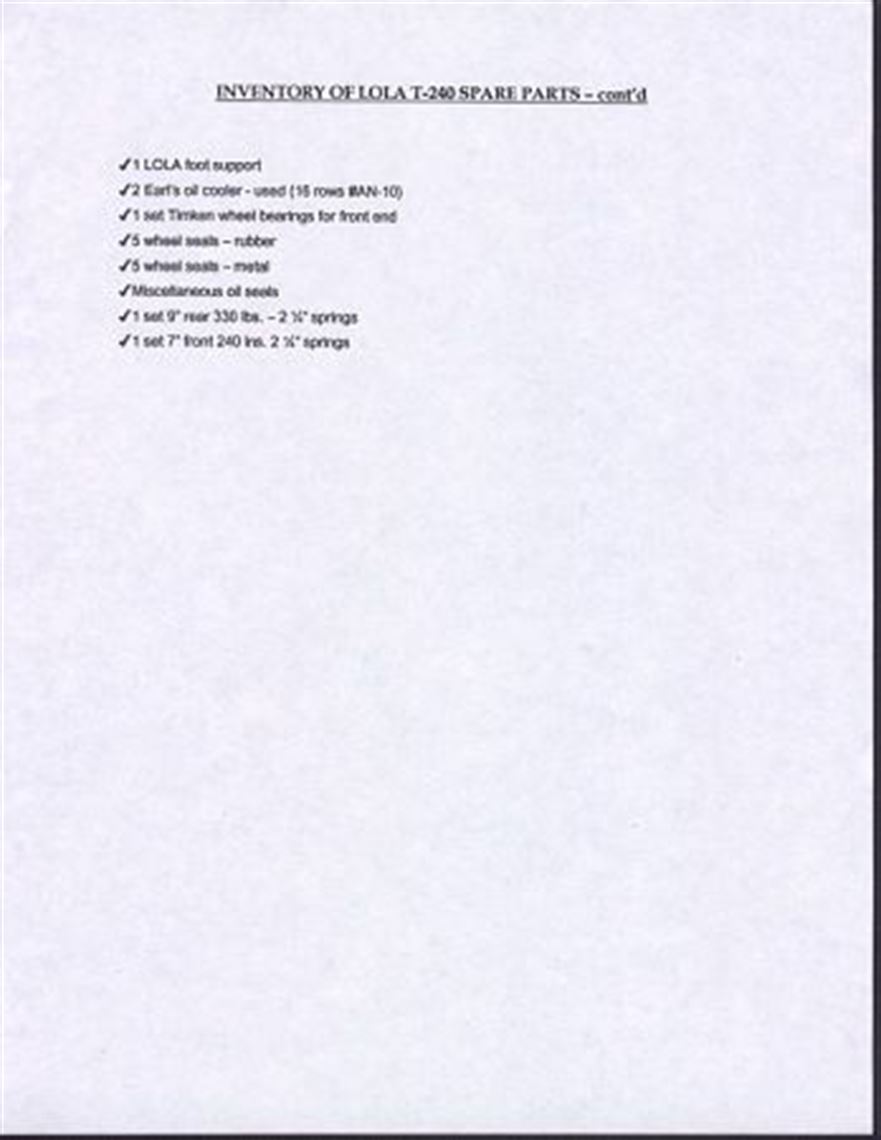

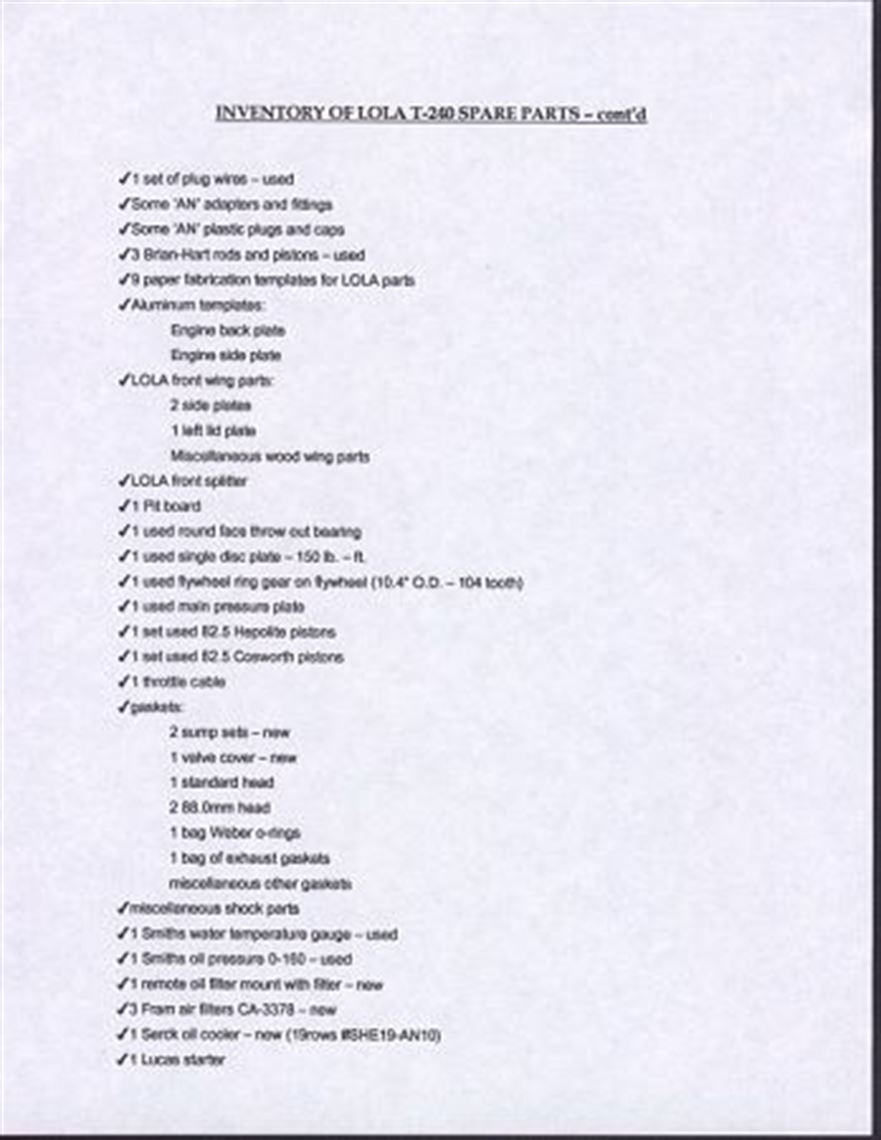

• see attachment in photo section

• set of wheels 9-1/2 & 13-1/2 w/rims

• front nose mold

• custom open trailer
