Description:

A unique head turner with performance to more than match it looks. A completely carbon-fibre Lotus 7 replica built for eating up tarmac. Based on a fully independent chassis this car has been built to the highest specification with no cost spared. The chassis was strengthened and braced before being powder coated and panelled completely in pre-preg carbon-fibre, inside and out. A superbike R1 engine was placed far back into the chassis giving power, revs and a six speed sequential gearbox to play with. More carbon-fibre was added to complete the cockpit. Alloy shocks, big brakes and anti-roll bars were put on the corners to compliment the super-lightweight theme. Now complete, a sub 4s 0-60mph fully road-legal car is the result. A car that is comfortable, yet ballistic, on the road and still fully at home on the track or special stage. Performance: 0-60mph in 3.7s, 0-100mph in 9.5s, standing quarter in 12.1s


History

Completed in April 2003 this car was built specifically for speed on tarmac. As a project it was a complete success - winning it's debut event (the Sunbeach Rallysprint), now, due to the relocation of the owner, it is reluctantly up for sale.

Competition History

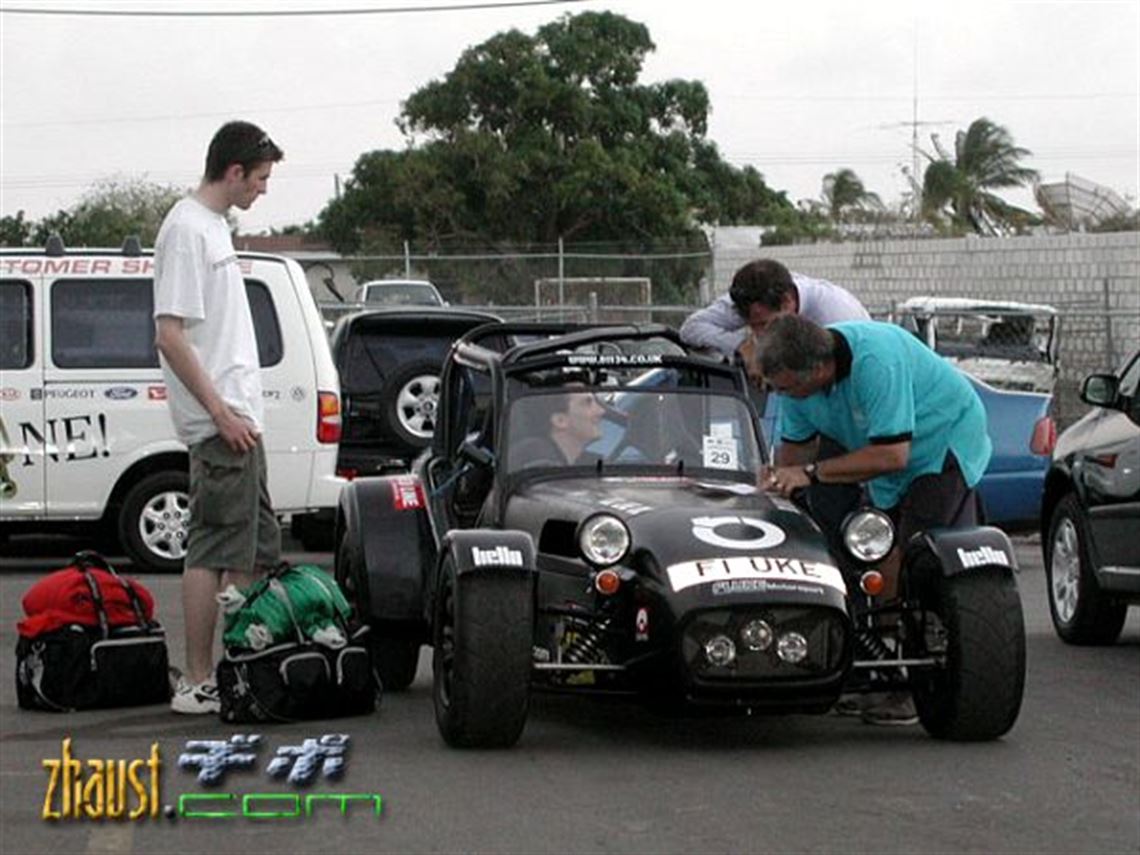

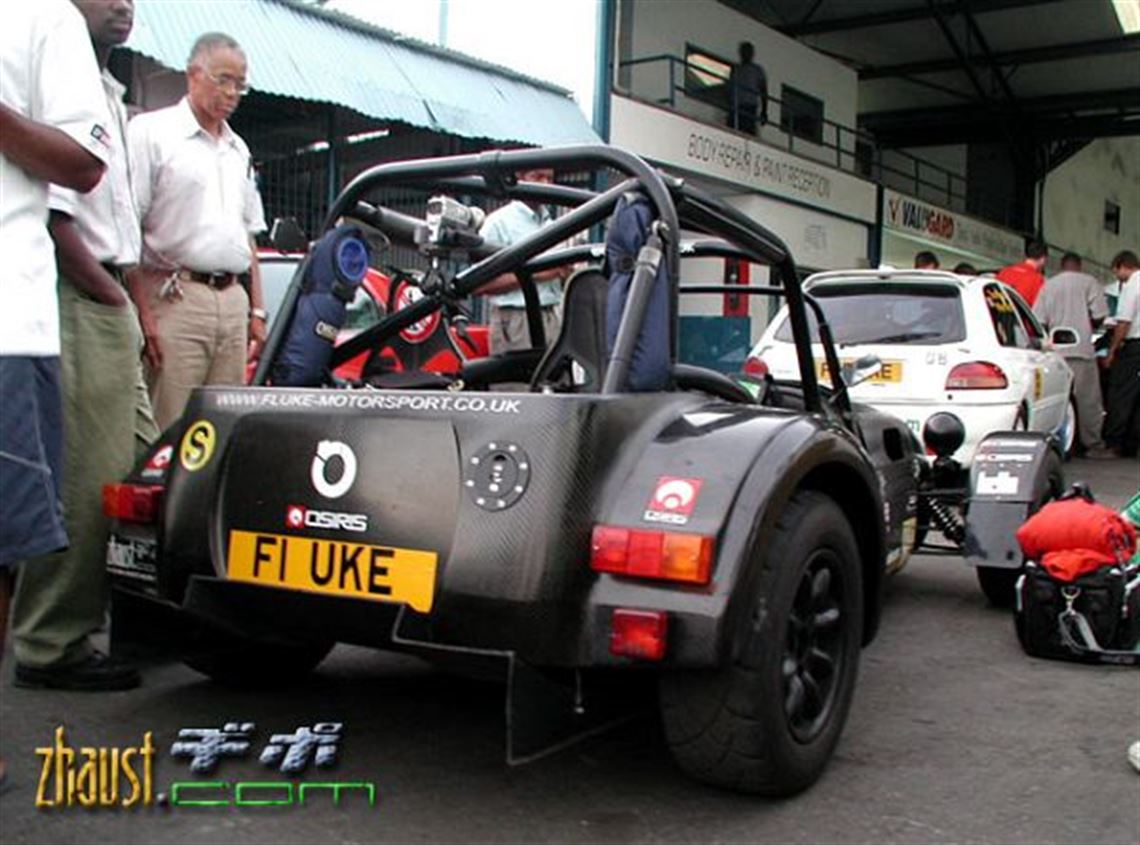

A regular favourite of the Barbados Rally Carnival, the car finished 1st in class at the Sunbeach RallySprint in June 2003, previously being one of the class leaders in the Westfield Speed Series Championship in the UK.
Performance Data

• 880 lbs


Engine

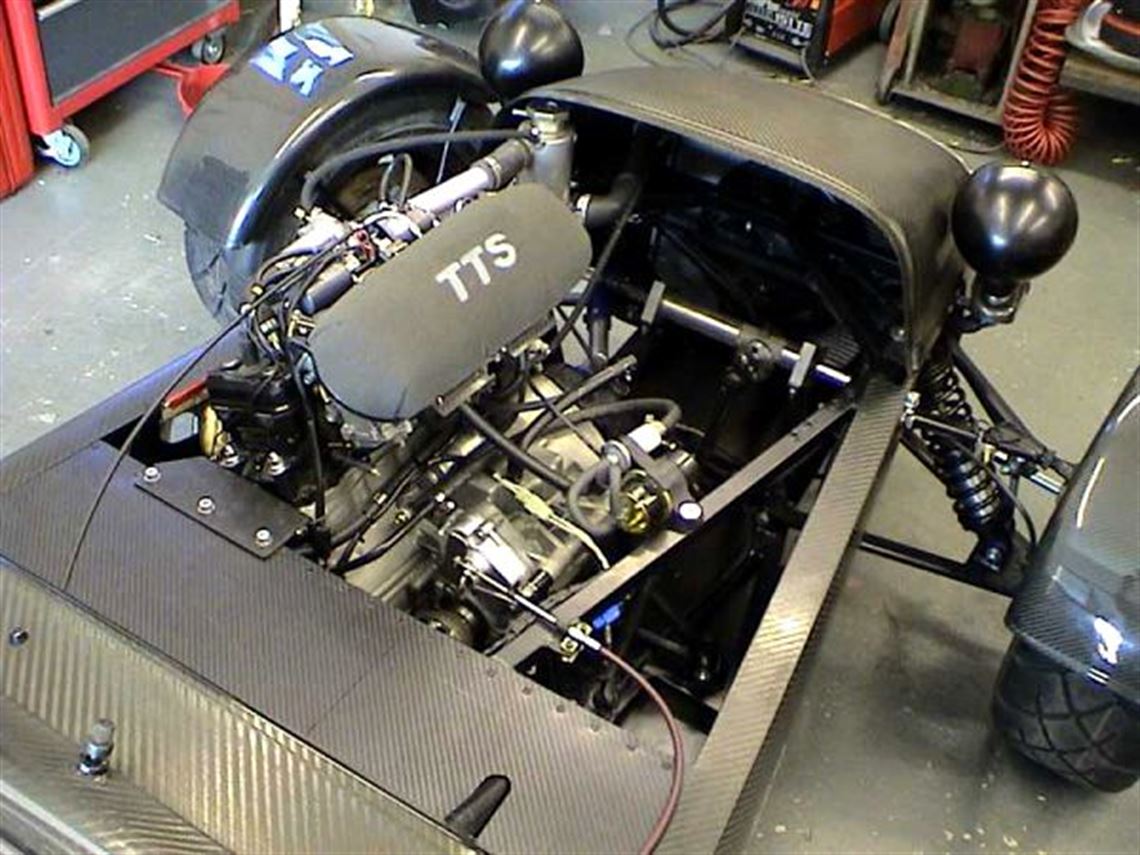

• Yamaha R1 20v

• 998cc

• running Mikuni carbs, rejetted by TTS for optimum performance

• magnesium/alloy

• alloy

• steel

• Barnett carbon clutch with steel drive plates

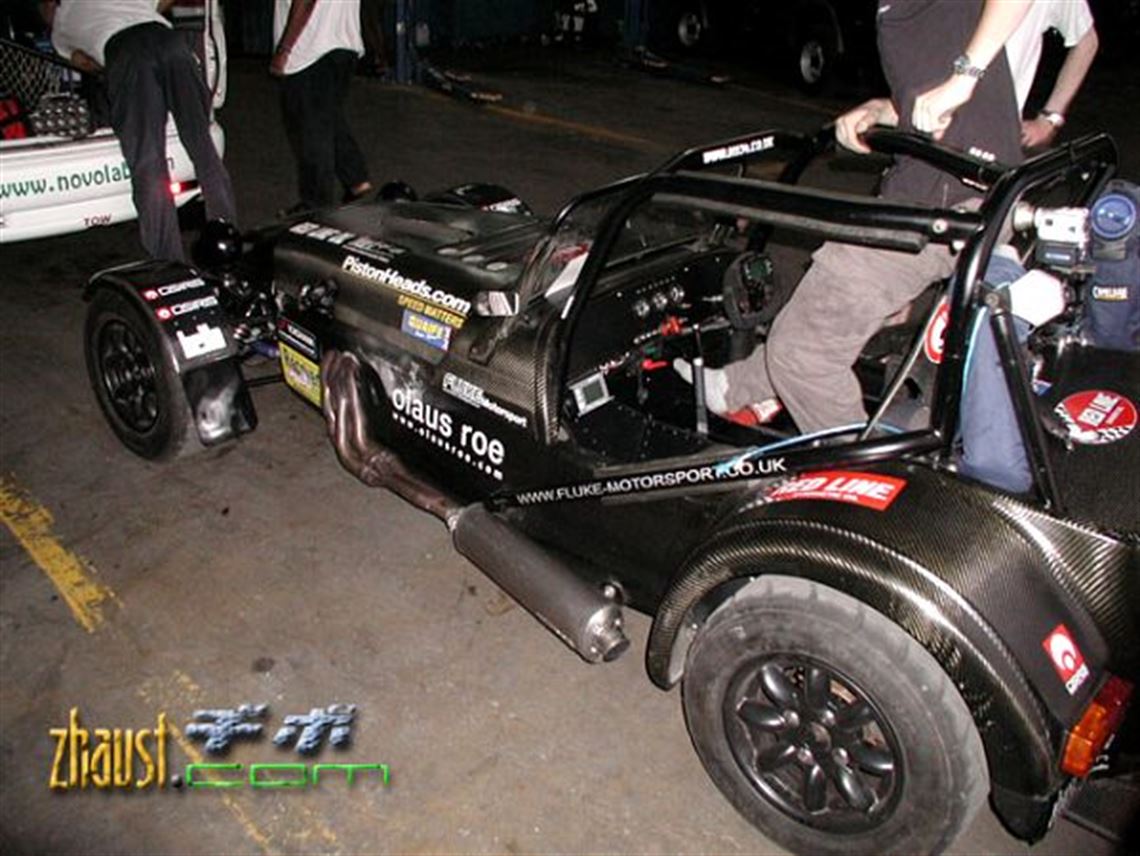

• Custom thinwall s/steel, serpent headers, titanium silencer

• <1000miles

• 1

• Pipercross air filter, carbon-fibre backplate, Baffled sump with pressure relief


Fuel System

•

• Baffled 25 litre

• Electrical pump

• Unleaded petrol


Oil/Water System

• yes, alloy


Electrical System

• Minature relays and fuses mounted in carbon fibre panelling

• yes, lightweight red top

• yes, full trackmapping/laptiming


Transmission

• Six speed sequential dog box

• 6

• Paddle-shift system (on steering wheel) clutchless flat-shif

• Backup mechanical sequential shift beside the steering wheel, Bailey Morris centre-bearing prop


Rear End

• Quaife automatic torque biasing differential


Body

• carbon-fibre throughout

• excellent


Chassis

• SEi, strengthened, braced, powder coated. Full RAC approved T45 chromoly roll-cage

• Steel

• black powder coated

• Excellent

• Independent double wishbones, alloy uprights, fully adjustable alloy drop link anti-roll bar

• Independent double wishbones, alloy uprights, fully adjustable alloy drop link anti-roll bar

• Alloy fully adjustable Avo shock abosorbers

• Wilwood 4 pots front, AP rear, all lightweight

• Titan 1.7 turn alloy quick rack

• Compomotive ML 7x13 alloy wheels, powder coated black

• Yokohama A032ss 205x60 tyres

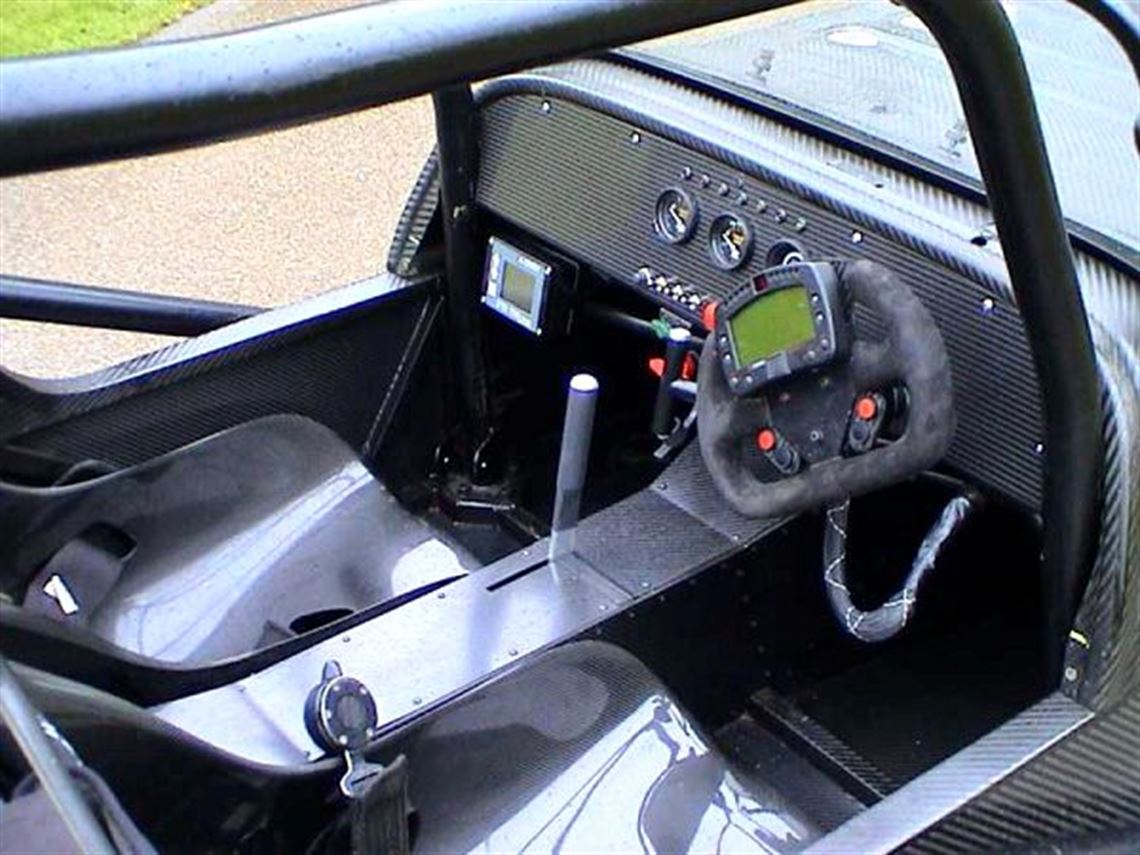

Interior

• Drivers console is a steering wheel mounted MyChron 3 dash

• carbon fibre throughout

• Yes, SPA

• Willans

• full array of gauges and full track mapping/lap timing

• quick release Momo

• excellent


Spares

• Two spare Compomotive ML rims with tyres

• full set of shock absorbers and springs allowing ride heights from 2

• aeroscreen,

• Various lights

• setup sheets and datalogging
