Description:

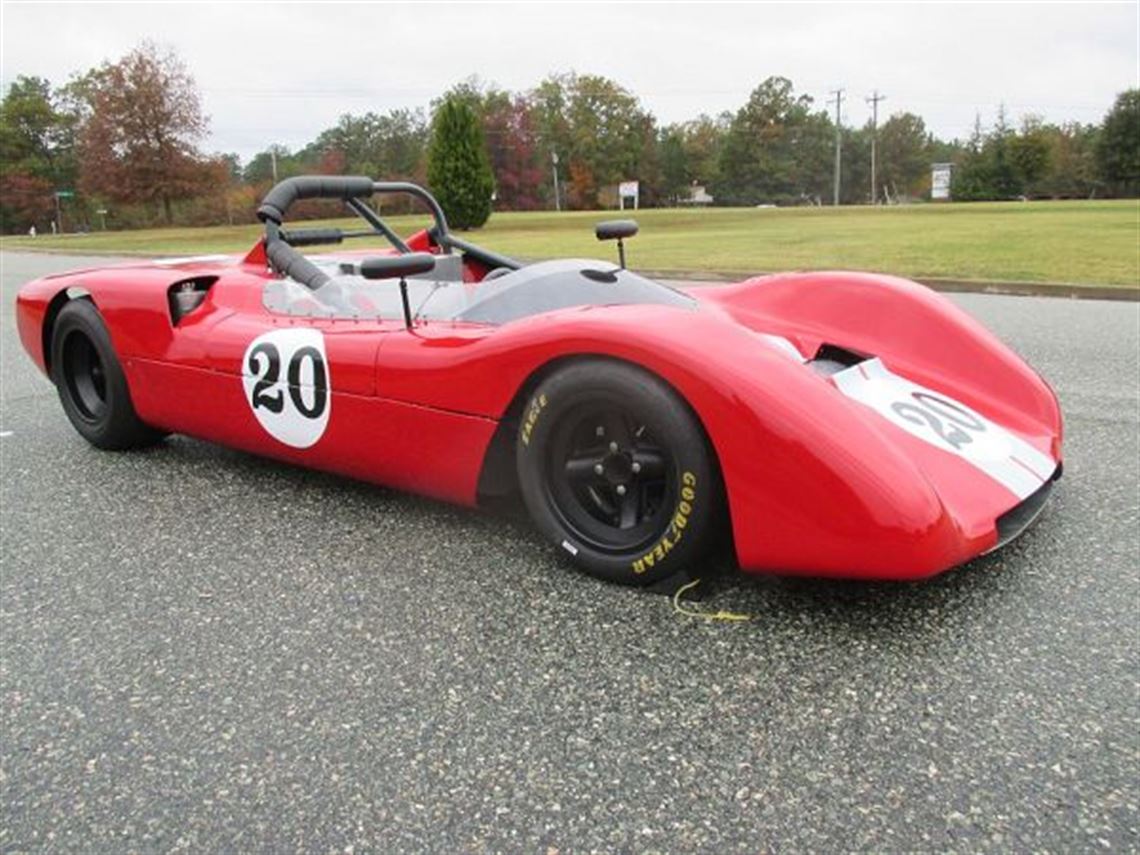

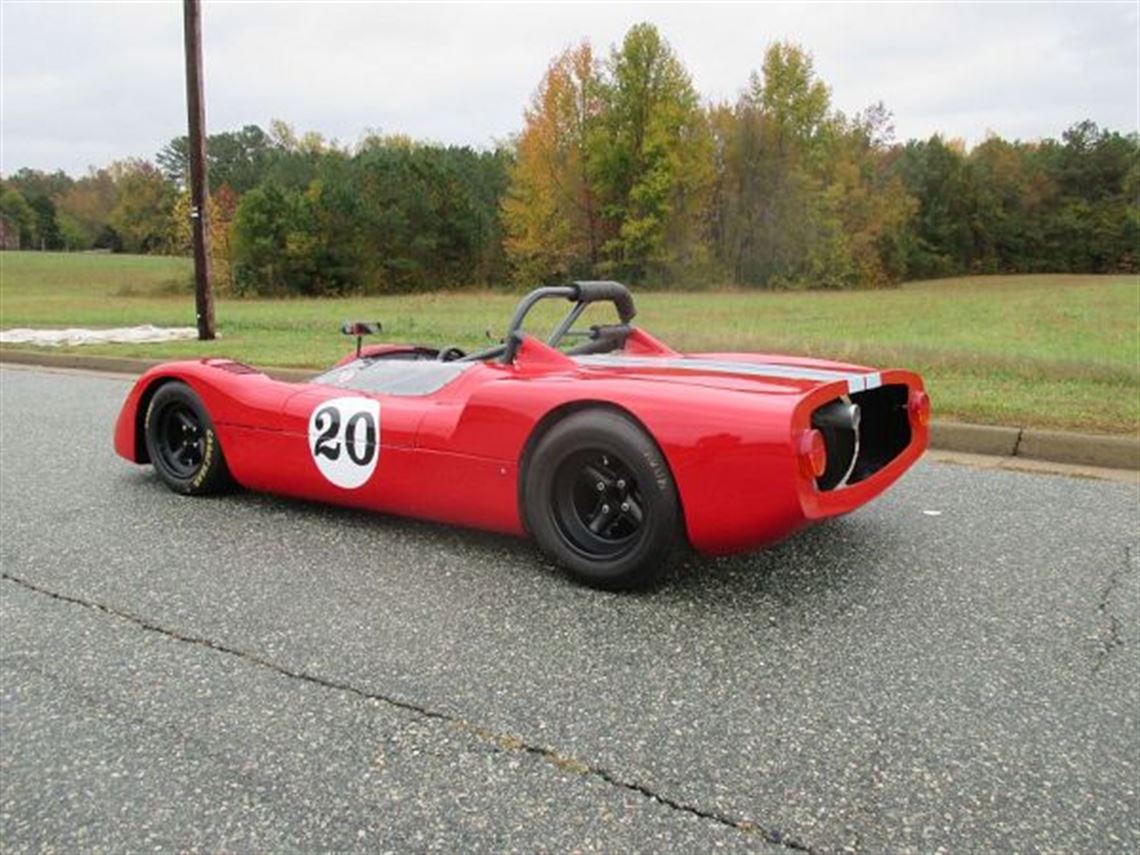

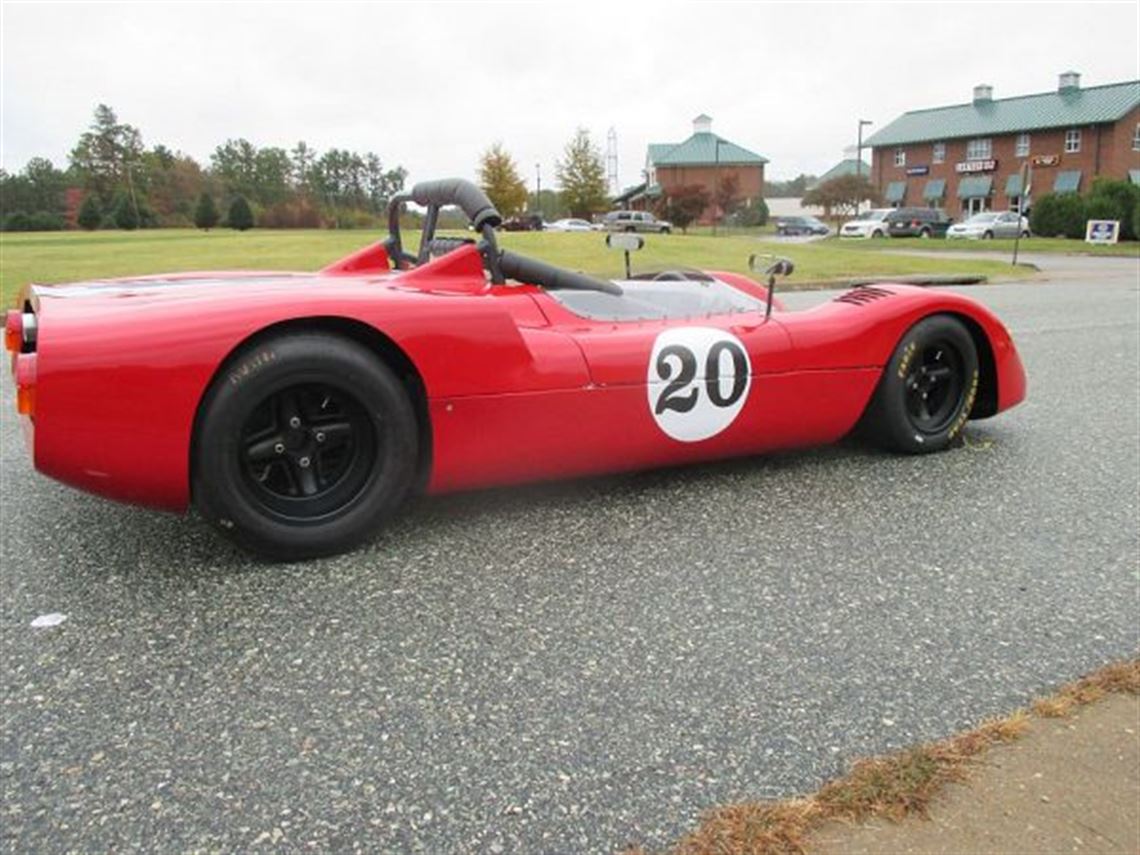

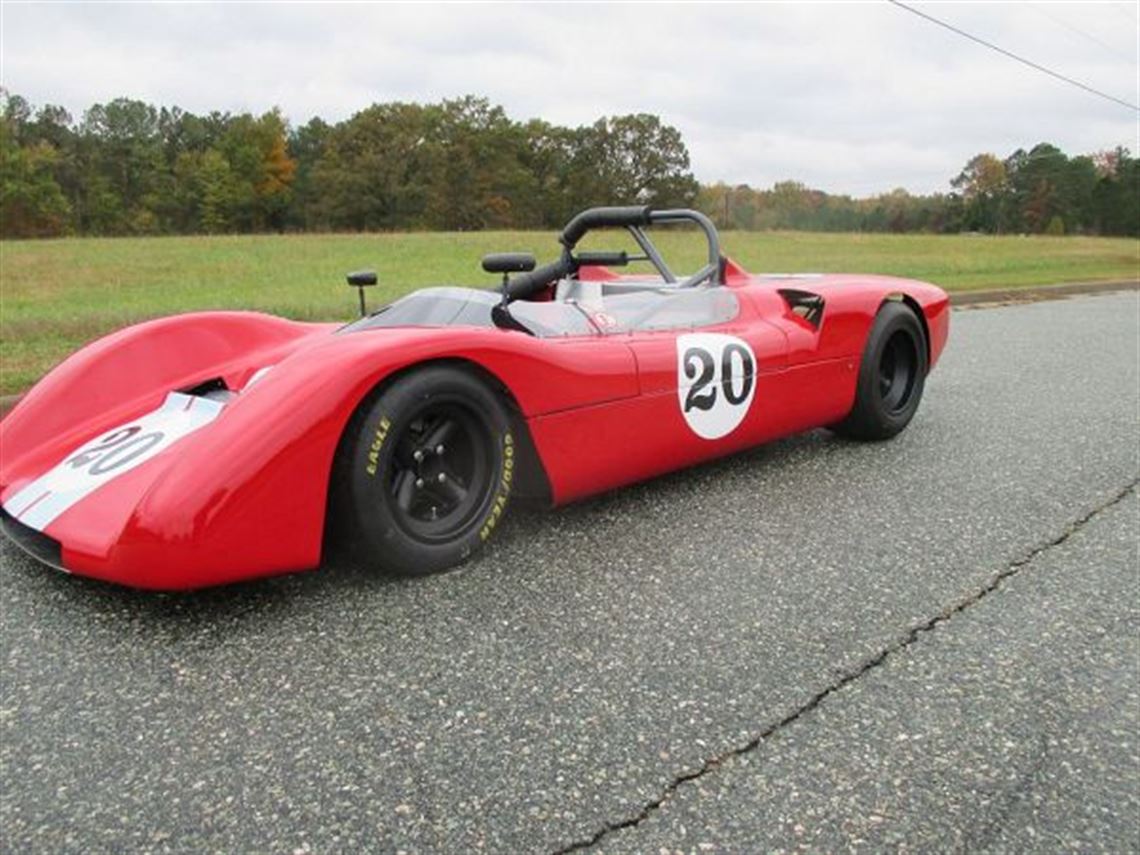

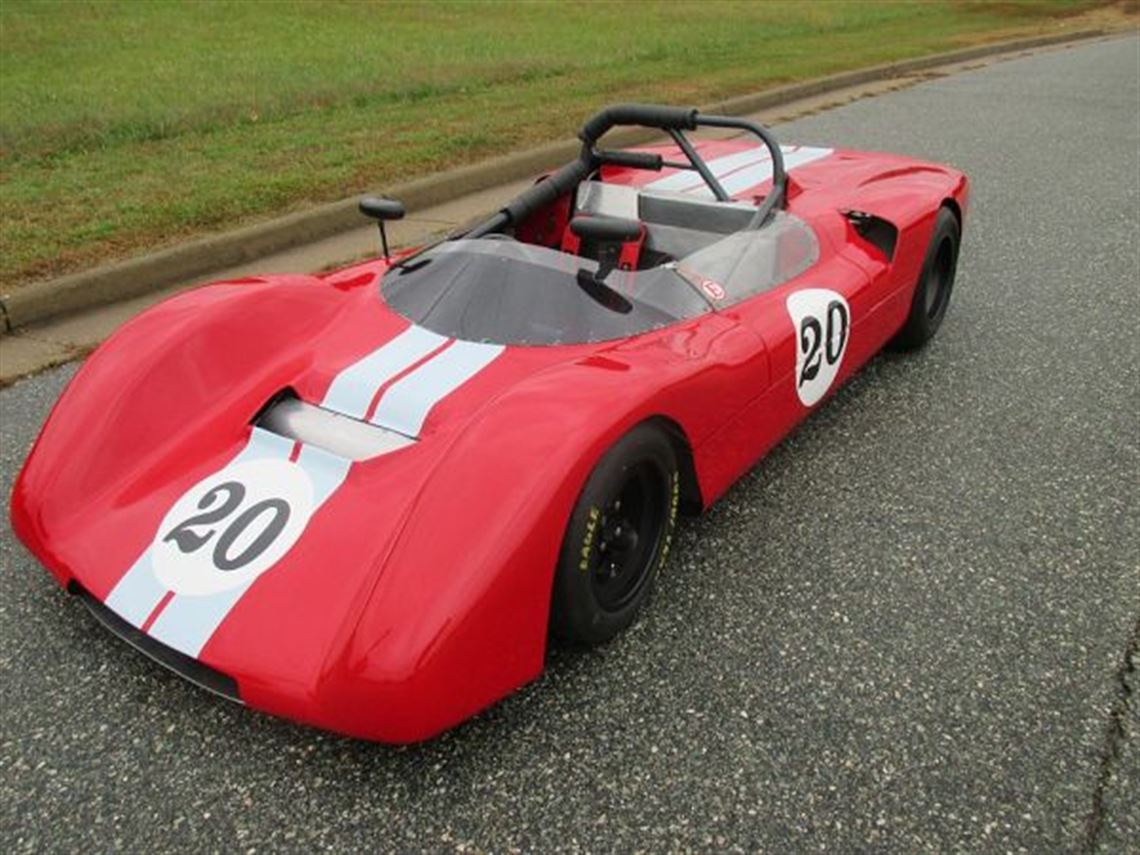

PBS is an American engineering company out of California, who were known for their small-displacement, high-performance Fiat based engines. The DOHC 16v versions could be configured from 1100cc to 1600cc with most being 1300cc. All use the Honda 750 valve train, and FIAT X1/9 bottom ends, which allows attainable replacement parts. The DOHC engine was tested using a Mk. IV chassis and was designed to be installed in the Mk. 7 monocoque. Originally there were only 4 Mk. IV built by PBS with power plants ranging from SAAB two-stroke engines to Fiat 850, and 1300cc X1/9. This car was built as a kit by Norm Holcomb with the latter power plant as a CSR. Mr. Holcomb widened the body by 4” from the standard Mk. IV, making this a one of one from the ultimate sports racer era. SVRA log book. Only 8 hours on engine rebuild, TRE Mk. 9 transaxle with Mk. 5 gears and Quaife differential. Complete frame-up no expense spared restoration, with bonded and riveted floor pan, new aluminum panels, fresh paint, new fuel cell, gauges, battery, fuel and oil lines, AN hardware throughout, and too much more to list.


History

YouTube video of the car racing in 2006: https://www.youtube.com/watch?v=N2b6fDx6QS0

Competition History

This car is very competitive in SVRA group 5 with Lotus 23s and Elva Mk. VIIs, and has won its class multiple times among many different sanctioning bodies. Monterey eligible.
Performance Data

• CSR/ FM

• 1050 lbs

• VIR

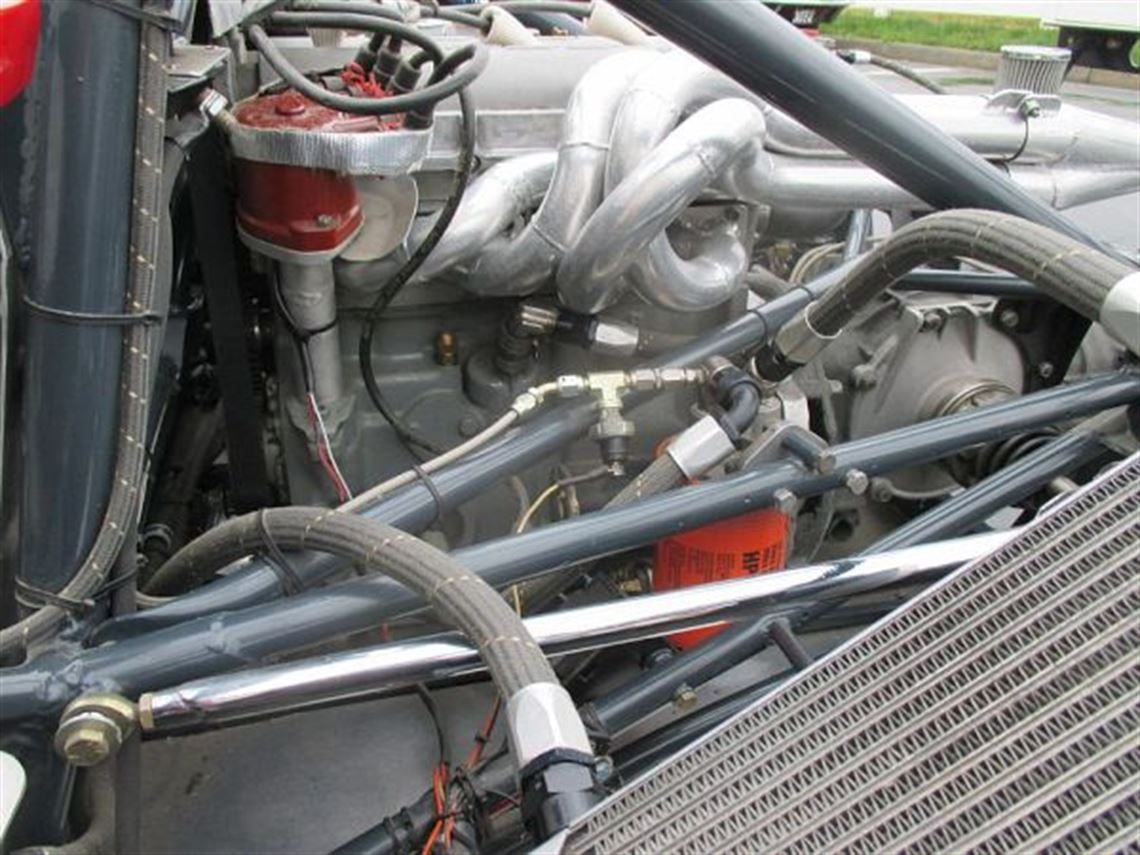

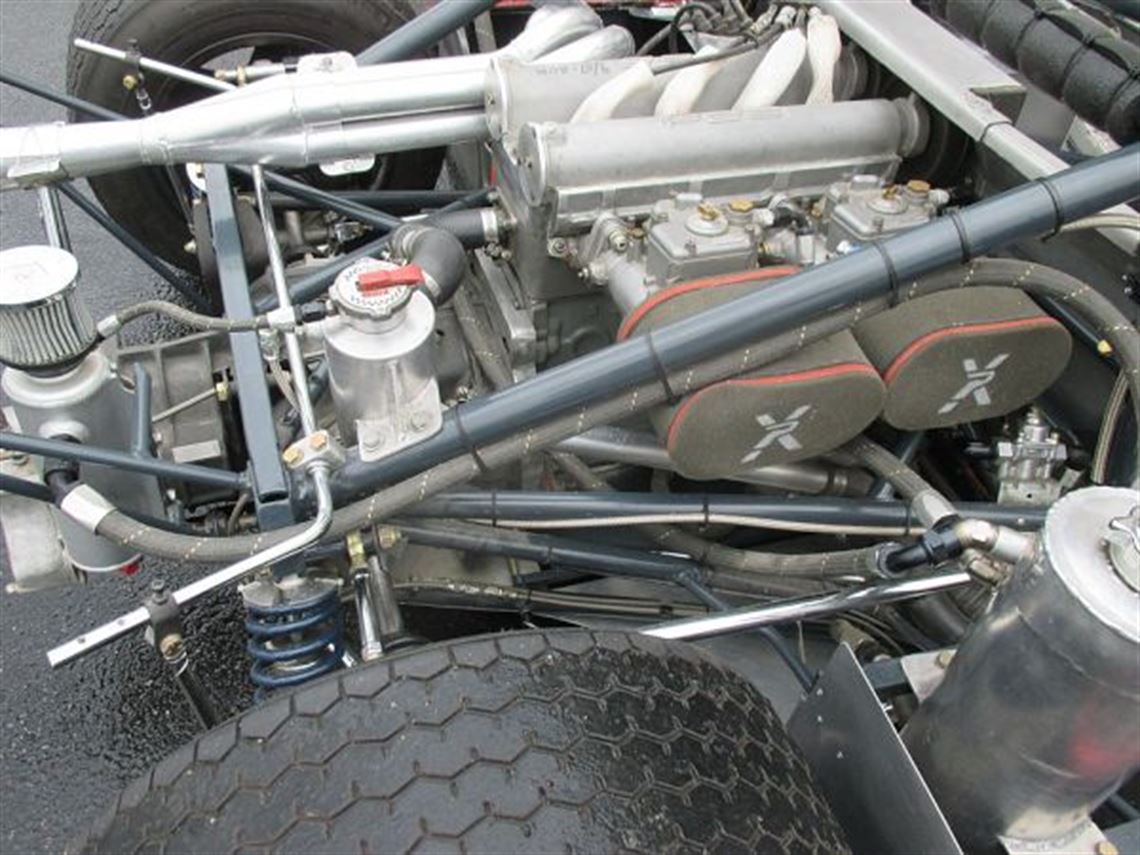

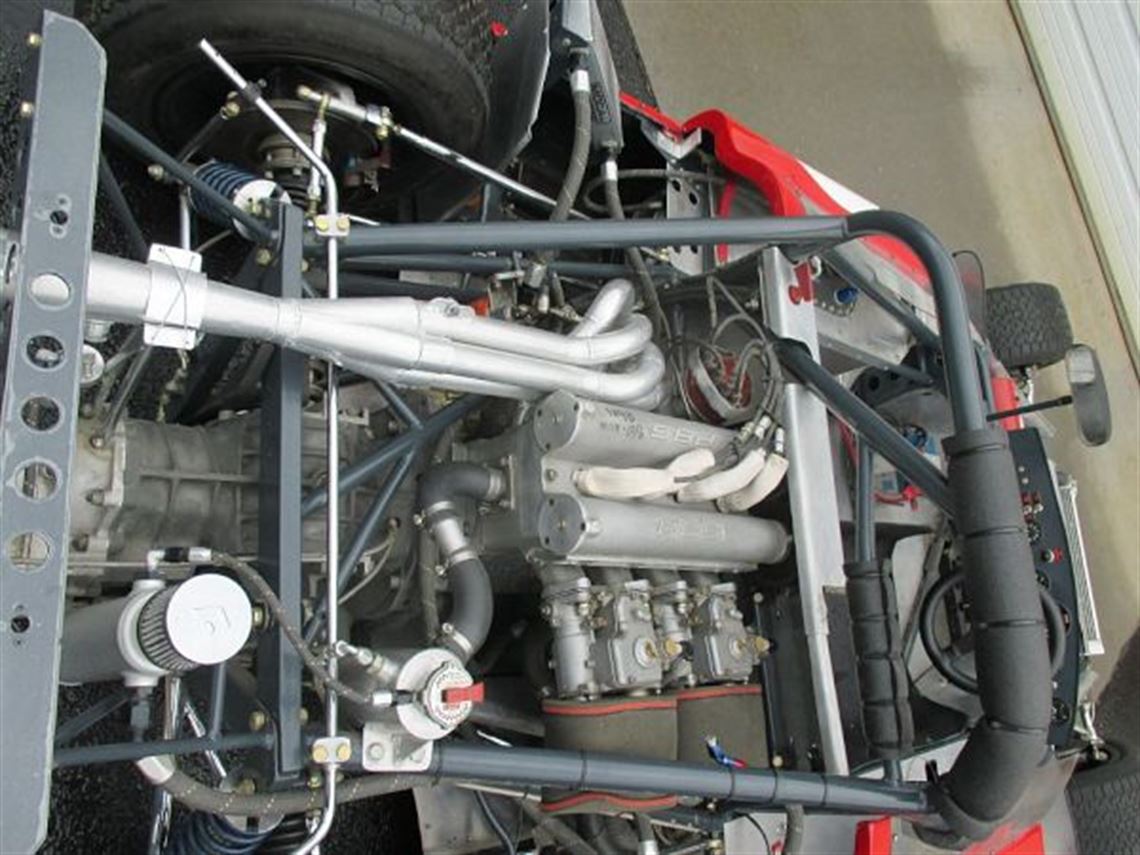

Engine

• PBS

• 16v DOHC X1/9

• 1530cc

• approx. 200

• 2 Weber 45 DCOE

• PBS

• Fiat X1/9

• Fiat

• Carillo

• JE

• PBS

• Honda 750

• Honda 750/ PBS

• Tilton 7 1/4

• Tilton 7 1/4

• 8-4-1

• 8 hours

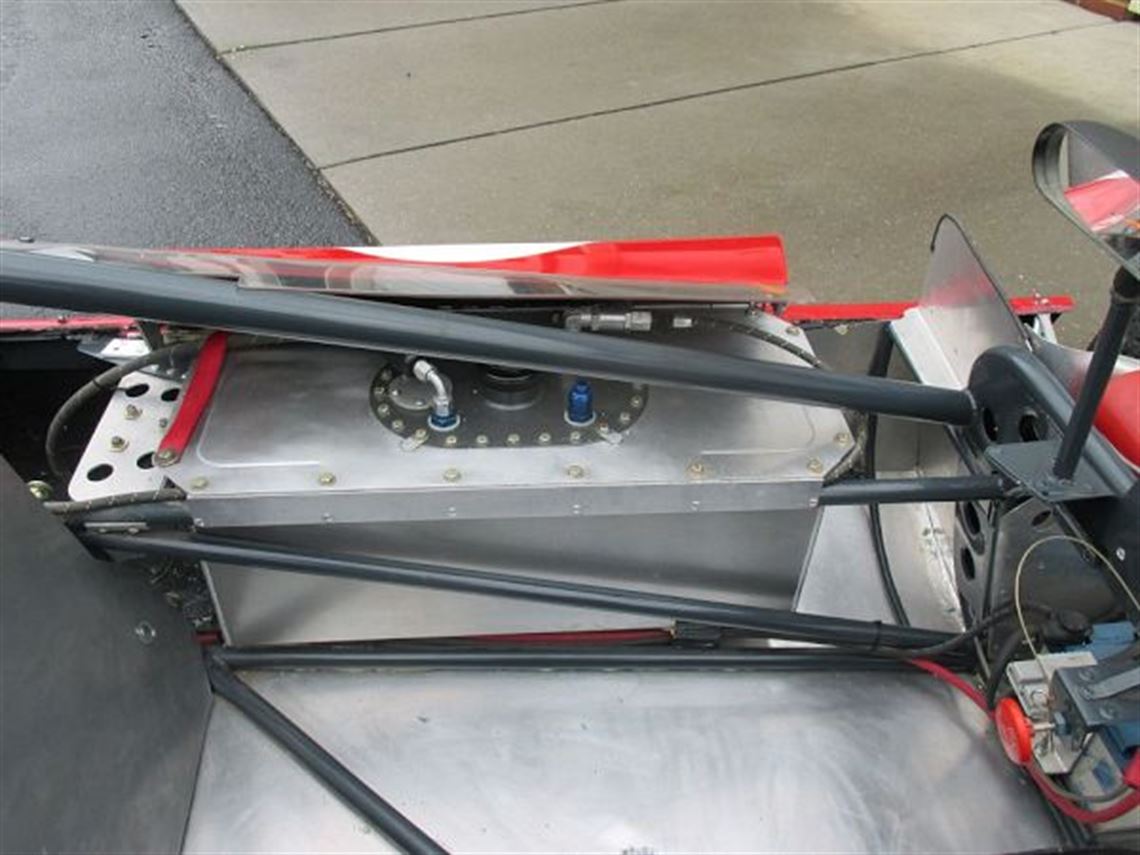

Fuel System

•

• Fuel Safe

• 0 races

• 10 gallon

• electric

• 112 octane


Oil/Water System

• Aluminum

• Front mounted

• Fiat

• Mocal

• Left side


Electrical System

• RML electronic with rev-limiter

• SBS 26Ah Gel Cell


Transmission

• Webster 5 speed

• Mk. 9

• Mk. 5


Rear End

• 9:31

• Quaife Limited Slip


Body

• Fiberglass

• New paint


Chassis

• Tubular steel spaceframe with bonded and riveted full length aluminum floor

• PBS

• Complete frame-off restoration

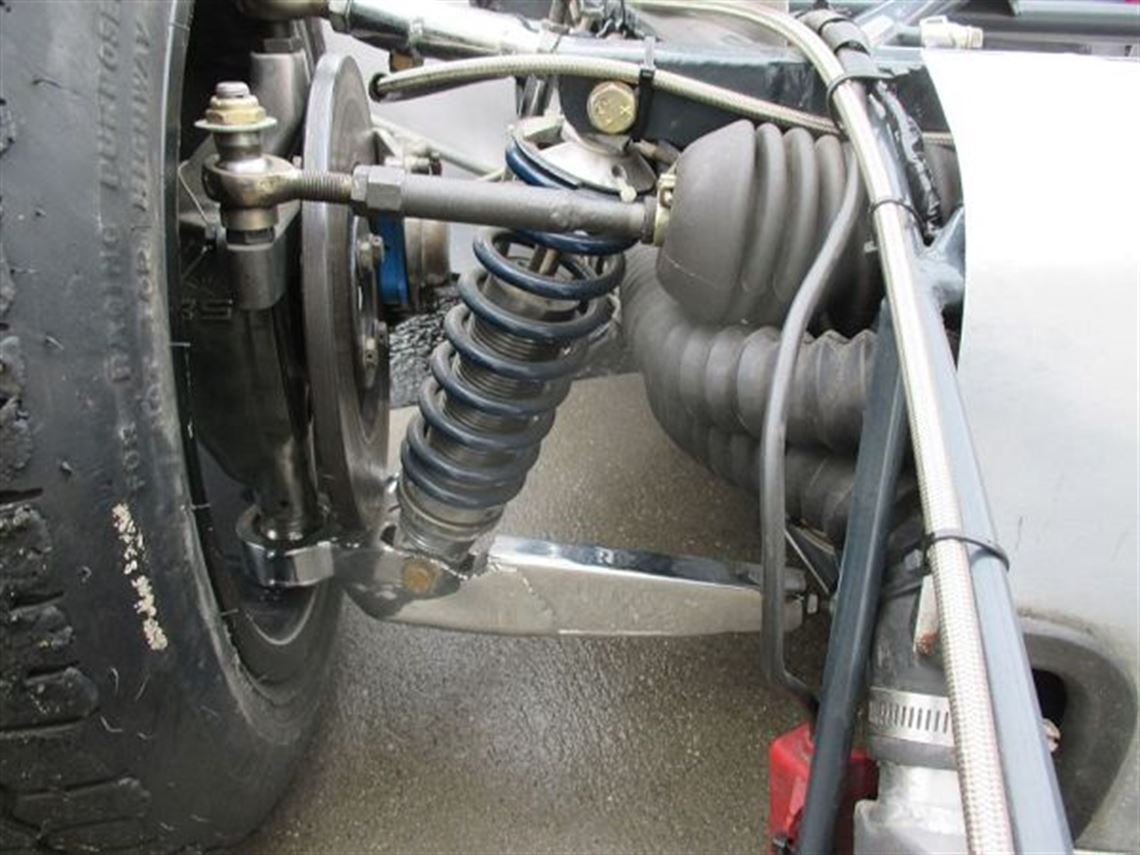

• unequal length A-arm with adjustable anti-roll bar and coil-over shocks

• trailing arm with adjustable anit-roll bar and coil-over shocks

• Carrera

• 4 wheel disc

• rack and pinion

• 1 set: American Mags, 2 sets: Revolution

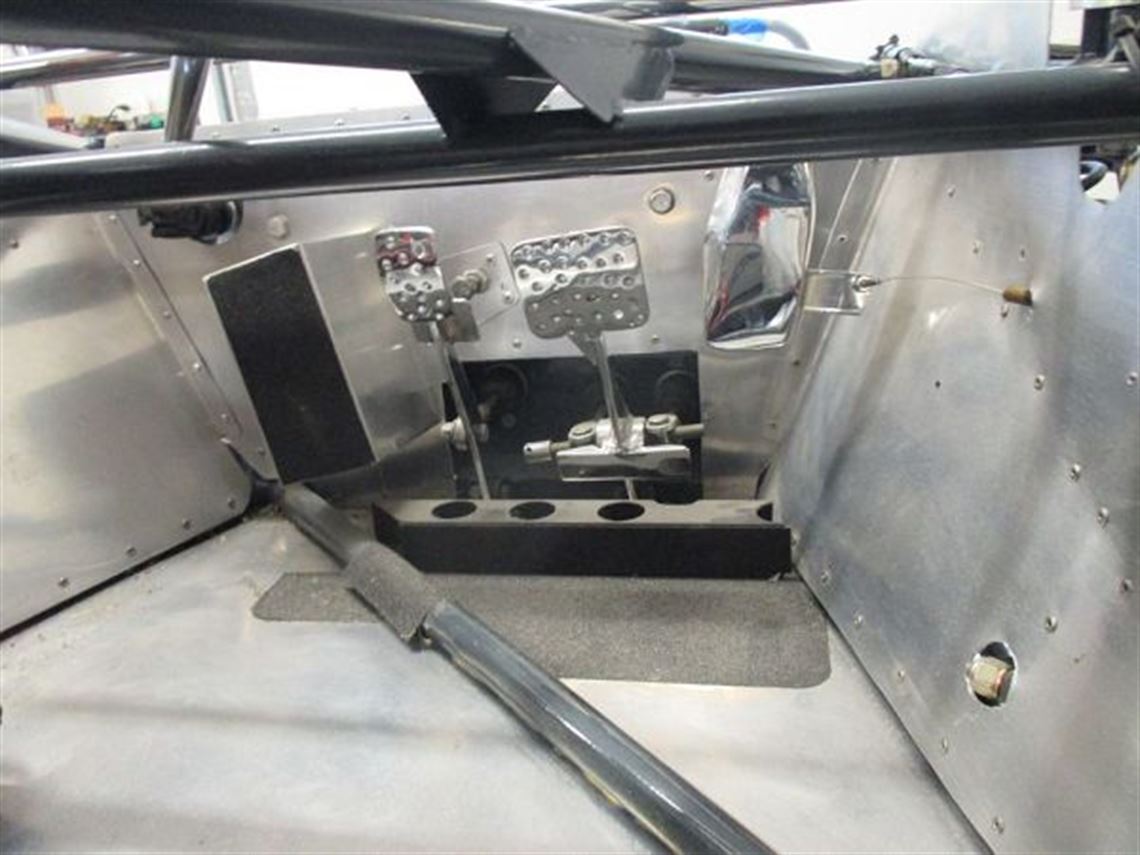

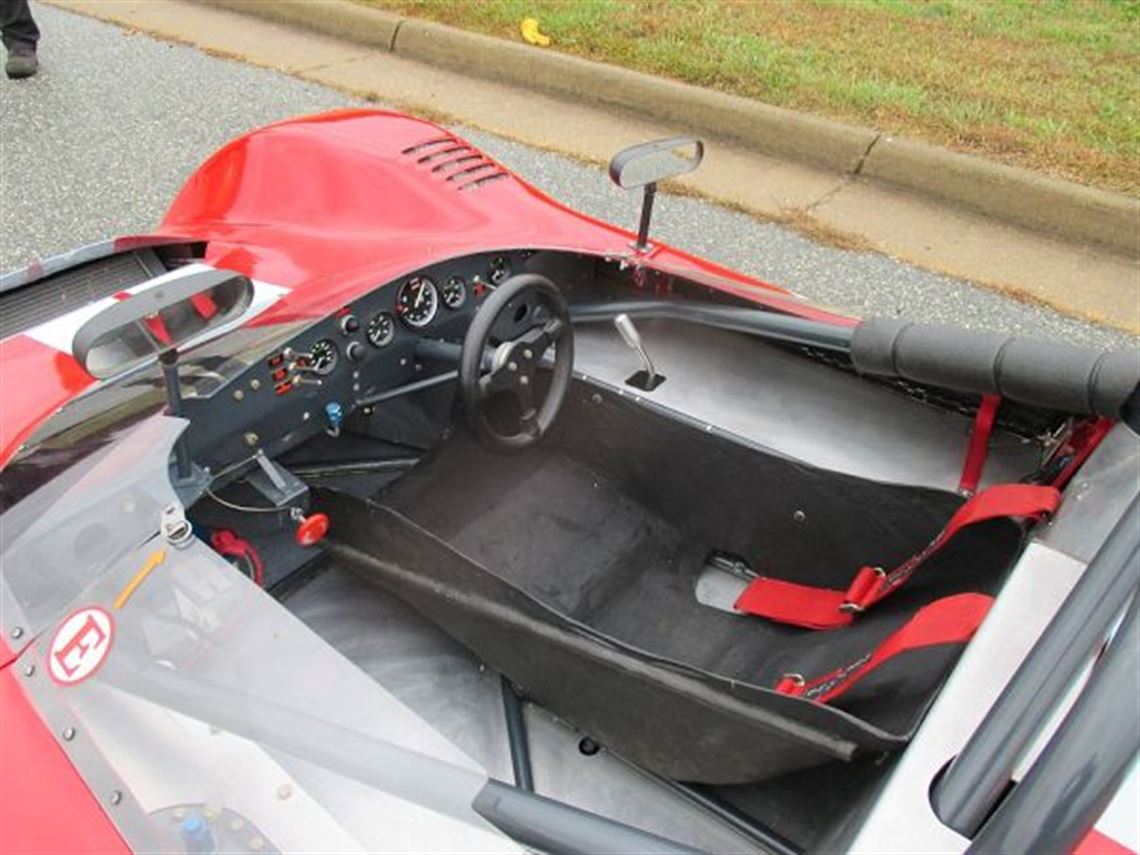

Interior

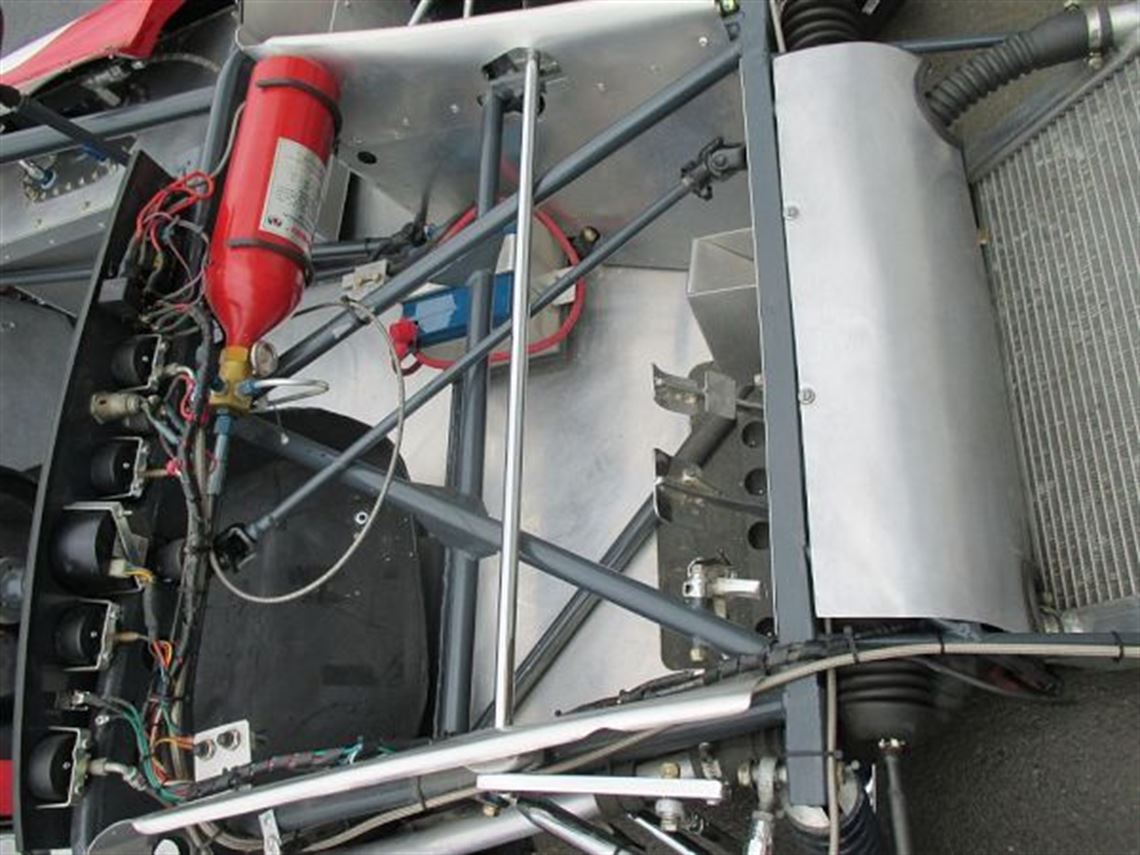

• Phoenix fire system

• New- mechanical with electric Stack tachometer

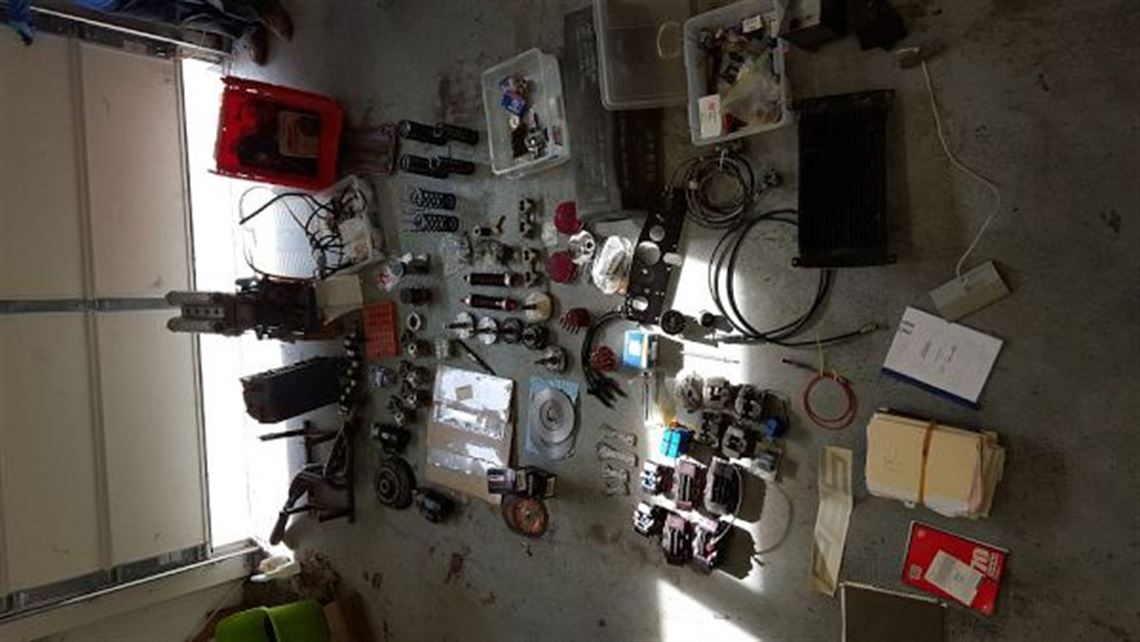

Spares

• 1 1530cc long block PBS DOHC 16v 8 hours

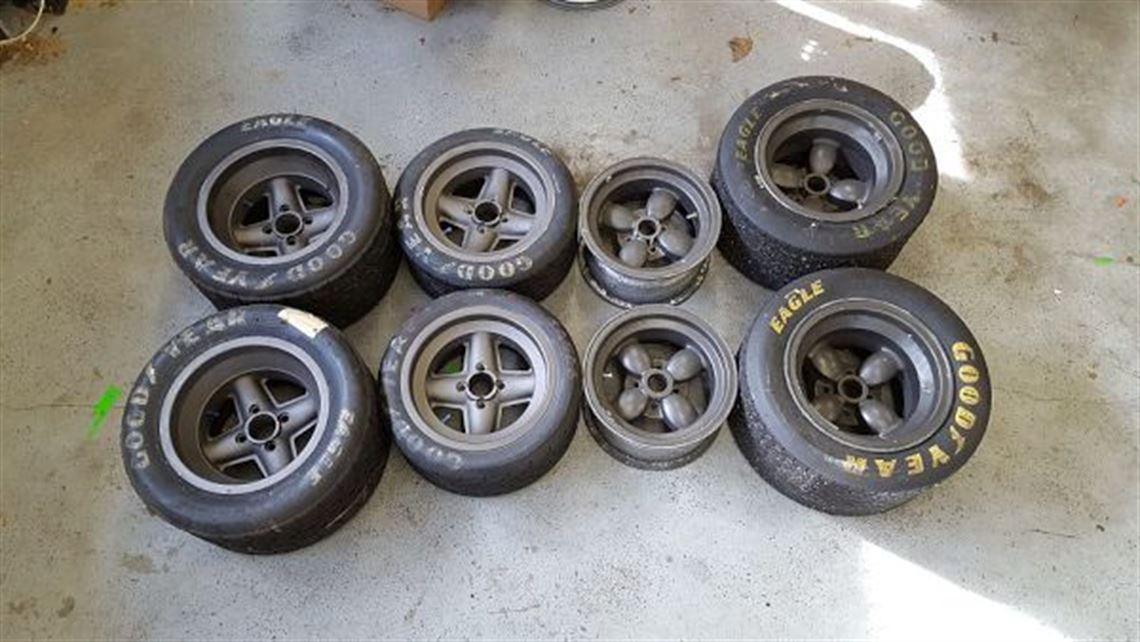

• 3 sets of wheels

• 1 1300cc short block ready for PBS DOHC head

• fuel pump, ignition parts, original fuel cell

• stub axles, springs, clutch disks

• PBS oil pump, timing belts

• many brake calipers, pads, and rotors

• overflow tanks, radiator, engine stand, and much more
