1986 Quest Formula Ford - SOLD

F1 Authentics 3

This is now SOLD. Search for similar items.

Description:


This car was restored by the owner in 1998, which entailed a complete strip down to frame, bead blasting,
and fresh light gray paint. It also received new aluminum bulkheads, there are photos available upon request
of this work.


History

This car originally raced by the USA Quest importer, Dominic Capes of Cape motor Sports. Pat Prince of
Prince Race Cars has jigs for the suspension wishbones. After the rebuild the current owner has put about ten hours
total time on the car attending Safe Motorsports Inc. track days. The car meets SCCA specs, except it lacks the crushable nose section
which is easily fabricated. A similar car was used by Johnny Herbert to win the Formula Ford Festival in 1985.
The designer of this car Mike Thompson went on to design for Chevron.


Competition History

The owner has run the car at Safe motorsports Inc and, track days at Sebring, Moroso, and Homestead.

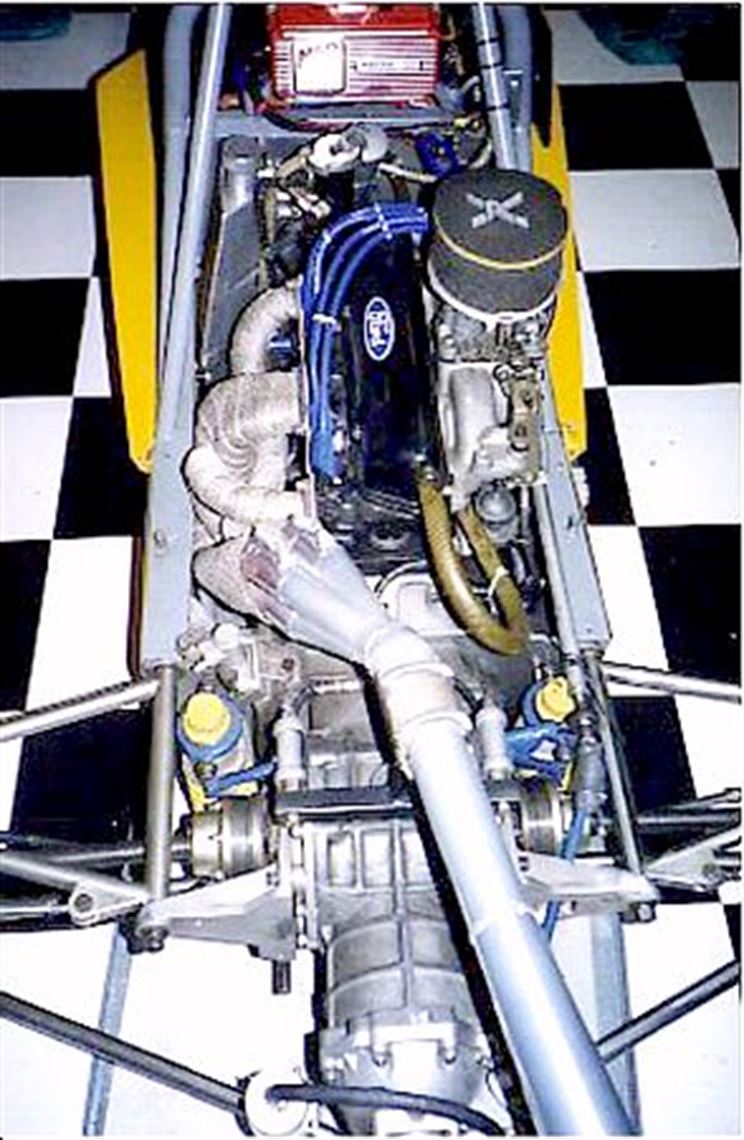

Engine

  • Farley Ford Kent 1600cc
  • exhaust megaphone is Jet Hot coated
Fuel System

  • fuel cell behingd seat encased in aluminum
Oil/Water System

  • dual side pod water rads
  • dry sump oil system
Electrical System

  • Bosch points system slaved to MSD
  • electronic ignition with soft rev limiter
  • wired for external starter battery via quick disconnect plug
Body

  • fiberglass body panels and nose, side panels lined with Kevlar as per SCCA specs
  • yellow paint, some chips and nicks

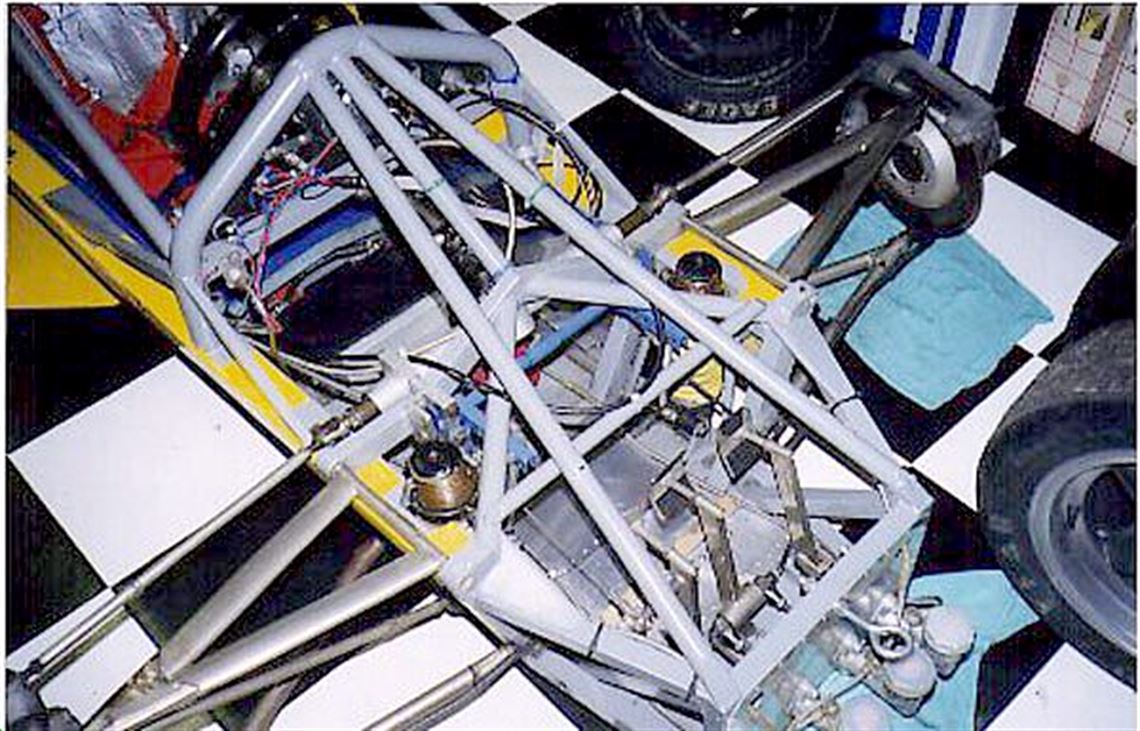

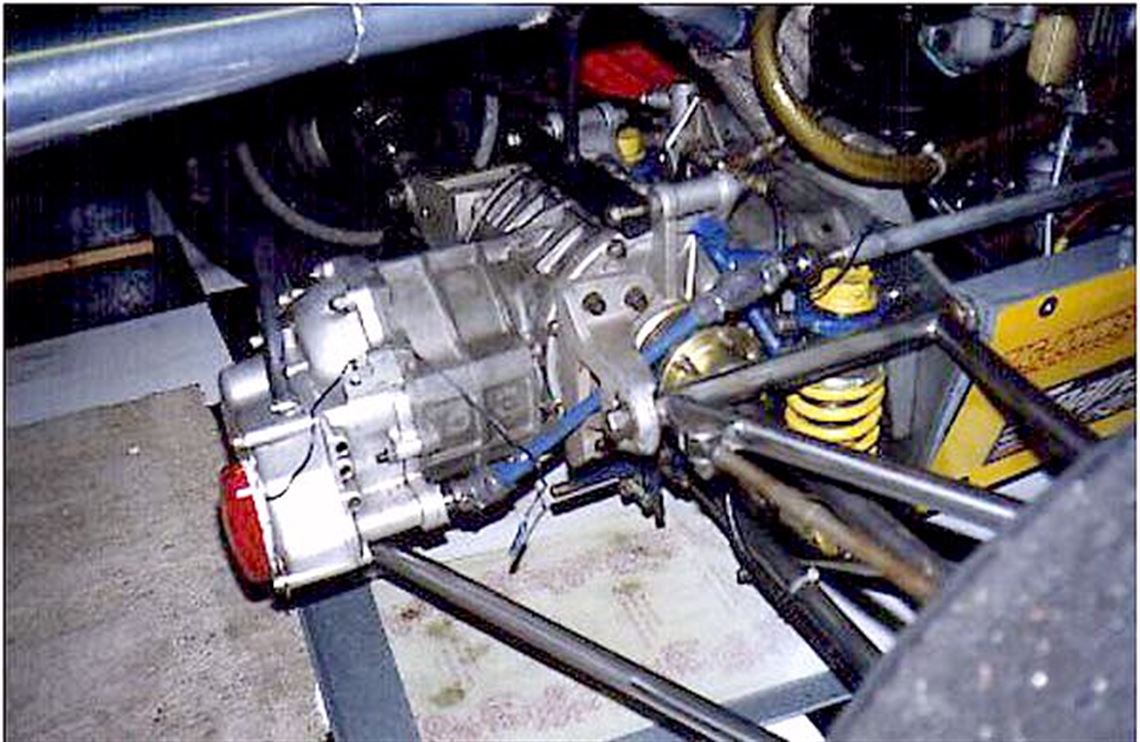

Chassis

  • gray painted steel spaceframe
  • Spax rear, Koni front
  • pull rod inboard damper/spring assemblies
  • pull rod inboard damper/spring assemblies
  • rack and pinion
  • front and rear disc, Lockheed calipers, dual master cylinders with cockpit brake balance adjust
  • Revolution alloy wheels, polished rims, Hammerite gray centers, mounted Goodyears
  • approx 900 lbs

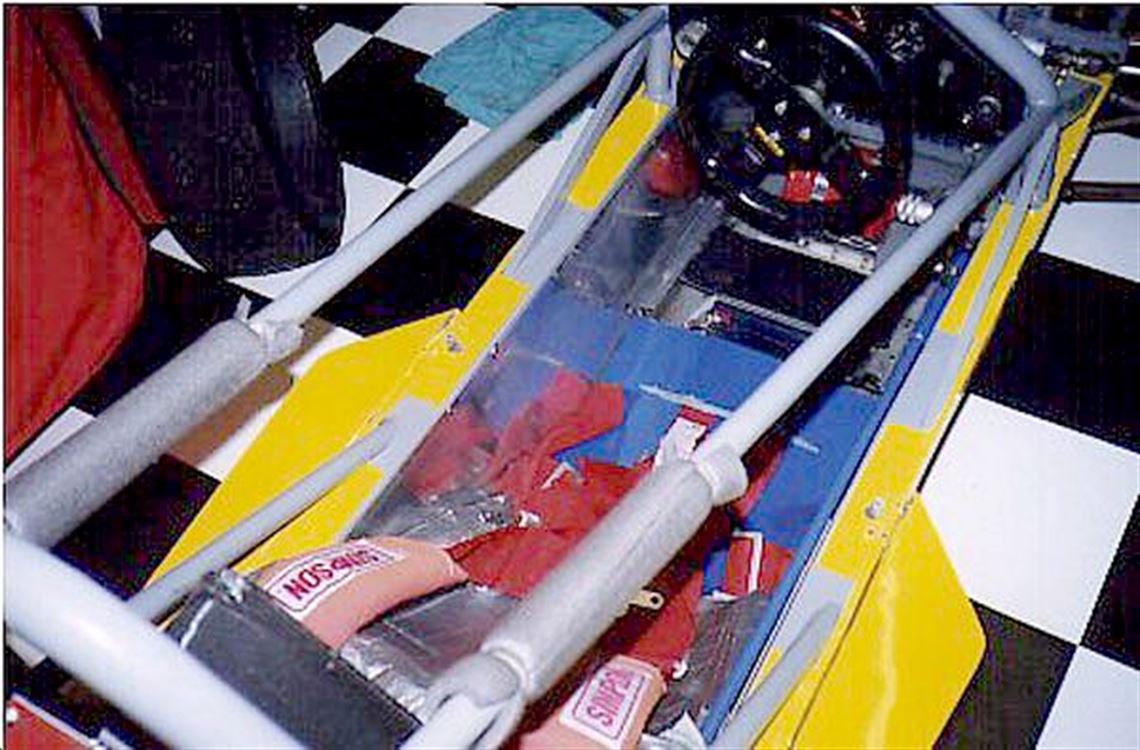

Interior

  • cockpit lined with aluminum panels
  • Simpson 5 point harness
  • Electronic tach, oil, and water temp gauges
  • Momo Leather steering wheel
Spares

  • complete rear body assembly
  • spare side pods
  • mold to manufacture nose pieces
  • one set of Revolution wheels
  • starter battery
