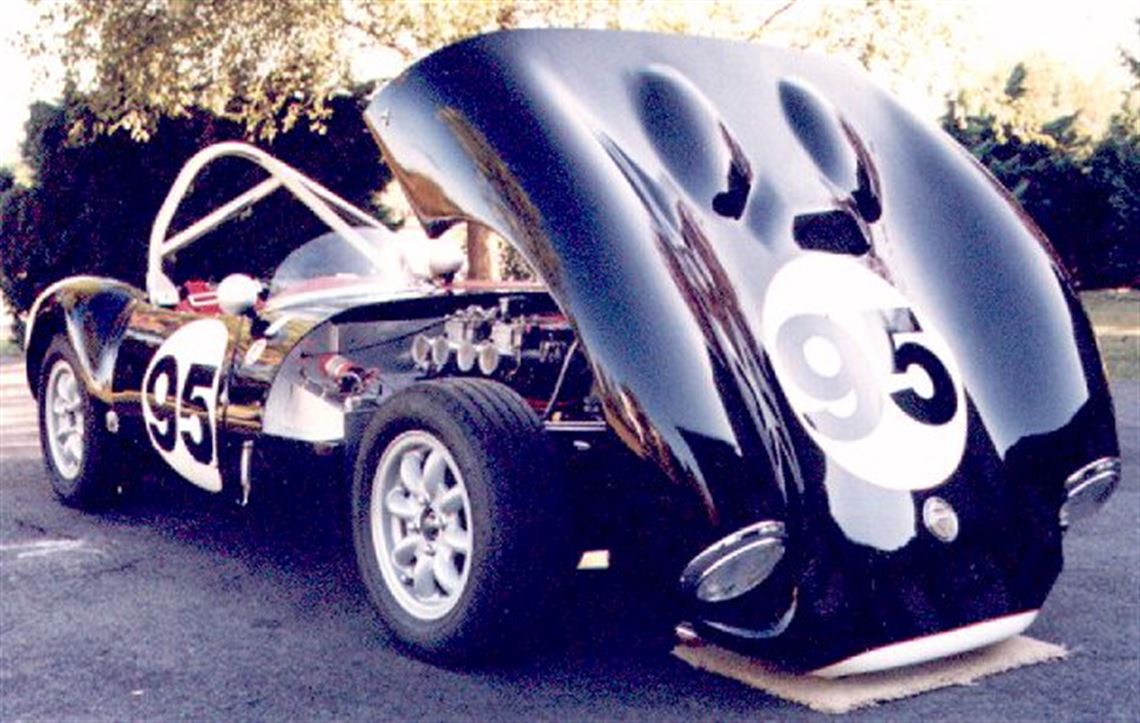

Description:

A well-known car for the last 15 years in US historics, the current owner has just completed a total
restoration to perfect condition. With only one race since completion, it is poised for many seasons
of trouble-free competition. The owner is so in love with the engine that the car is also available as
a roller.


History

The car was raced in England by Nick Crocker, of Sollaton Totnes, Devon.
It was bought in the mid 80s by Hank Manley III of Manley Valves
Engineering. He raced the car with the SVRA and HSR throughout
the late 80's and the early 90's. The car was then bought by Randy Lentz
in the mid 90's. The current owner bought the car in 1996 and began
a restoration which was carried out through 1997 and ending in 1998.



Competition History

The car has only been raced once sine the restoration was completed.
It was entered in the RMVR event at the new Pikes Peak International Raceway.
The owner did not get a qualifiying time so had to start dead
last in a field of 35 cars. At the halfway point of the race he was in 7th place
when the exhaust cam broke. Both cams have been replaced
with two new Bean ZL1 steel billet cams.

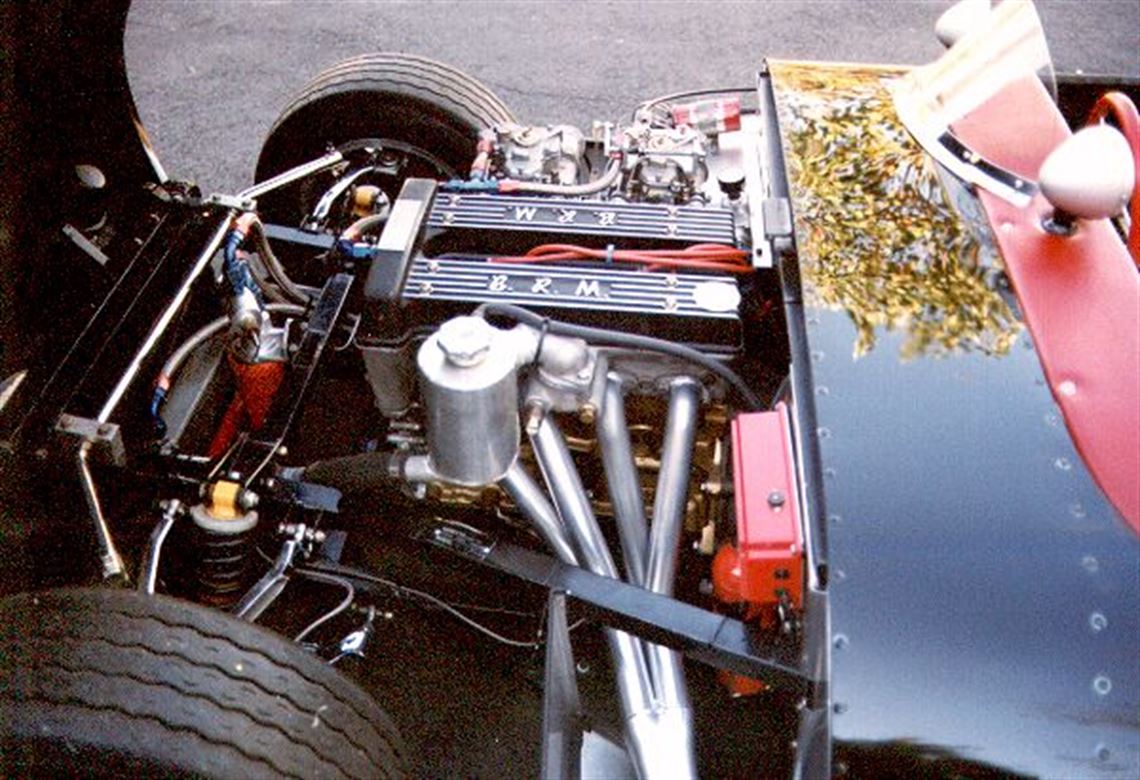

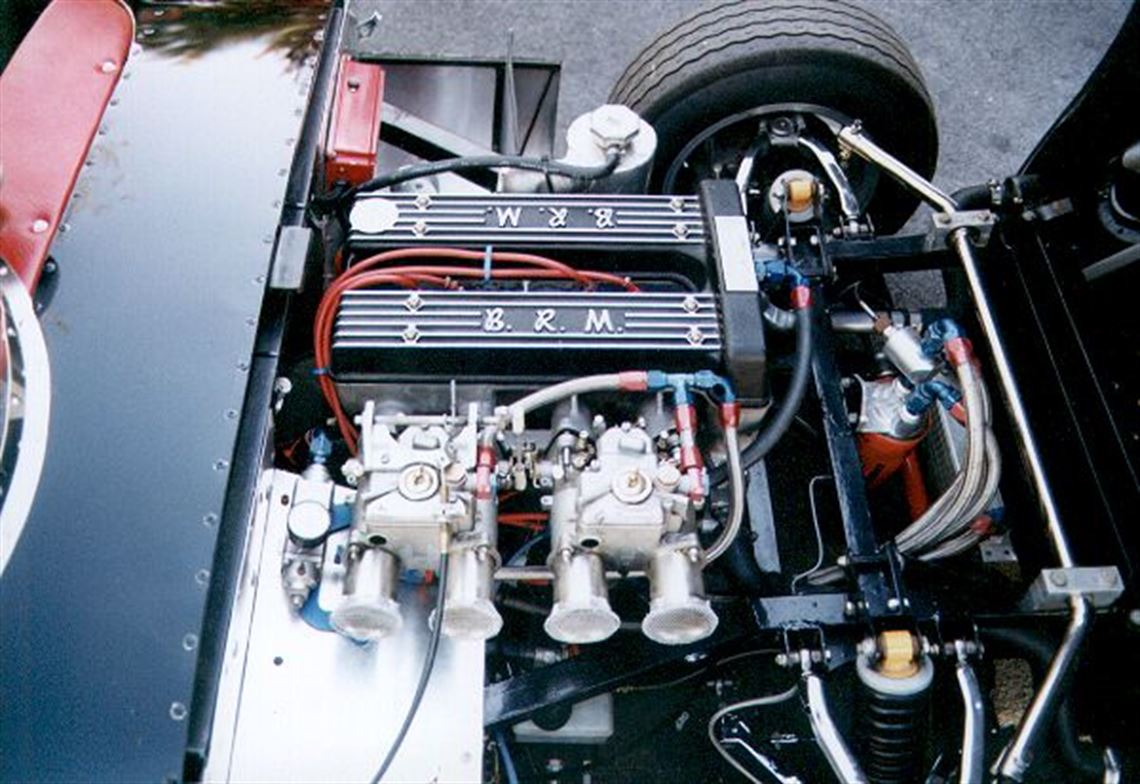

Engine

• BRM-LOTUS twin cam 185hp.

• BRM developed head

• Brian Hart big valves 1.69 Inlet 1.44 Exthaust

• stainless steel buckets

• trick spring pack

• ZL-1 Seel billet 4.76 cams

• Weber DCOE 45's

• 711M FORD block

• Mahle pistons

• Farndon steel crank and rods

• Vegentune steel caps

• Aluminum flywheel

• Tilton clutch

• superstarter

• Cosworth oil pump

• dry sump

• Custom exhaust system, Jet coated

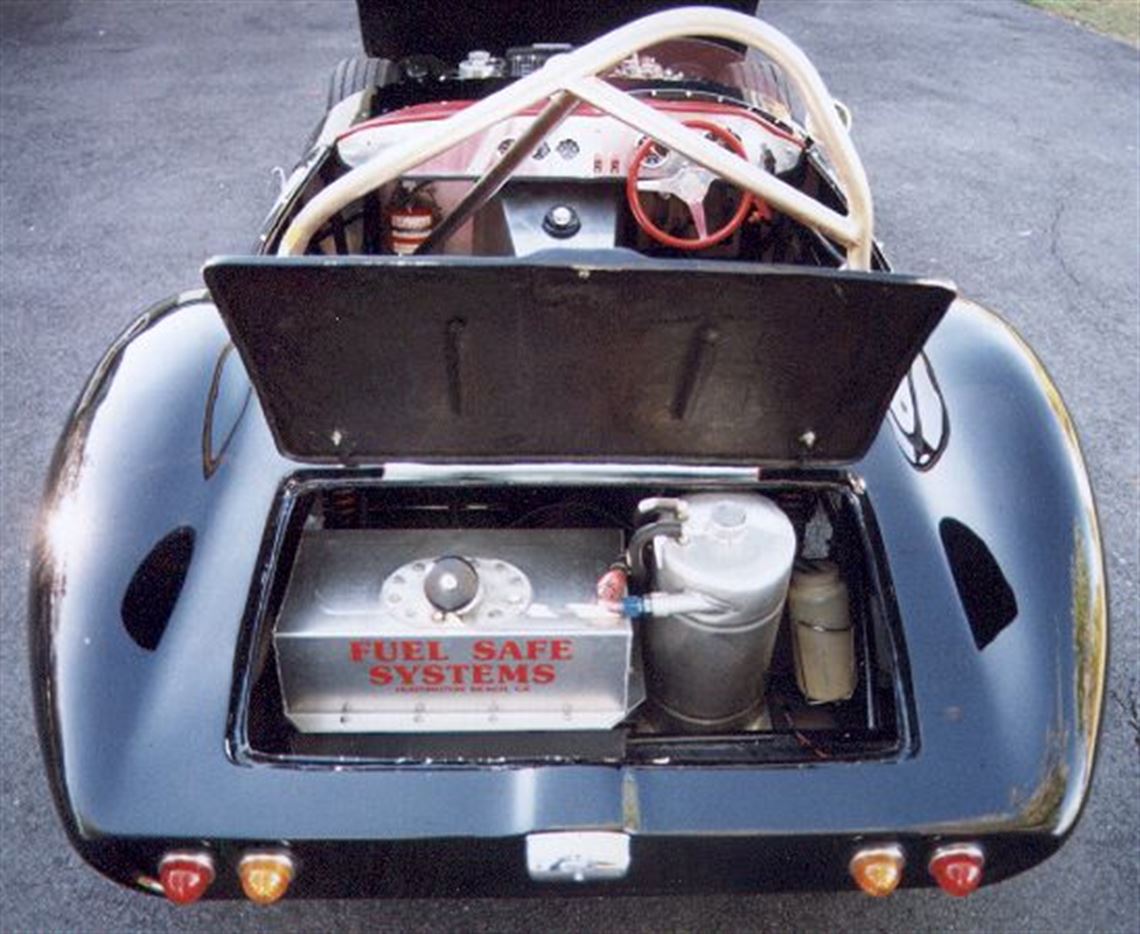

Fuel System

• Fuel Safe System cell, 5 gal.

• aeroquip lines and fittings


Oil/Water System

• aeroquip lines

• oil cooler

• large radiator.


Electrical System

• 6al MSD with rev-limiter chips

• custom fuse box

• master cut-off


Body

• G4 fiberglass and aluminum

• alloy scuttle, floors, footbox, dash, doors

• body painted black with red interior

• alloy radot mirrors


Chassis

• G4 square tube frame

• NEW fully adjustable spax front and rear

• G4 reinforced nickel "A" arms, high grade heims, billet large axles, alloy hubs, 1 inch nickel plated sway bar

• Ford Cortina live axle located by heimed nickel plated trailing arms and "A" bracket

• Mini rack and pinion, heimed tie rod ends

• front: alloy girling ARs, rear: alloy girling DRs converted from drum, all lines and fittings aeroquip

• Minilites Magnesium 13 x 6, Hoosier A70-13 TDs

• 1140 lb.

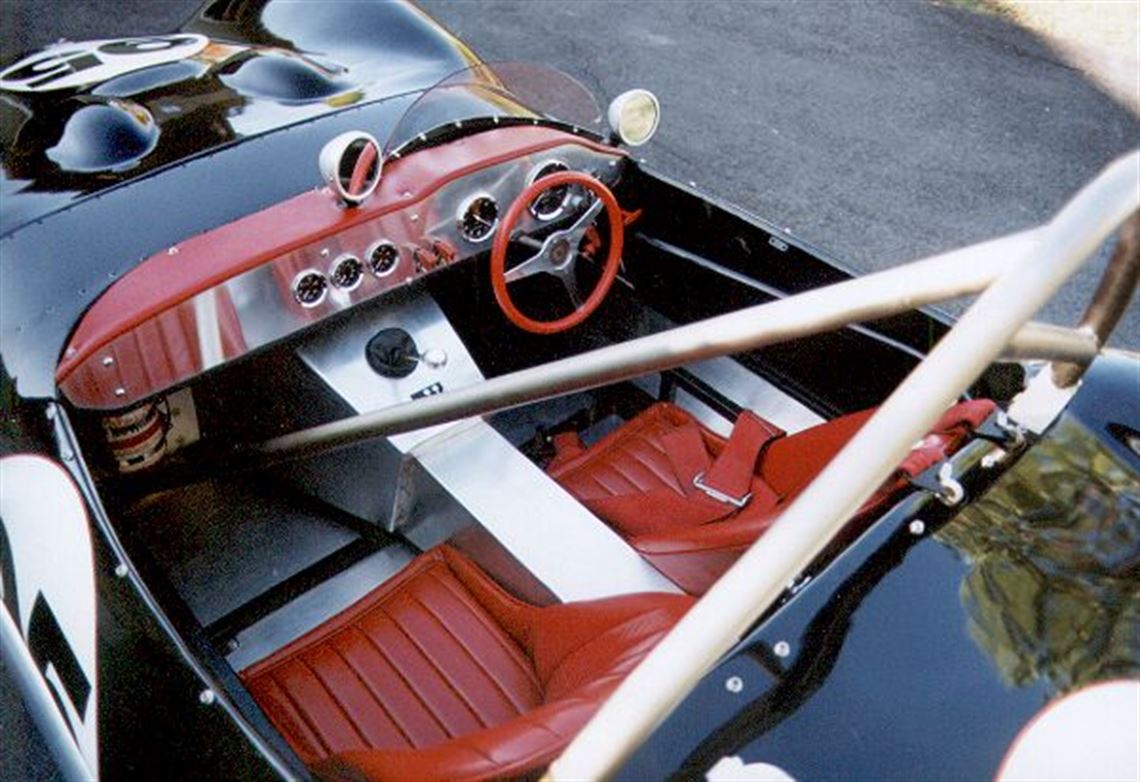

Interior

• polished aluminum

• red dash pad

• red seats

• red alloy spoked steering wheel

• 5 point restaint system

• halon fire system

• lucas chronometric tacho

• guages

• air craft switches


Spares

• none

•
