Description:

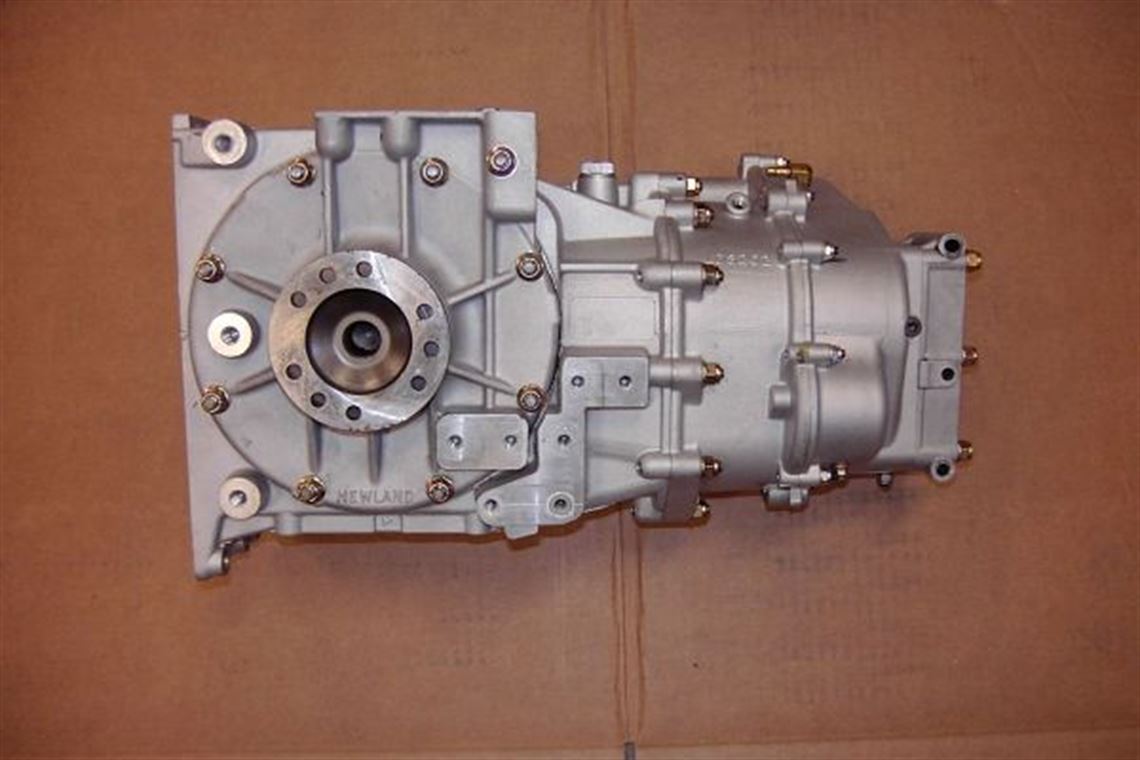

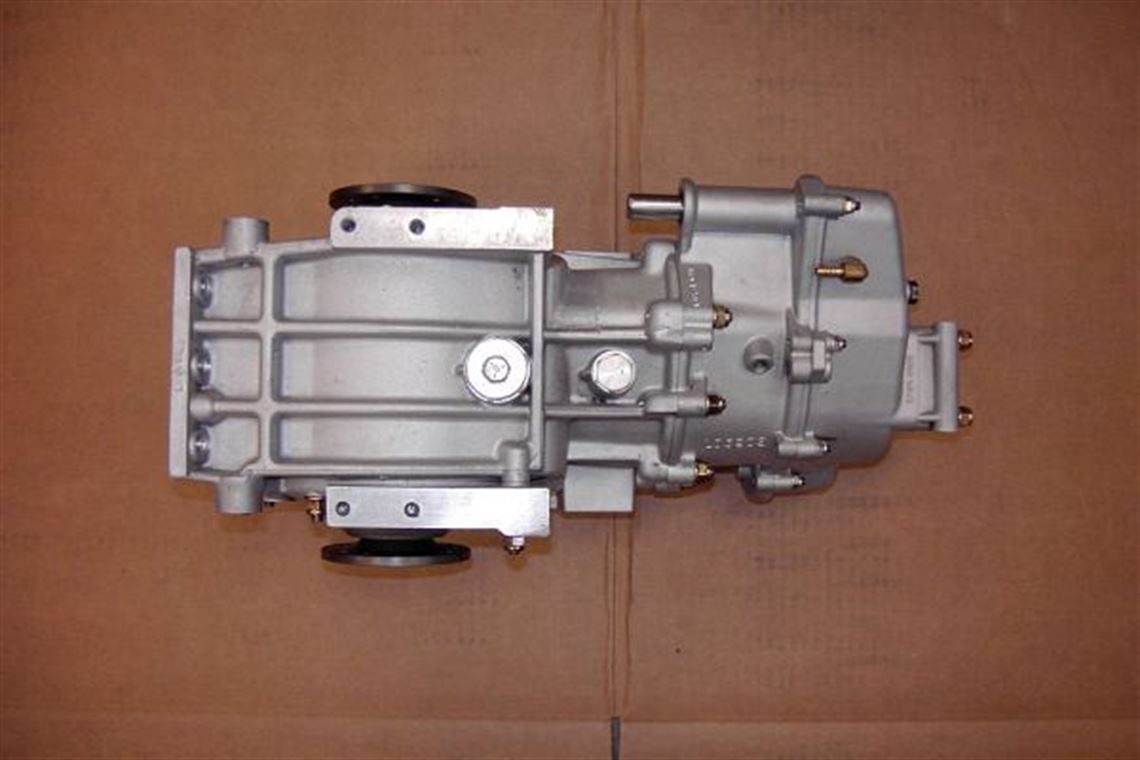

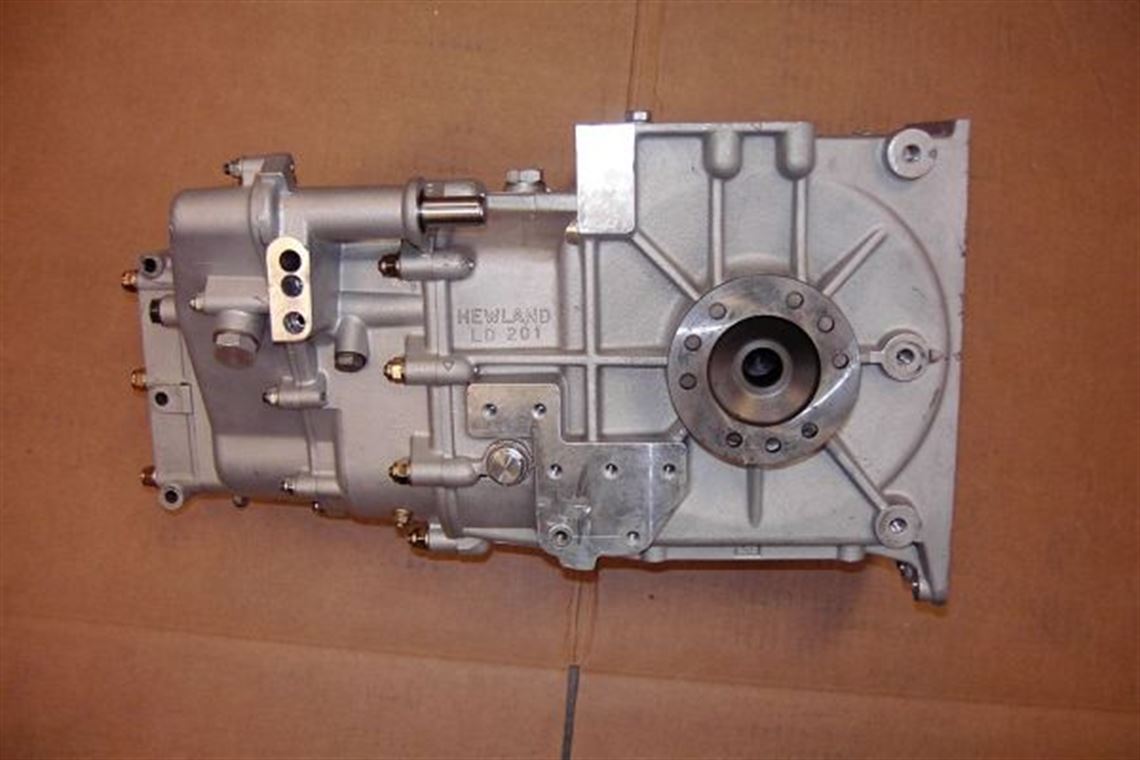

LD-200 5-speed Gearbox. A direct replacement for a 4-speed. This gearbox is fresh from Williams Racing Developments. It is equipped with a Quaife Limited Slip Diff. and the following parts are NEW Hewland and it has not been used since their installation. 10-31 Ring and Pinion, Shift Finger, Input Shaft (Clutch Shaft) bearing,seal and O-rings 1 st. gearset (Ratio 14-36) and Many internal bearings and seals as required. This gearbox has no repairs for cracks or external damage. The Quaife was serviced and inspected by Taylor Race prior to installation. The drive axle flanges are drilled for both TriPod or CV joint applications. This is the Late style main Case with All mounting points. It is 100% ready for service in any car set-up for a 4 speed or 5-speed LD. To convert from a 4 speed to this 5-speed no changes are needed to the shift linkage or mounting points.


History

This unit was prepared for the 2010 season but I sold my car before it was needed. Shipping will be at Buyers Expense and any crating and all customs and duty cost will be paid by buyer.Technical Data

• 80 L lbs


Transmission

• Hewland

• LD-200 5-Speed with reverse.

• 1st. gear ratio 14-36 (New)

• H pattern.

• NA

• 0 since service

• Great Gearbox for any small Formula Car,Sports Racer,Track Day car or Light Road Car and a direct replacement for any LD-200 4 speed.


Rear End

• Hewland/Quaife

• Limited Slip.

• NA

• 10-31

• Quaife

• 0 since service


Spares

• none
