Description:

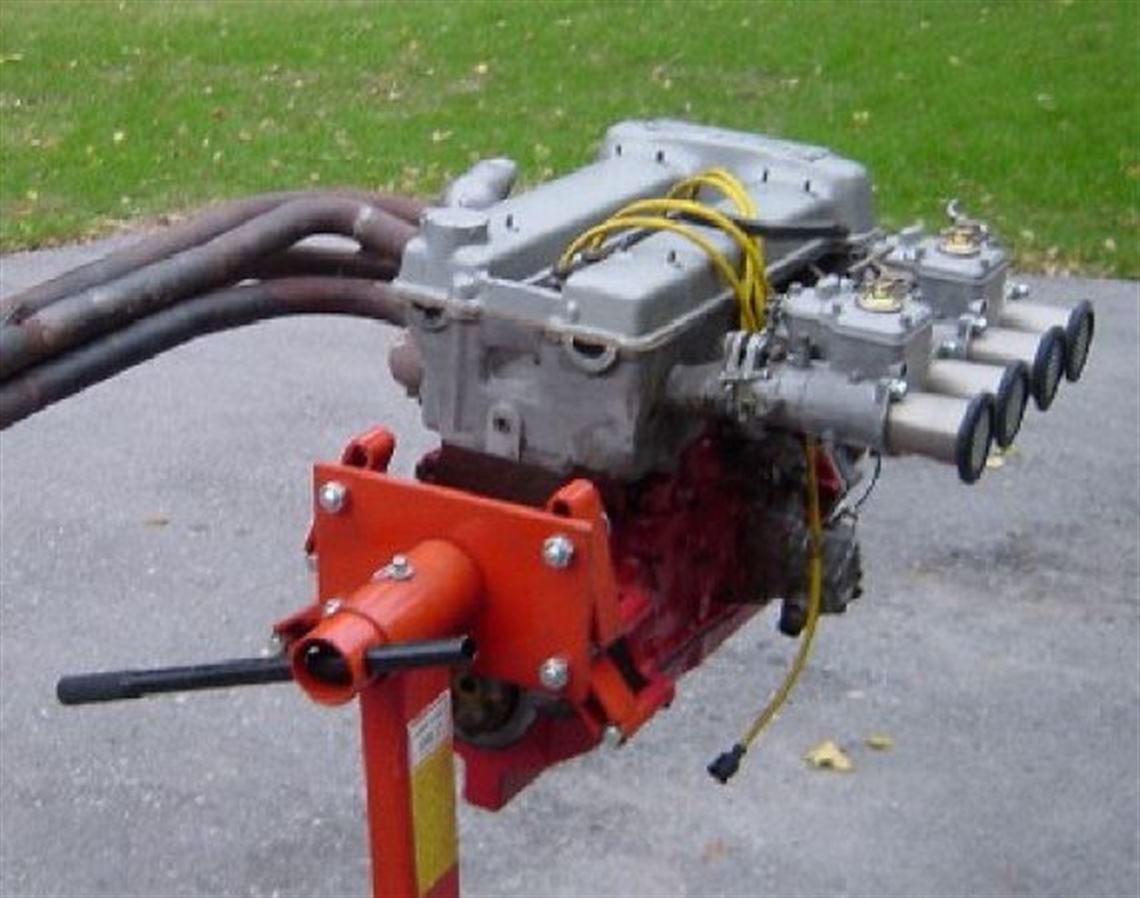

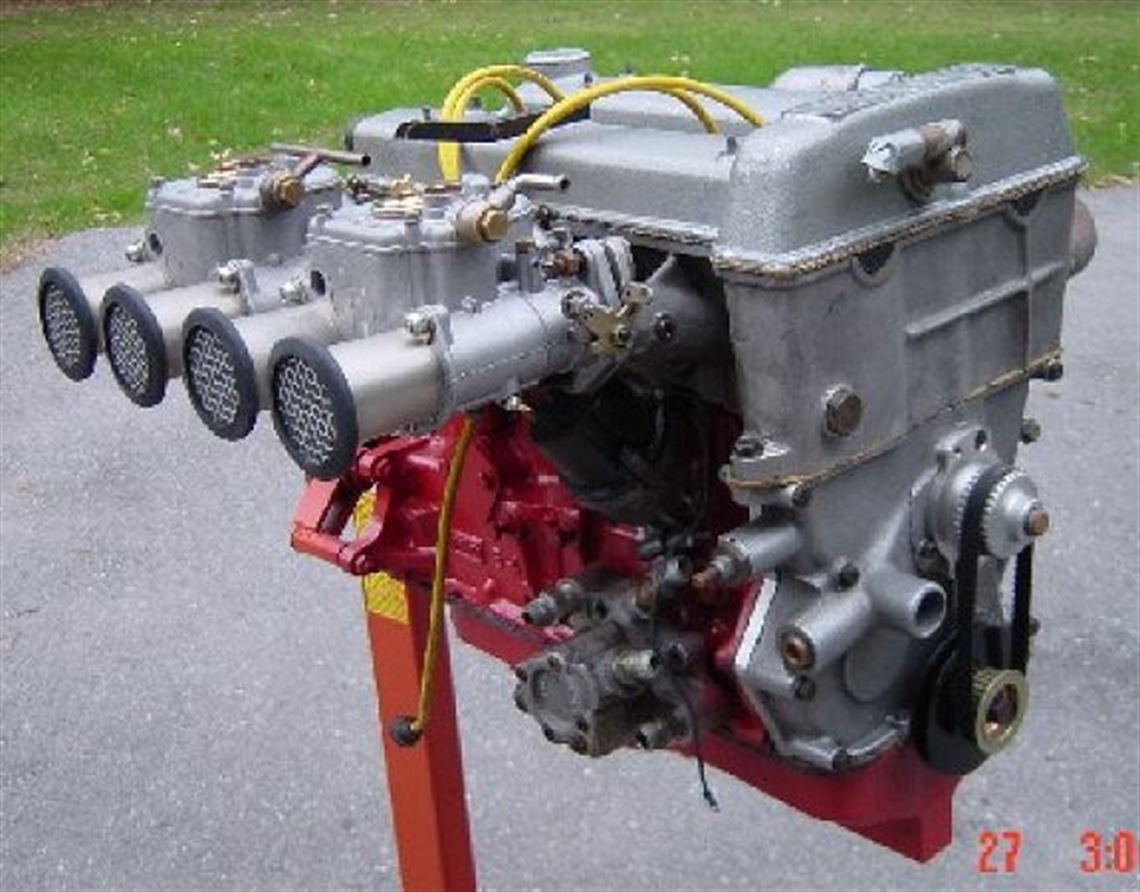

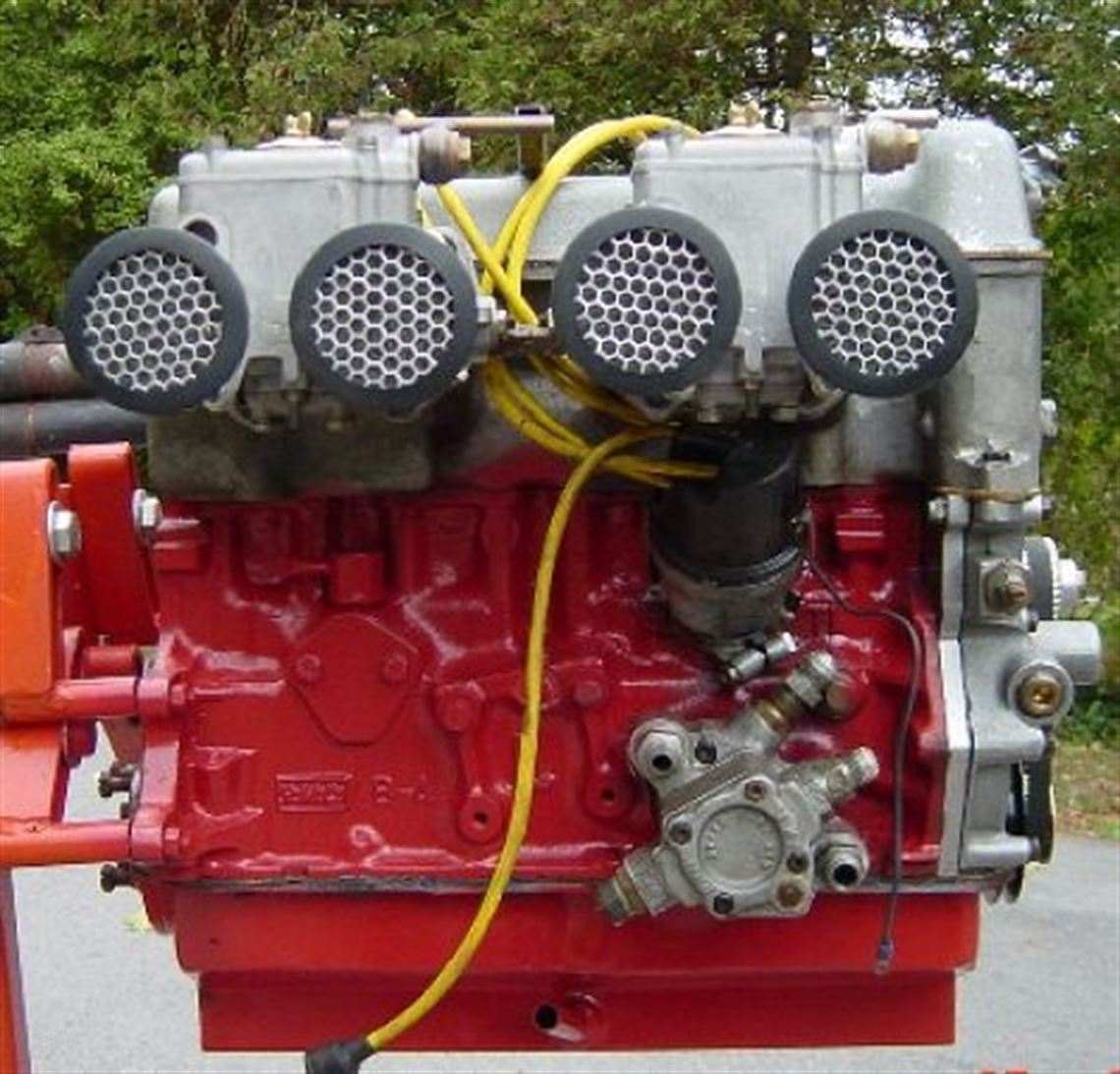

Very low time on original build Hart 416B. Only two owners, the first of whom never ran it. The second has put about 100 miles on it and has replaced all seals and gaskets.


History

The previous owner had bought the engine directly from Brian Hart and imported it into Canada with the intention of installing it into an Elan. He never completed the project and when I bought the engine from him in 1983, it was brand new, never been run and still in its original crate from Hart.Engine

• Brian Hart

• Lotus

• Twincam

• 190 bhp at 8000 rpm

• 133 lb-ft at 6600 rpm

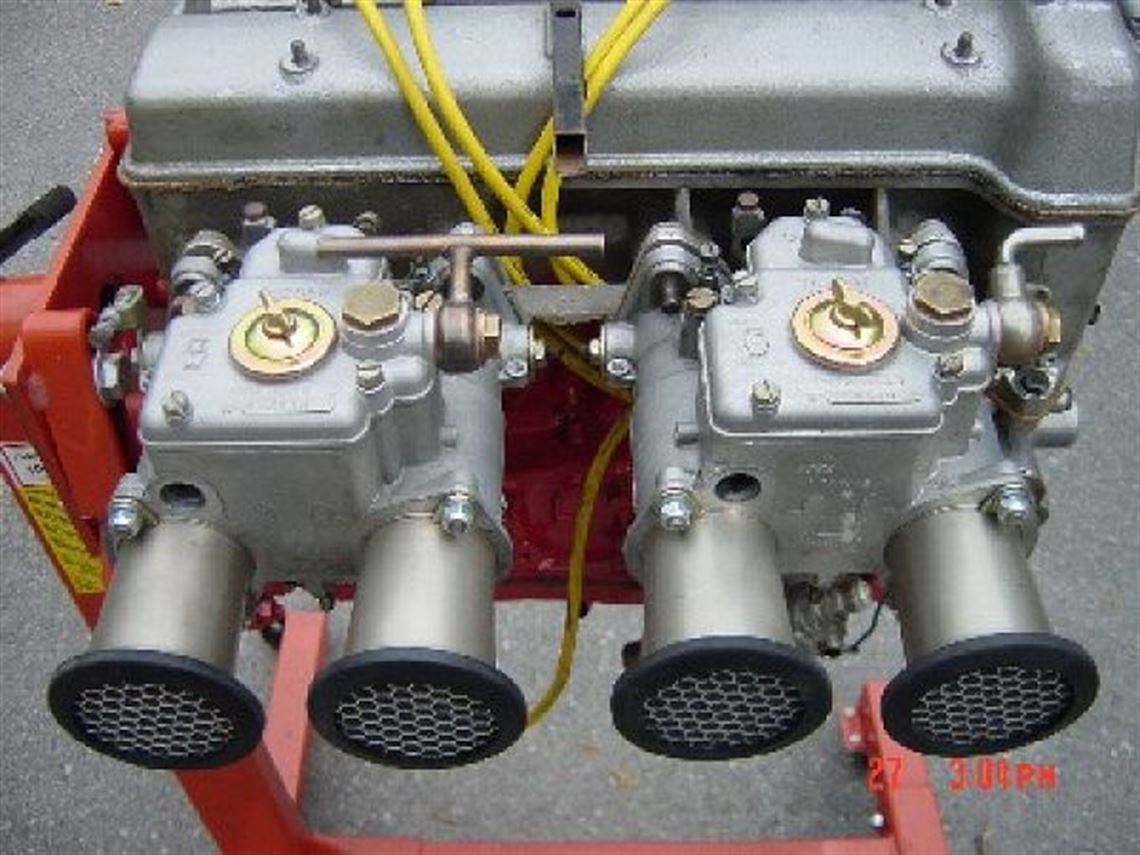

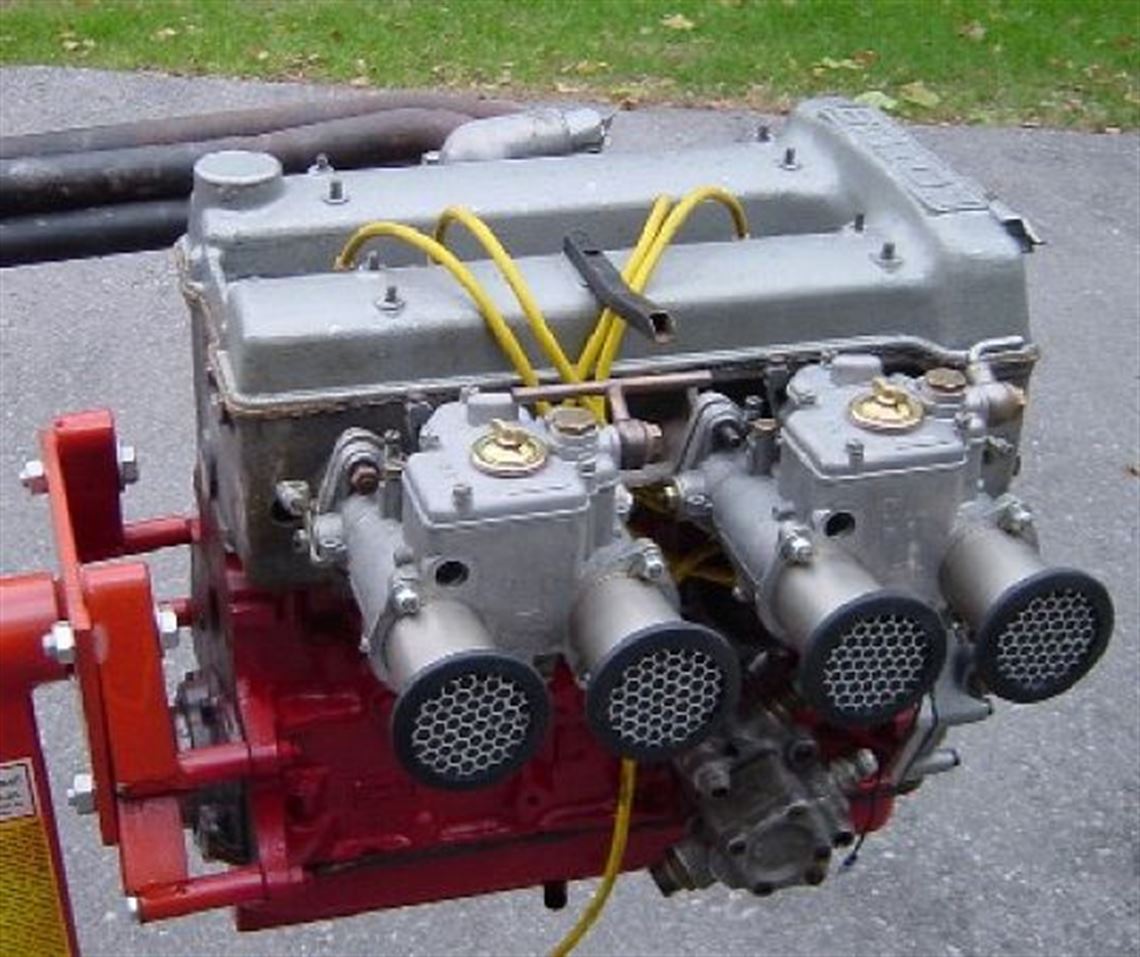

• Twin DCOE 40mm choke

• Modified Lotus 12-1 compression

• Steel capped - thick wall block bored 83.5 mm

• Nitrided steel - +0.015 bearings

• Cosworth steel rods

• Forged Mahle Racing pistons

• ZL.16, IFO 102 deg ATDC EFO102 deg BTDC

• Inlet - 1.70

• SPRINGS Special selected - fitted length 1.30

• Maximum revs: 8,800 rpm
  Maximum continuous revs: 8,000 rpm
  DISTRIBUTOR: Lucas racing type
  OIL PUMP: Dry sump - 70 psi


Spares

• none
